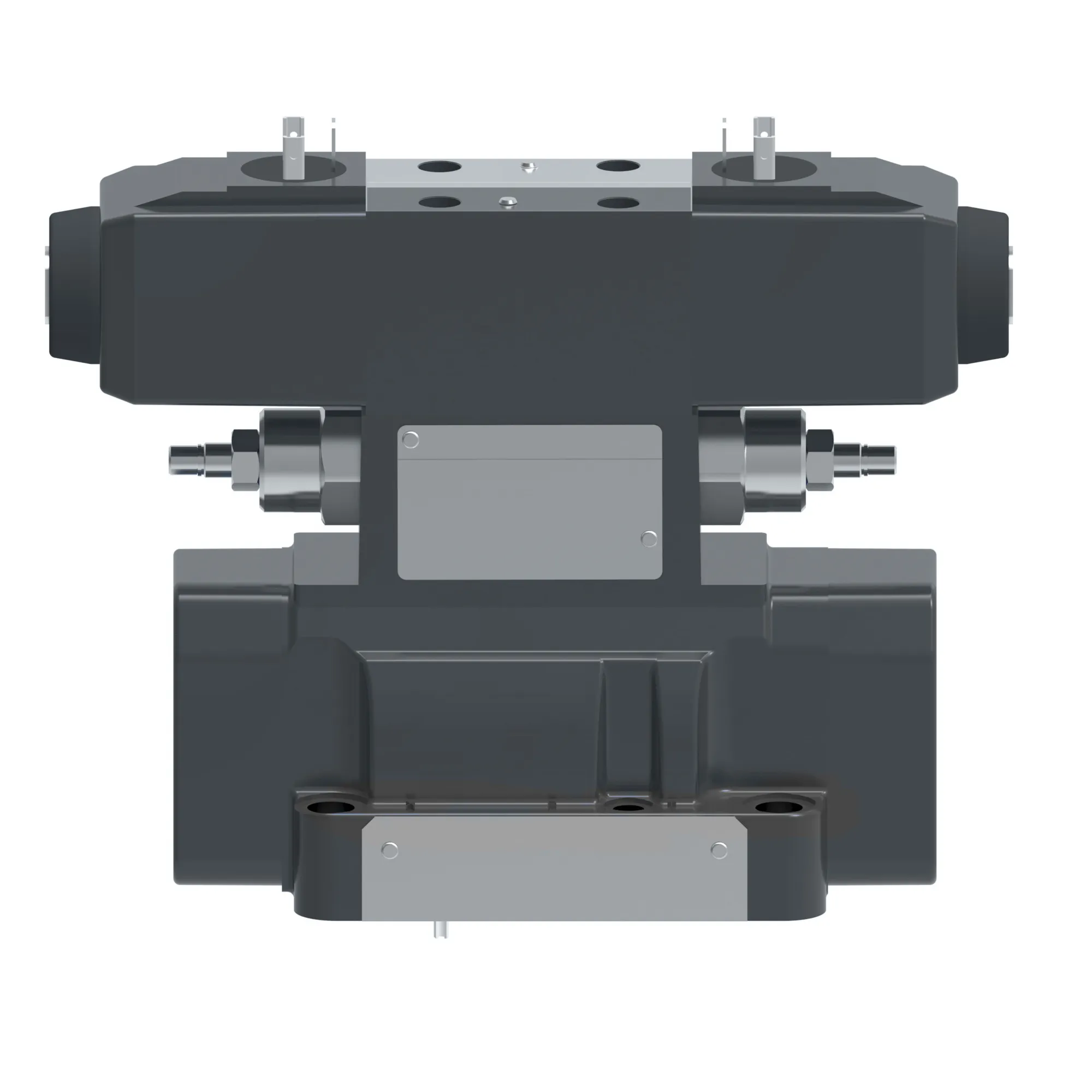

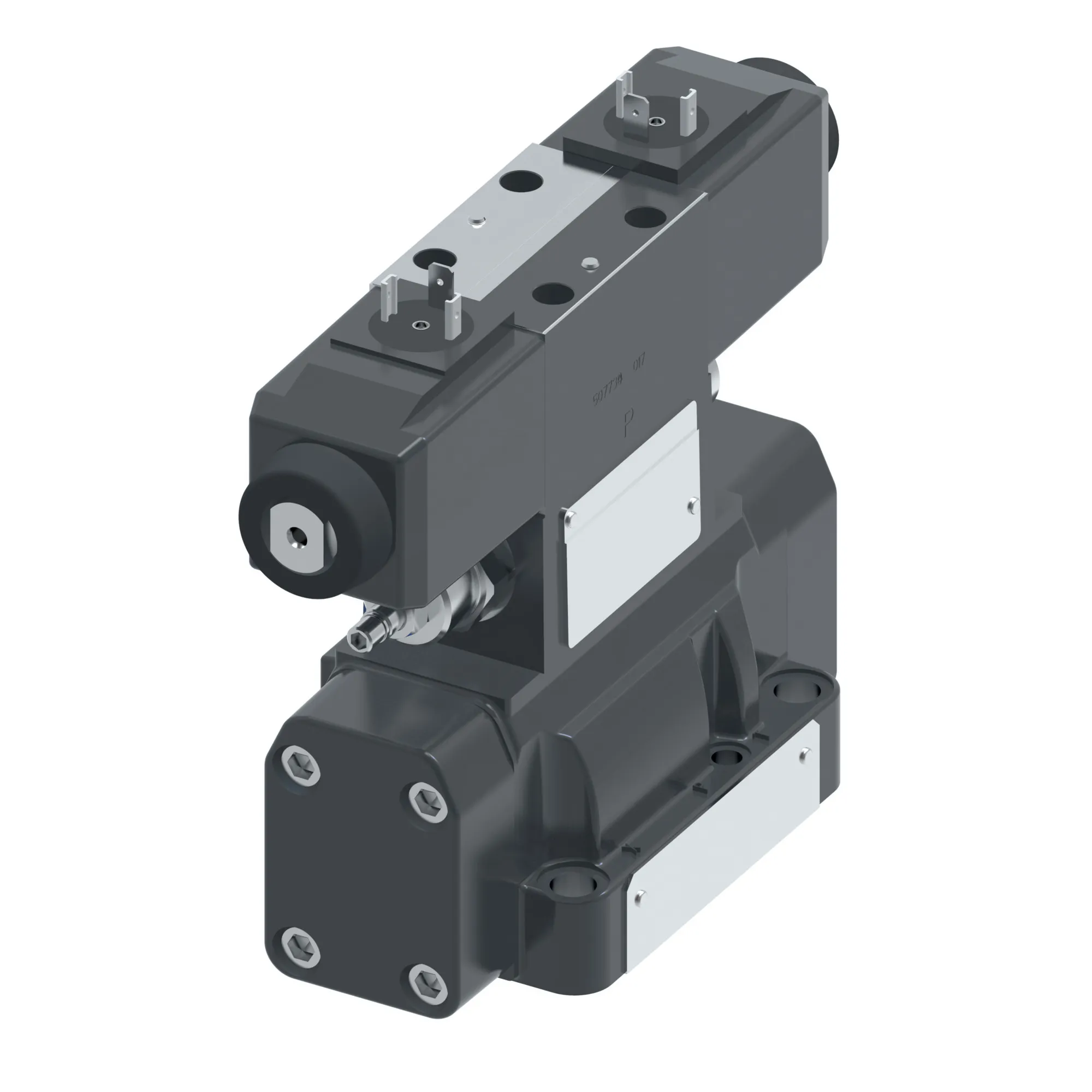

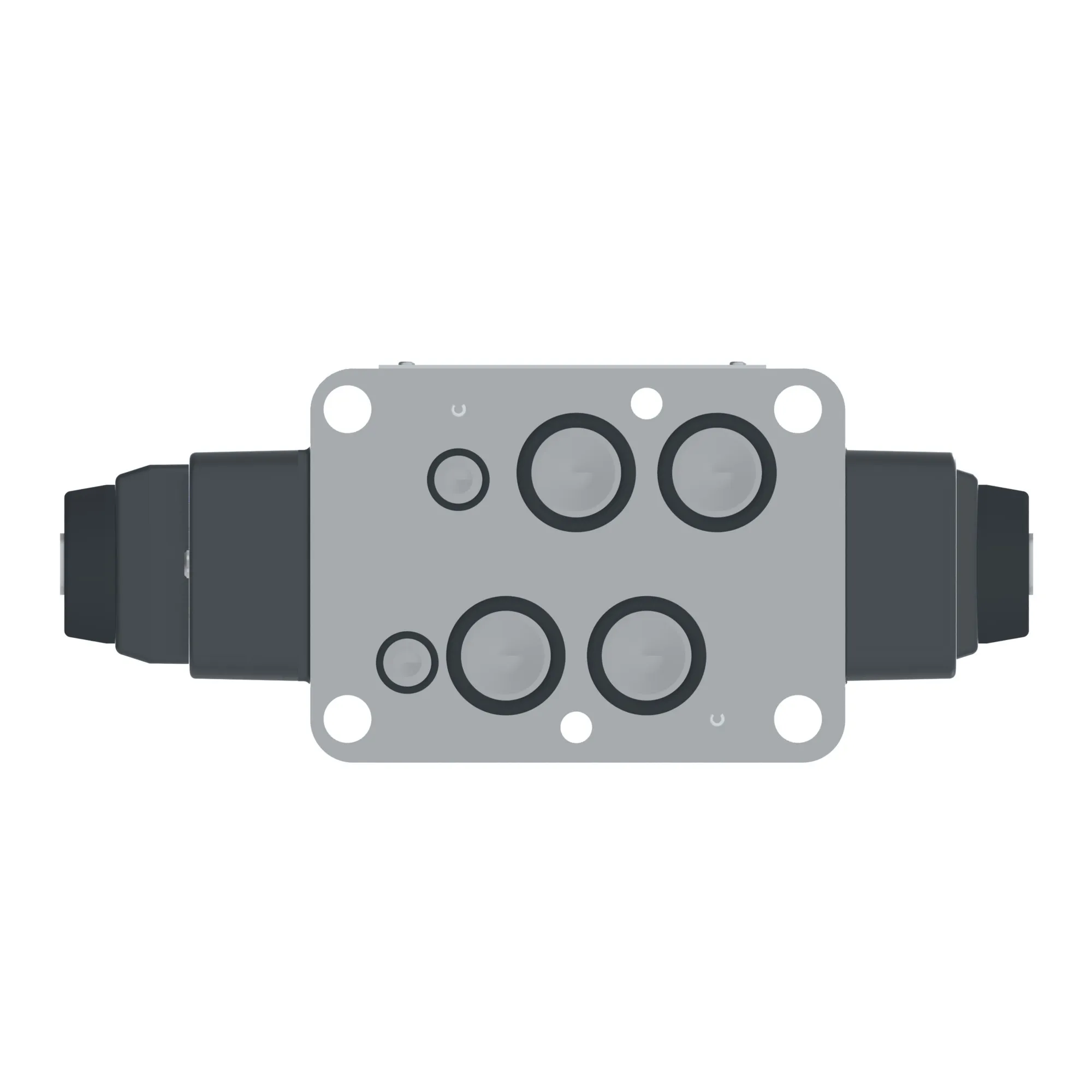

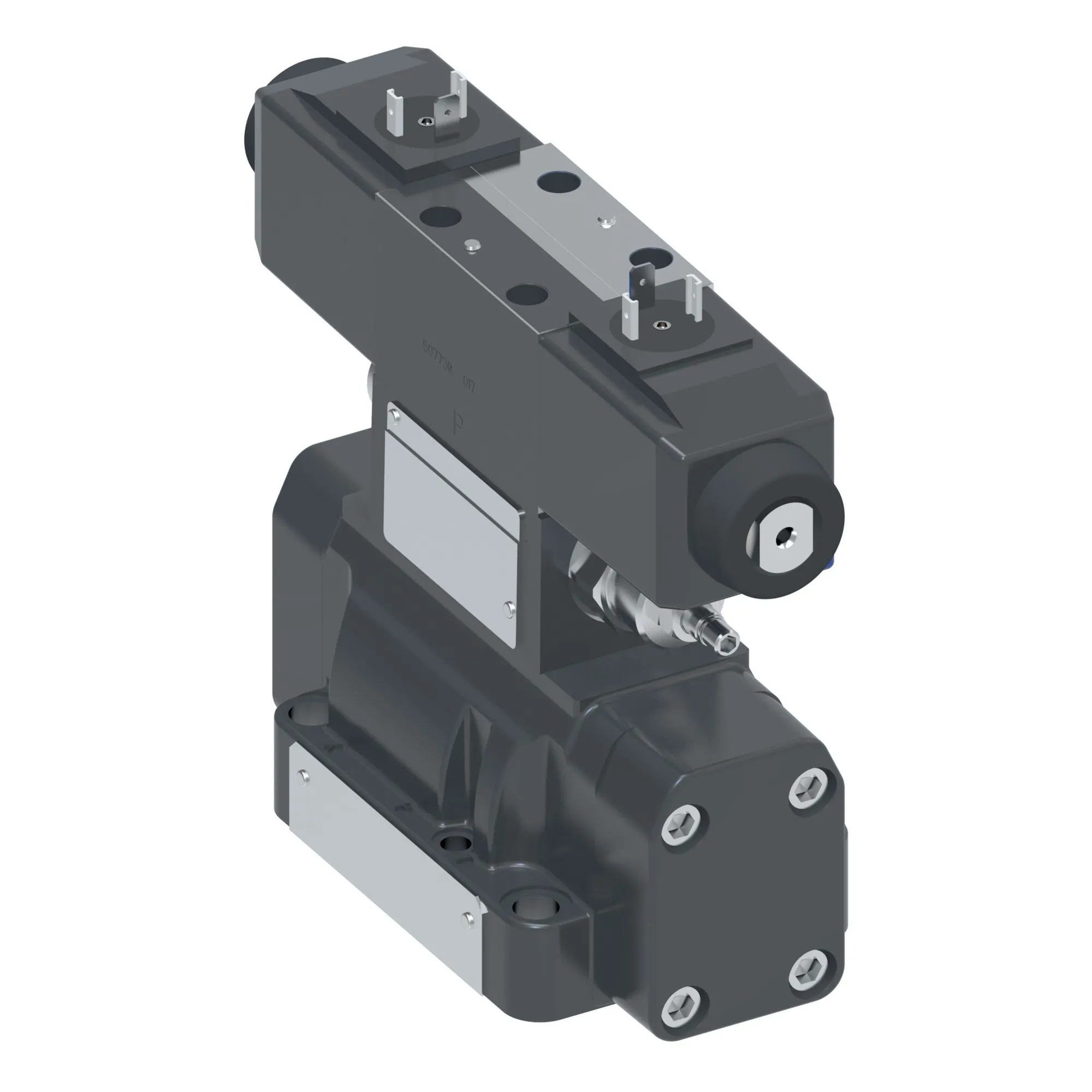

Danfoss (Drives) 02-403034
DG5S4-02-52C-H-T-M-M-U-B L6-30-EN540, DG5S40252CHTMMUBL630EN540 – 02-403034
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG5S4-02-52C-H-T-M-M-U-B L6-30-EN540, DG5S40252CHTMMUBL630EN540 – 02-403034
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Design Series | 30 Series |
| Electrical Connection | ISO 4400 (Din 43650) connector |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 115.0 |
| Flow Rate Upto Lpm | 30.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-05 |
| Manual Override | Waterproof |
| Model Code 1 | DG5S40252CHTMMUBL630EN540 |
| Pressure Rating Bar | 210 |
| Pressure Rating Psi | 3000 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Spool Type | Spool 52 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Tank Port Rating Bar | 160.0 |
| Tank Port Rating Psi | 2285 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
