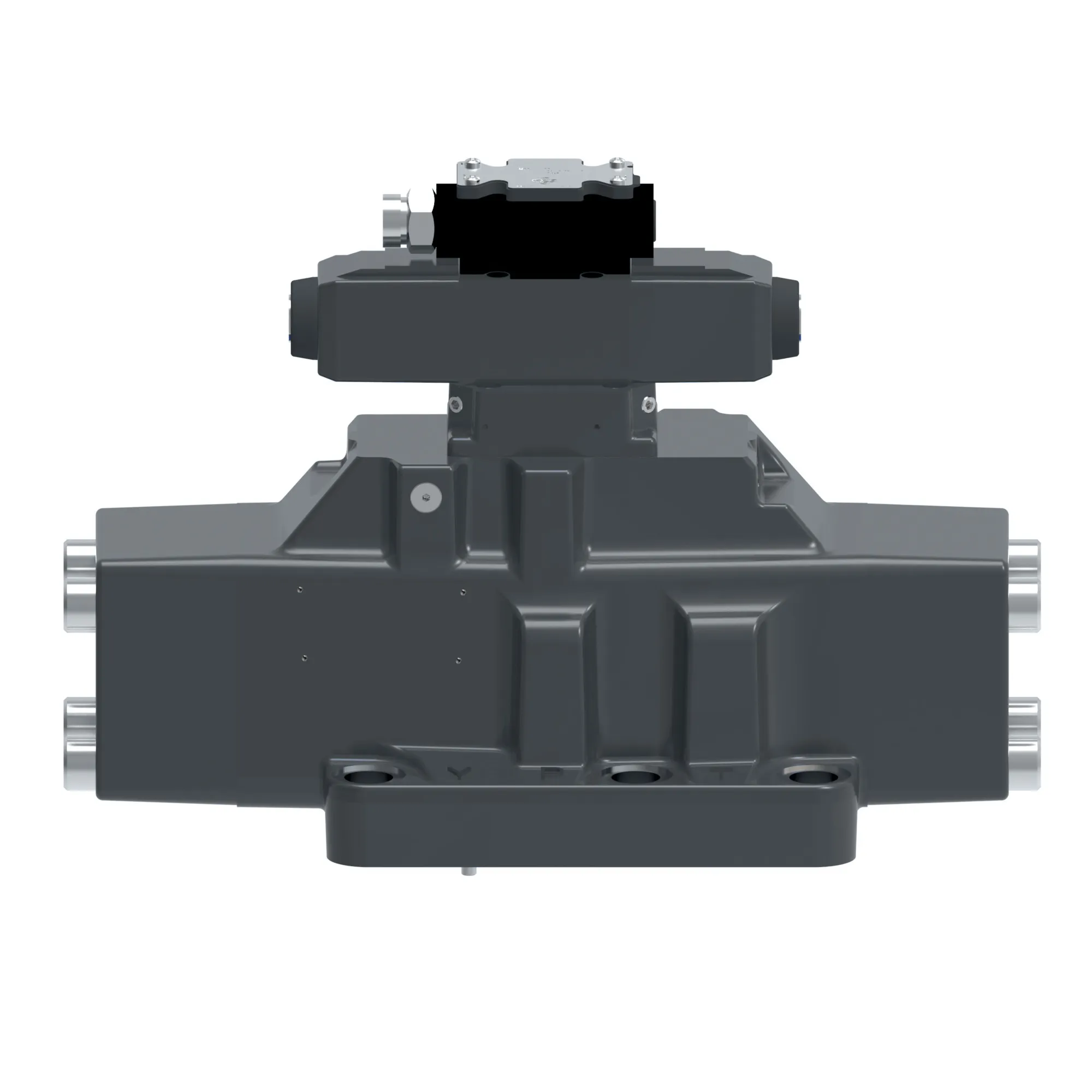

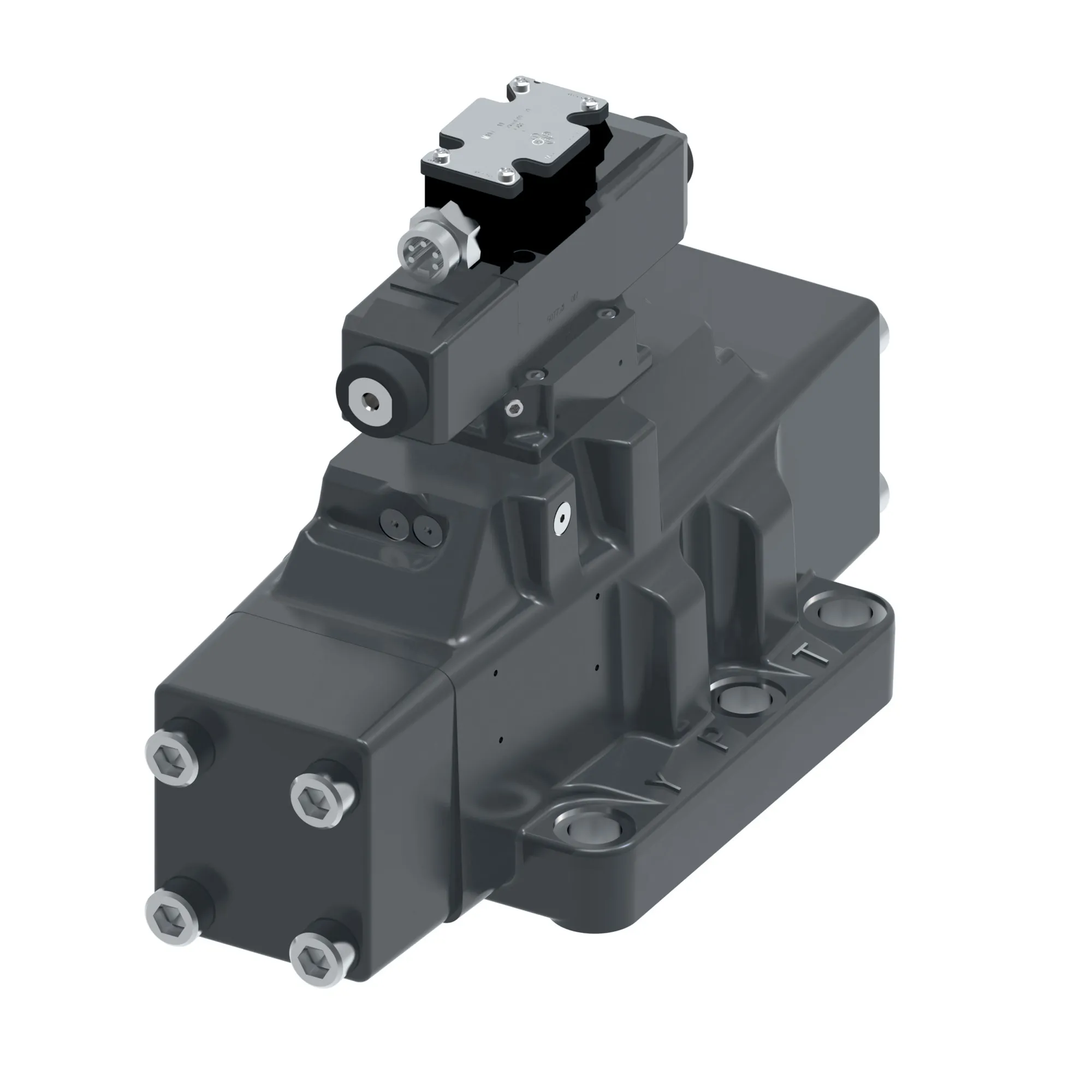

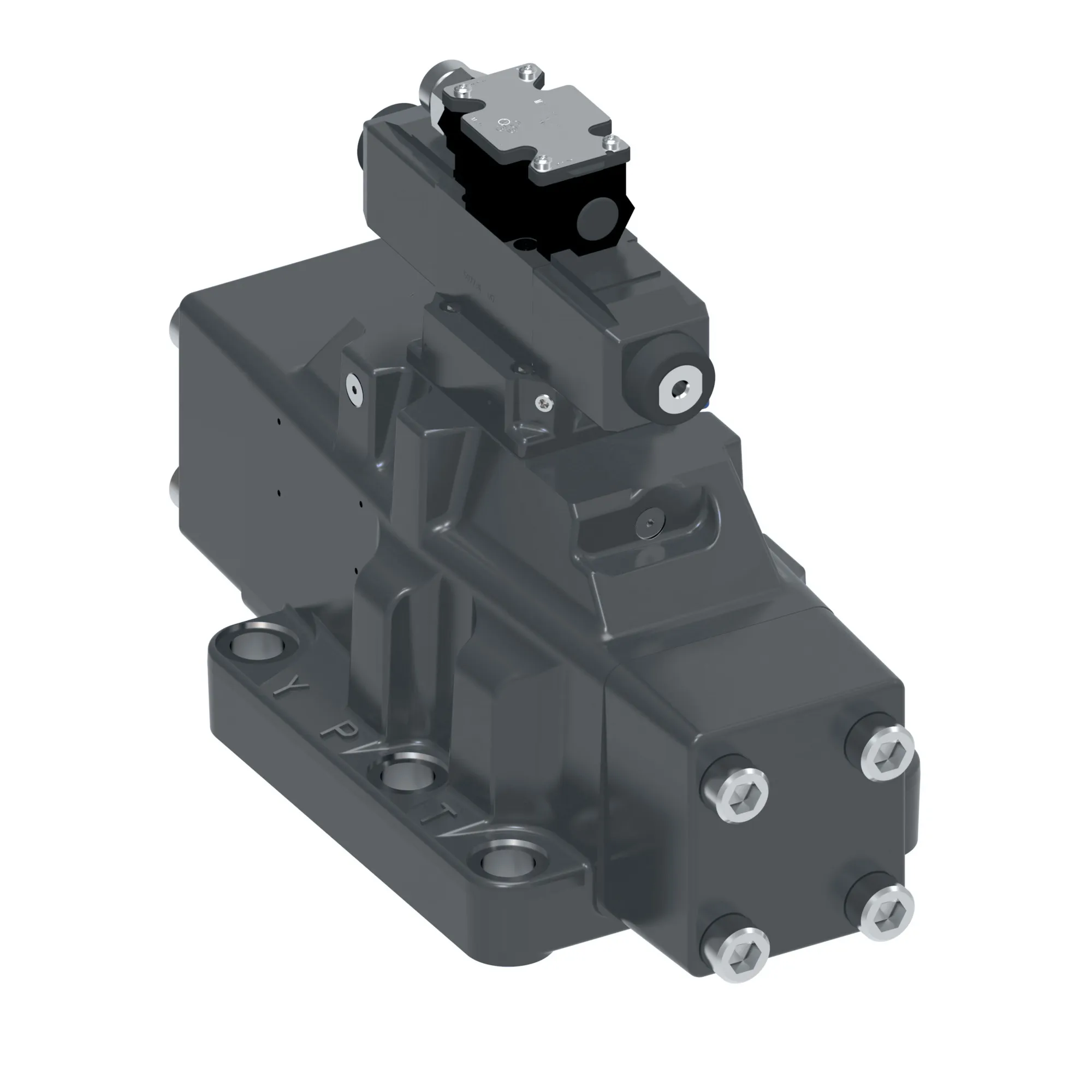

Danfoss (Drives) 02-402834
F3-DG5V-10-S-2C-3-E-M-FP A5WL-B-11 – 02-402834
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3-DG5V-10-S-2C-3-E-M-FP A5WL-B-11 – 02-402834
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Design Series | 11 Series |
| Ext Pilot Pressure | External |
| Flow Rate Upto Gpm | 290.0 |
| Flow Rate Upto Lpm | 1100.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread Type | 0.4375 – 20 UNF, SAE Thread |
| Indicator Light | Yes |
| Int Pilot Drain | External |

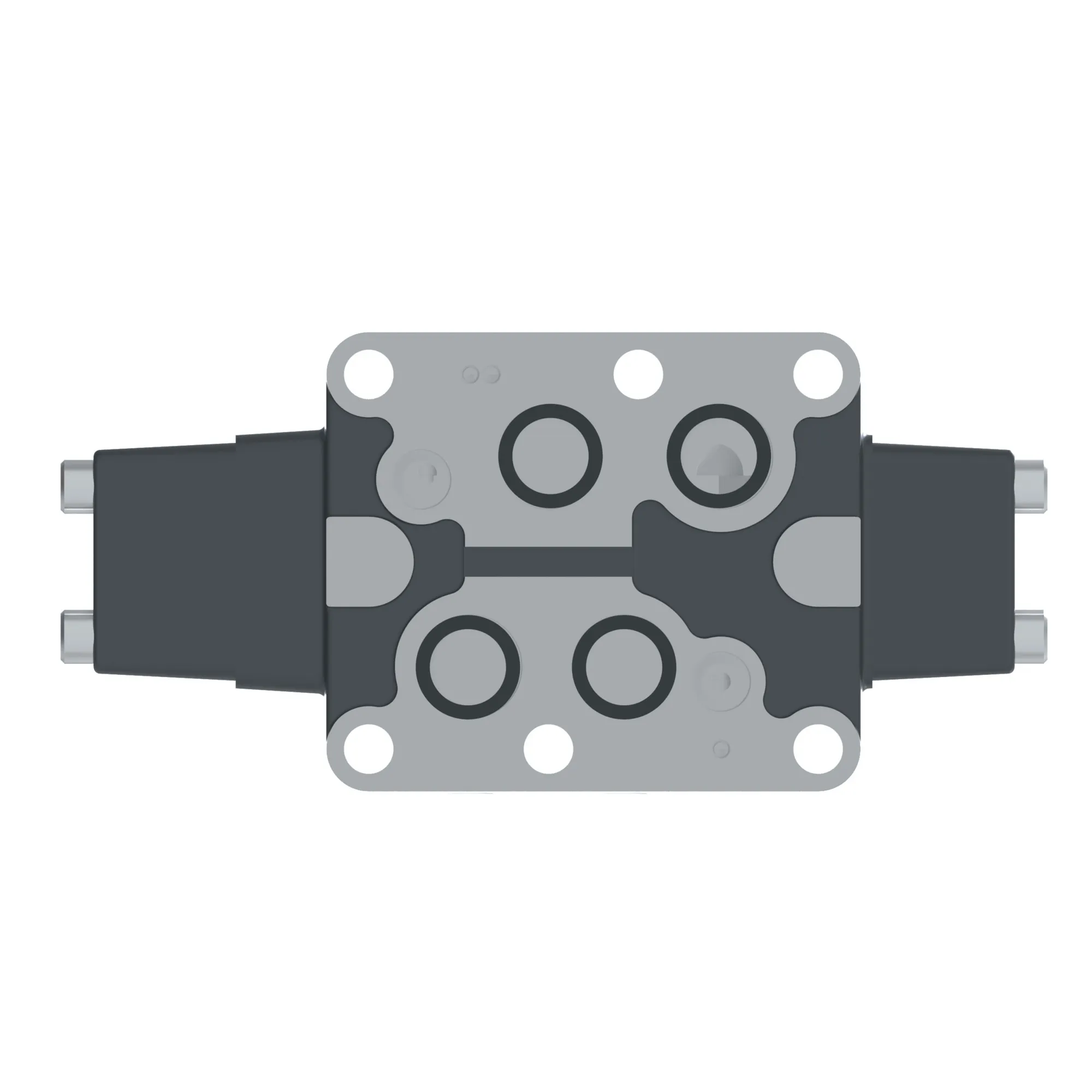

| Interface | ISO4401-10 |
| Performance | Standard performance |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 11.990 |
| Product Height Mm | 304.546 |
| Product Length In | 16.500 |
| Product Length Mm | 419.100 |
| Product Width In | 7.500 |
| Product Width Mm | 190.5 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
