Danfoss (Drives) 02-401663

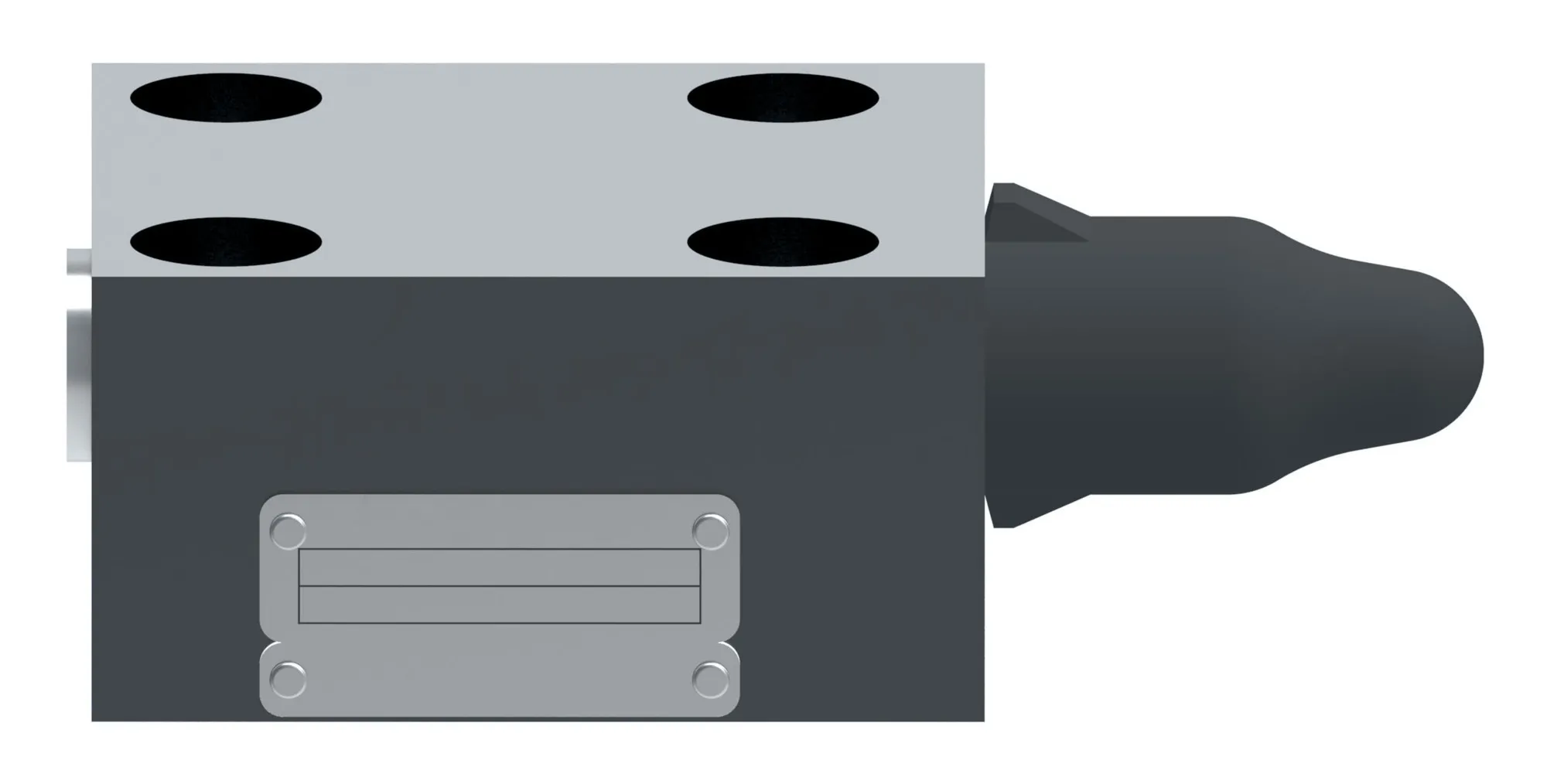

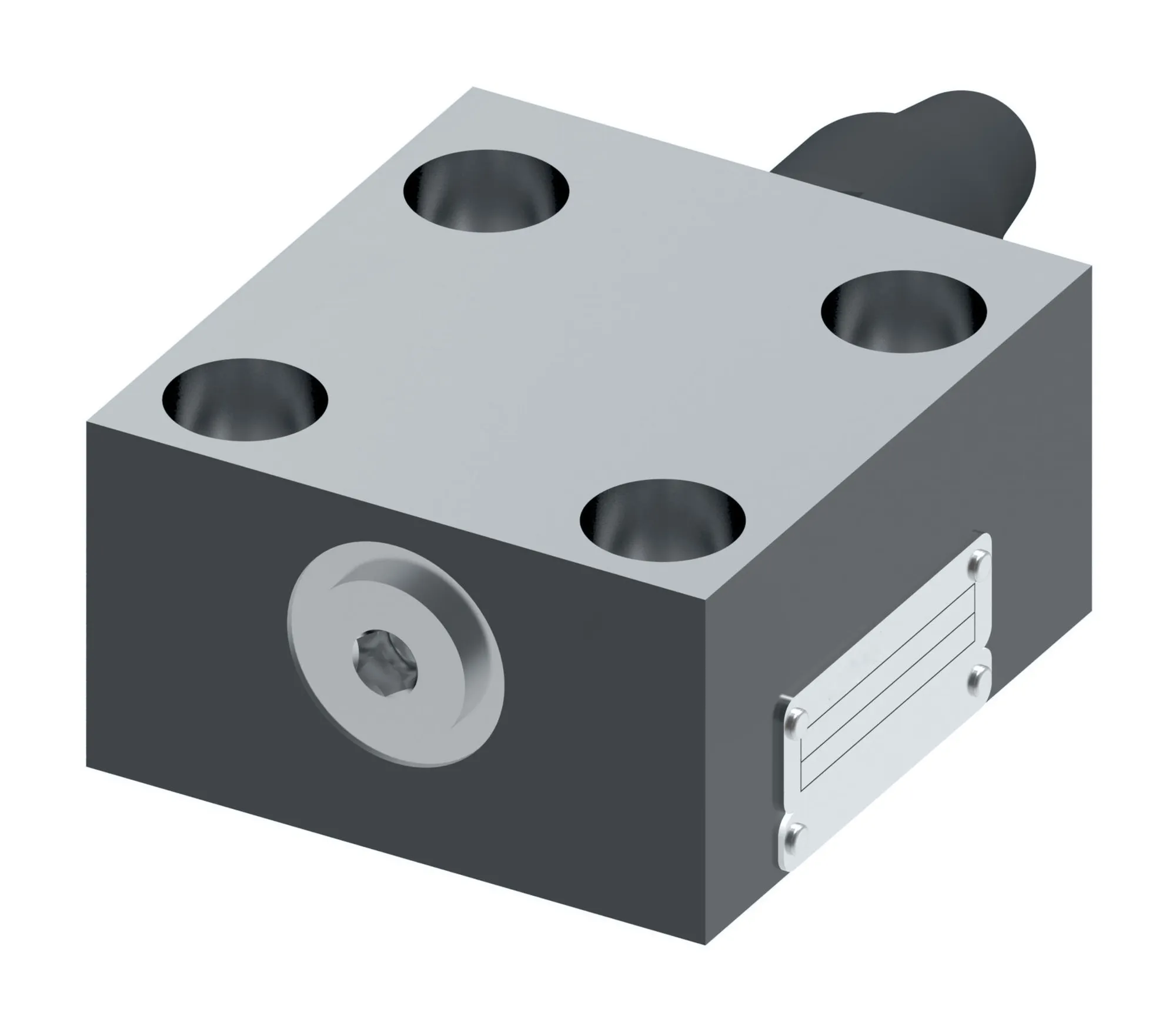

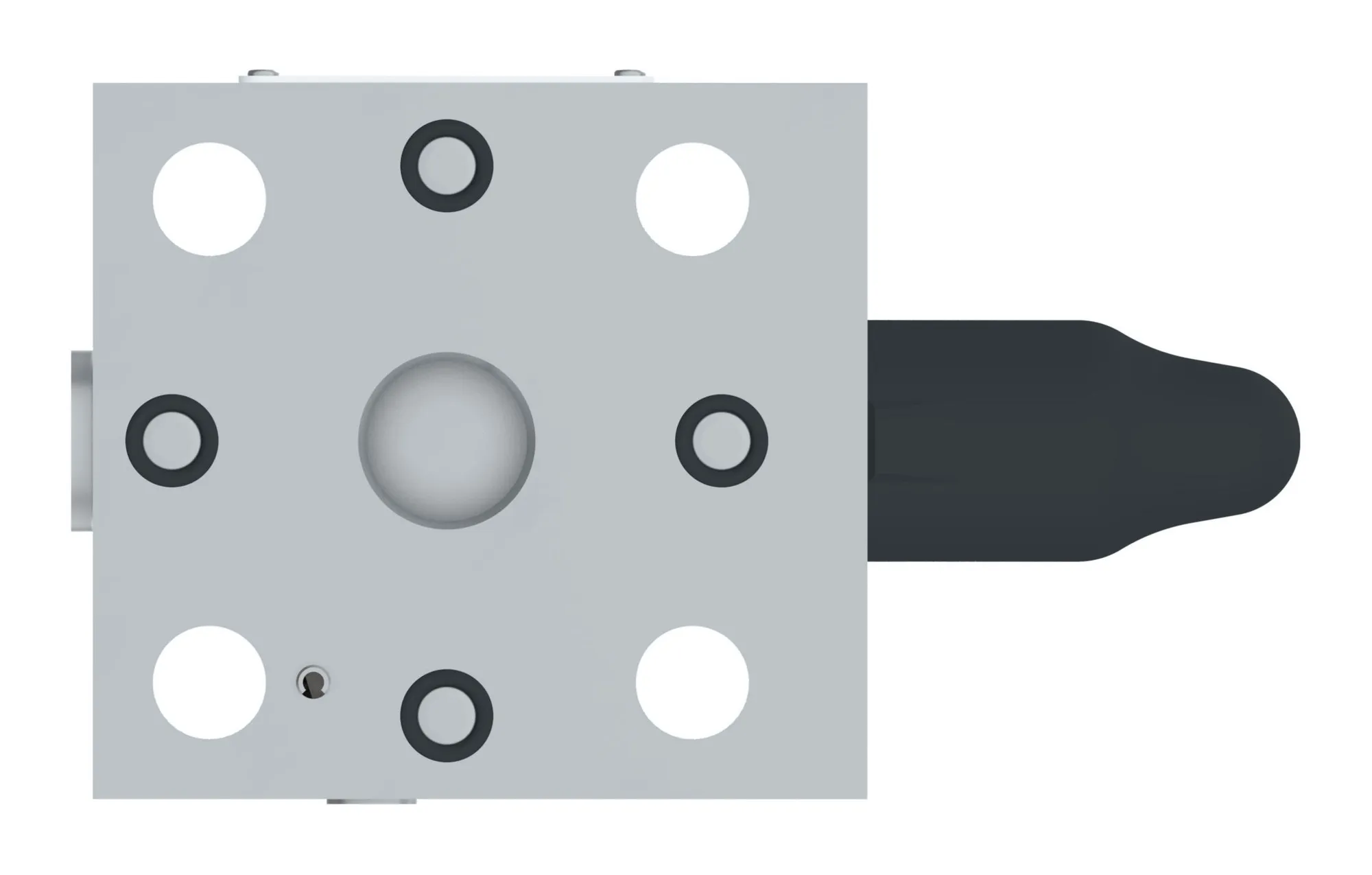

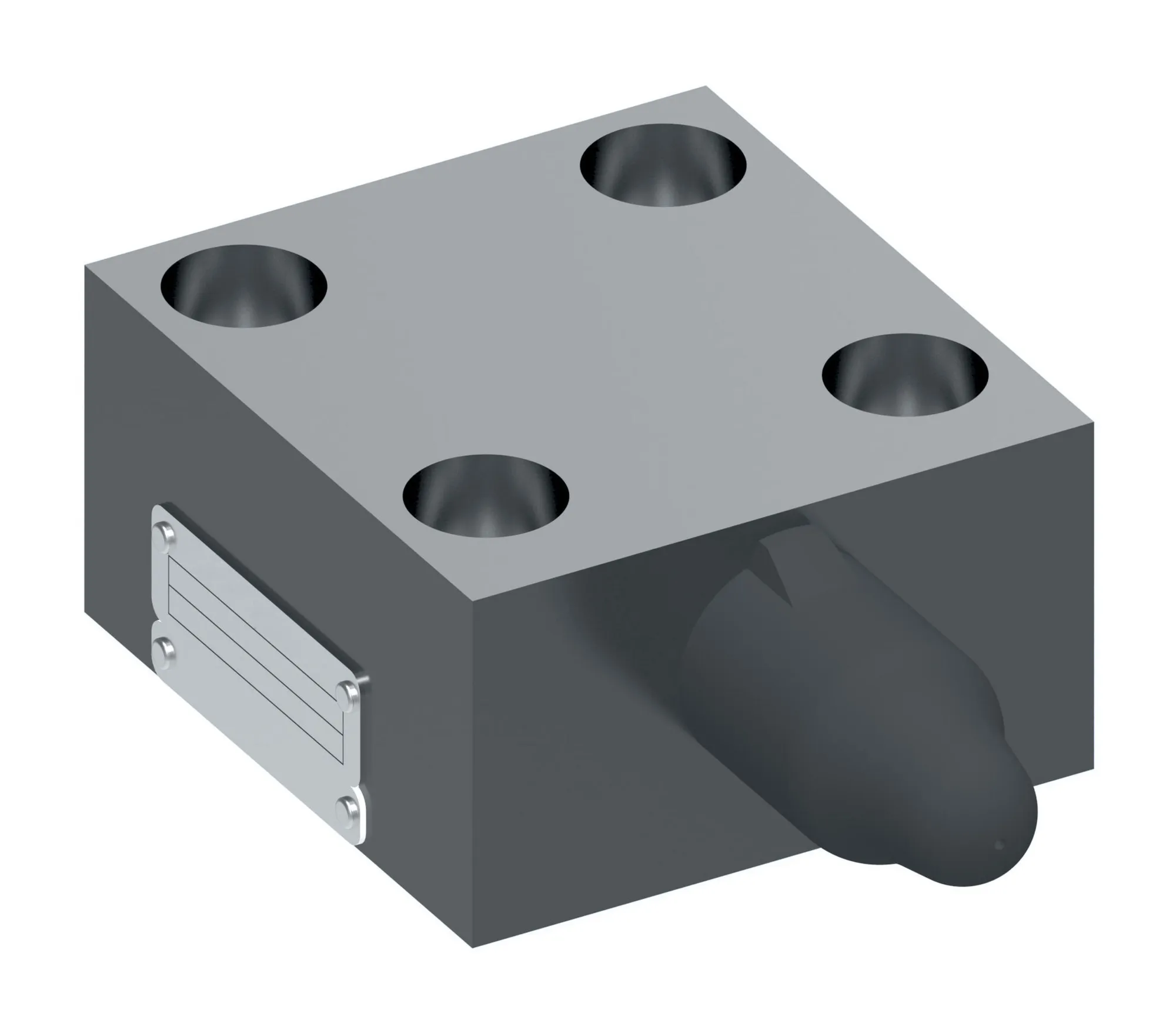

CVCS-32-C3-W-250-20-S24-P10, CVCS32C3W25020S24P10 – 02-401663
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVCS-32-C3-W-250-20-S24-P10, CVCS32C3W25020S24P10 – 02-401663
Specification
| Adjustment | Yes |
|---|---|
| Adjustment Type | Wrench with hex locknut |
| Brand | Vickers by Danfoss |
| Cover Type | Relief with pilot control |
| Cracking Pressure Bar | 3.30 |
| Cracking Pressure Psi | 48.0 |
| Design Series | 20 Design |
| Flow Rate Lpm | 1250 |
| Flow Rate Usgpm | 330.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | SAE |
| Insert Ratio | 1:1 |
| Insert Type | Relief |
| Interface | Yes |
| Leakage | Standard |
| Model Code 1 | CVCS32C3W25020S24P10 |
| Normal Function | Normally closed |
| Orifice Plug P | 1.0 mm |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 3.340 |
| Product Height Mm | 84.836 |
| Product Length In | 6.130 |
| Product Length Mm | 155.702 |
| Product Width In | 4.120 |
| Product Width Mm | 104.648 |
| Seal Material | Buna-N |
| Size | NG 32 |
| Special Feature | None |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve cover |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
