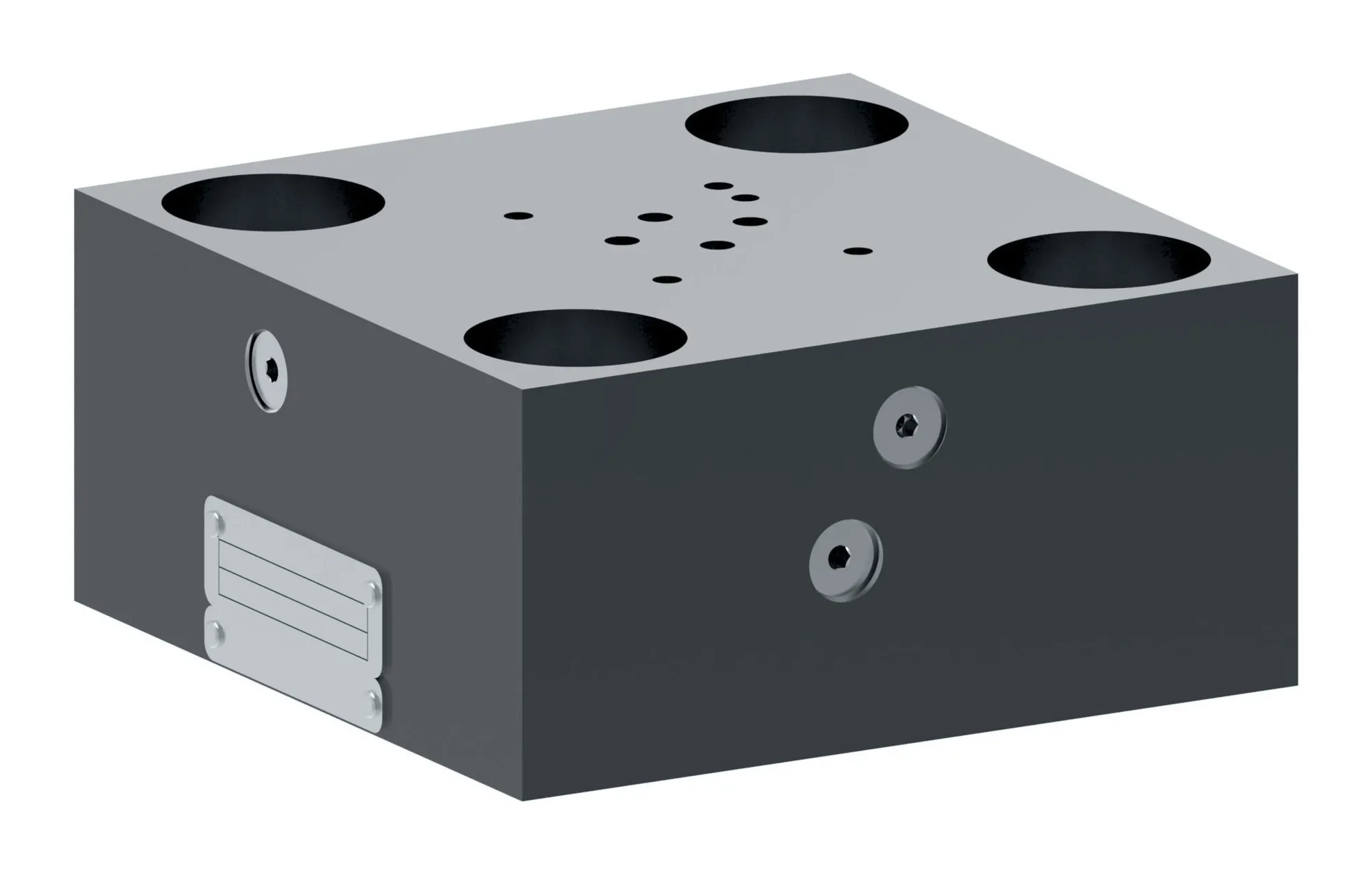

Danfoss (Drives) 02-401656
CVCS-40-D3-20-AP100-AP299-Y10-A99, CVCS40D320AP100AP299Y10A99 – 02-401656
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVCS-40-D3-20-AP100-AP299-Y10-A99, CVCS40D320AP100AP299Y10A99 – 02-401656
Specification
| Adjustment | No |
|---|---|
| Brand | Vickers by Danfoss |
| Cover Type | Directional control with size 03 pilot interface |
| Design Series | 20 Design |
| Flow Rate Lpm | 1700 |
| Flow Rate Usgpm | 450.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | SAE |
| Insert Ratio | 1:1.5 |
| Insert Type | Directional |
| Interface | Yes |
| Leakage | Standard |
| Model Code 1 | CVCS40D320AP100AP299Y10A99 |
| Normal Function | Normally open |
| Orifice Plug A | No orifice |
| Orifice Plug Ap1 | Blocked |
| Orifice Plug Ap2 | No Orifice |
| Orifice Plug Y | 1.0 mm |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 2.400 |
| Product Height Mm | 60.960 |
| Product Length In | 4.960 |
| Product Length Mm | 125.984 |
| Product Width In | 5.080 |
| Product Width Mm | 129.032 |
| Seal Material | Buna-N |
| Size | NG 40 |
| Special Feature | None |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve cover |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
