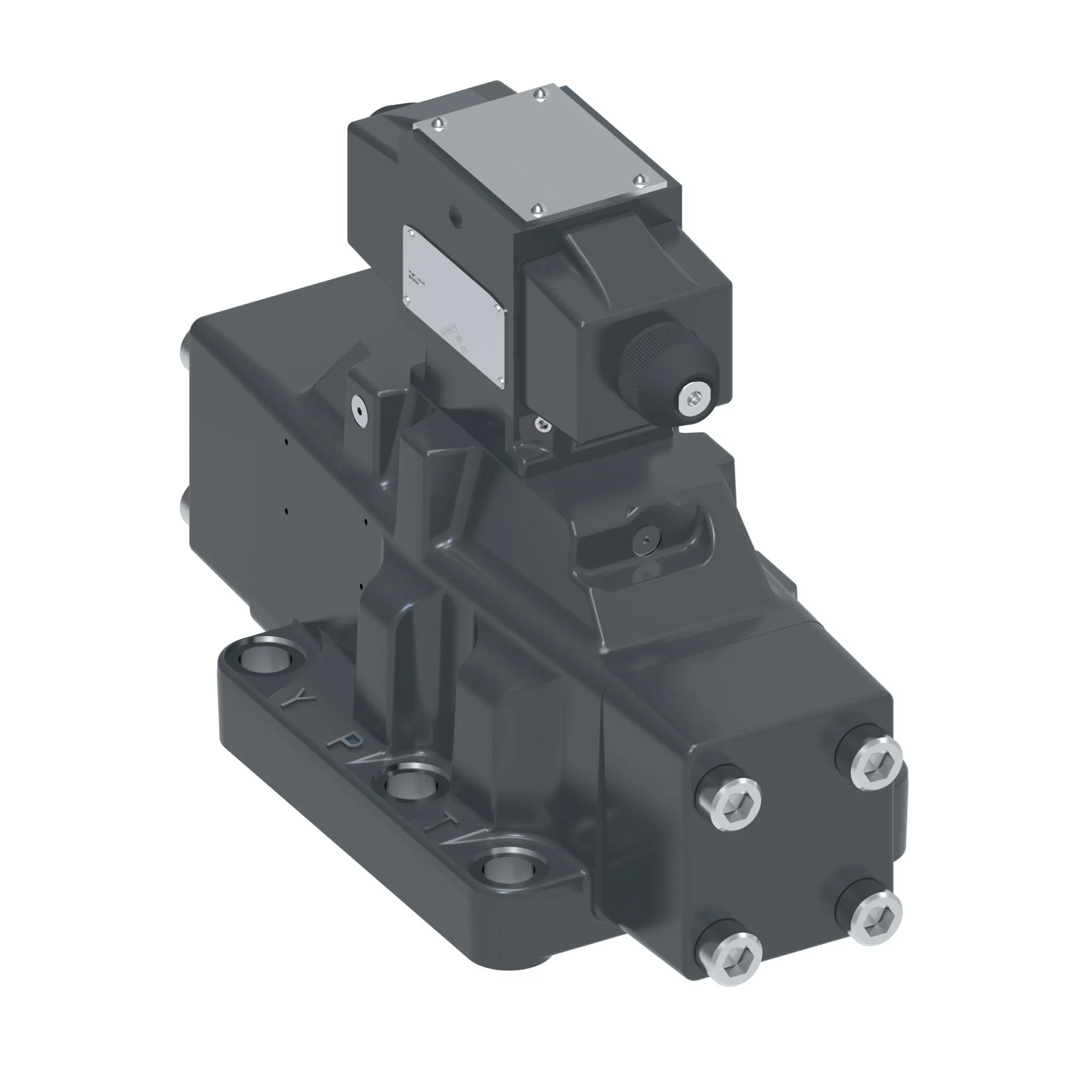

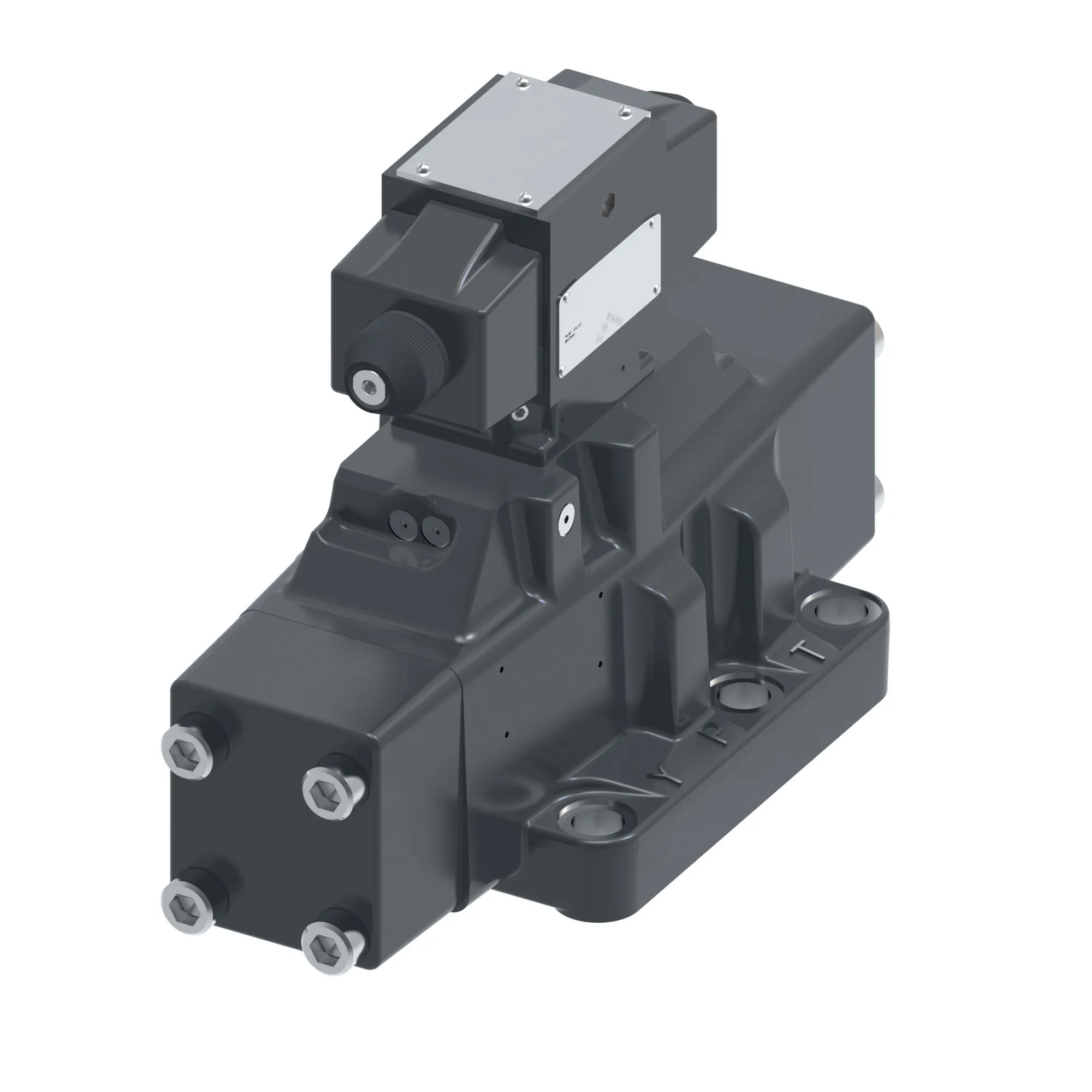

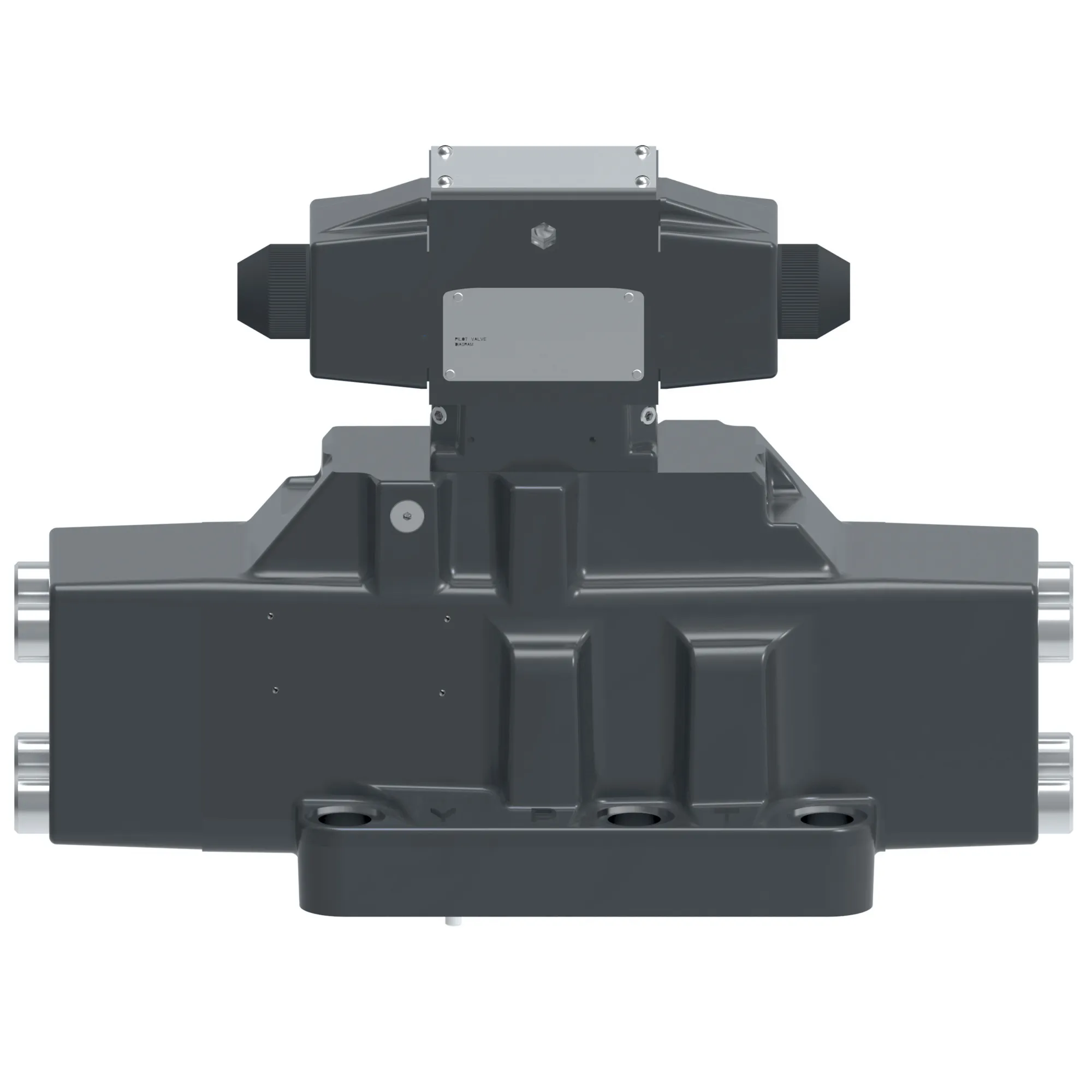

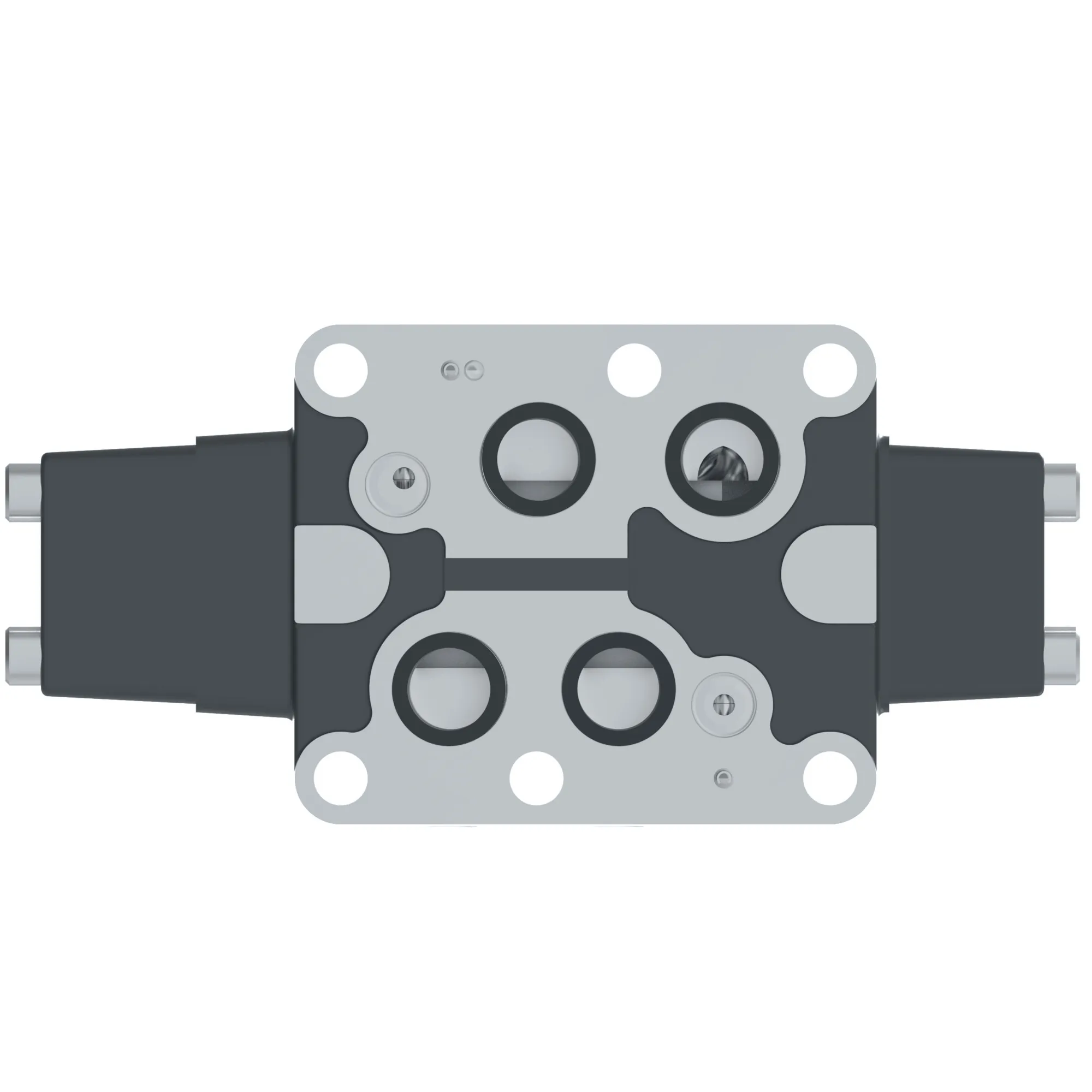

Danfoss (Drives) 02-401002
F6-DG5V-10-6C-10-EN55 – 02-401002
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F6-DG5V-10-6C-10-EN55 – 02-401002
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Design Series | 10 Series |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 290.0 |
| Flow Rate Upto Lpm | 1100.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Water glycol |
| Int Pilot Drain | External |
| Interface | ISO4401-10 |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 9.870 |
| Product Height Mm | 250.698 |
| Product Length In | 16.500 |
| Product Length Mm | 419.100 |
| Product Width In | 7.500 |
| Product Width Mm | 190.5 |
| Seal Type | Water glycol |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
