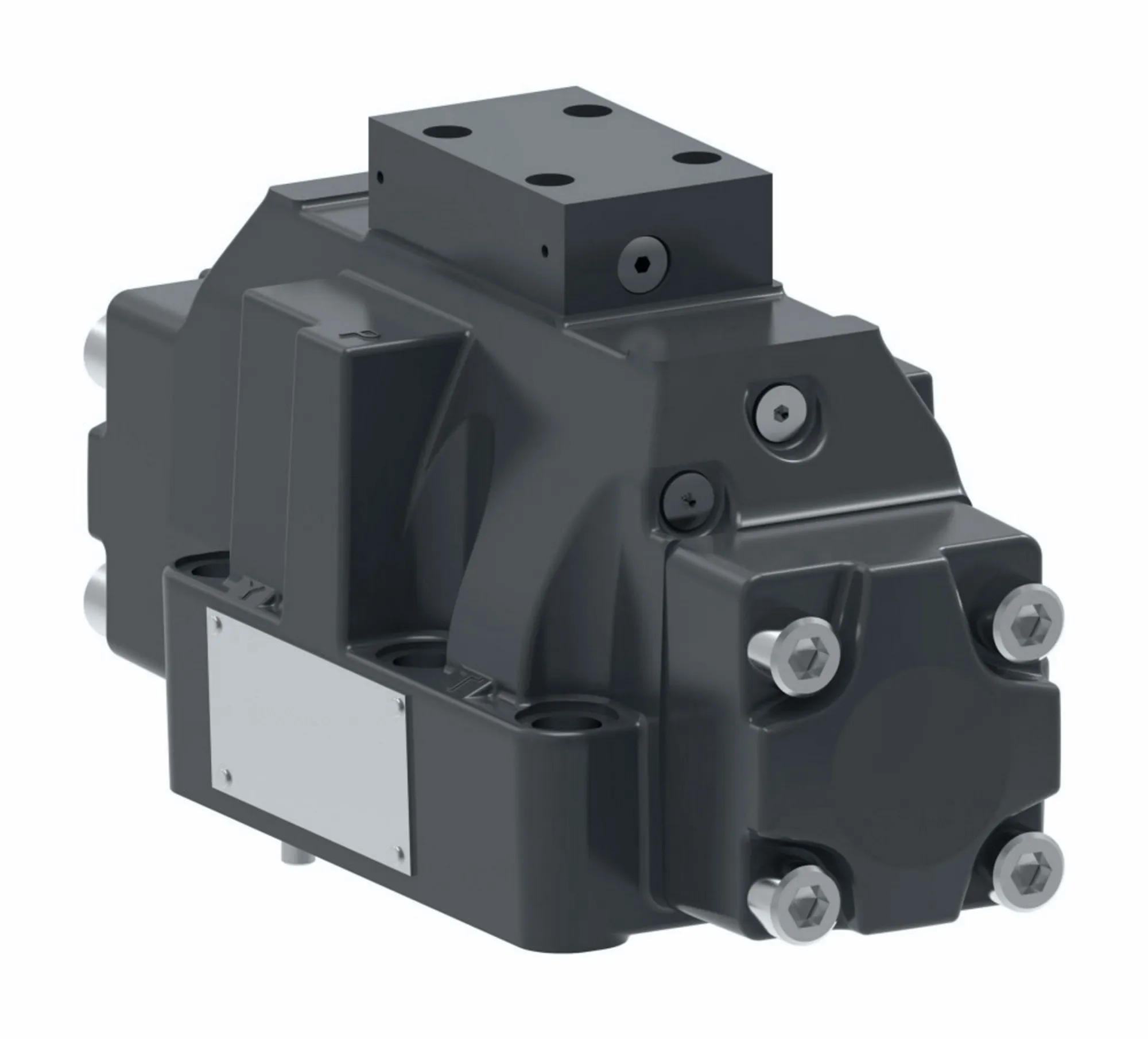

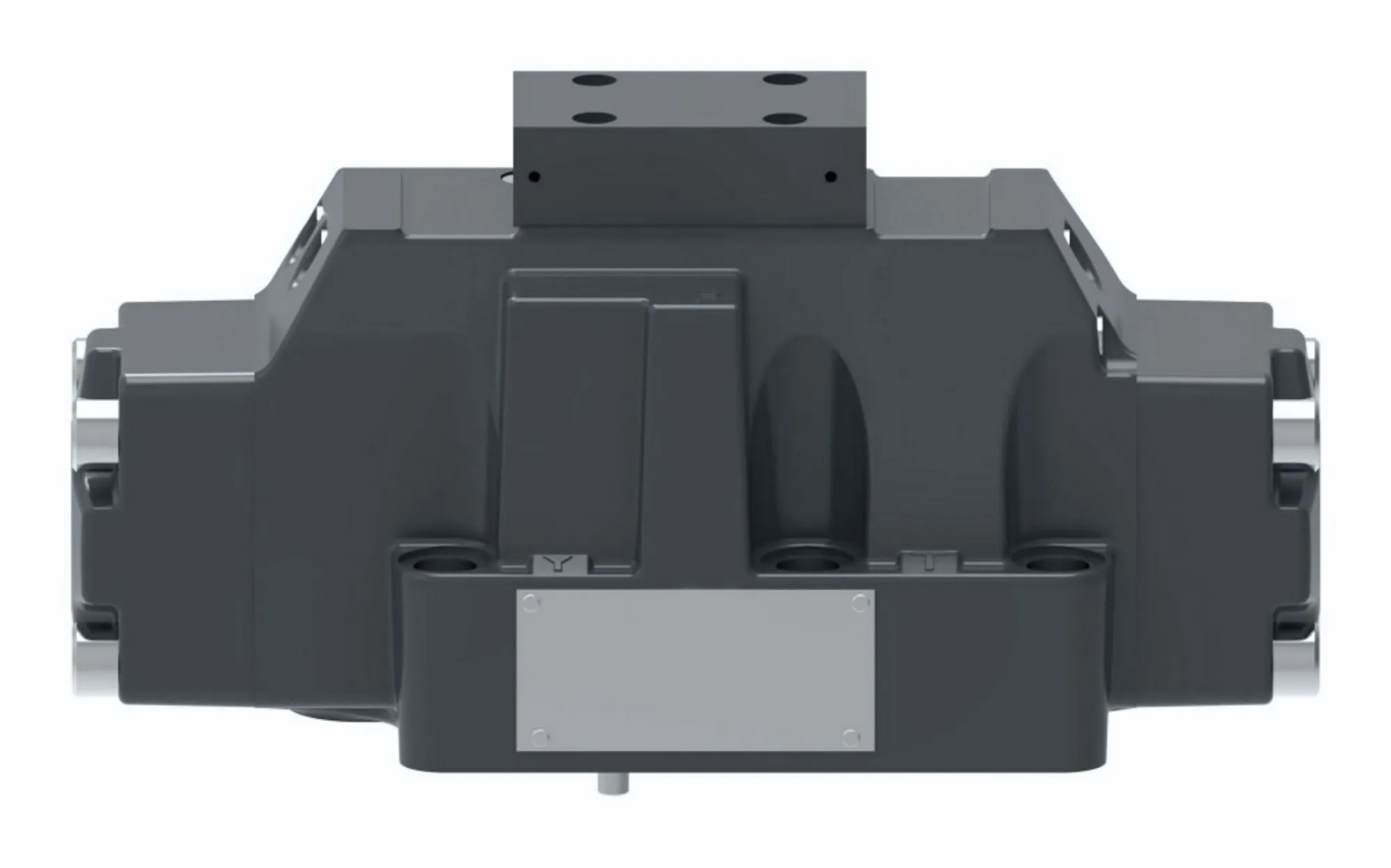

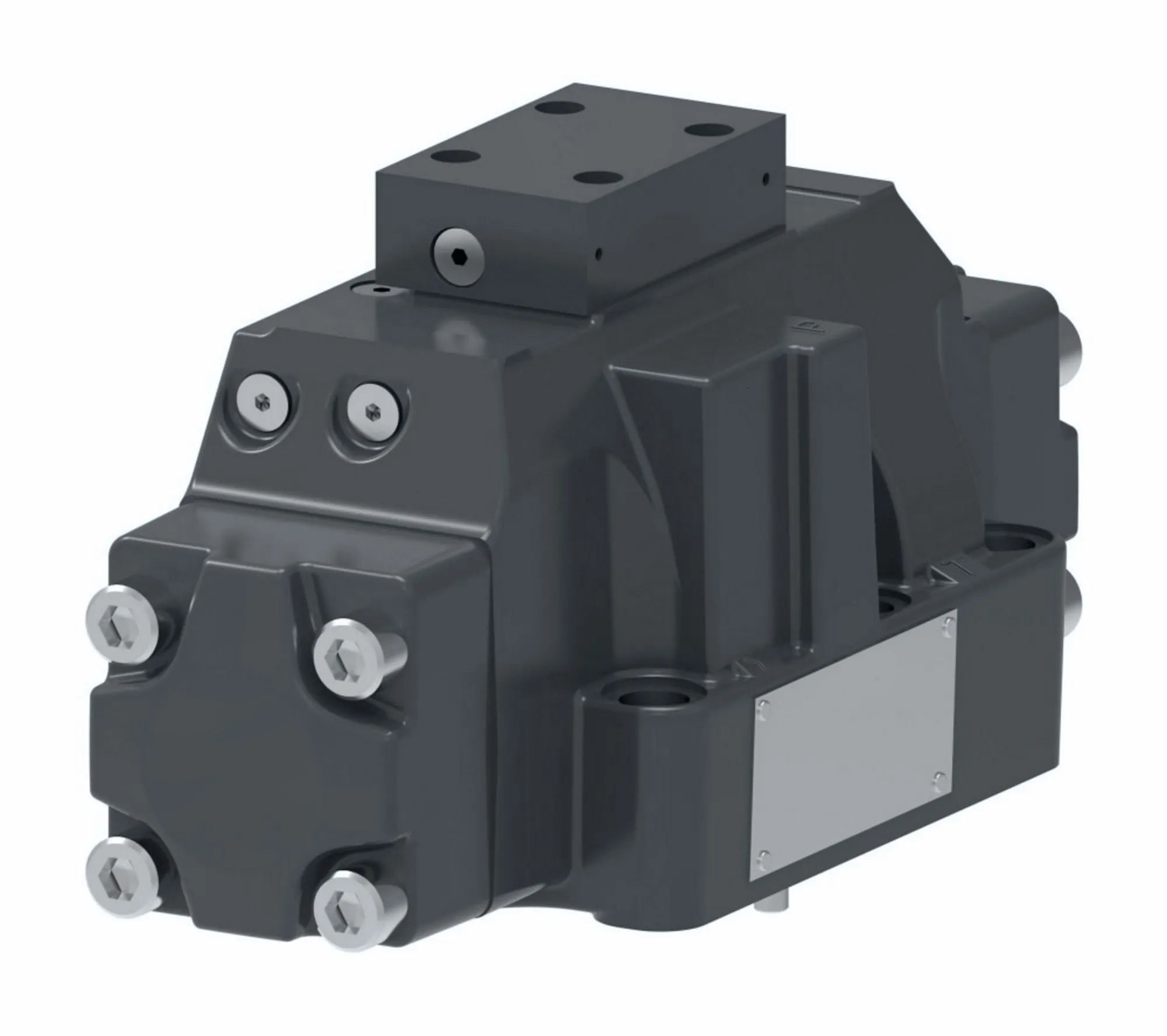

Danfoss (Drives) 02-400269
F6-DG5V-8-6C-10-EN55, F6DG5V86C10EN55 – 02-400269
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F6-DG5V-8-6C-10-EN55, F6DG5V86C10EN55 – 02-400269
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Design Series | 10 Series |
| Ext Pilot Pressure | Internal |
| Indicator Light | No |
| Int Pilot Drain | External |

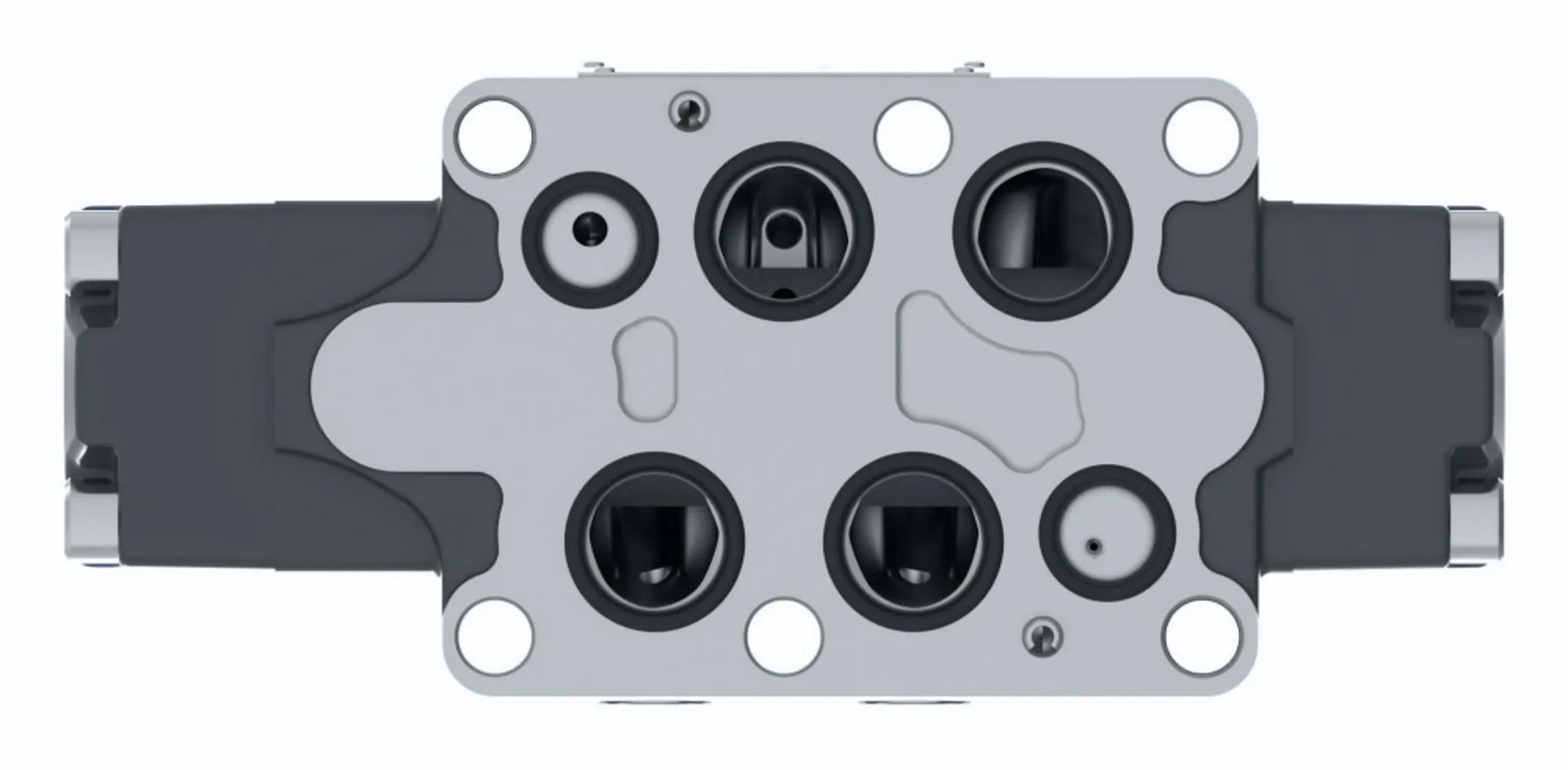

| Interface | ISO4401-08 |
| Manual Override | Plain |
| Model Code 1 | F6DG5V86C10EN55 |
| Performance | Standard performance |
| Product Height In | 7.790 |
| Product Height Mm | 197.866 |
| Product Length In | 10.450 |
| Product Length Mm | 265.430 |
| Product Width In | 4.670 |
| Product Width Mm | 118.618 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
