Description

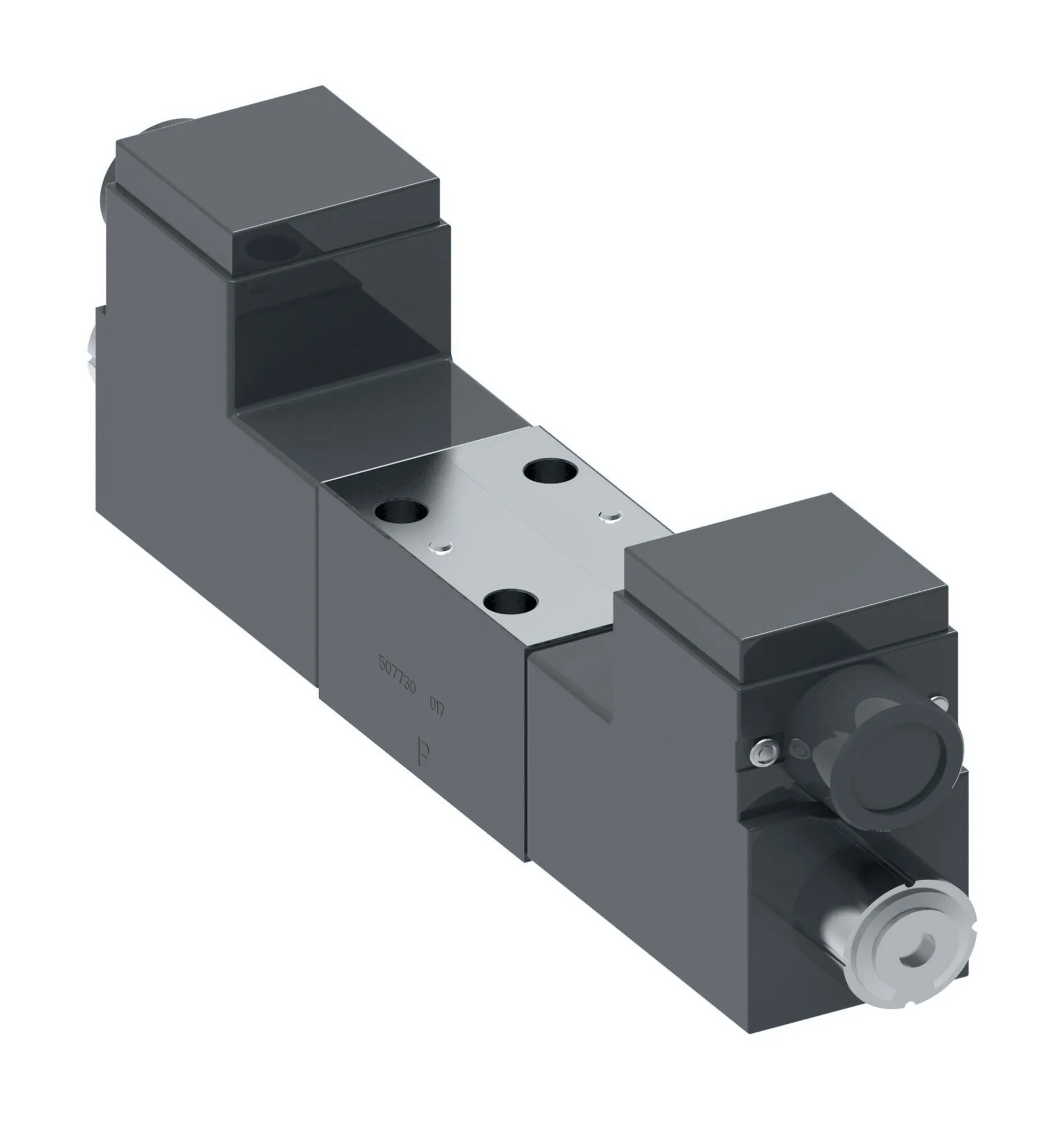

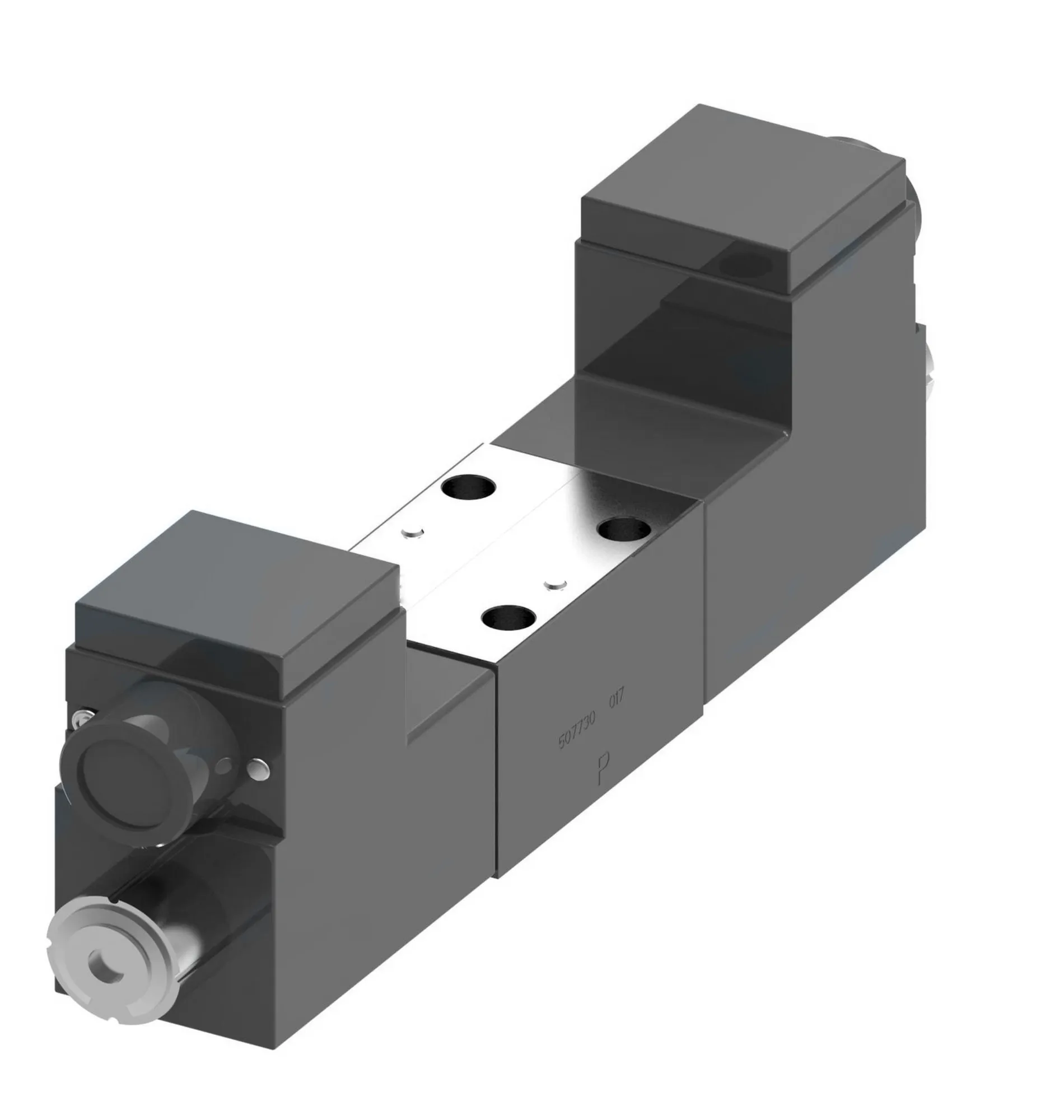

DG4V4-018C-VM-X5-H-4-10, DG4V4018CVMX5H410 – 02-399649
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 24 VDC |
| Design Series | 10 Series |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Manual Override | Plain |
| Model Code 1 | DG4V4018CVMX5H410 |
| Performance | Standard performance |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Product Height In | 3.900 |
| Product Length In | 12.070 |
| Product Length Mm | 306.578 |
| Product Width In | 2.740 |
| Product Width Mm | 69.596 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Sol A port A/Sol B port B |
| Spool Type | Spool 8 |
| Spring Arrangement | Spring centred |
| Tank Port Rating Bar | 70 |
| Tank Port Rating Psi | 1000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
