Danfoss (Drives) 02-399155

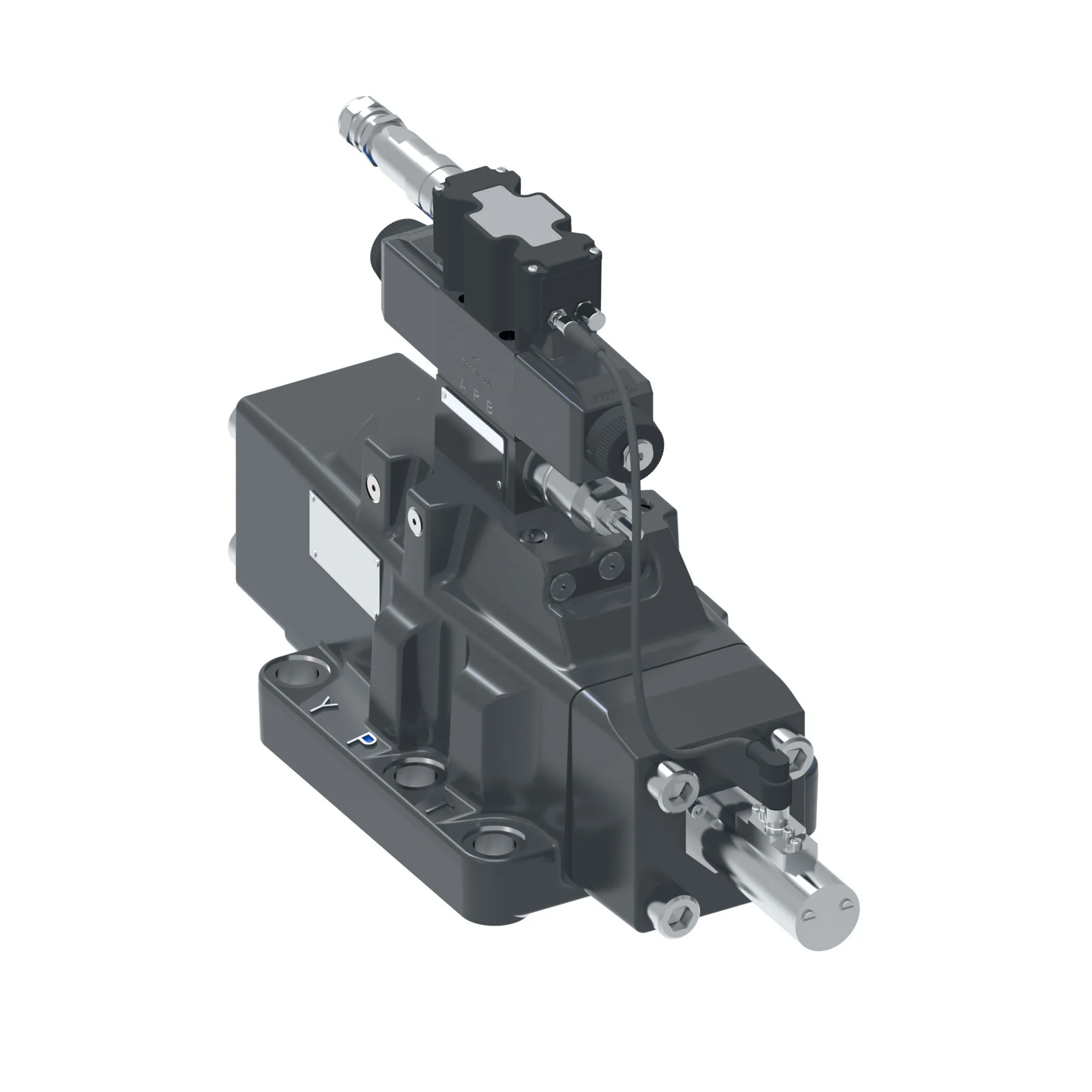

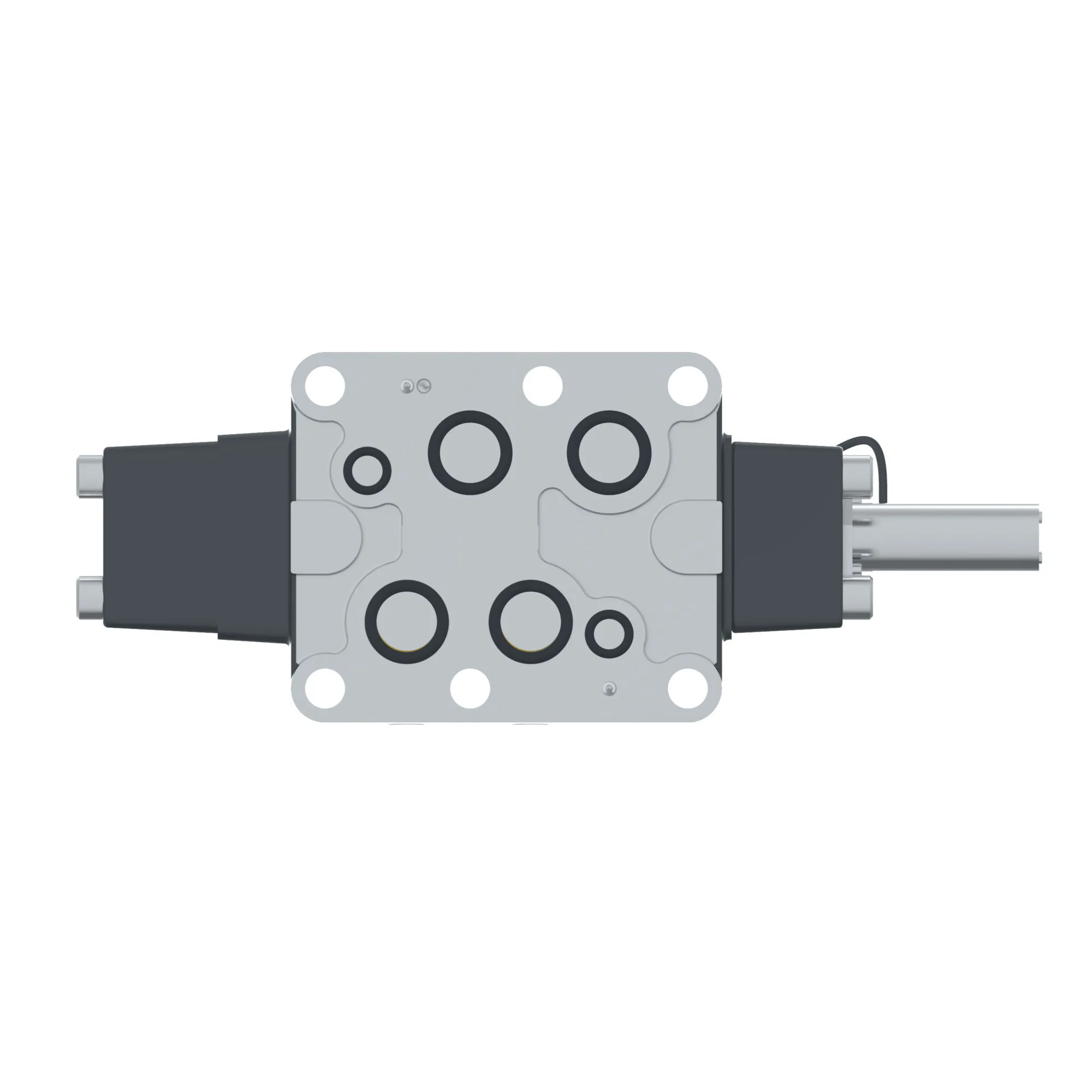

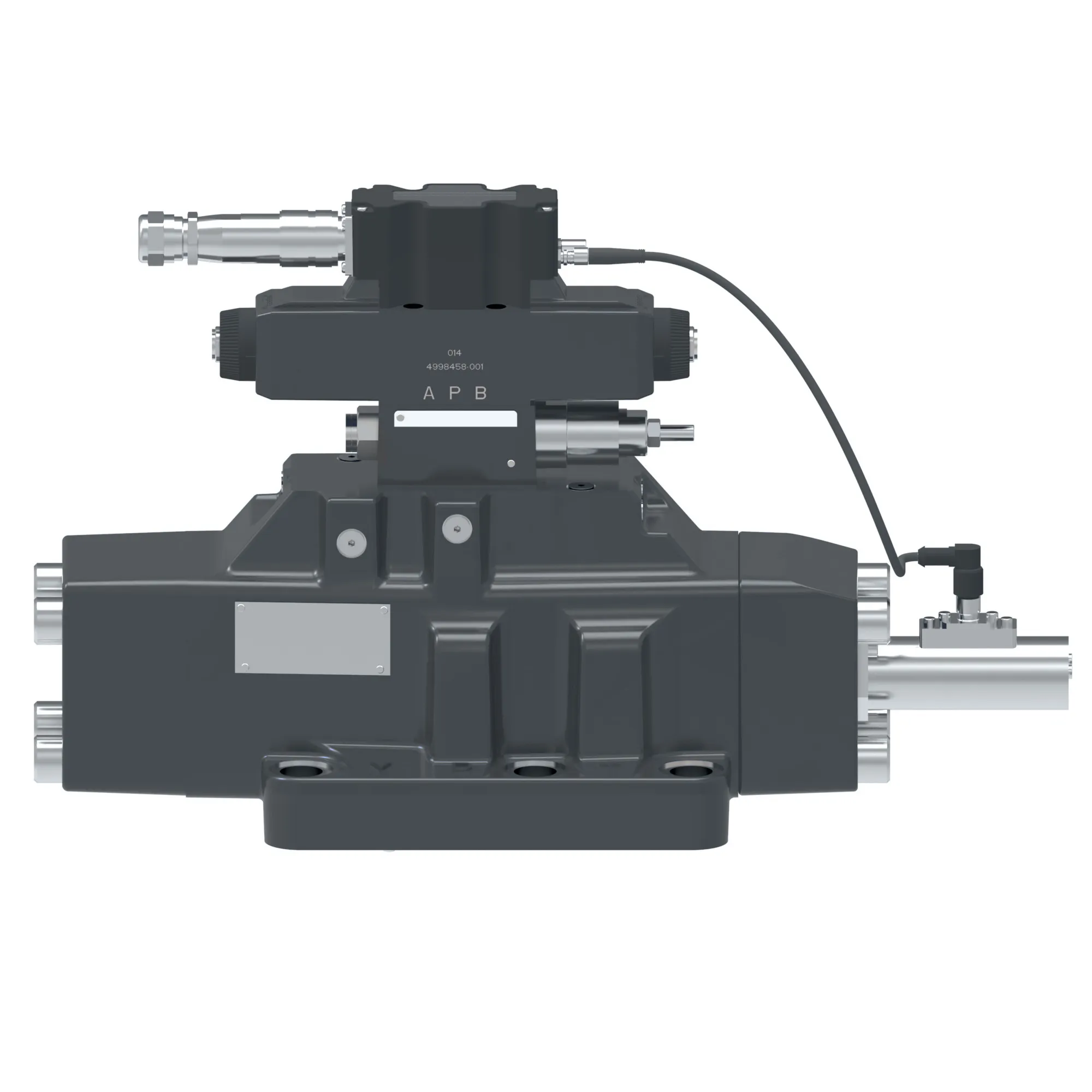

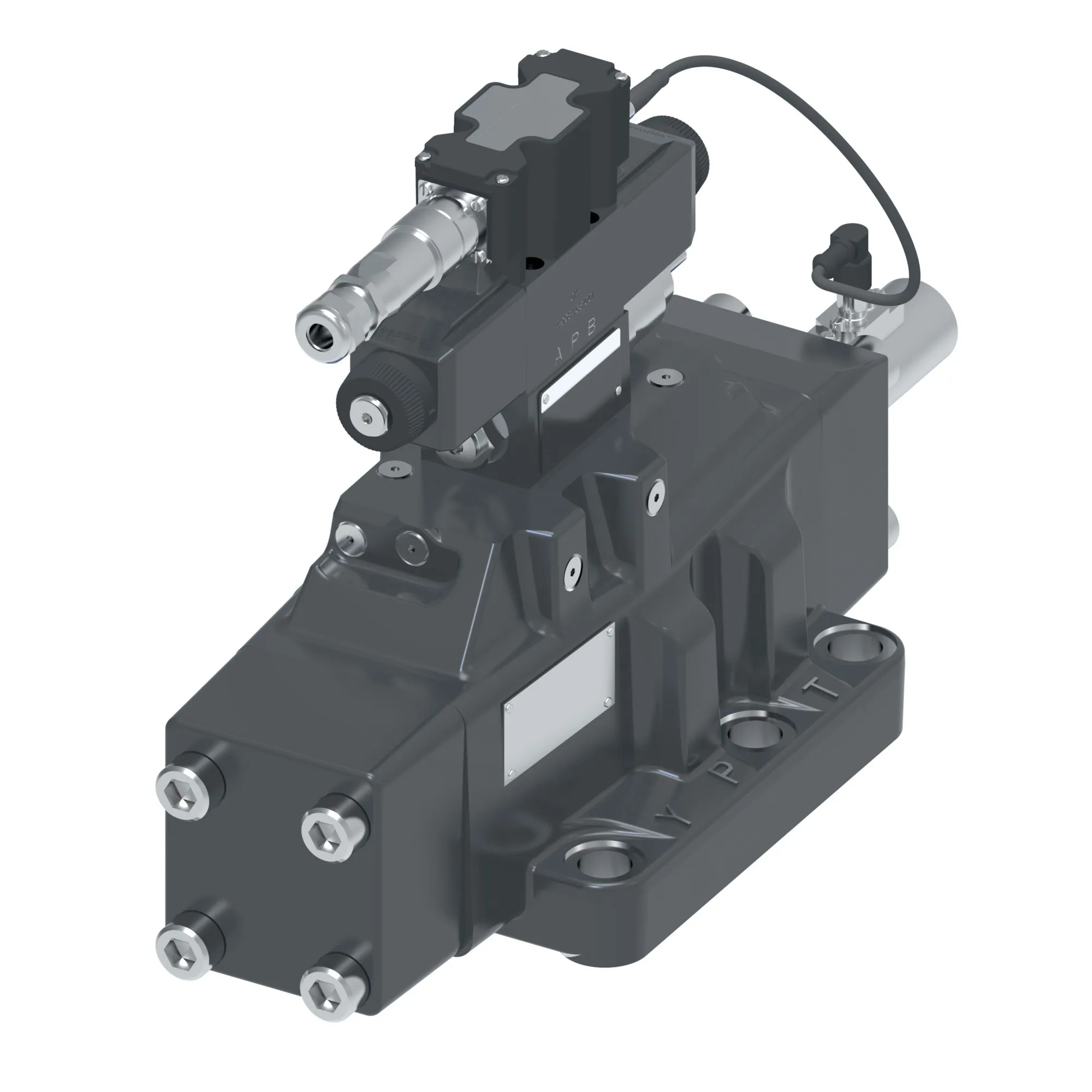

KBFDG5V-10-33C700N-X-M2-PE7-H1-10 – 02-399155
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KBFDG5V-10-33C700N-X-M2-PE7-H1-10 – 02-399155
Specification
| A Port Flow Lpm | 700.00 |
|---|---|
| A Port Flow Usgpm | 185.00 |
| Actuation Type | Solenoid controlled pilot operated |
| B Port Flow Lpm | 700.00 |
| B Port Flow Usgpm | 185.00 |
| Brand | Vickers by Danfoss |
| Build Orientation | Solenoid ‘B’ at port ‘A’ end of valve and solenoid ‘A’ at port ‘B’ end of valve |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | 4-20mA Command +/-10V feedback |
| Communication Protocol | None |
| Current | 1.6 amp |
| Design Series | 10 Series |
| Electrical Connection | Electrical (PE7) 7 pin electrical plug with mating half |
| Feedback Sensor | Yes |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-10/NFPA D10/CETOP 10 |
| Manual Override | None |
| Metering | Meter in / meter out |
| On Board Electronics | Yes |
| Performance | High |
| Pilot Drain | External |
| Pilot Supply | Internal |
| Pressure Drop Rated Flow Bar | 5 |
| Pressure Drop Rated Flow Psi | 72 |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000.00 |
| Profx Compatible | No |
| Reducer Module | Yes |
| Seal Type | Fluorocarbon |
| Special Features | None |
| Spool Type | Bleed A and B to T |
| Stage | Two stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 350 |
| Tank Port Rating Psi | 5000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
