Danfoss (Drives) 02-398963

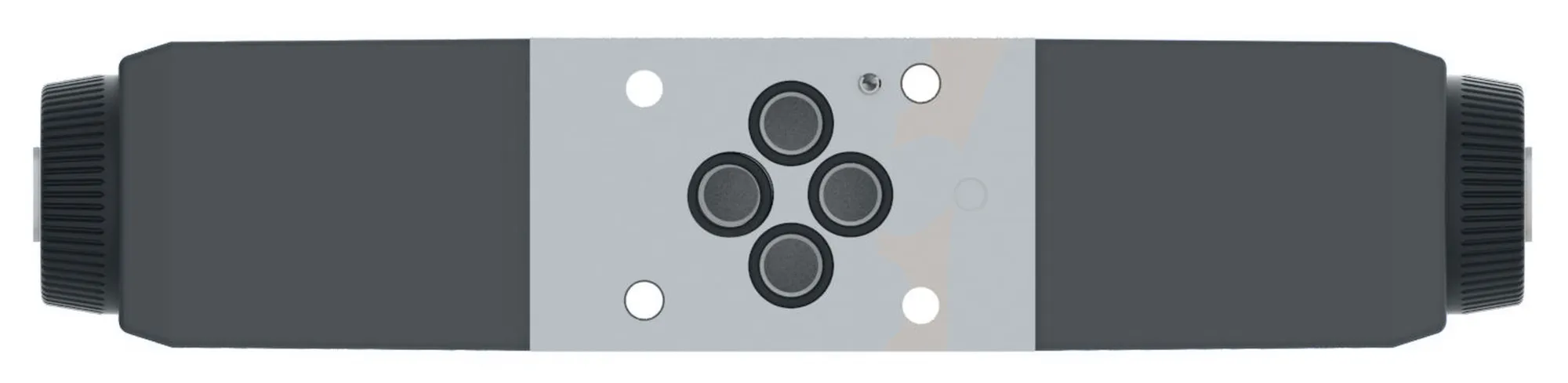

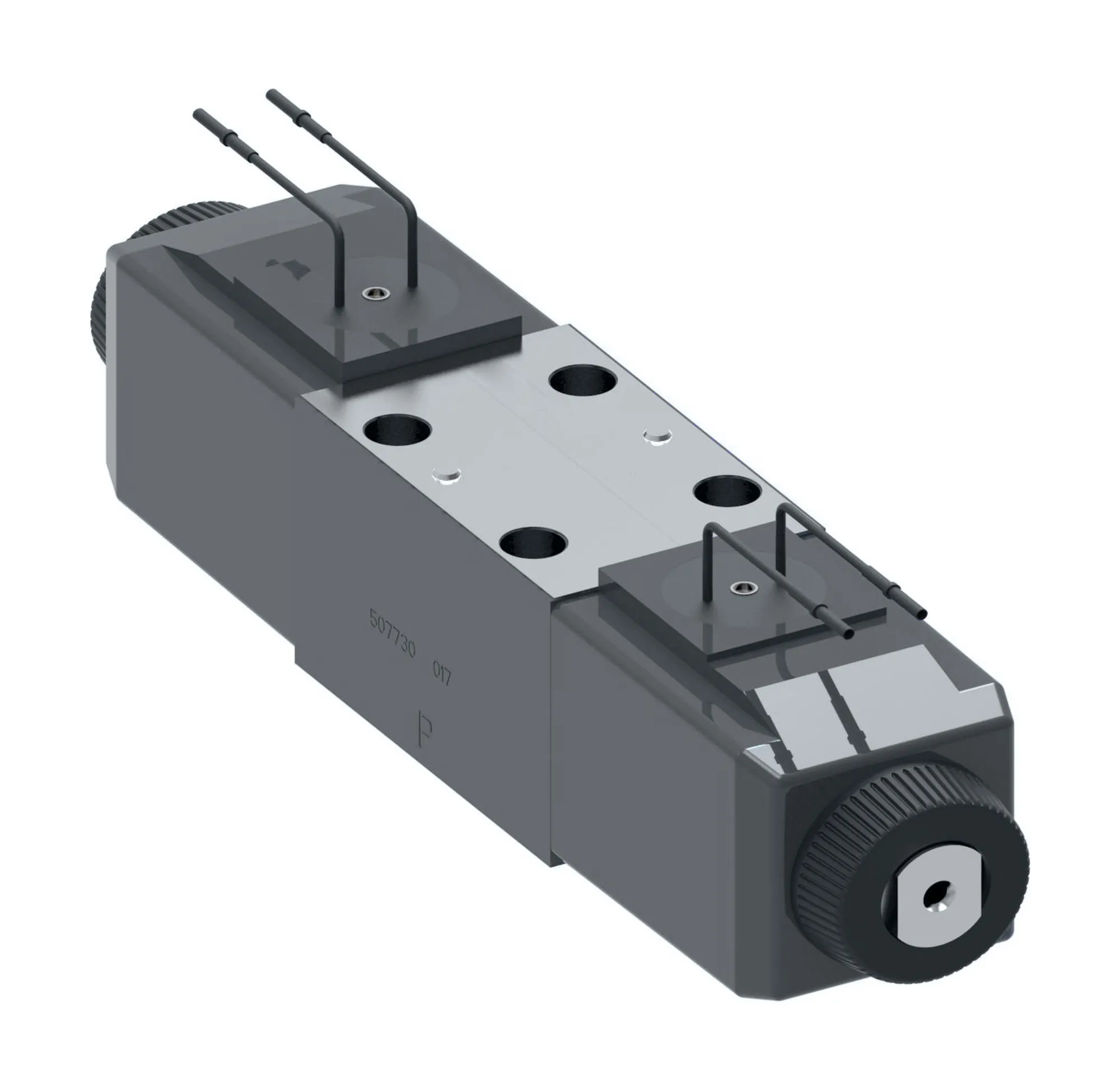

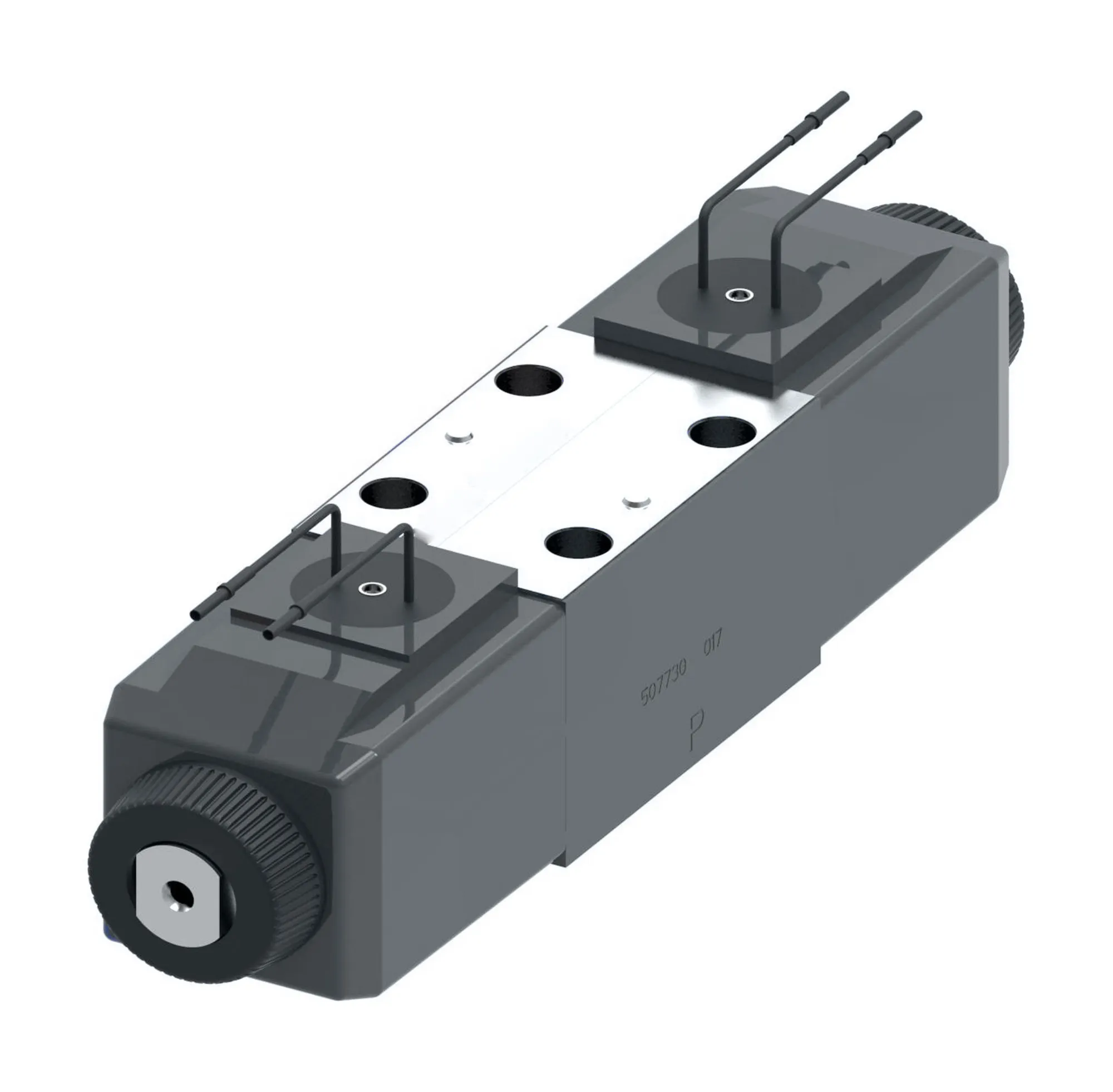

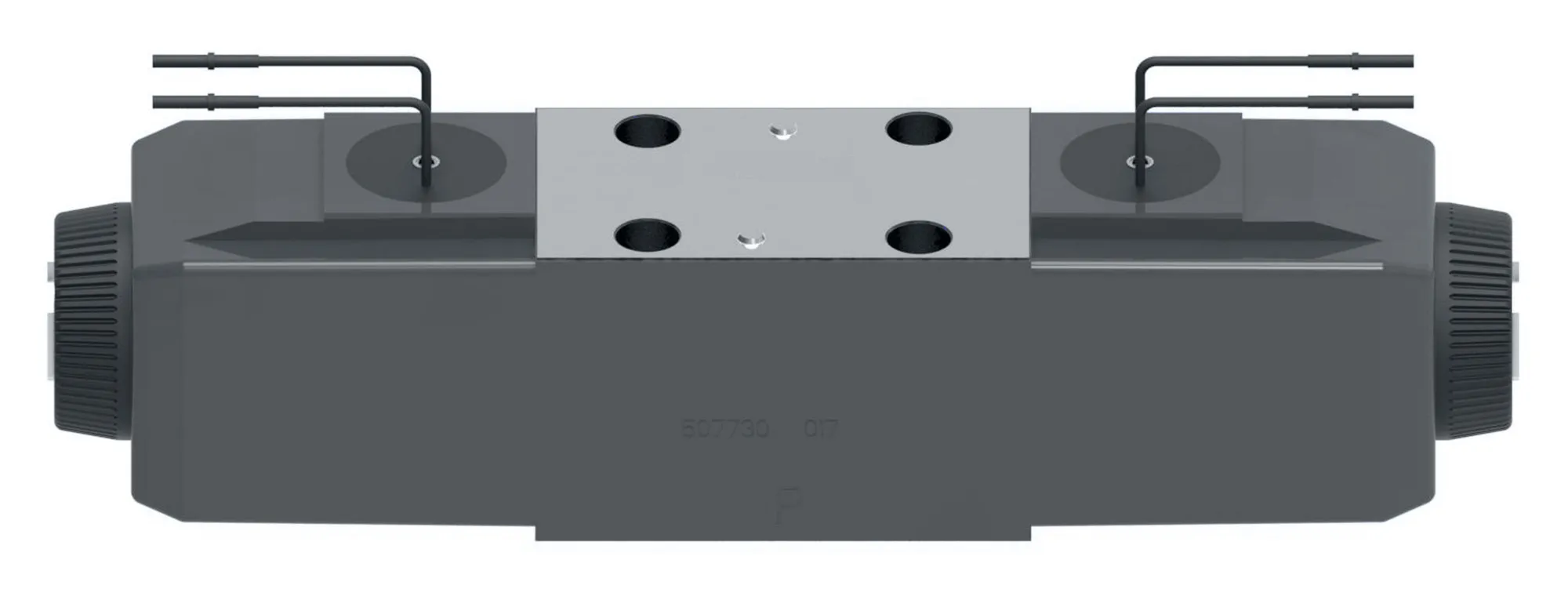

DG4V4-012C-M-KU-G-5-10-S 584, DG4V4012CMKUG510S584 – 02-398963
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG4V4-012C-M-KU-G-5-10-S 584, DG4V4012CMKUG510S584 – 02-398963
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 12 VDC |
| Design Series | 10 Series |
| Electrical Connection | Top exit flying lead |
| Energ Time | 50-80 ms |
| Flow Rate Upto Gpm | 30.0 |
| Flow Rate Upto Lpm | 115.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-05/NFPA D05 |
| Manual Override | Plain |
| Model Code 1 | DG4V4012CMKUG510S584 |
| Performance | Standard performance |
| Power Consumption | 45 watt |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500.00 |
| Product Height In | 4.310 |
| Product Length In | 12.470 |
| Product Length Mm | 316.738 |
| Product Width In | 2.840 |
| Product Width Mm | 72.136 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | 18″ TEFL coils with Deutsch male pins |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring centred |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 120 |
| Tank Port Rating Psi | 1750 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 50 |
| Working Temp Max F | 122 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
