Description

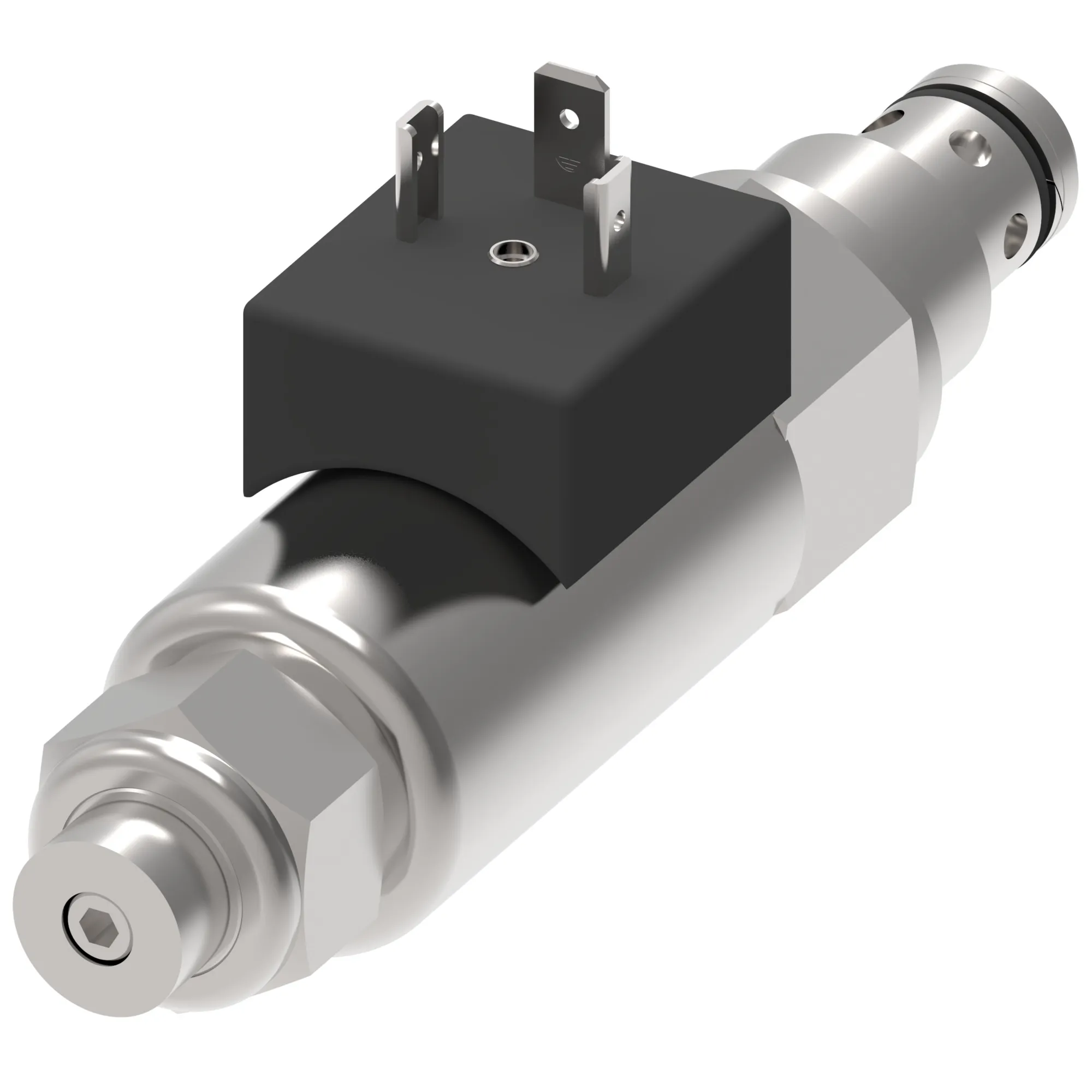

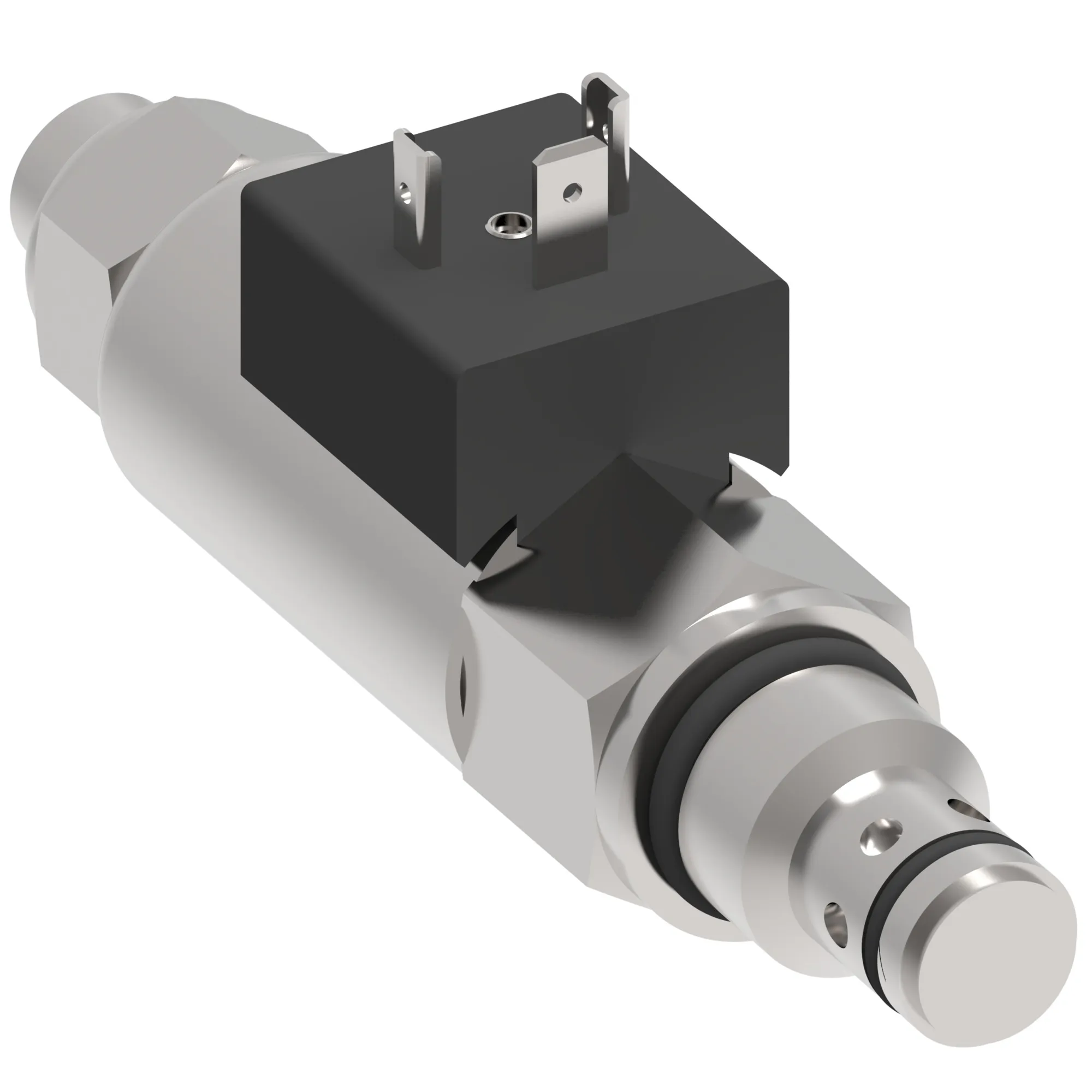

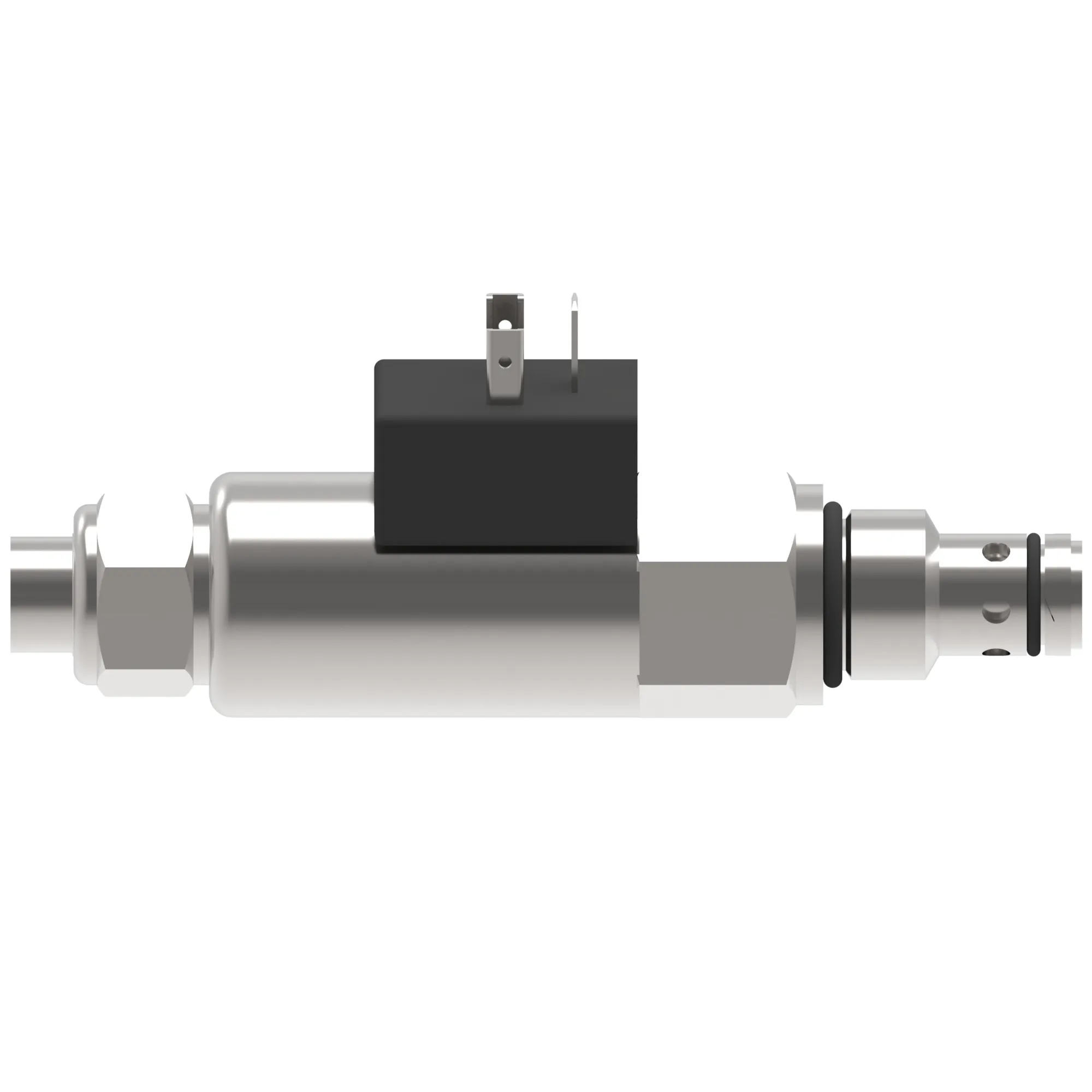

EPV10-0-12D-M-N-10-S14, EPV10-0-12D-M-N-10-S14 – 02-397825
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-10-2 |
| Coil Series | EPV Series |
| Coil Termination | Deutsch Moulded |
| Diode | No |
| Flow Rate Gpm | 8.00 |
| Flow Rate Lpm | 30.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Prop Flow Control |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 10 cc/min |
| Minimum Working Pressure Bar | 350.00 |
| Minimum Working Pressure Psi | 5000.00 |
| Model Code 1 | EPV10-0-12D-M-N-10-S14 |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -30 C to 90 C (-22 to 194 F) |
| Operation | Elecro Proportionally Ctrl |
| Override Type | Push pin type |
| Port Size | None |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 350.00 |
| Pressure Rating Psi | 5000.00 |
| Product Height In | 1.710 |
| Product Height Mm | 43.434 |
| Product Length In | 5.170 |
| Product Length Mm | 131.318 |
| Product Width In | 1.710 |
| Product Width Mm | 43.434 mm |
| Recommended Filtration Level | 15/13/11 |
| Seal Type | Buna-N |
| Special Features | EPV10-S14 |
| Style | Poppet |
| Torque Into Aluminium Cavity | 47-54 Nm |
| Torque Into Steel Cavity | 68-75 Nm |
| Voltage | 12 V |
| Voltage Type | DC |
| Working Pressure Max Bar | 350.00 |
| Working Pressure Max Psi | 5000.00 |
