Danfoss (Drives) 02-396741

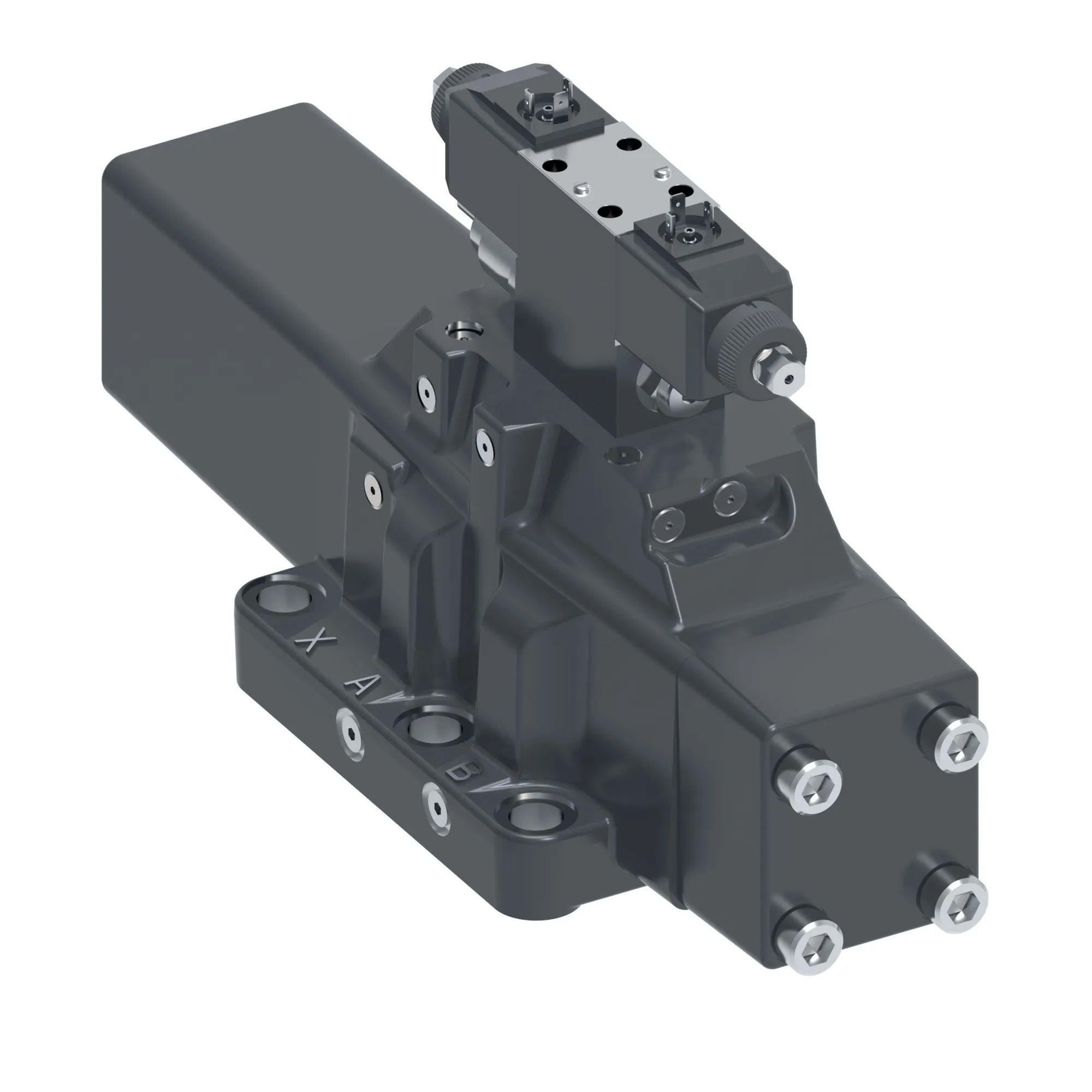

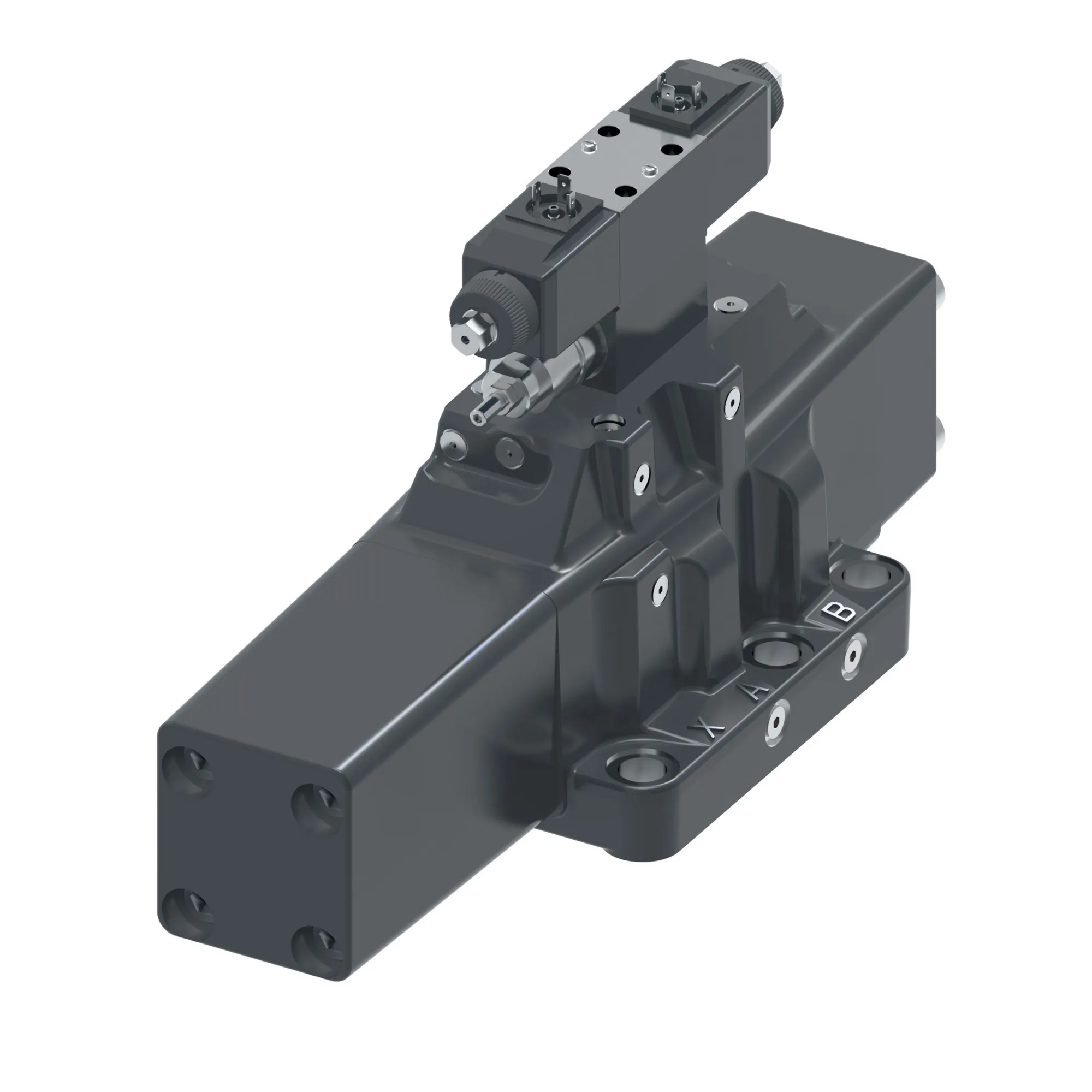

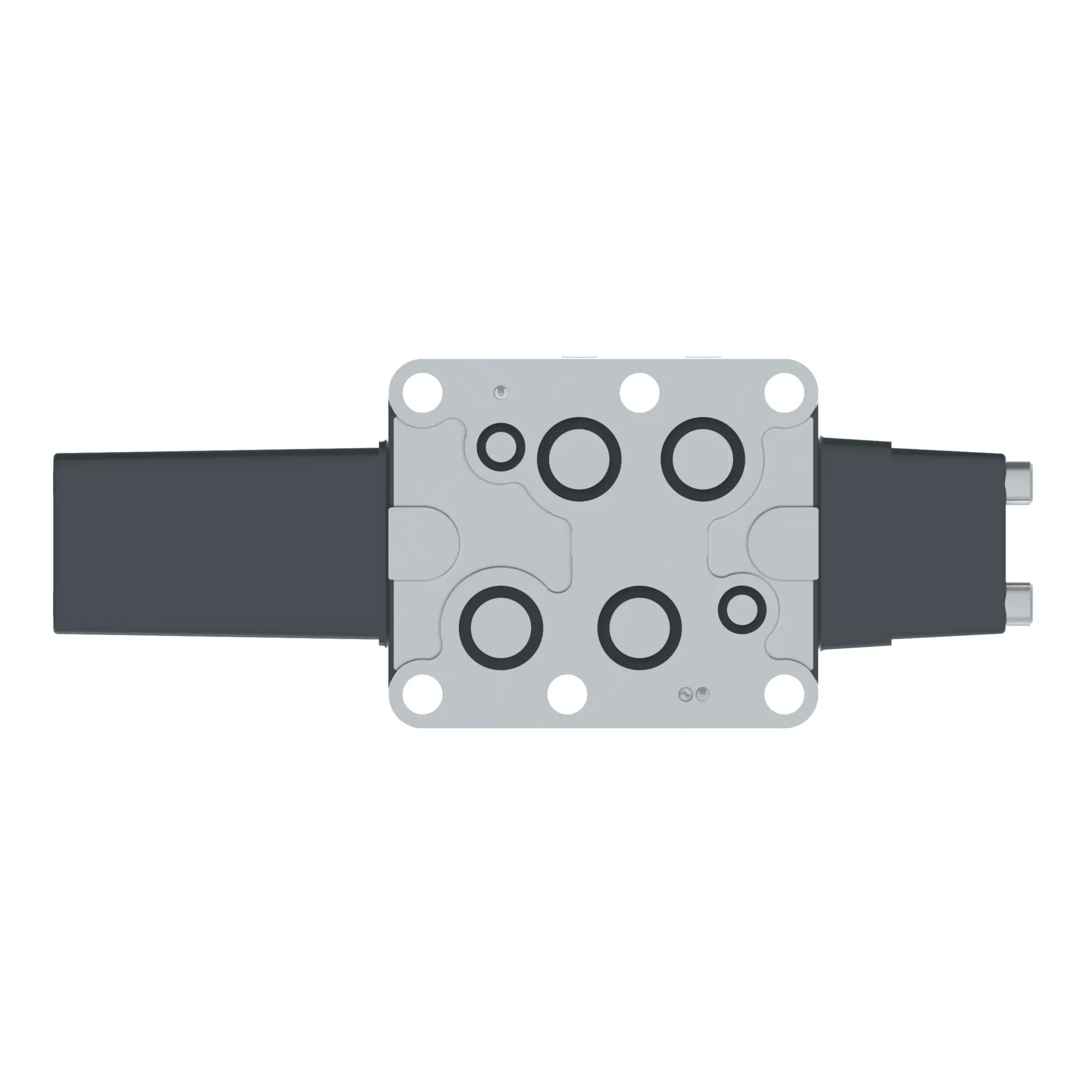

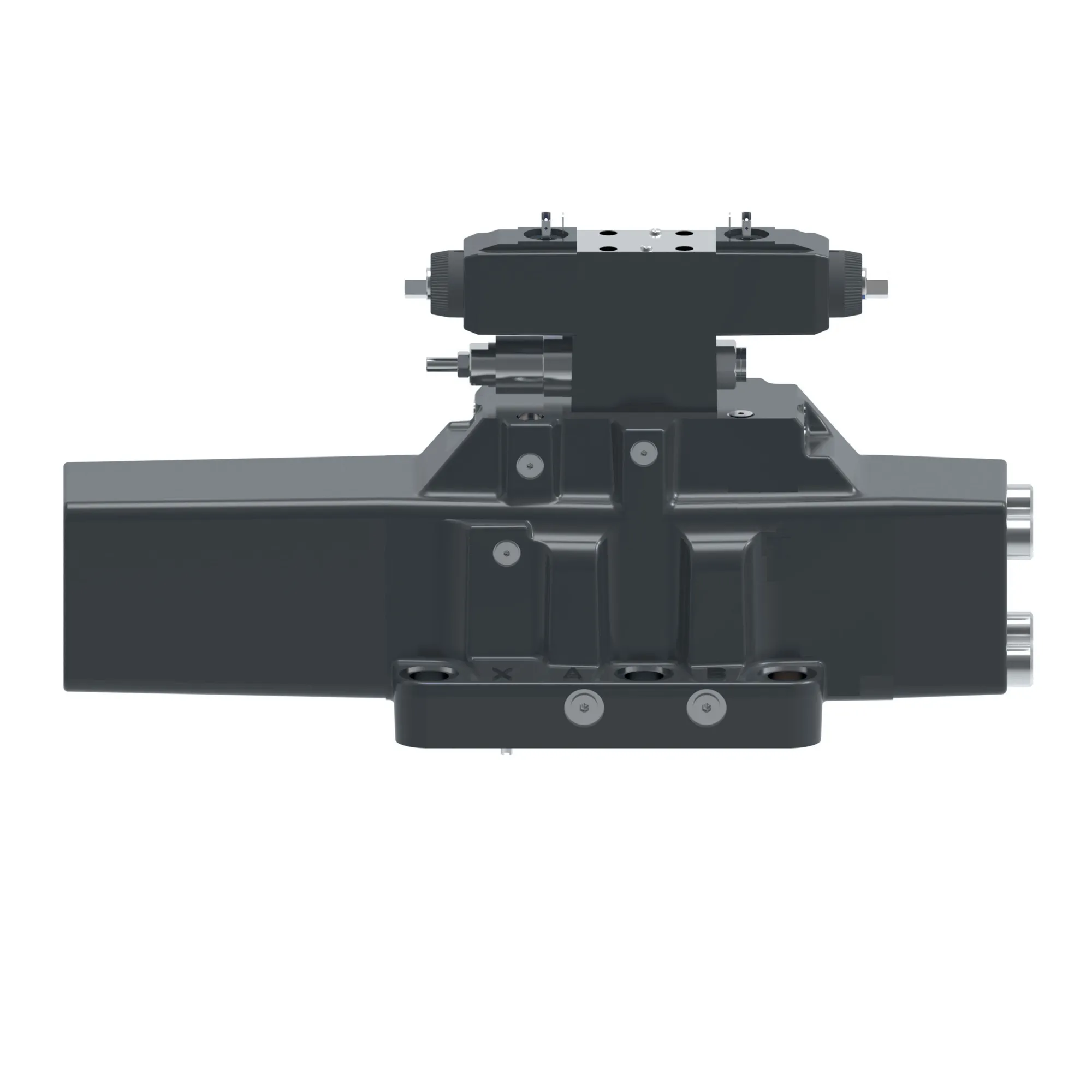

KDG5V-10-2C550N-EX-H-M-U, KDG5V102C550NEXHMUH111 – 02-396741
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KDG5V-10-2C550N-EX-H-M-U, KDG5V102C550NEXHMUH111 – 02-396741
Specification
| A Port Flow Lpm | 550.00 |
|---|---|
| A Port Flow Usgpm | 145.00 |
| Actuation Type | Solenoid controlled pilot operated |
| B Port Flow Lpm | 550.00 |
| B Port Flow Usgpm | 145.00 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 11 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-10/NFPA D10/CETOP 10 |
| Manual Override | Water-resistant |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Metering | Meter in / meter out |
| Model Code 1 | KDG5V102C550NEXHMUH111 |
| On Board Electronics | No |
| Performance | Standard |
| Pilot Drain | External |
| Pilot Supply | External |
| Product Height In | 11.200 |
| Product Height Mm | 284.480 |
| Product Length In | 20.350 |
| Product Length Mm | 516.890 |
| Product Width In | 7.750 |
| Product Width Mm | 196.85 |
| Profx Compatible | No |
| Reducer Module | Yes |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Two stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 350 |
| Tank Port Rating Psi | 5000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
