Danfoss (Drives) 02-396426

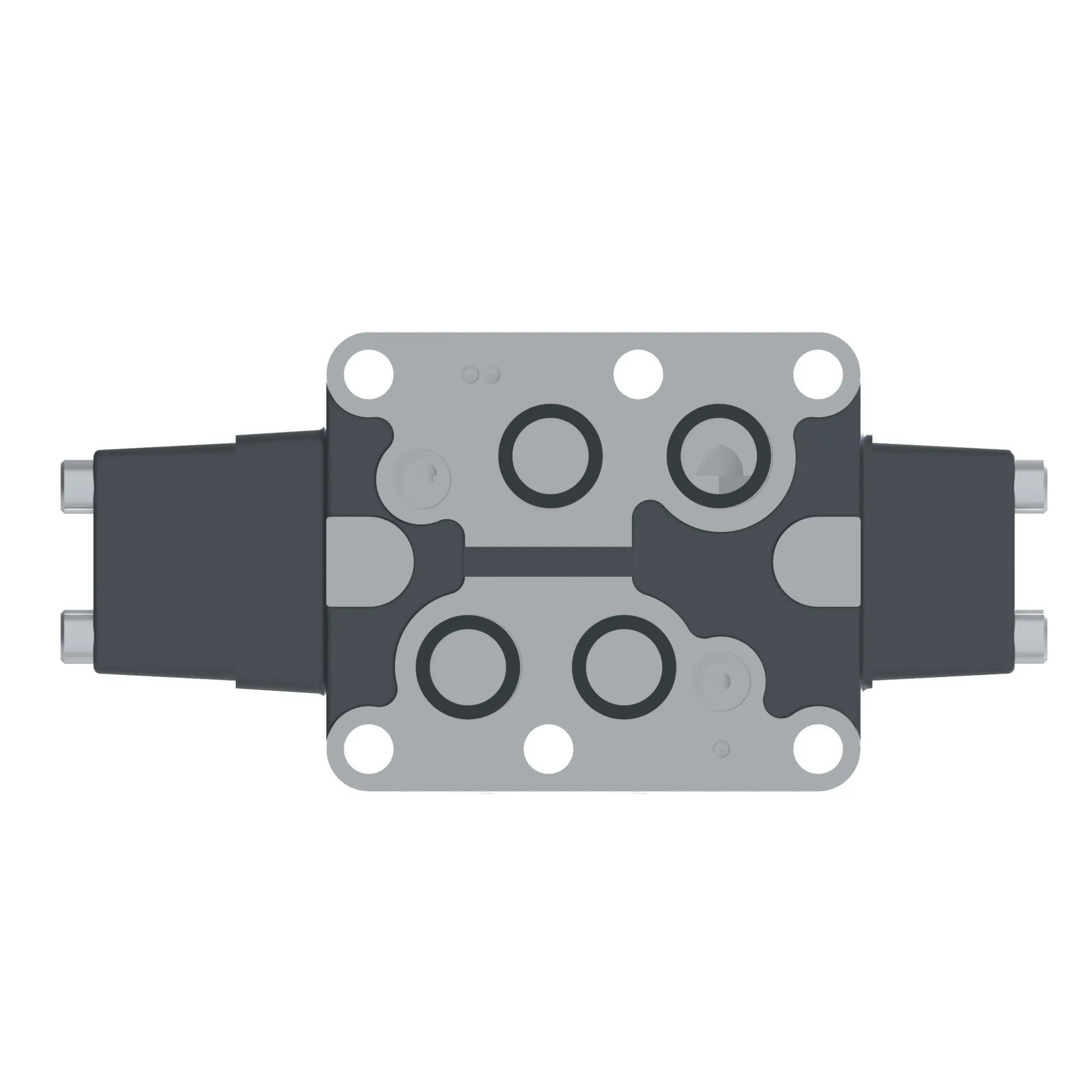

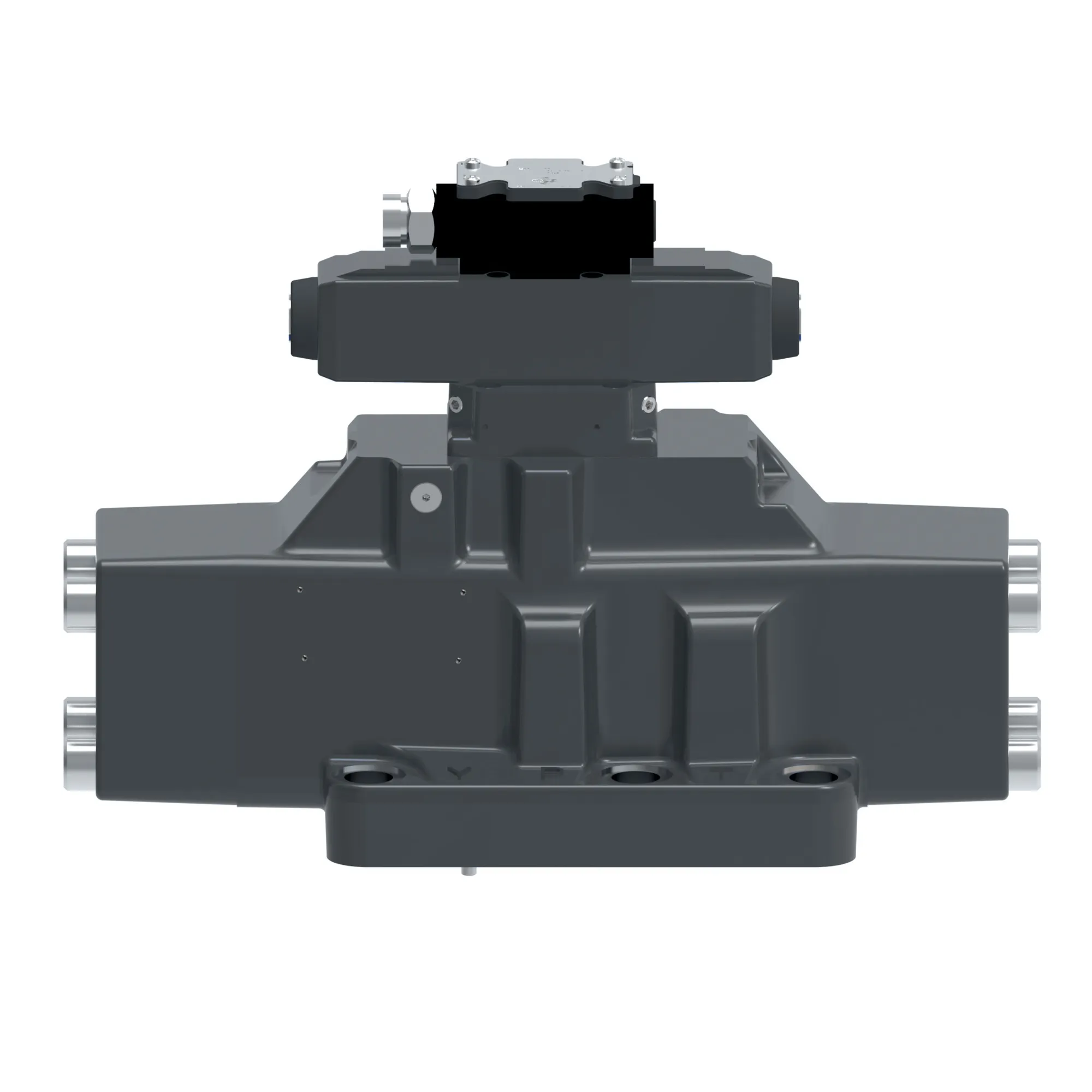

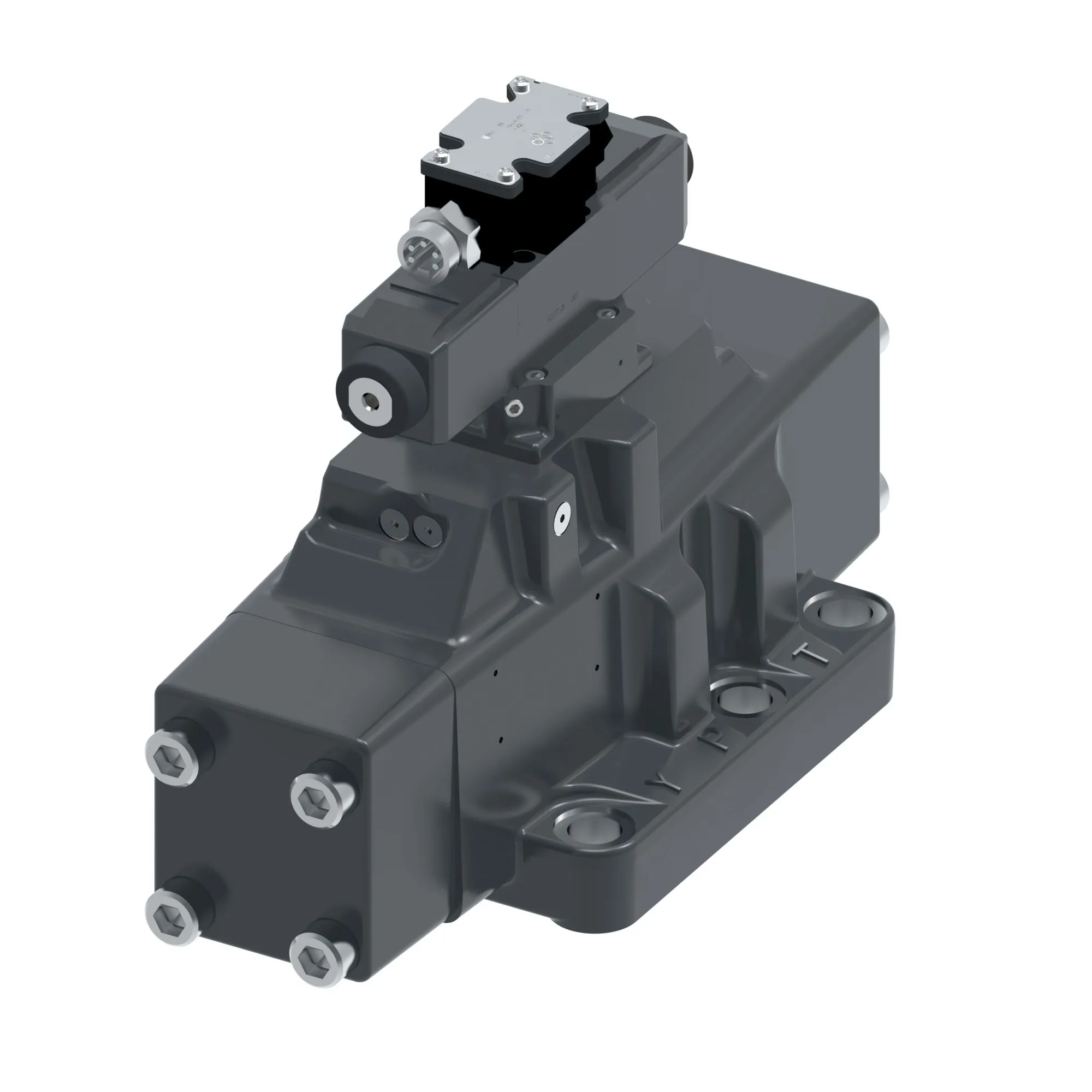

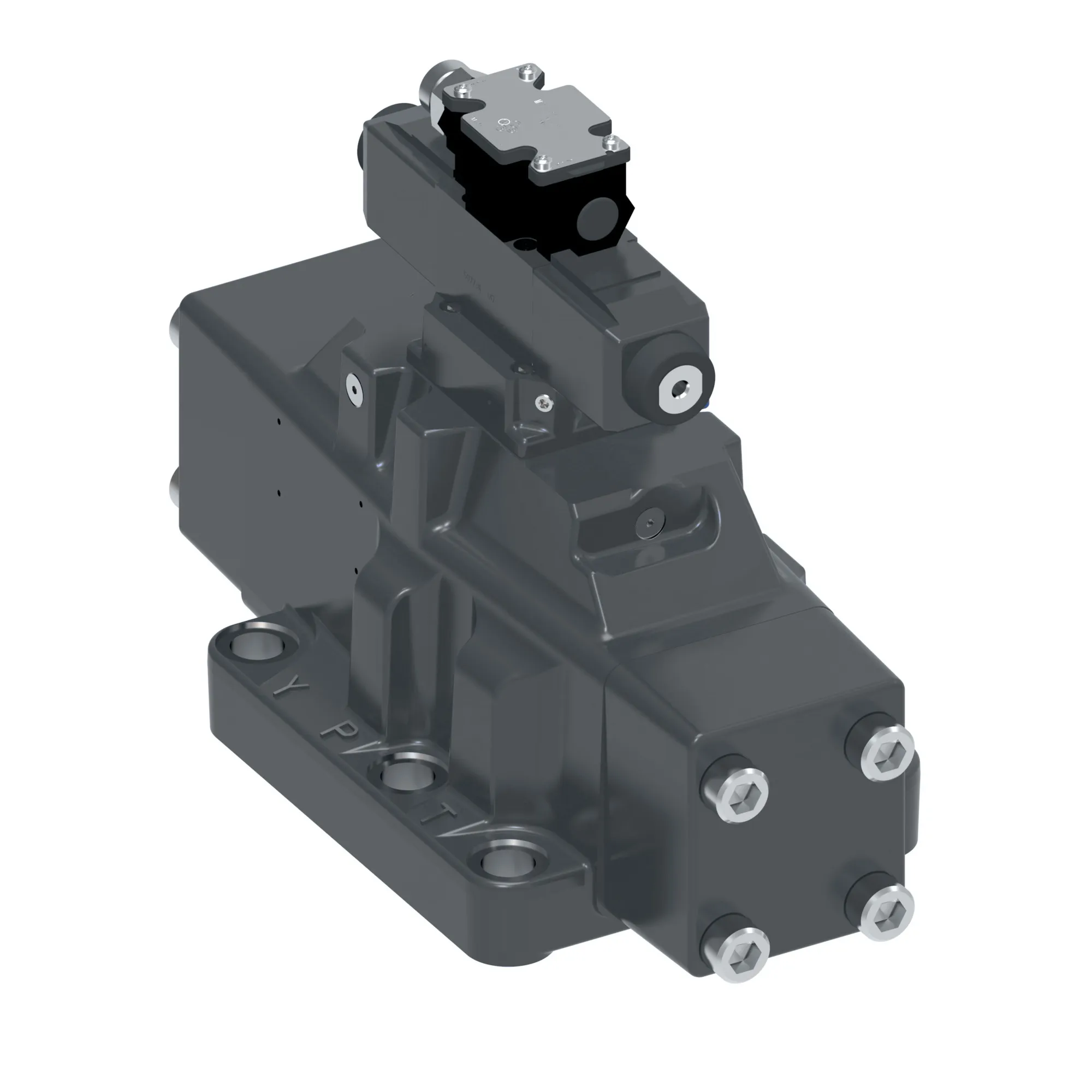

F3-DG5V-10-H-52C-2-M-FTW L-B-10, F3DG5V10H52C2MFTWLB10 – 02-396426
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3-DG5V-10-H-52C-2-M-FTW L-B-10, F3DG5V10H52C2MFTWLB10 – 02-396426
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 10 Series |
| Electrical Connection | Flying lead wired terminalblock & 1/2″ NPT thread wiring housing |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 290.0 |
| Flow Rate Upto Lpm | 1100.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread Type | 0.4375 – 20 UNF, SAE Thread |
| Indicator Light | Yes |
| Int Pilot Drain | External |
| Interface | ISO4401-10 |
| Manual Override | Plain |
| Model Code 1 | F3DG5V10H52C2MFTWLB10 |
| Performance | High performance |
| Power Consumption | 49VA 50HZ – 48VA 60HZ |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Control | Pilot choke adjustment |
| Spool Position Monitor | No |
| Spool Type | Spool 52 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 65 |
| Working Temp Max F | 150 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
