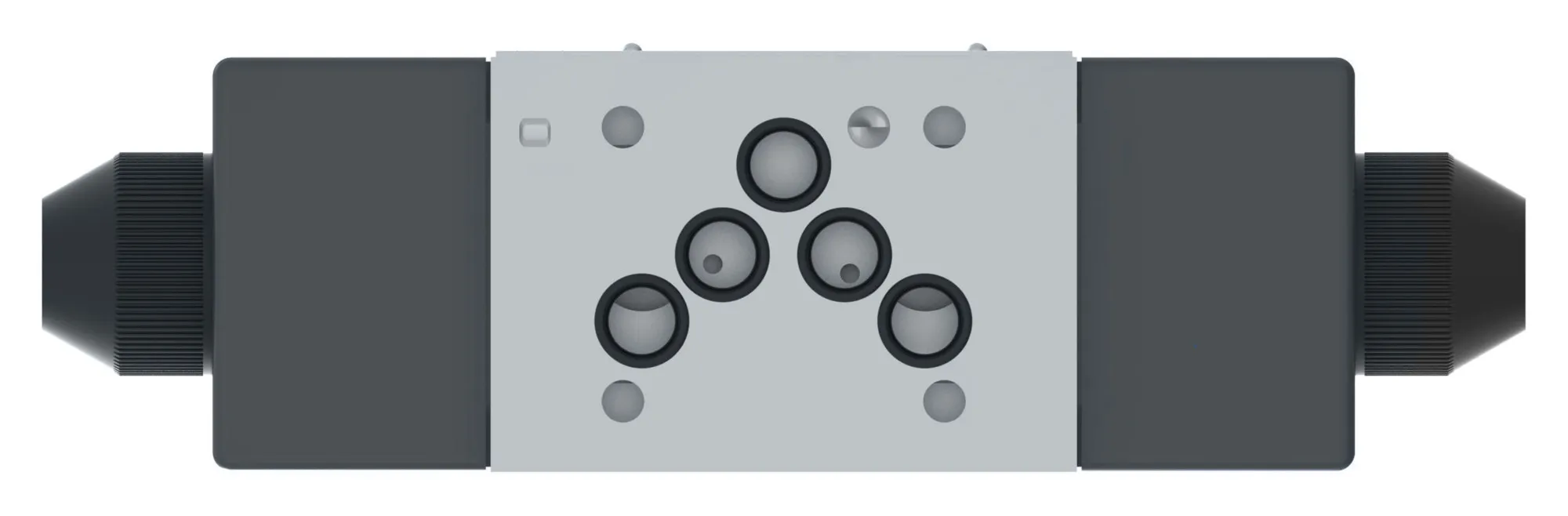

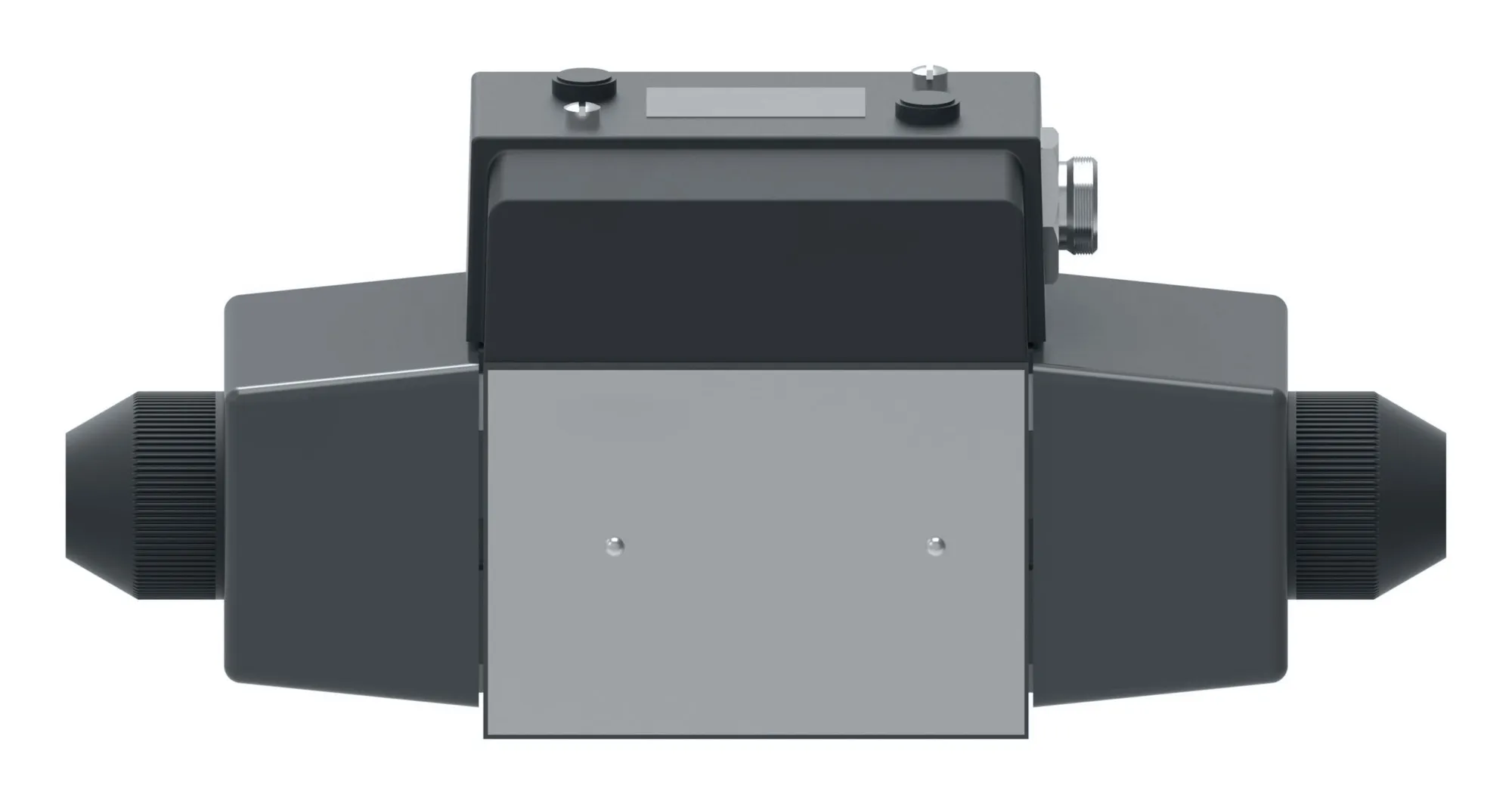

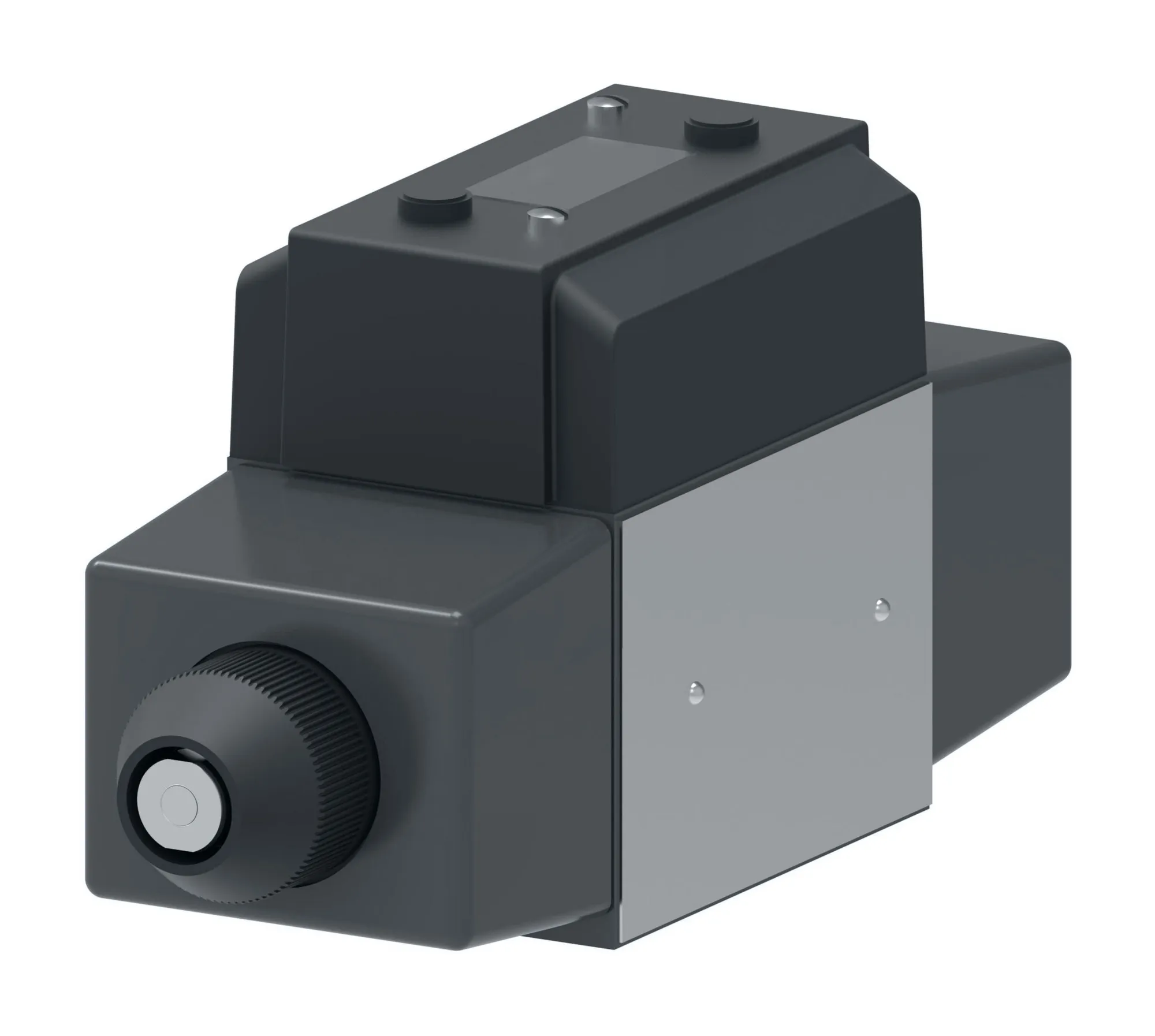

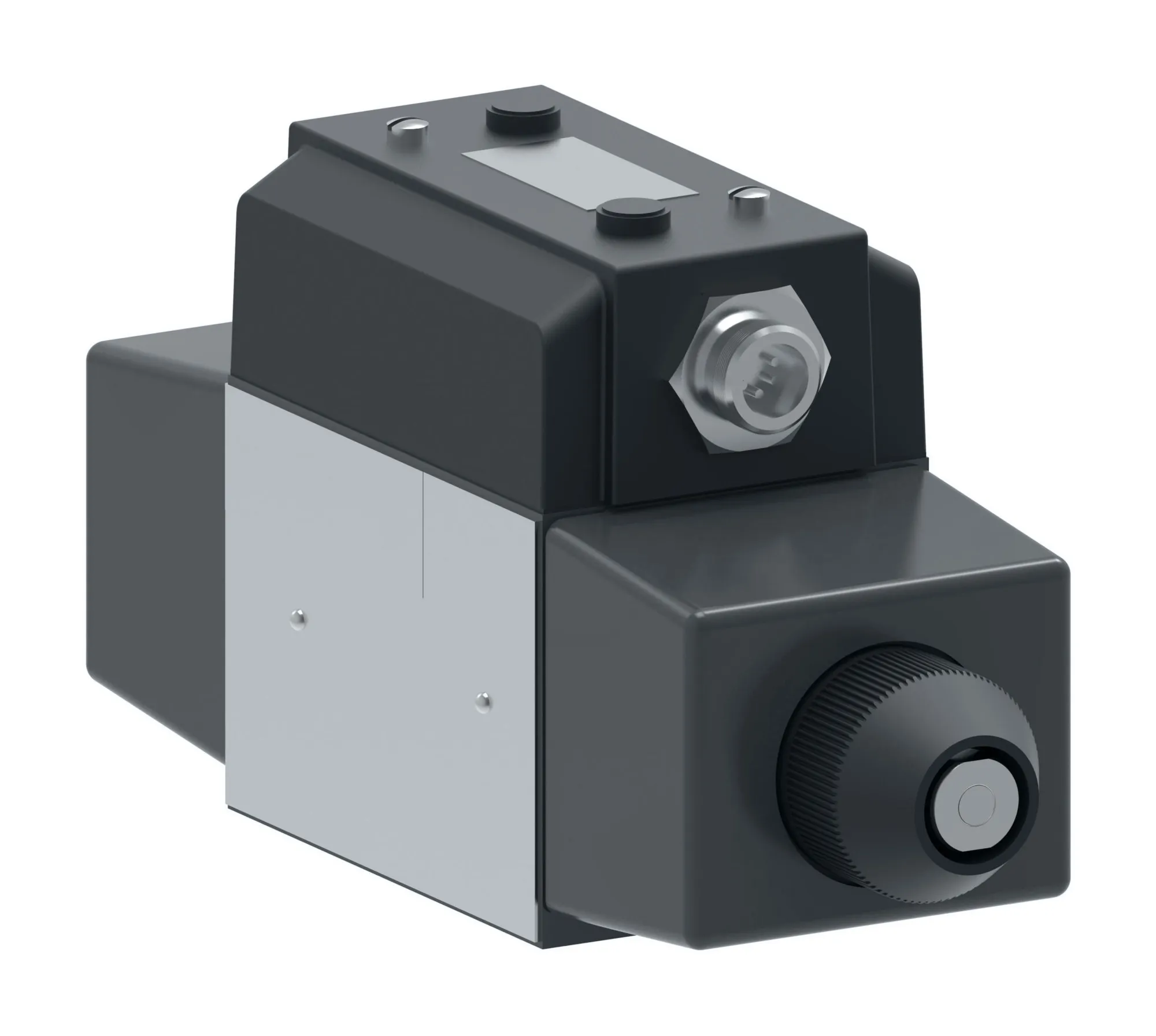

PM4DG4S4LW-016C-H-60-S60 7, PM4DG4S4LW016CH60S607 – 02-394267
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PM4DG4S4LW-016C-H-60-S60 7, PM4DG4S4LW016CH60S607 – 02-394267
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 24 VDC |
| Design Series | 60 Series |
| Electrical Connection | 4-pin connector |
| Energ Time | 50-80 ms |
| Flow Rate Upto Gpm | 25.0 |
| Flow Rate Upto Lpm | 95.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | Yes |
| Interface | ISO4401-05 |
| Manual Override | None |
| Model Code 1 | PM4DG4S4LW016CH60S607 |
| Performance | Standard performance |
| Pressure Rating Bar | 250 |
| Pressure Rating Psi | 3600 |
| Product Height In | 3.850 |
| Product Length In | 6.840 |
| Product Length Mm | 173.736 |
| Product Width In | 2.810 |
| Product Width Mm | 71.374 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | Wired to automotive standard wiring scheme, terminal strip and push in lights |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred, three position |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 70.0 |
| Tank Port Rating Psi | 1000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 50 |
| Working Temp Max F | 122 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
