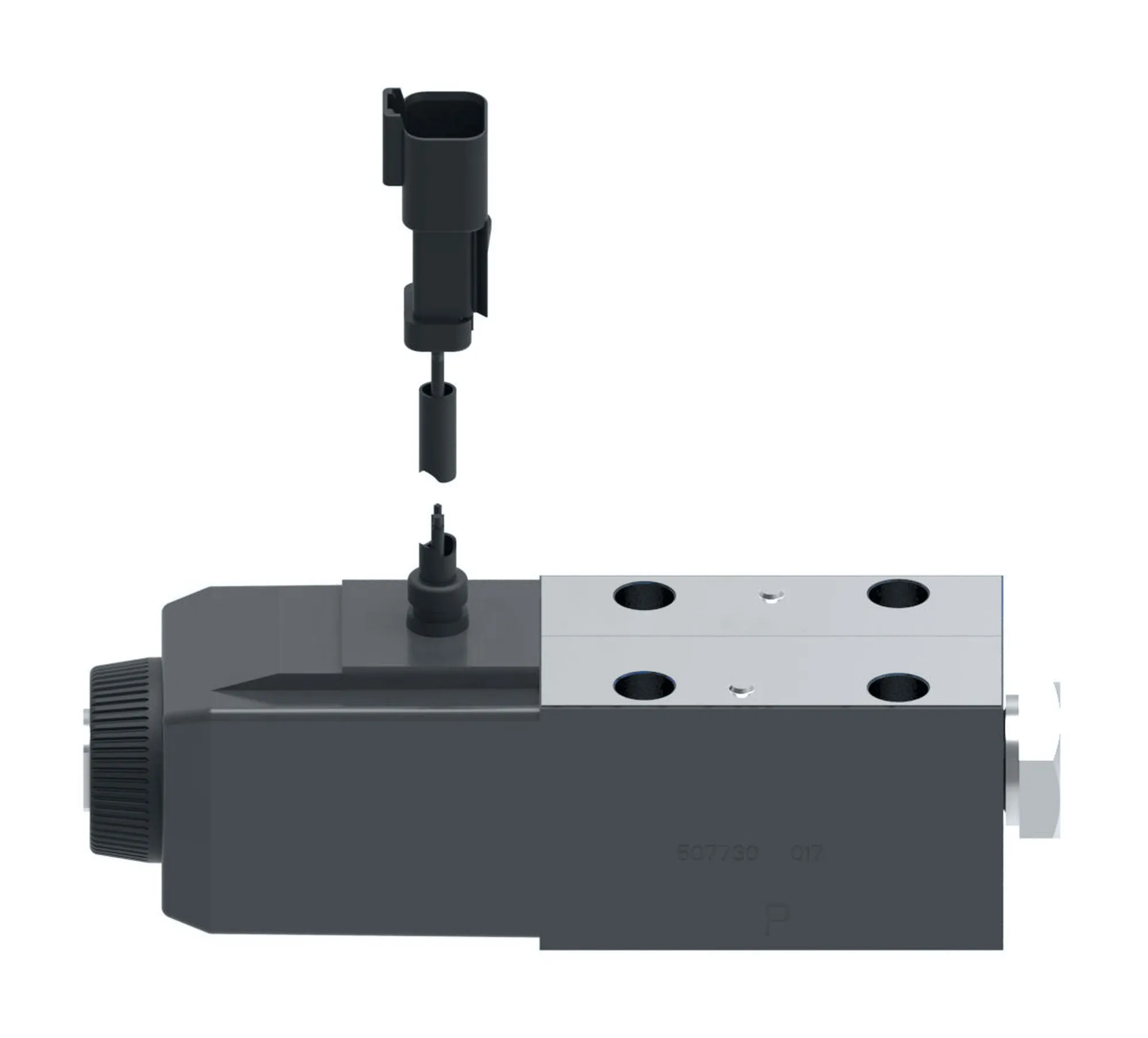

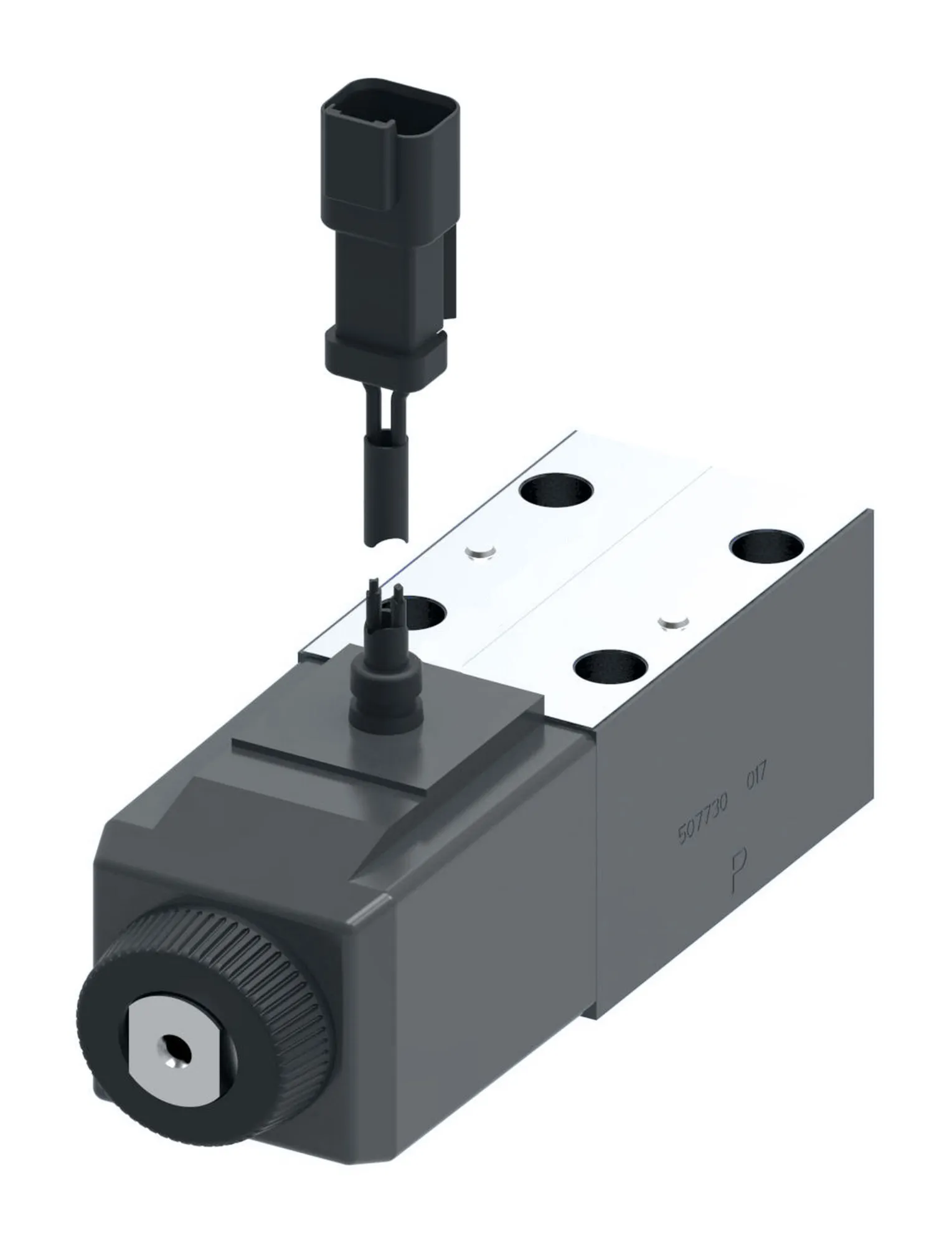

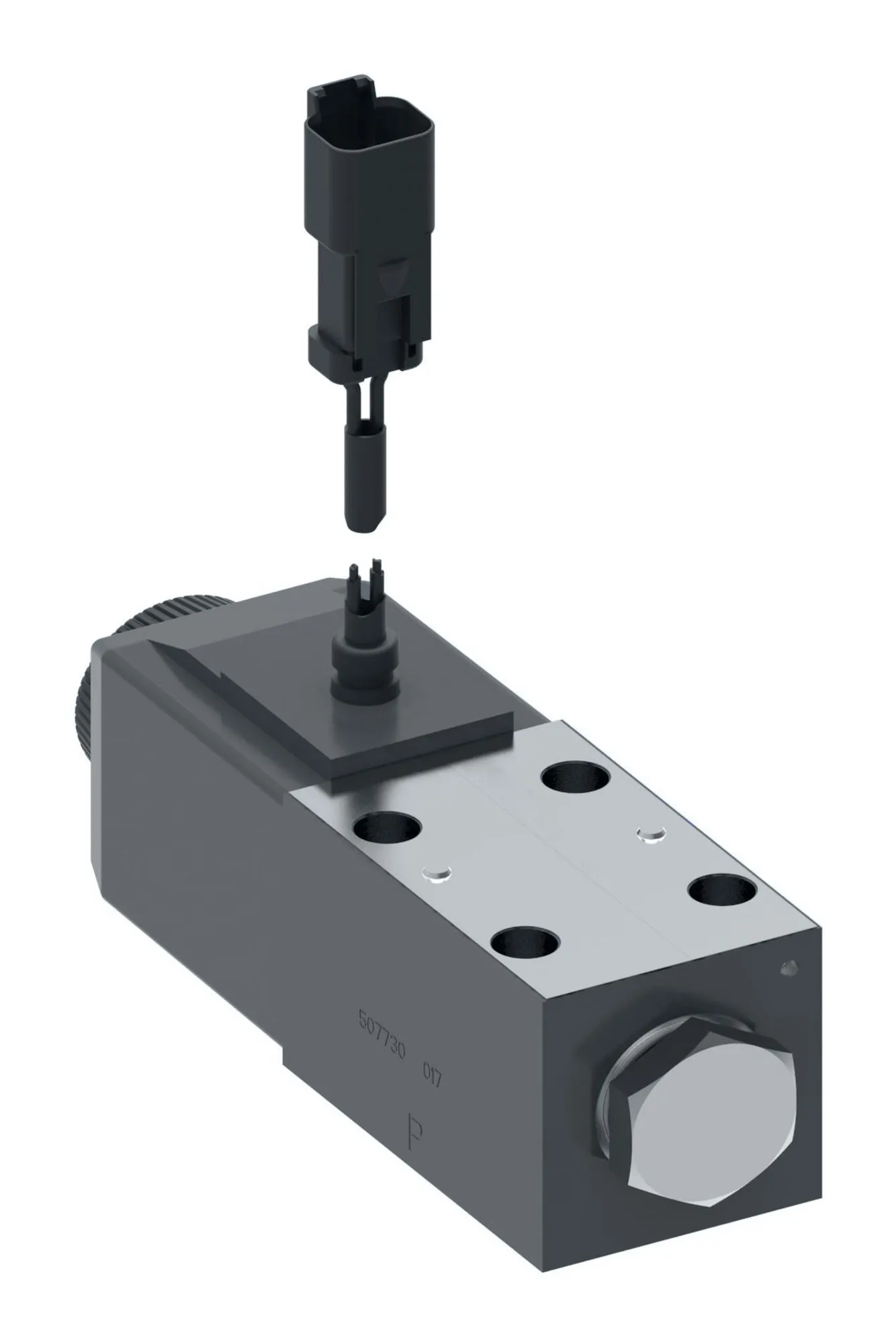

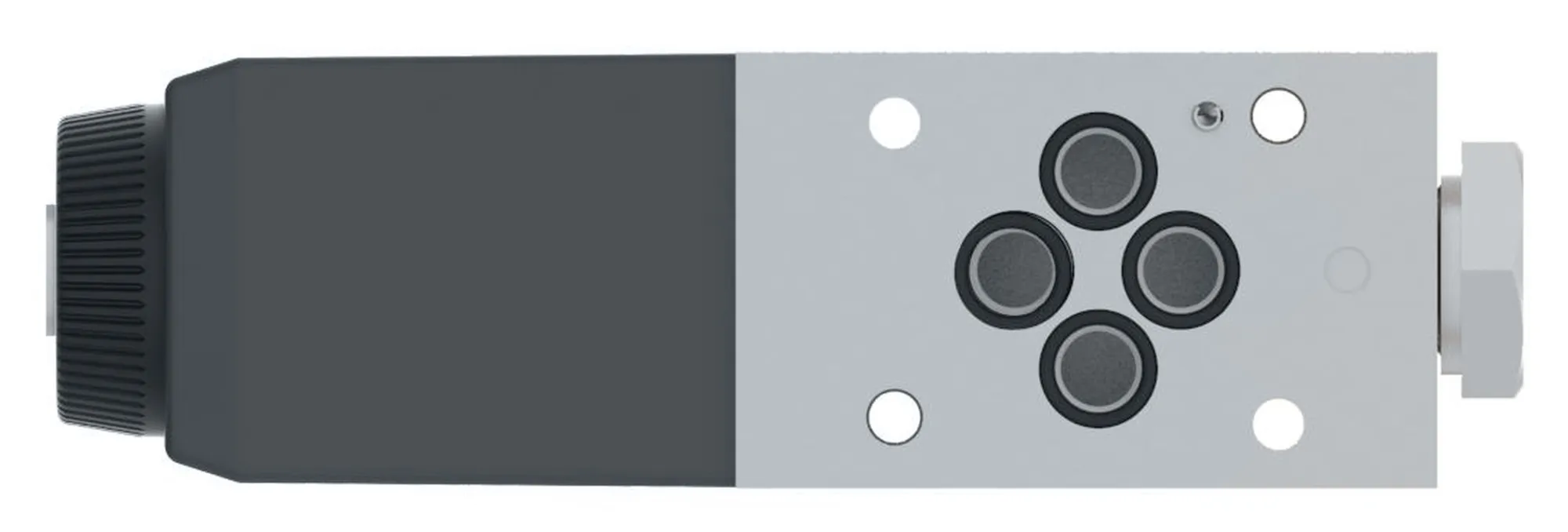

Danfoss (Drives) 02-394081
DG4V-3S-2A-M-KUP6-D2-G7- 60-EN490, DG4V3S2AMKUP6D2G760EN490 – 02-394081
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG4V-3S-2A-M-KUP6-D2-G7- 60-EN490, DG4V3S2AMKUP6D2G760EN490 – 02-394081
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 12 VDC |
| Design Series | 60 Series |
| Electrical Connection | Flying lead Deutsch connector |
| Energ Time | 60-40 ms |
| Flow Rate Upto Gpm | 10.5 |
| Flow Rate Upto Lpm | 40.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-03 |
| Manual Override | Plain |
| Model Code 1 | DG4V3S2AMKUP6D2G760EN490 |
| Performance | Standard performance |
| Power Consumption | 30 watt |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 3.420 |
| Product Length In | 5.750 |
| Product Length Mm | 146.050 |
| Product Width In | 1.800 |
| Product Width Mm | 45.72 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | For mobile equipment |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring offset end to end |
| Stage | Single stage |
| Surge Suppr Damper | Yes |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
