Description

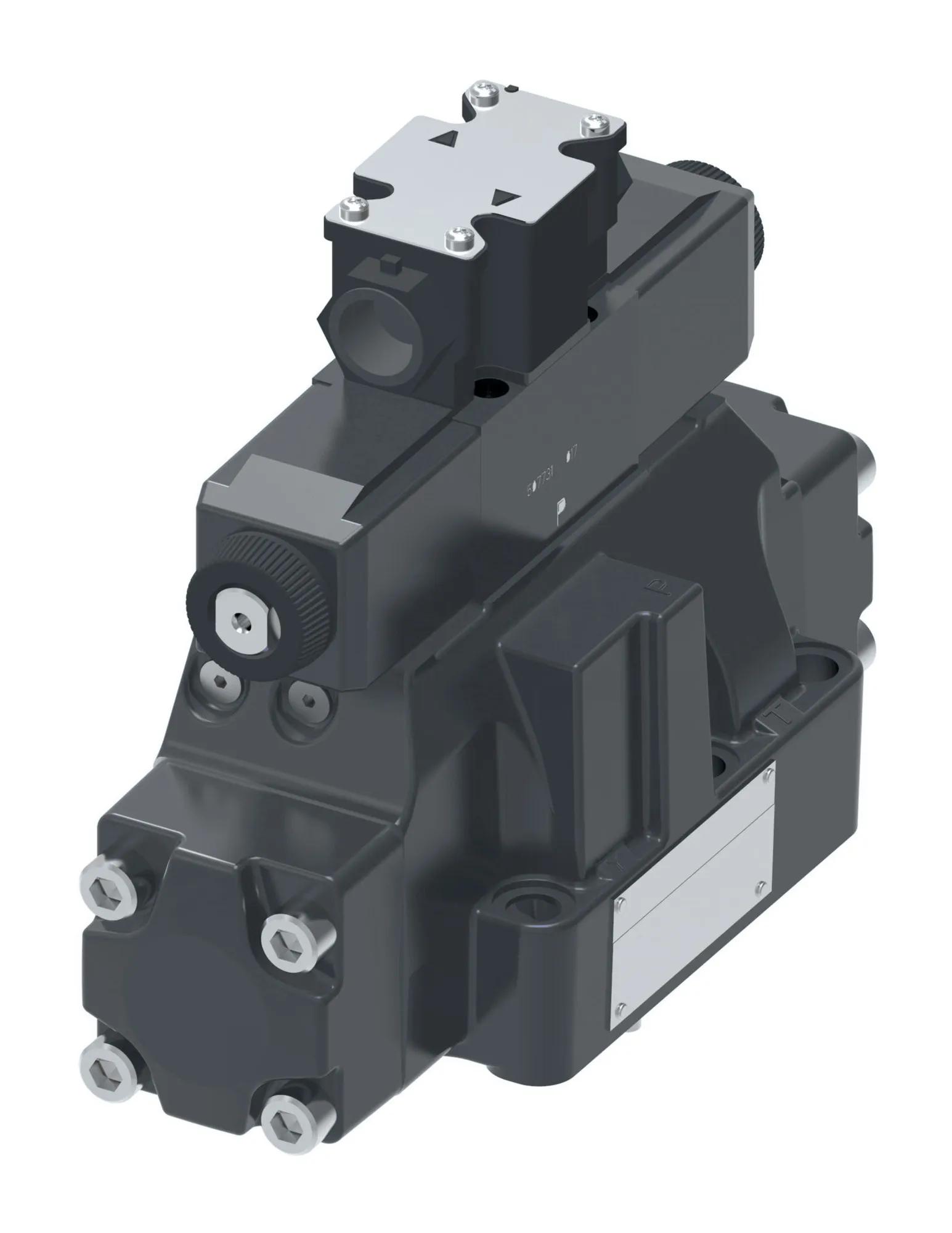

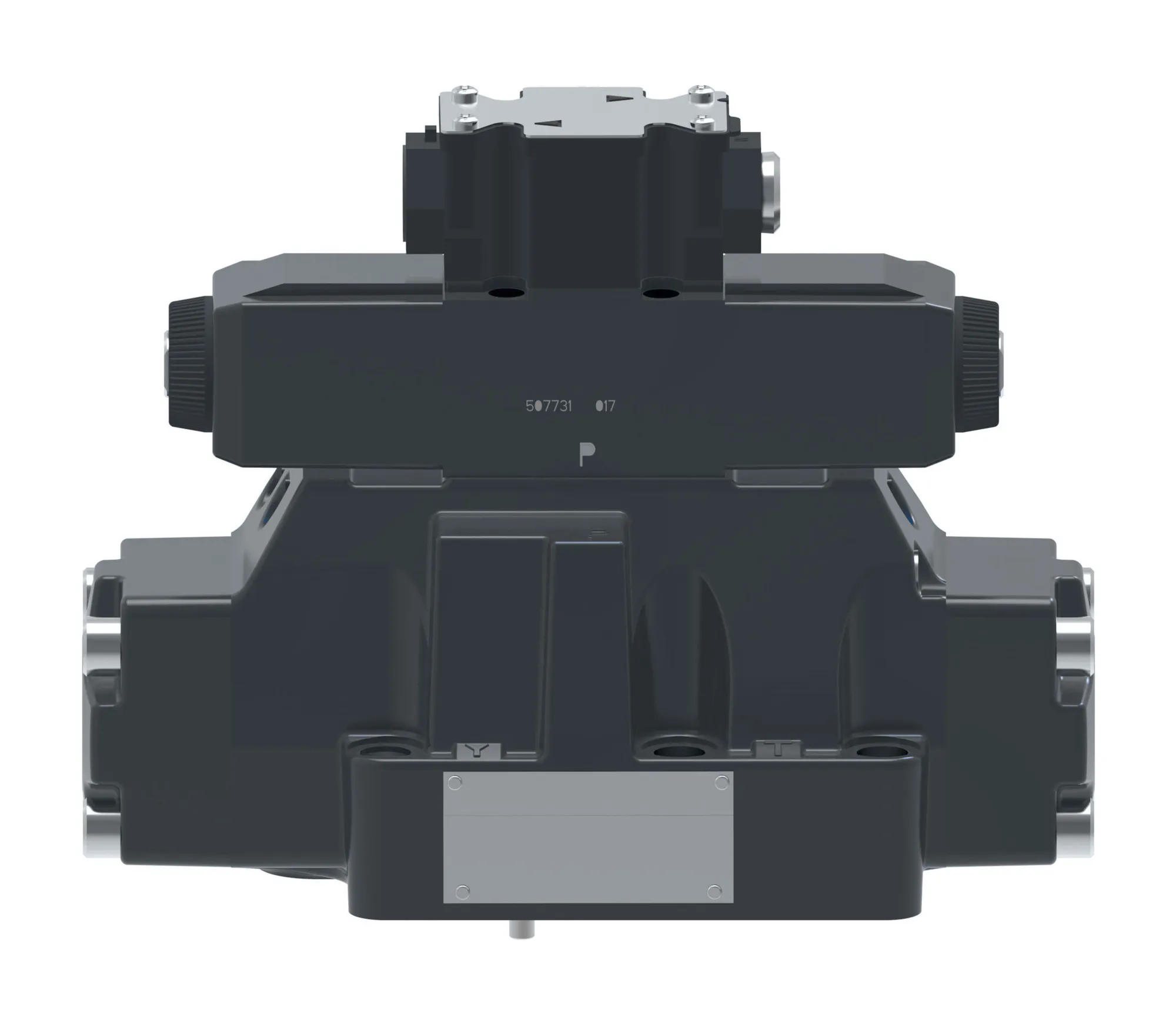

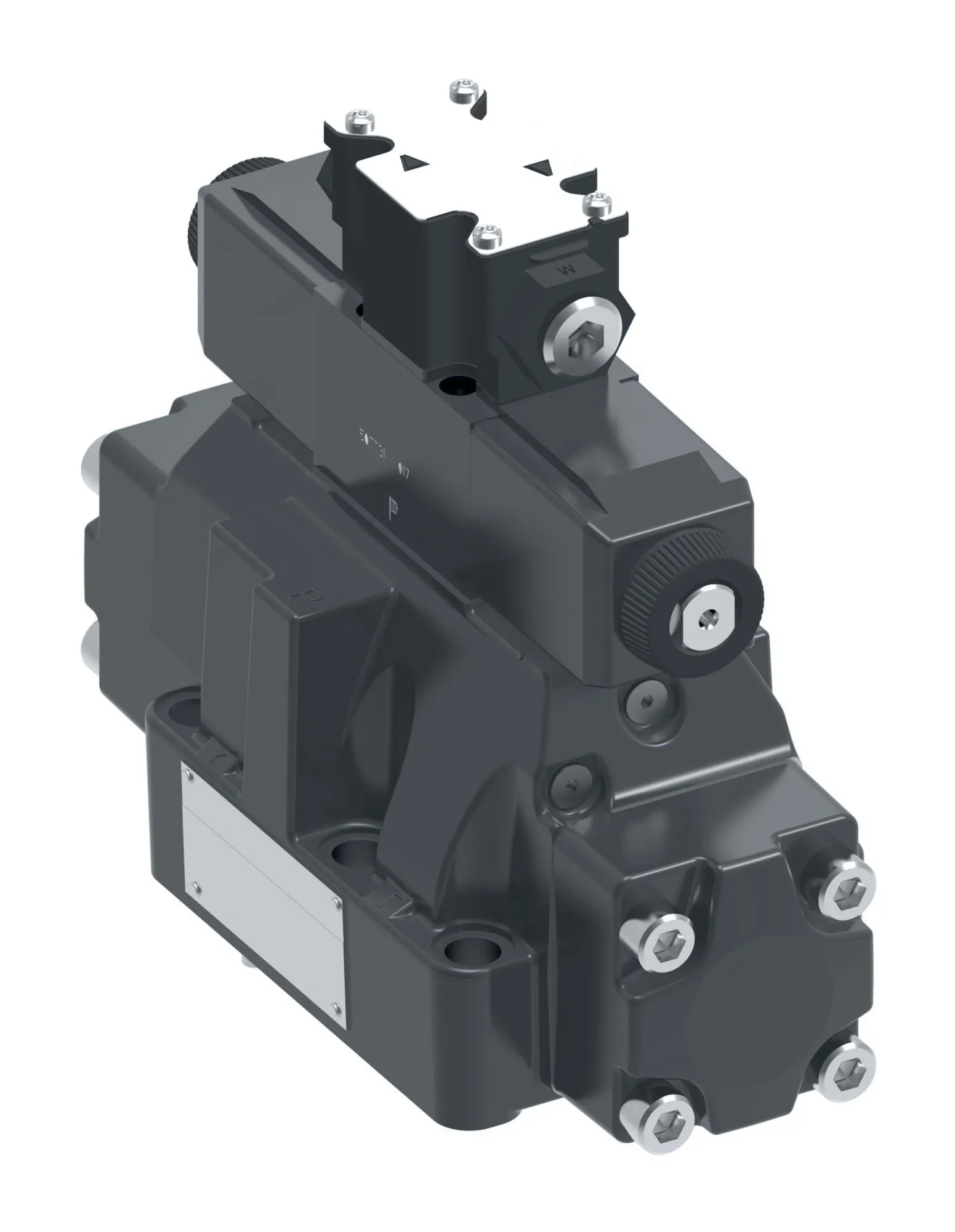

DG5V-8-H-6C-M-FTWL-B-10, DG5V8H6CMFTWLB10 – 02-393544
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 110 VAC 50Hz/120 VAC 60Hz |
| Design Series | 10 Series |
| Electrical Connection | Flying lead wired terminalblock & 1/2″ NPT thread wiring housing |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 185.0 |
| Flow Rate Upto Lpm | 700.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread Type | 0.4375 – 20 UNF, SAE Thread |
| Indicator Light | Yes |
| Int Pilot Drain | External |

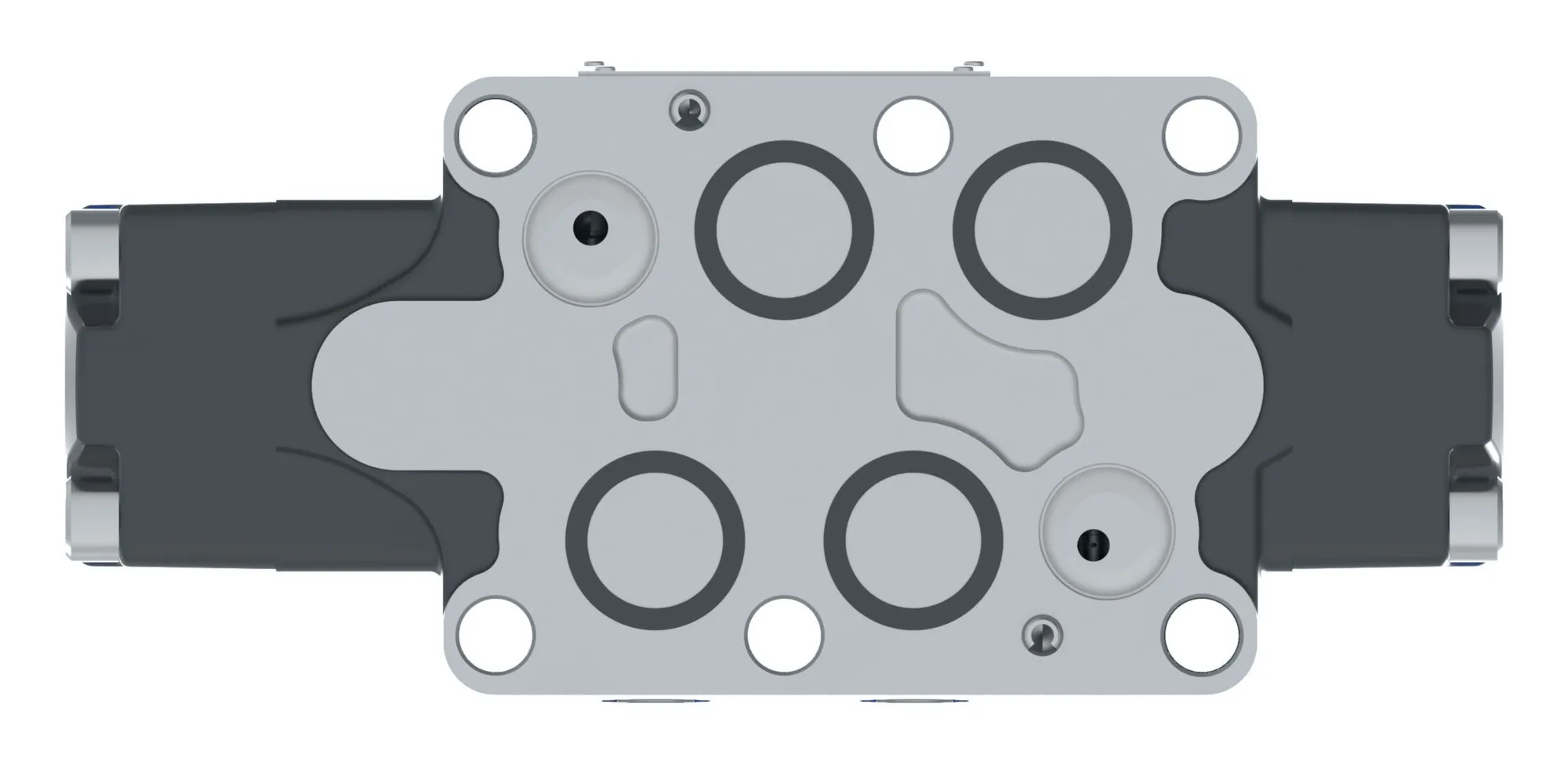

| Interface | ISO4401-08 |
| Manual Override | Plain |
| Model Code 1 | DG5V8H6CMFTWLB10 |
| Performance | High performance |
| Power Consumption | 49VA 50HZ – 48VA60HZ |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 7.940 |
| Product Height Mm | 201.676 |
| Product Length In | 10.450 |
| Product Length Mm | 265.430 |
| Product Width In | 4.670 |
| Product Width Mm | 118.618 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 6 |
| Spring Arrangement | Spring centred |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 350.0 |
| Tank Port Rating Psi | 5000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
