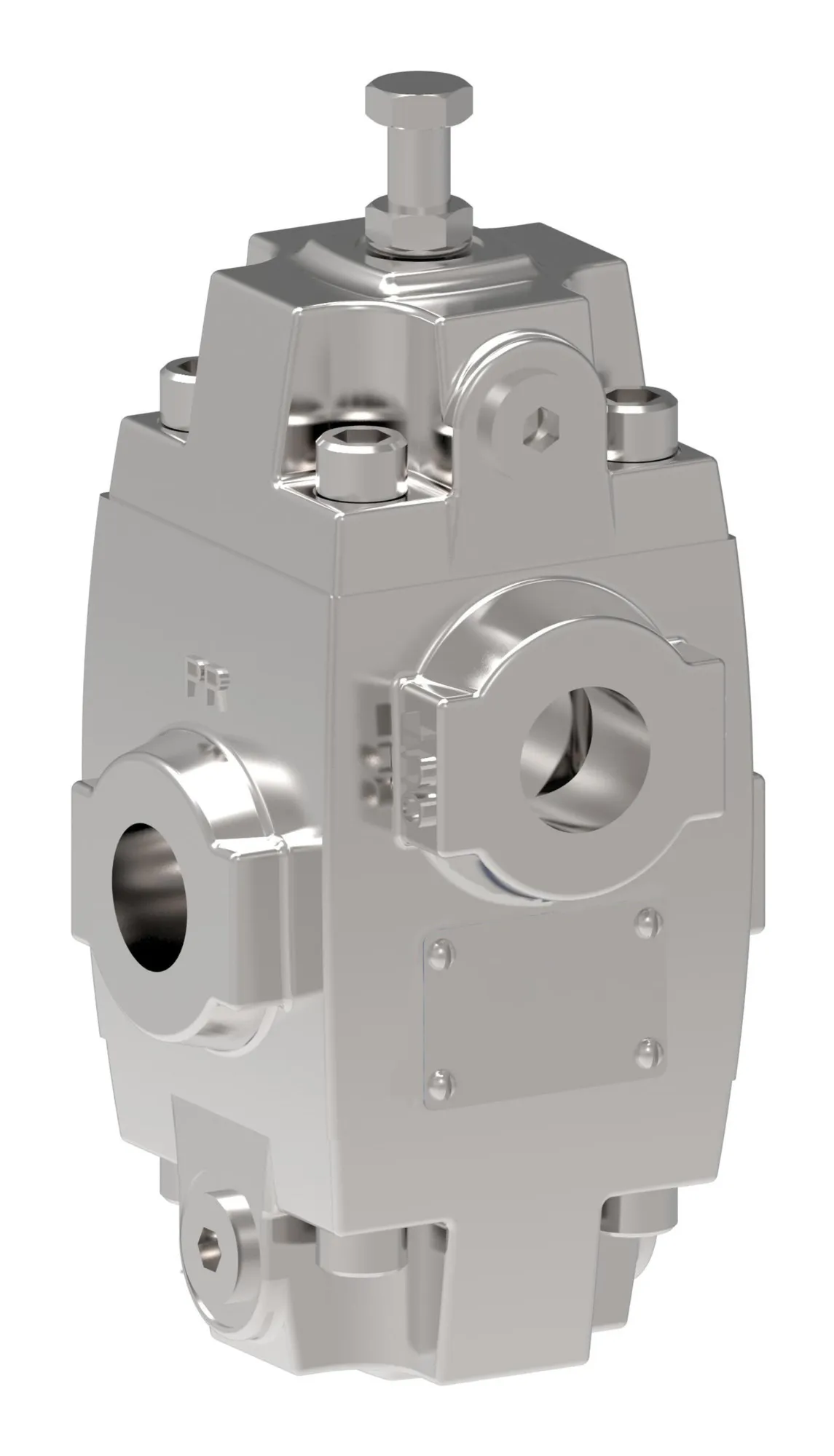

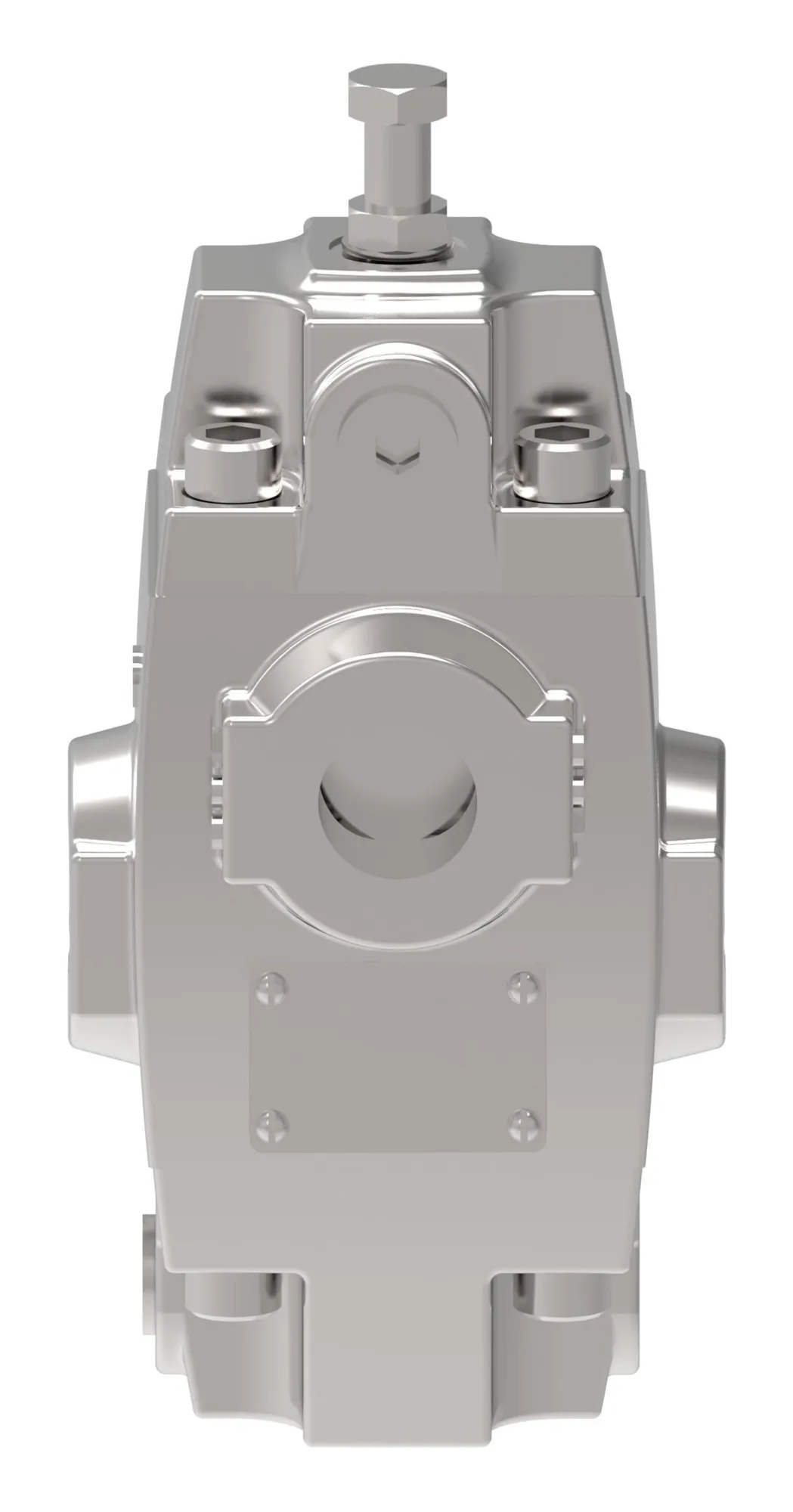

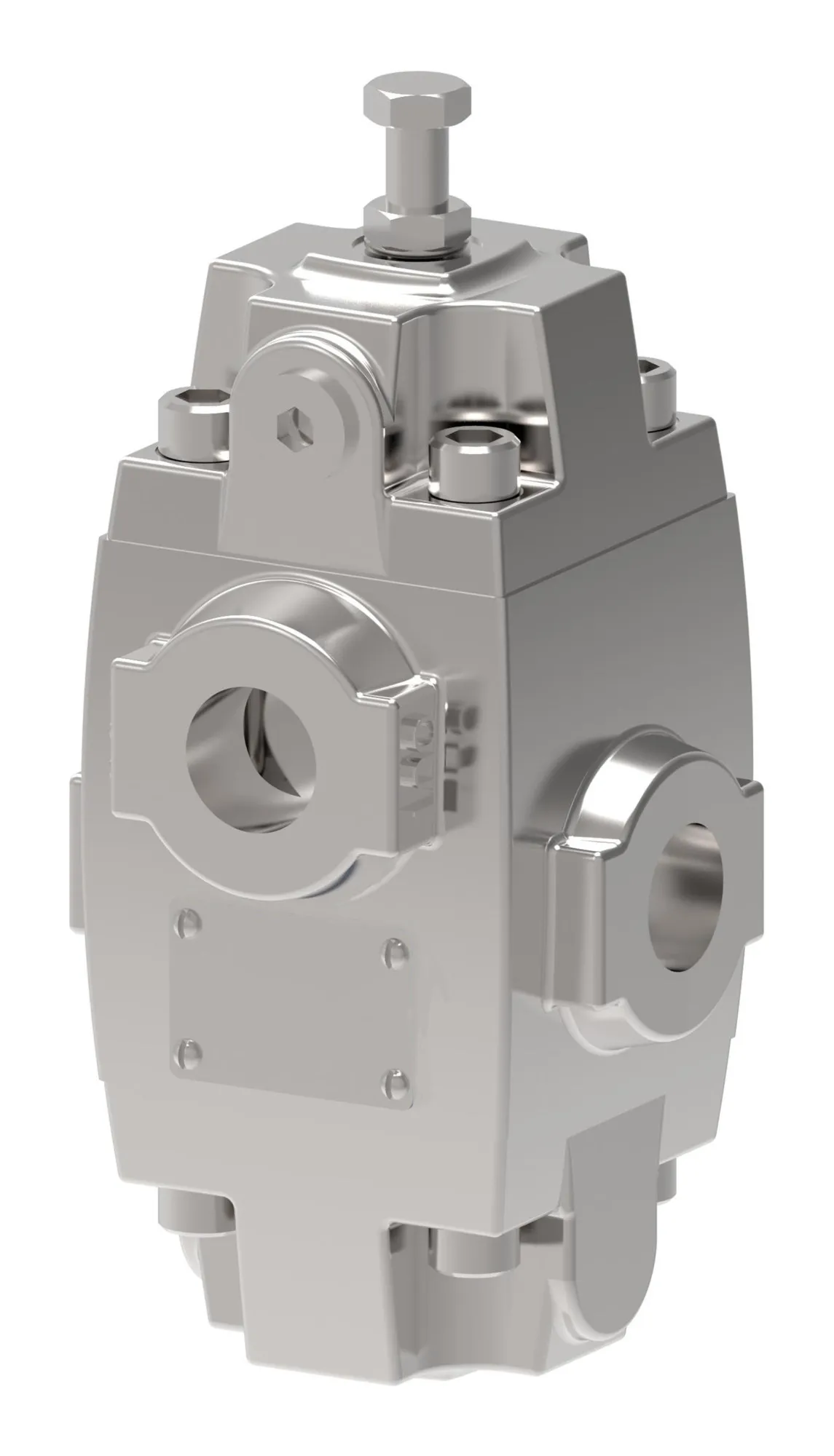

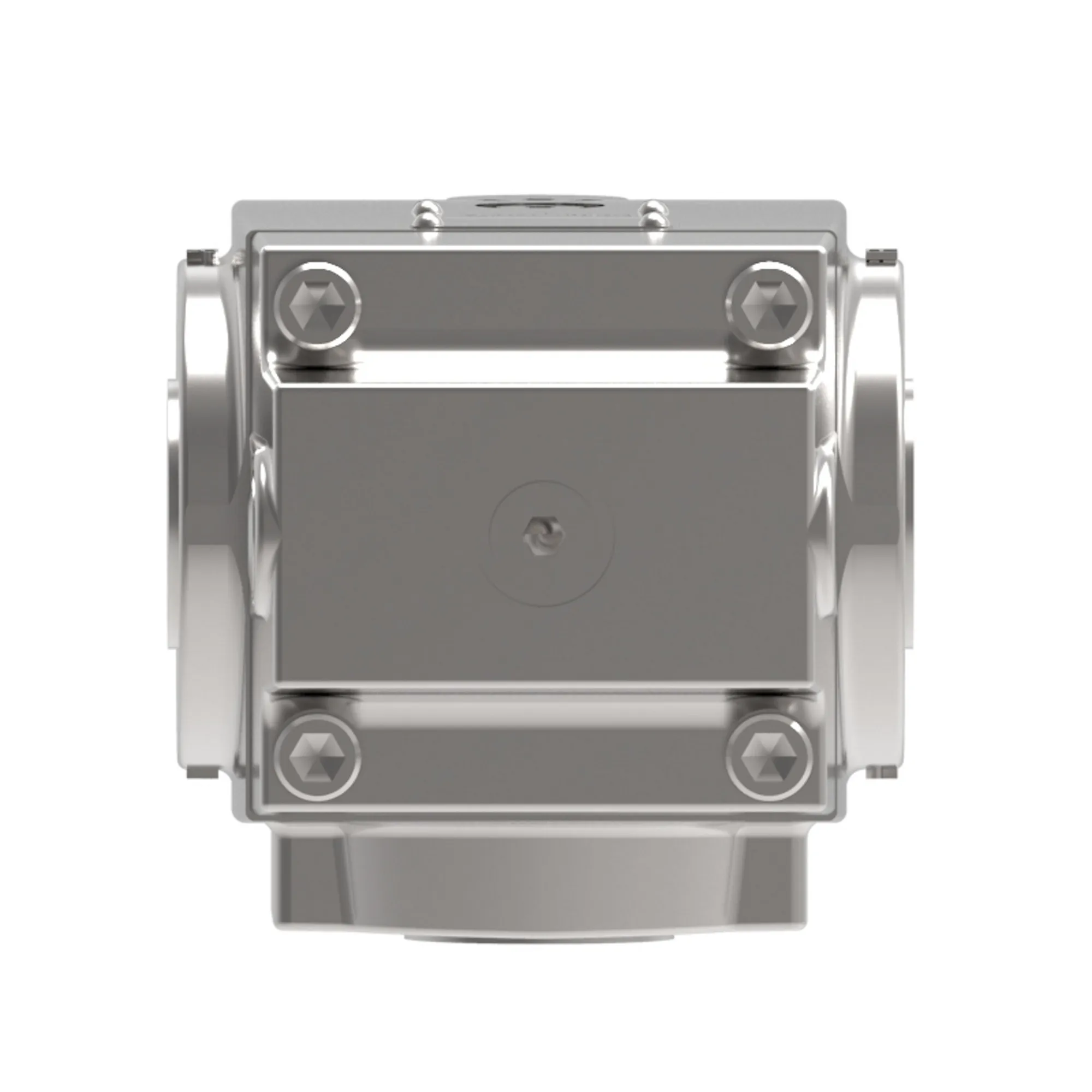

Danfoss (Drives) 02-393374
RS 10 Y2 30, RS10Y230 – 02-393374
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RS 10 Y2 30, RS10Y230 – 02-393374
Specification
| Actuation Type | Pilot operated |
|---|---|
| Adjustment Range | 2.1-4.1 bar (30-60 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Check Valve | No |
| Design Series | 30 Series |
| Drain | External |
| Electrical Connection | None |
| Flow Rate Lpm | 284.0 |
| Flow Rate Usgpm | 75.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Hi Vent Spring | No |
| Indicator Light | No |
| Maximum Pressure Bar | 210 |
| Maximum Pressure Psi | 3000 |
| Model Code 1 | RS10Y230 |
| Performance | Standard |
| Product Height In | 11.110 |
| Product Height Mm | 282.194 |
| Product Length In | 4.630 |
| Product Length Mm | 117.602 |
| Product Width In | 4.250 |
| Product Width Mm | 107.95 |
| Seal Material | Nitrile |
| Size | Size 10 |
| Special Feature | None |
| Stage | Two stage |
| Valve Mount Type | 1.6250-12-UNF-2B straight thread |
| Valve Type | Pressure control valve |
| Working Temperature Max C | 70 |
| Working Temperature Max F | 158 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
