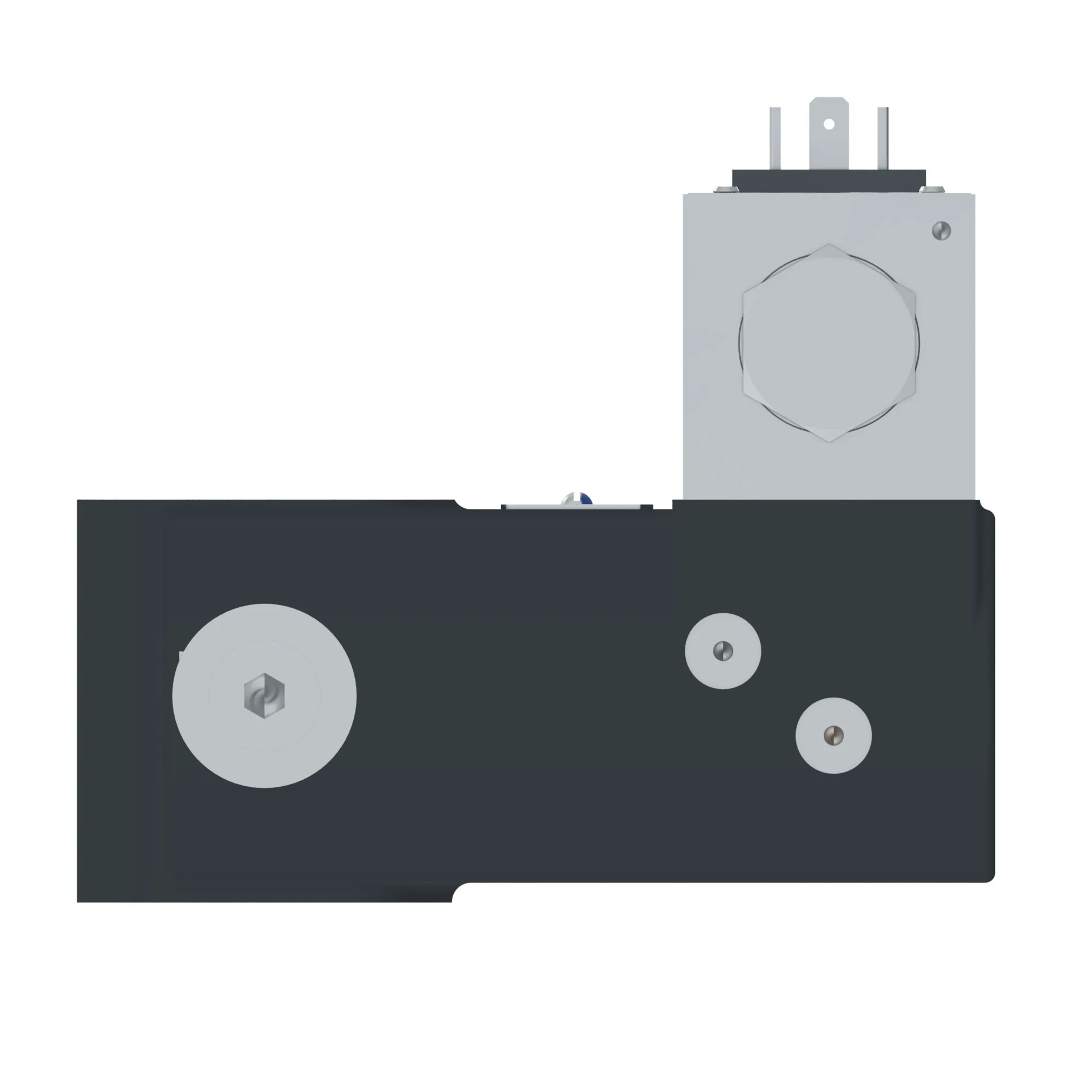

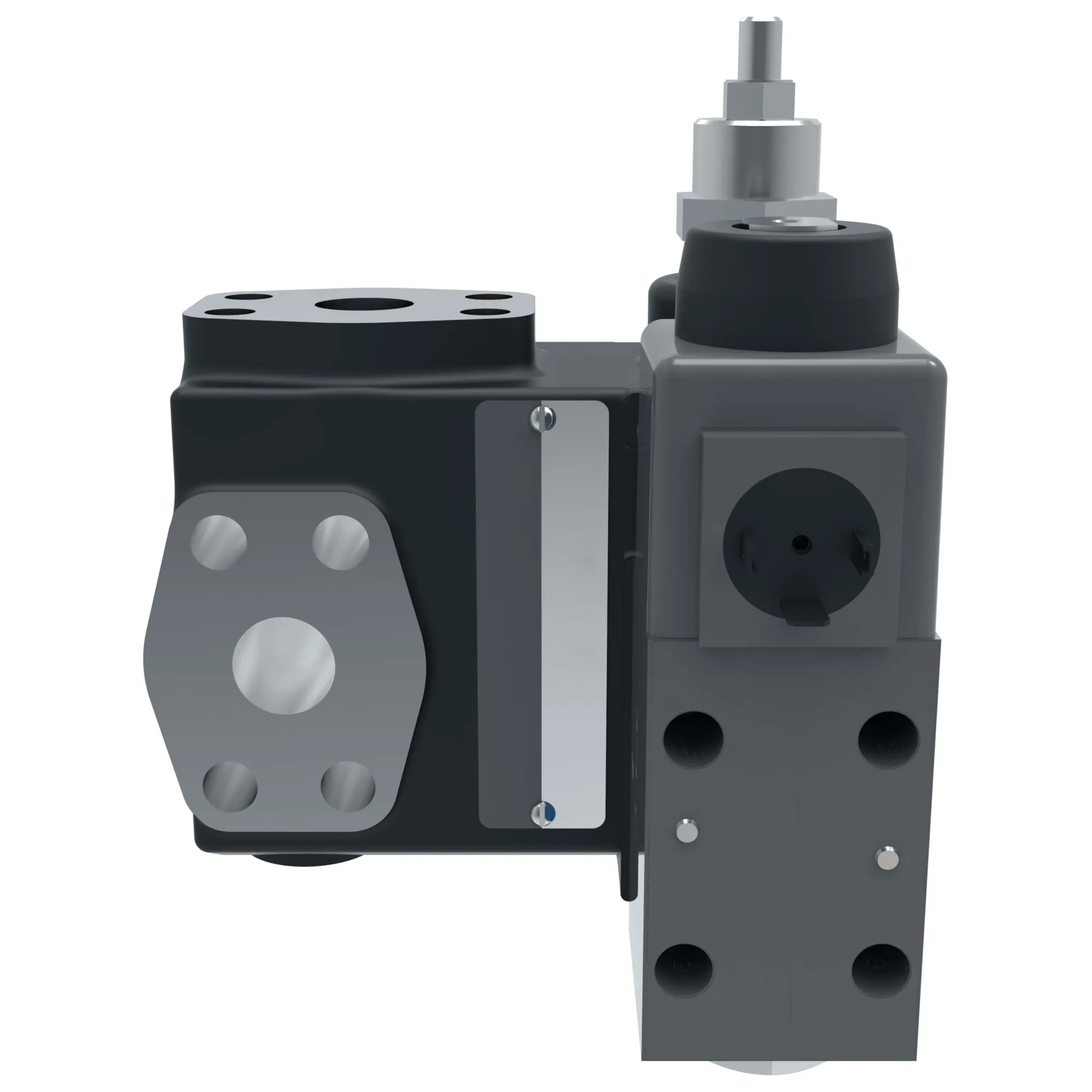

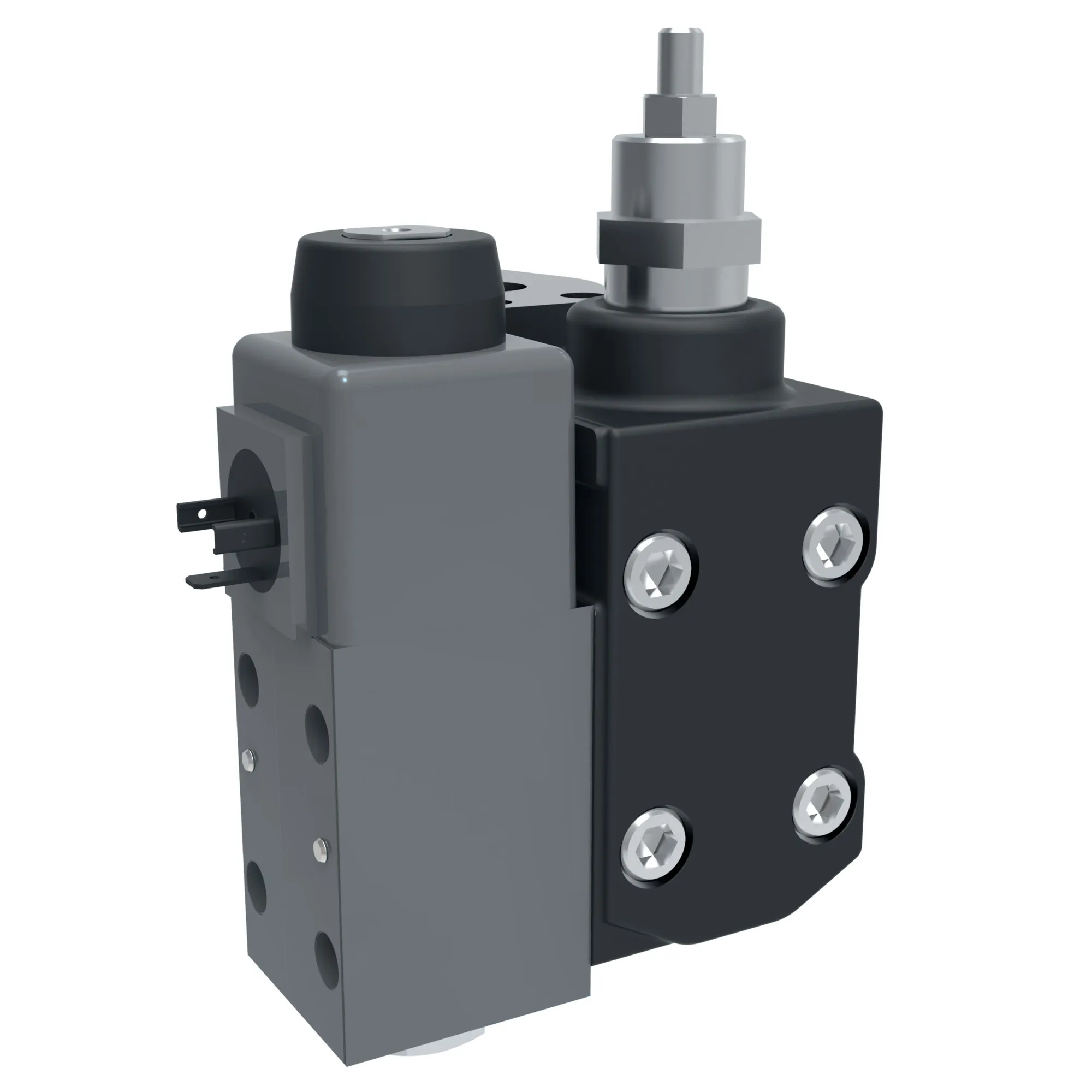

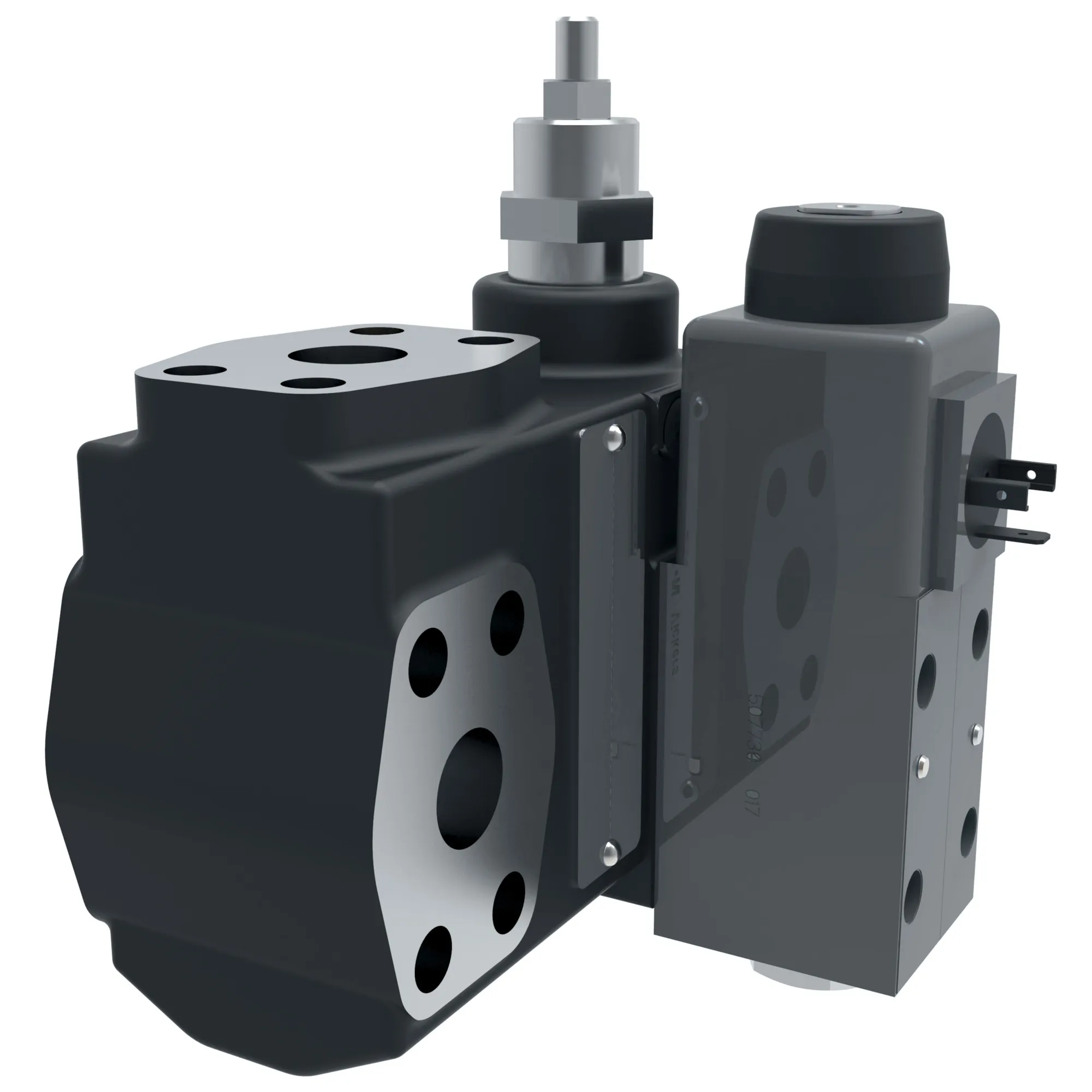

Danfoss (Drives) 02-363751
CPF4V-12-GGG-W-3S-M-U-H5 -20, CPF4V12GGGW3SMUH520 – 02-363751
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CPF4V-12-GGG-W-3S-M-U-H5 -20, CPF4V12GGGW3SMUH520 – 02-363751
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Adjustment Range | 10-275 bar (145-4000 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil Voltage | 24 VDC |
| Design Series | 20 Series |
| Drain | Internal |
| Electrical Connection | ISO4400 (Din 43650) Connector |
| Flow Rate Lpm | 600.0 |
| Flow Rate Usgpm | 160.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread | 0.5625-18 UNF-2B |
| Interface | SAE 1 1/2 in. |
| Leakage | Standard |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 4000 |
| Model Code | CPF4V12GGGW3SMUH520 |
| Performance | Standard |
| Power Consumption | 30 watt |
| Product Height In | 8.920 |
| Product Height Mm | 226.568 |
| Product Length In | 7.550 |
| Product Length Mm | 191.770 |
| Product Width In | 8.390 |
| Product Width Mm | 213.106 |
| Seal Material | Nitrile |
| Special Feature | None |
| Stage | Two stage |
| Tank Pressure Bar | 100 |
| Tank Pressure Psi | 1450 |
| Valve Mount Type | Flange mounting |
| Valve Type | Relief valve |
| Working Temperature Max C | 70 |
| Working Temperature Max F | 158 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
