Danfoss (Drives) 02-361441

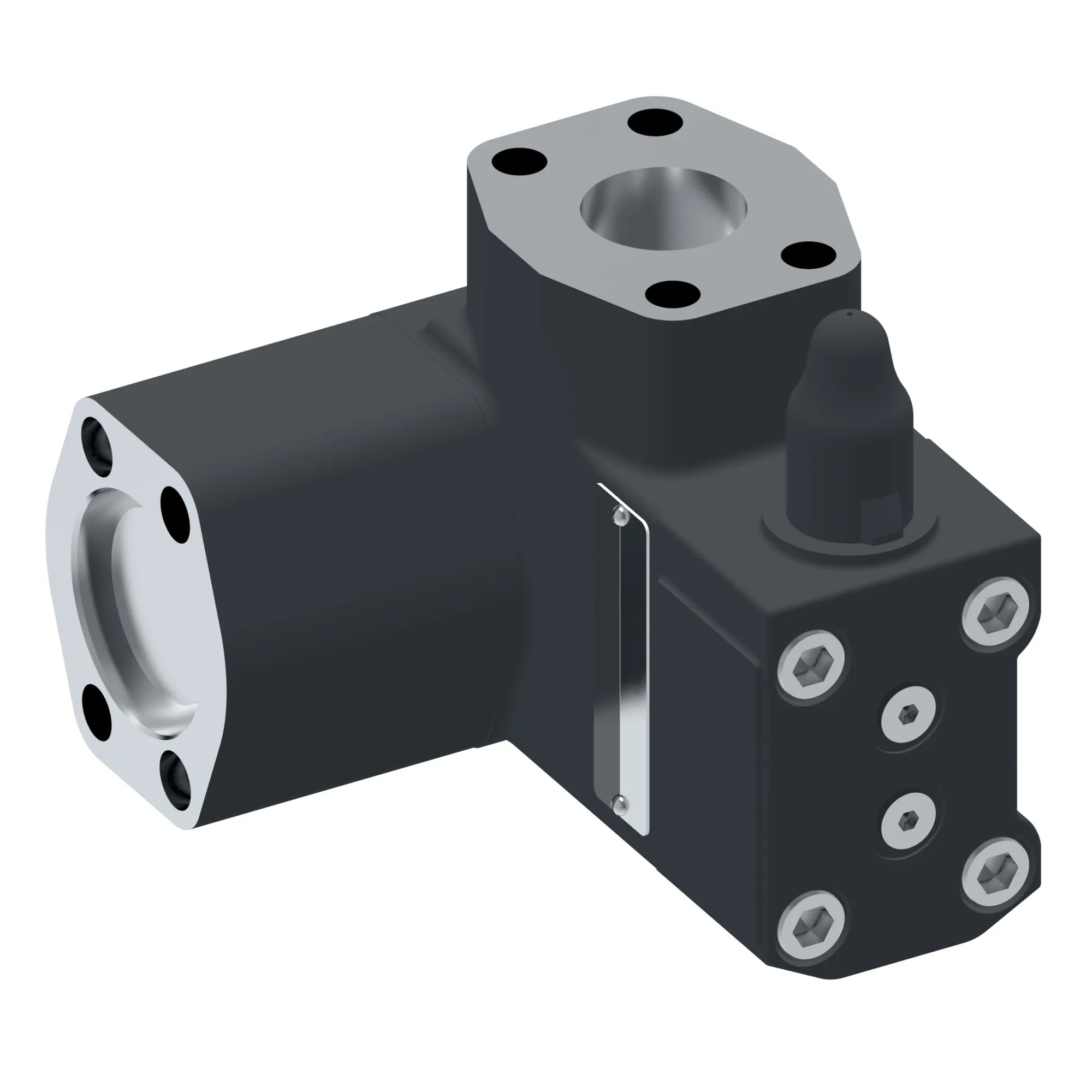

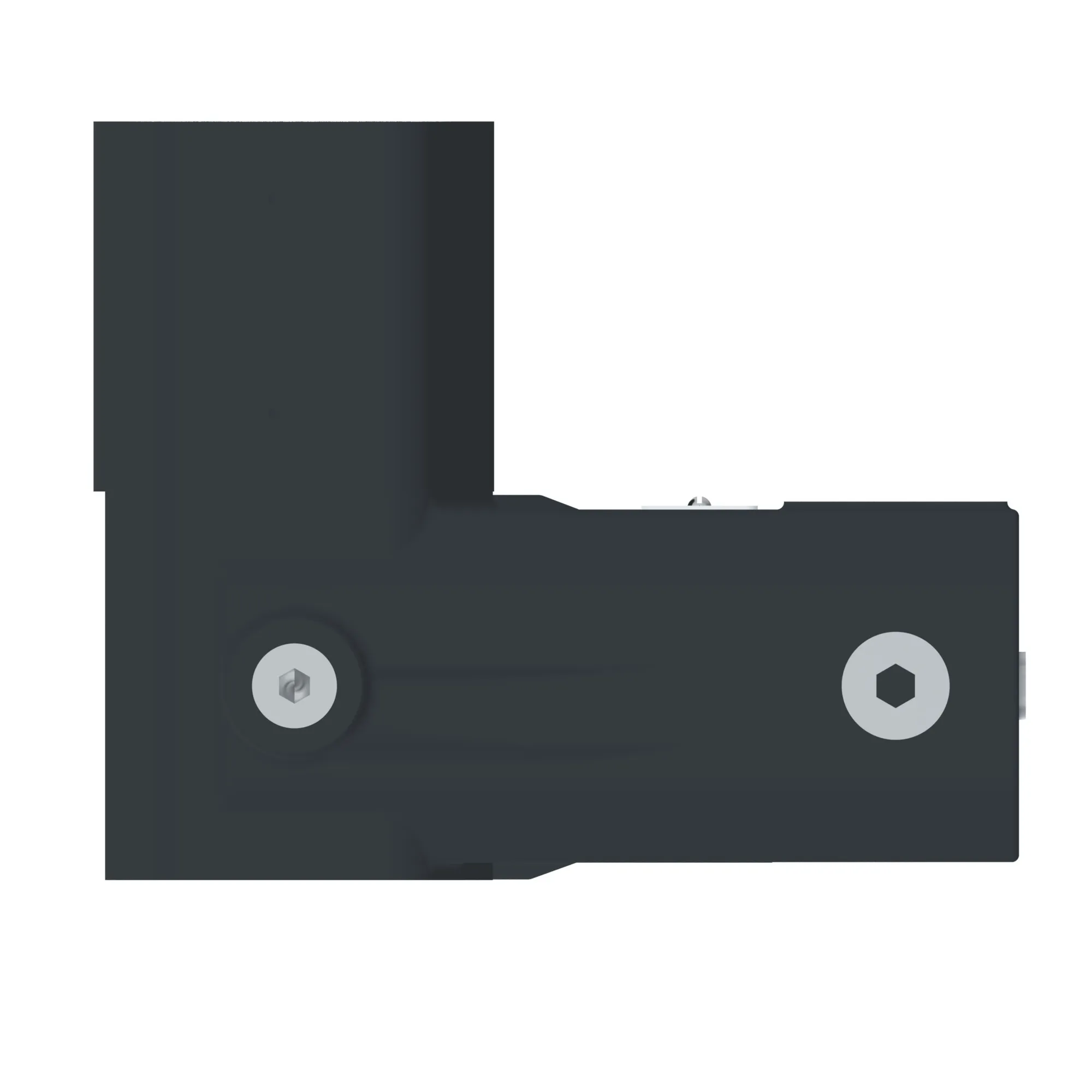

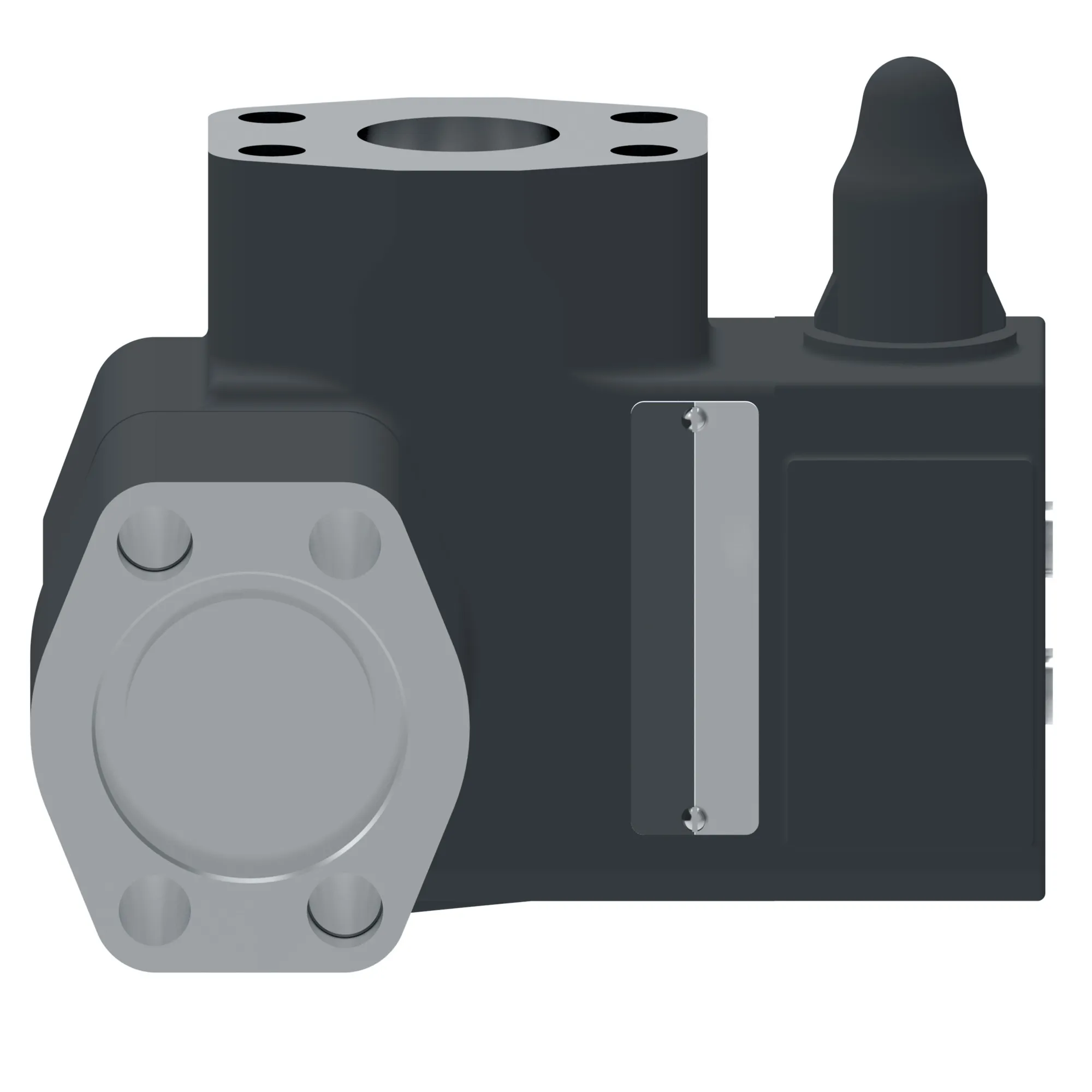

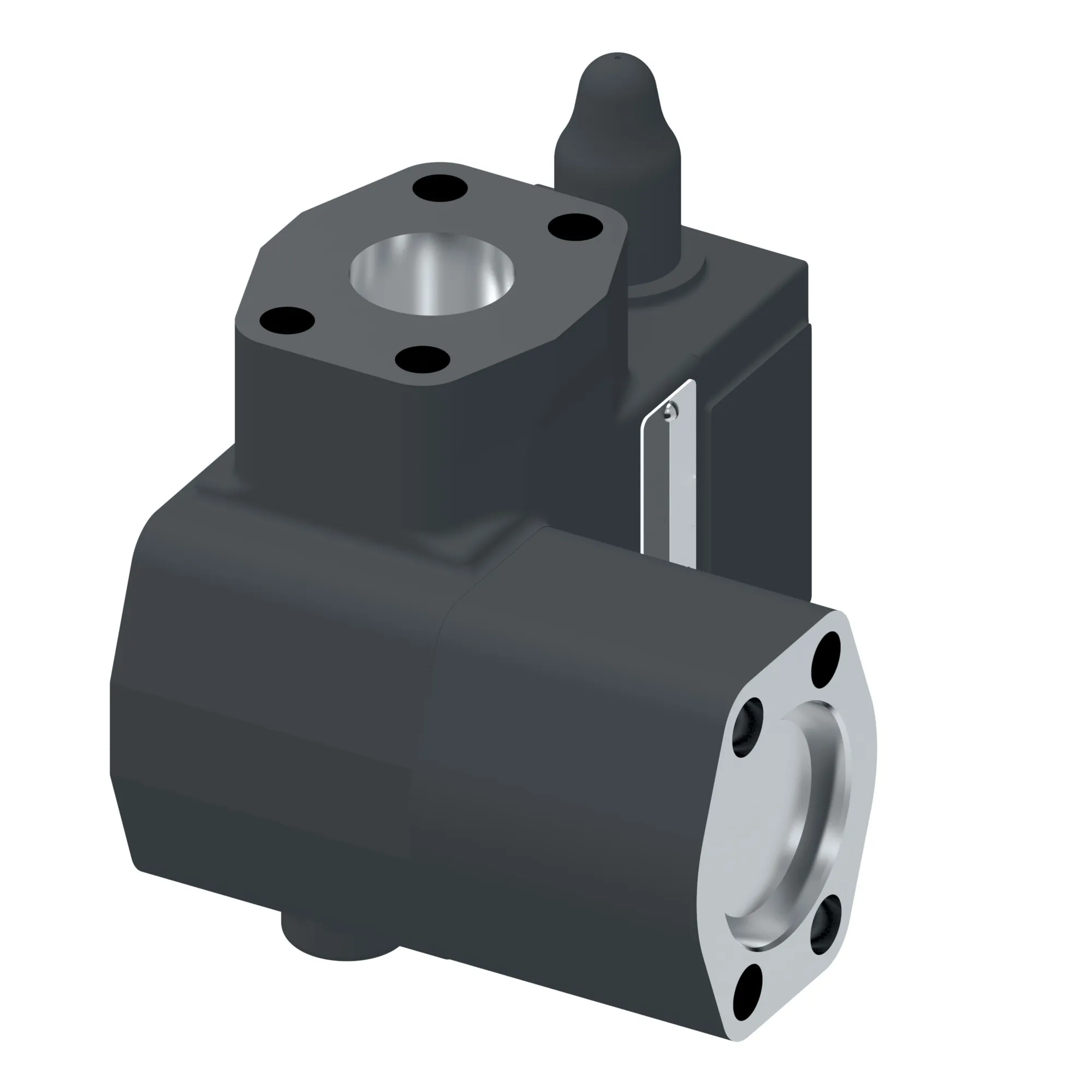

UPF1S CL 10 B W 20, UPF1SCL10BW20 – 02-361441
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
UPF1S CL 10 B W 20, UPF1SCL10BW20 – 02-361441
Specification
| Actuation Type | Pilot operated |
|---|---|
| Adjustment Range | 9-125 bar (130-1800 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Check Valve | Yes |
| Cracking Pressure Bar | 0.3 |
| Cracking Pressure Psi | 5 |
| Design Series | 20 Series |
| Electrical Connection | None |
| Flow Rate Lpm | 600.0 |
| Flow Rate Usgpm | 80.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Hi Vent Spring | No |
| Indicator Light | No |
| Maximum Pressure Bar | 275 |
| Maximum Pressure Psi | 4000 |
| Model Code 1 | UPF1SCL10BW20 |
| Performance | Standard |
| Product Height In | 6.570 |
| Product Height Mm | 166.878 |
| Product Length In | 7.360 |
| Product Length Mm | 186.944 |
| Product Width In | 5.740 |
| Product Width Mm | 145.796 |
| Seal Material | Nitrile |
| Size | SAE 1 1/4″ |
| Special Feature | None |
| Stage | Two stage |
| Tank Pressure Bar | 210 |
| Tank Pressure Psi | 3000 |
| Valve Mount Type | Pump flange mounting |
| Valve Type | Unloading relief valve |
| Working Temperature Max C | 70 |
| Working Temperature Max F | 158 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
