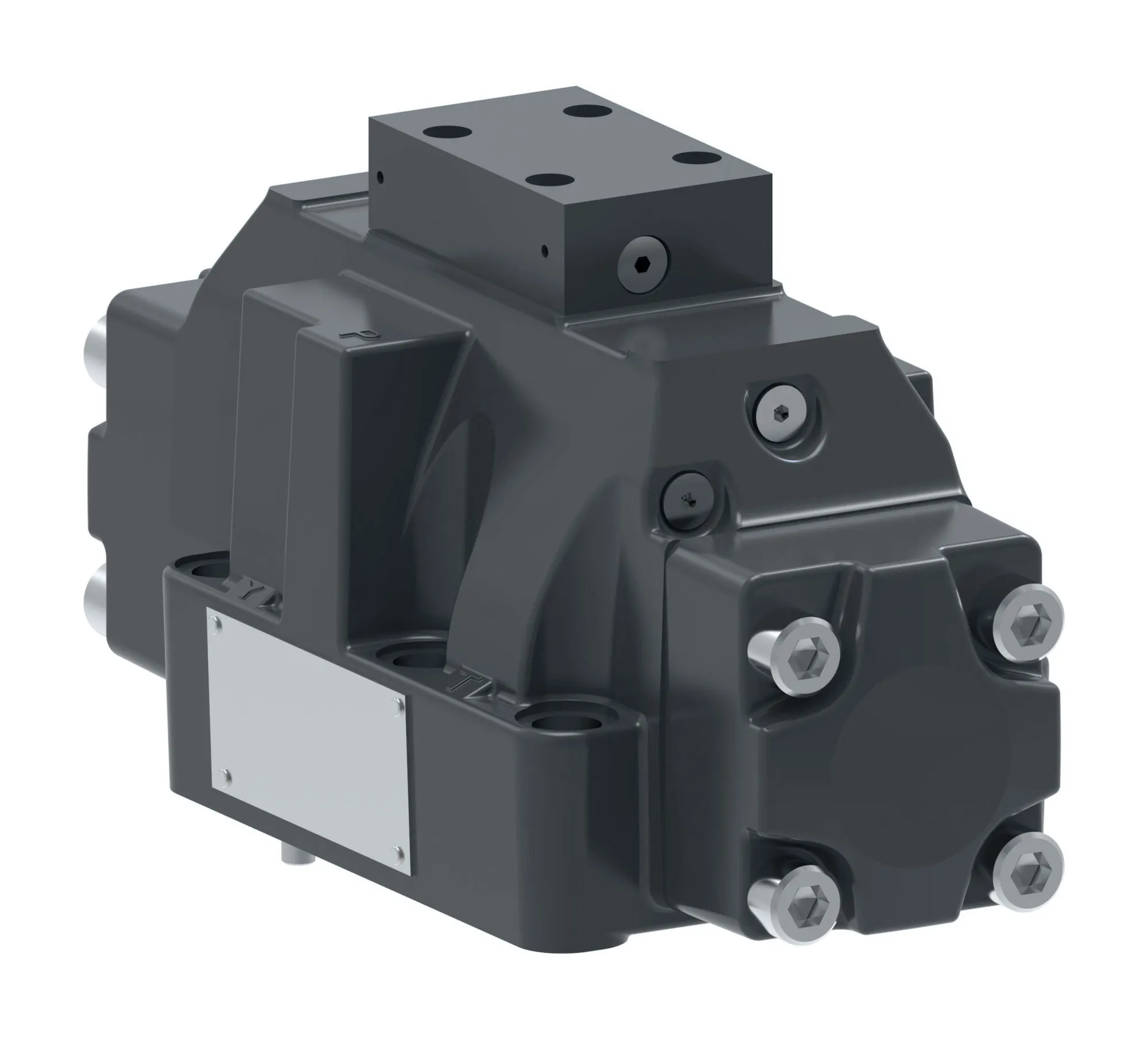

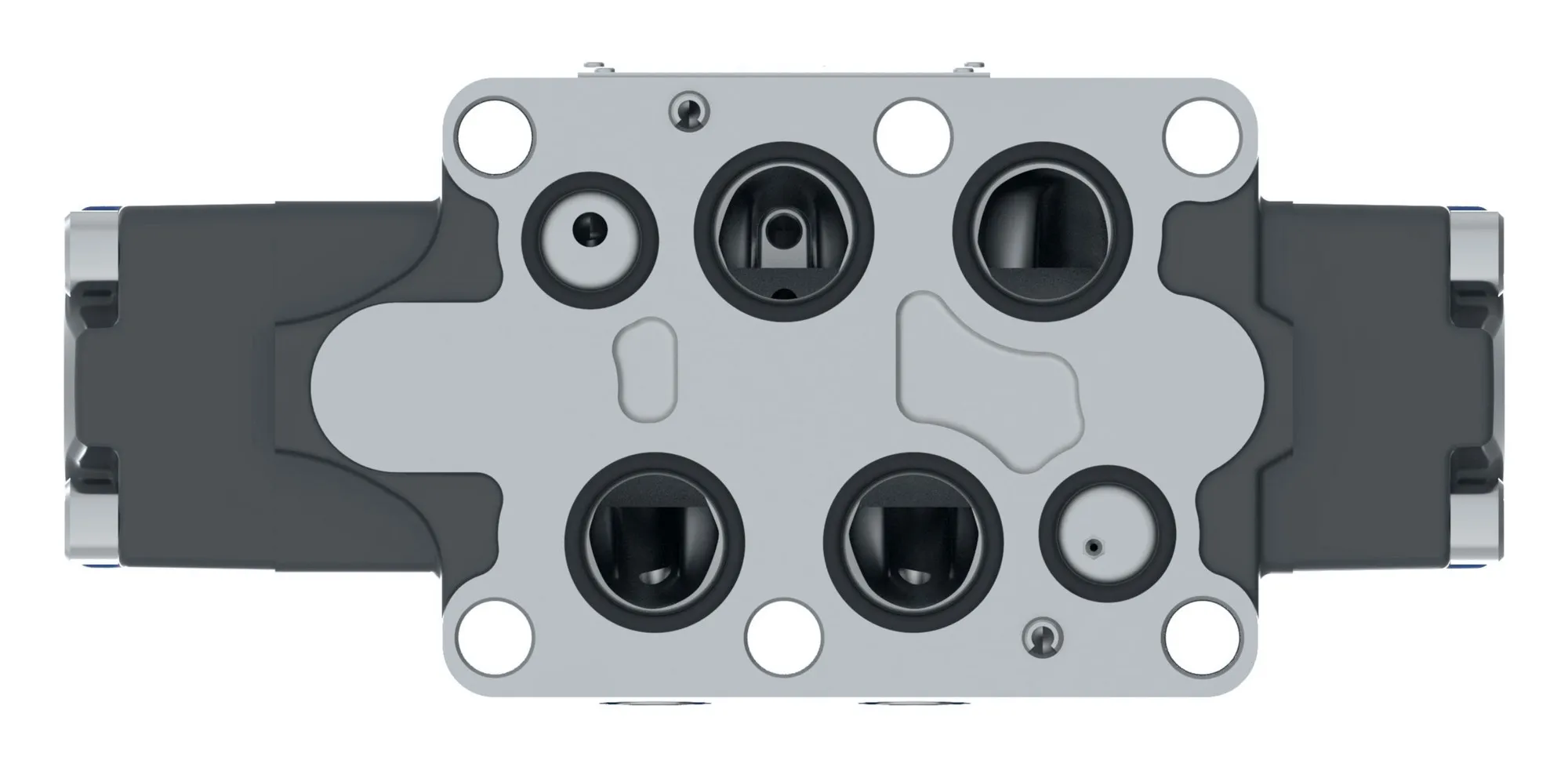

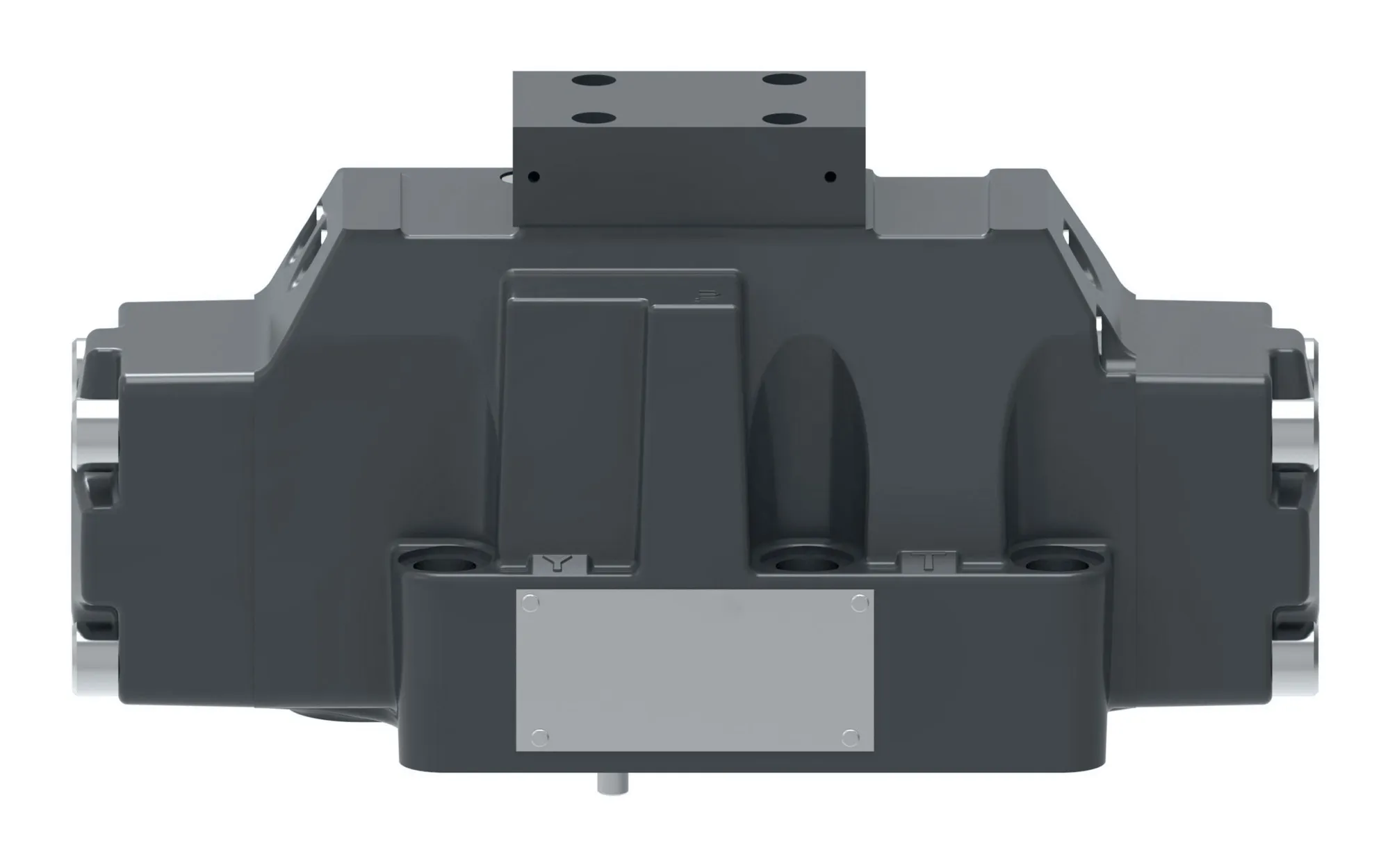

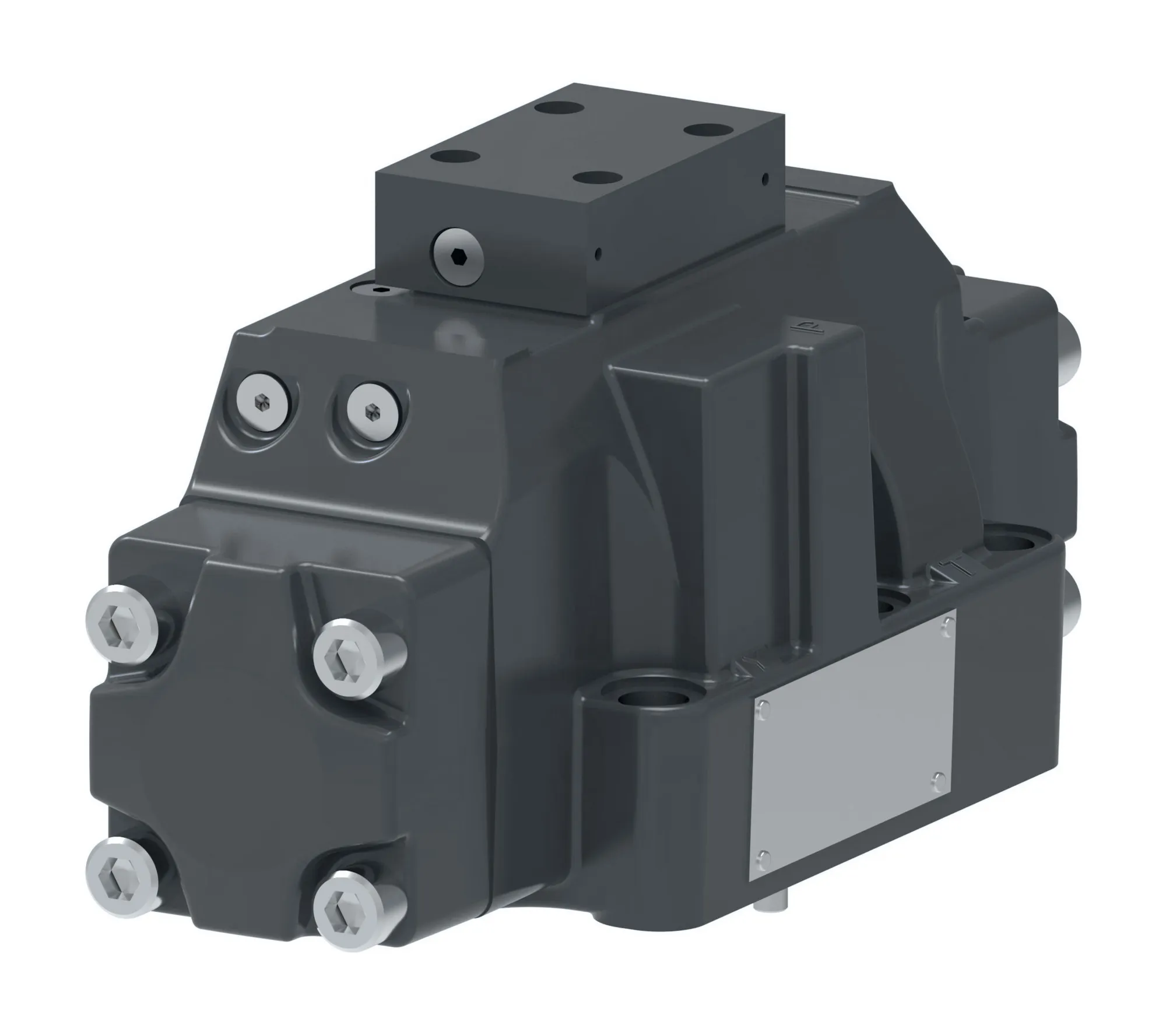

Danfoss (Drives) 02-360705
F3-DG3V-8-2A-10, F3DG3V82A10 – 02-360705
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3-DG3V-8-2A-10, F3DG3V82A10 – 02-360705
Specification
| Actuation Type | Hydraulic operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 10 Series |
| Electrical Connection | None |
| Ext Pilot Pressure | External |
| Flow Rate Upto Gpm | 185.0 |
| Flow Rate Upto Lpm | 700.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread Type | 0.4375 – 20 UNF, SAE Thread |
| Indicator Light | No |
| Int Pilot Drain | Internal |
| Interface | ISO4401-08 |
| Manual Override | None |
| Model Code 1 | F3DG3V82A10 |
| Performance | High performance |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 5.230 |
| Product Length In | 8.180 |
| Product Length Mm | 207.772 |
| Product Width In | 4.670 |
| Product Width Mm | 118.618 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | None |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring offset to A |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
