Danfoss (Drives) 02-358316

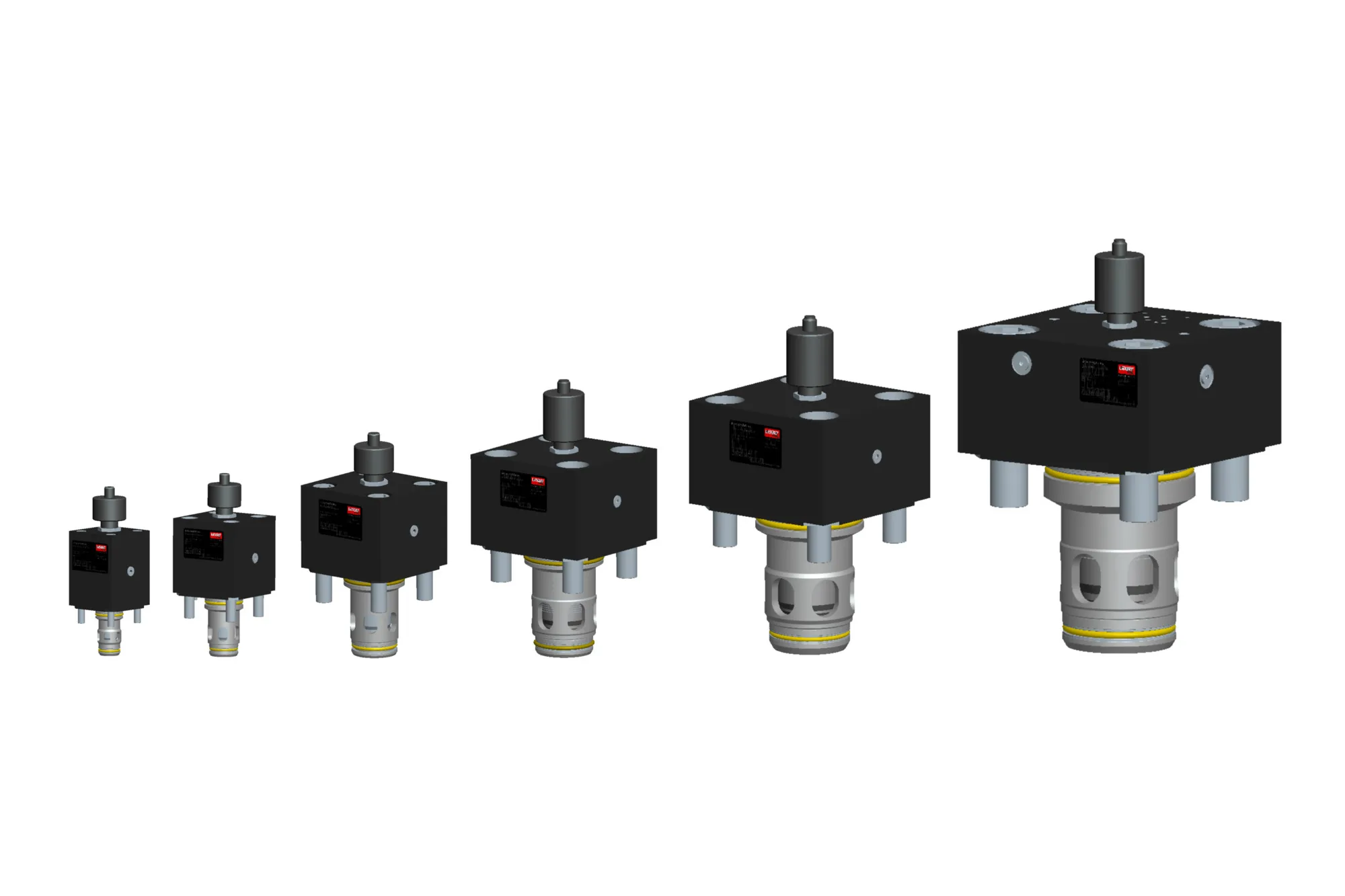

CVU 25 SWD3 B29 L 10 EN106, CVU25SWD3B29L10EN106 – 02-358316
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVU 25 SWD3 B29 L 10 EN106, CVU25SWD3B29L10EN106 – 02-358316
Specification
| Adjustment | No |
|---|---|
| Brand | Vickers by Danfoss |
| Cover Type | Directional valve with electric switch |
| Cracking Pressure Bar | 0.50 |
| Cracking Pressure Psi | 7.0 |
| Design Series | 10 Design |
| Flow Rate Lpm | 400 |
| Flow Rate Usgpm | 105.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | BSPF |
| Insert Ratio | 1:2 |
| Leakage | Standard |
| Model Code 1 | CVU25SWD3B29L10EN106 |
| Orifice Plug Z1 | 1.0 mm |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Product Height In | 9.450 |
| Product Height Mm | 240.030 |
| Product Length In | 3.350 |
| Product Length Mm | 85.090 |
| Product Width In | 3.430 |
| Product Width Mm | 87.122 |
| Seal Material | Buna-N |
| Size | NG 25 |
| Special Feature | High pressure seals |
| Spool Position Sensor | Yes |
| Valve Type | Cartridge valve unit |
| Valvistor | No |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
