Danfoss (Drives) 02-357503

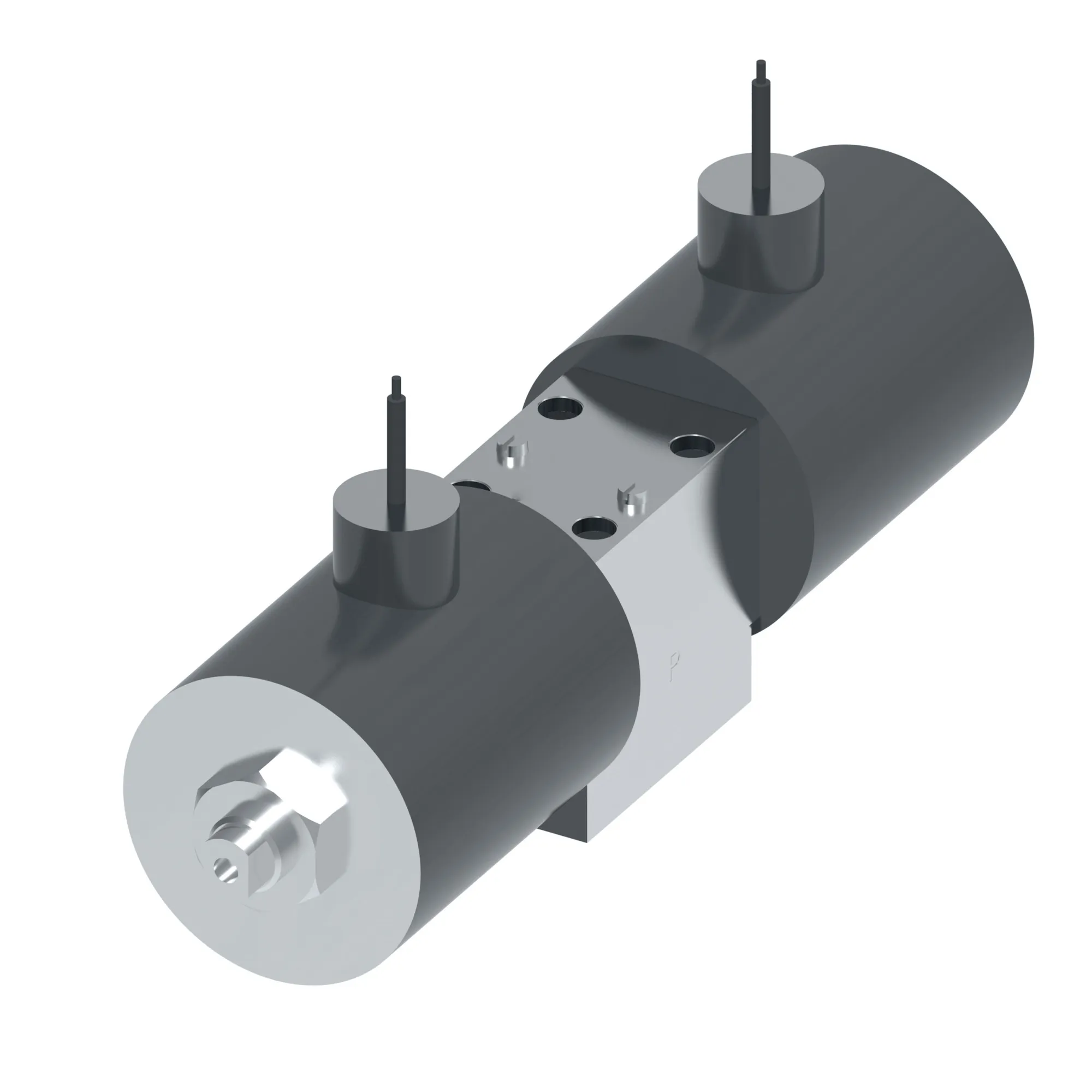

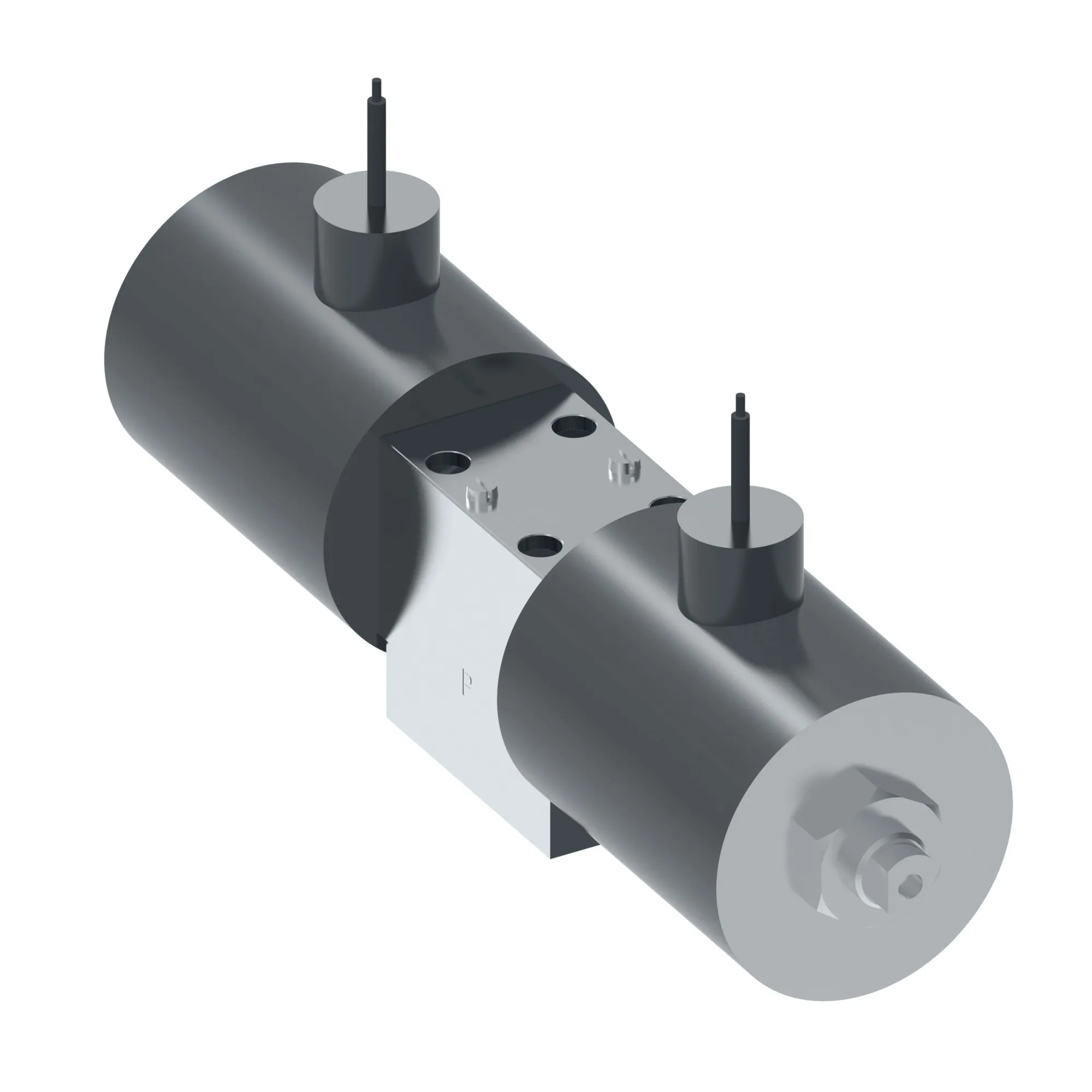

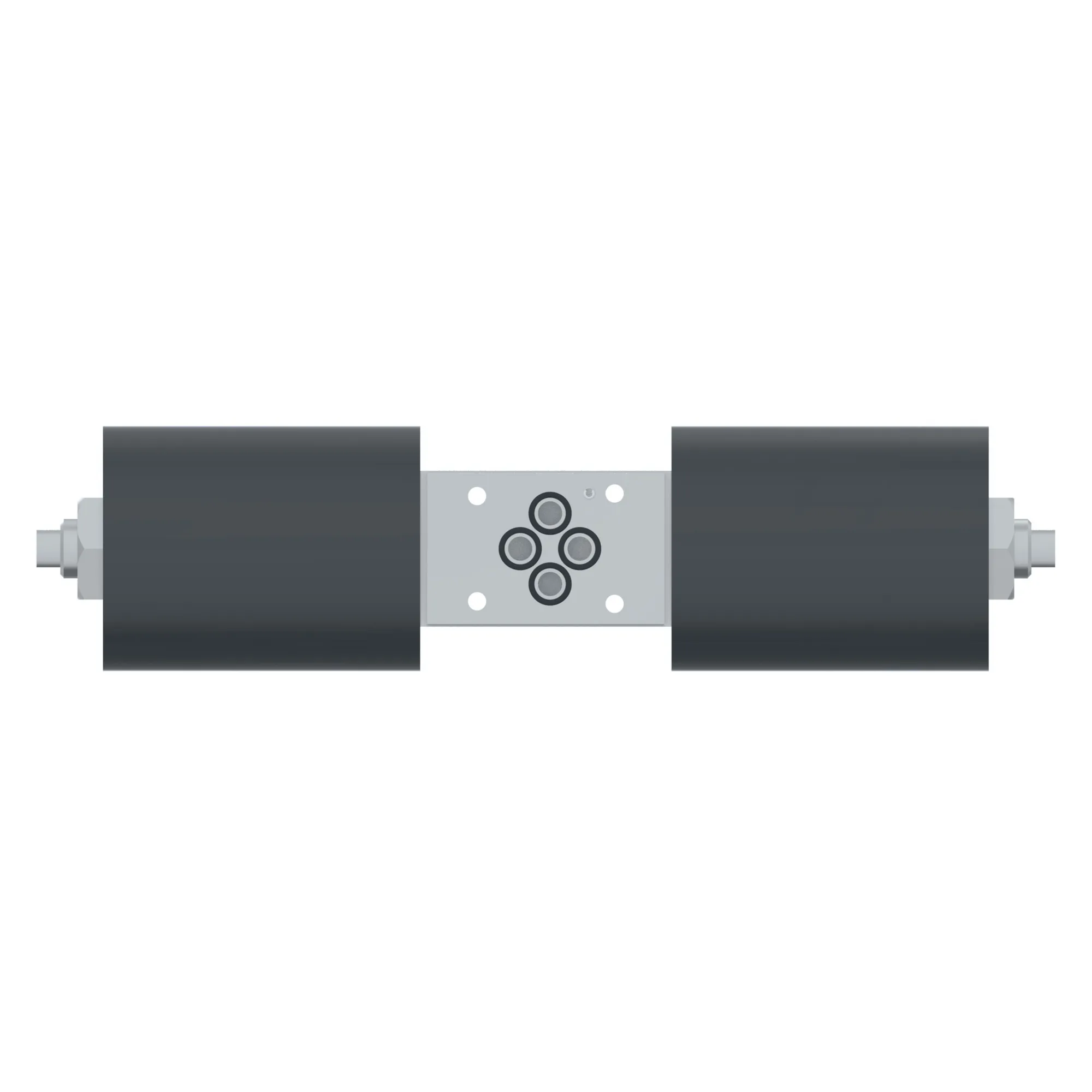

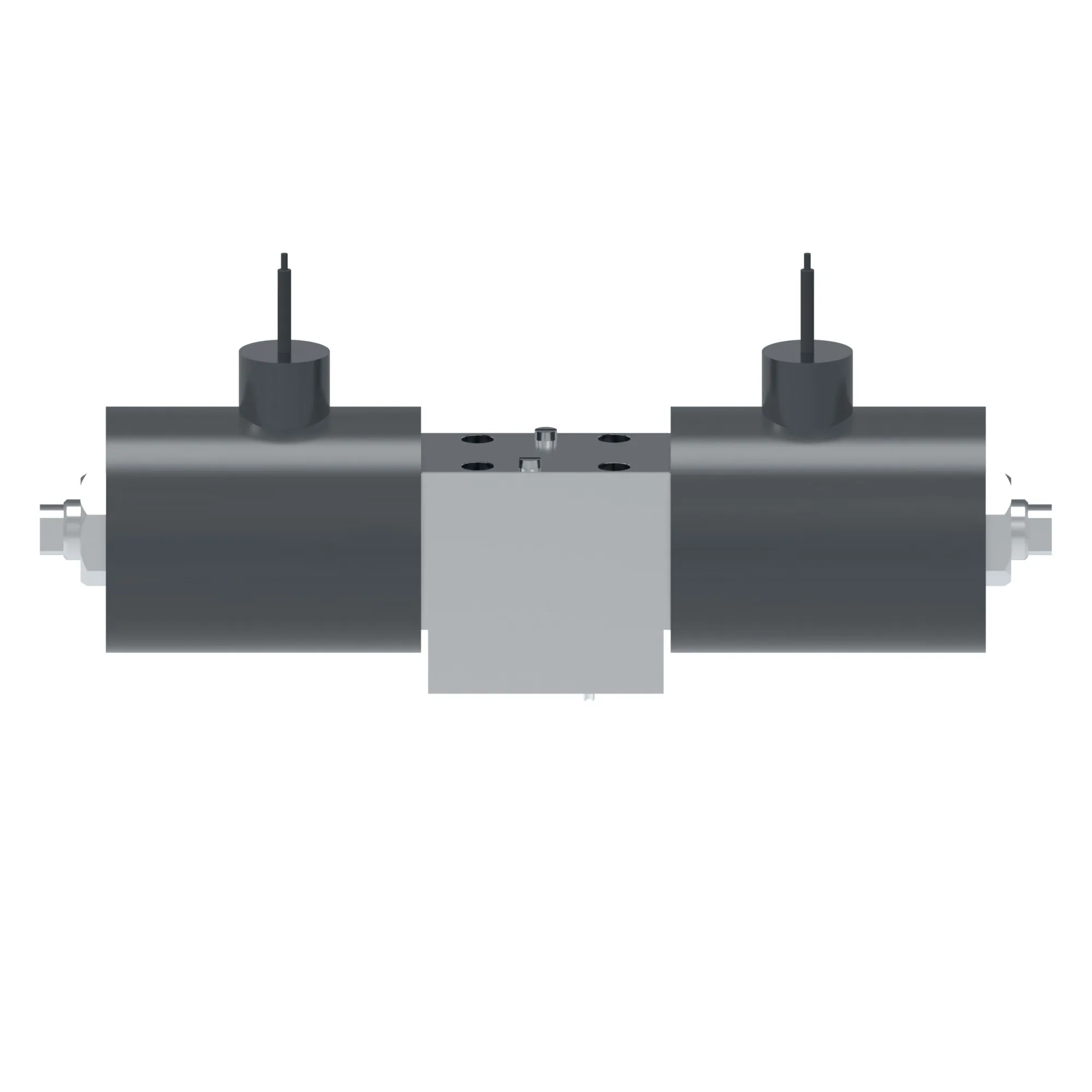

DG4V4-012C-M-X1-ER-4-10- S585, DG4V4012CMX1ER410S585 – 02-357503
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG4V4-012C-M-X1-ER-4-10- S585, DG4V4012CMX1ER410S585 – 02-357503
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 120 VAC 60Hz |
| Design Series | 10 Series |
| Electrical Connection | Flameproof coil TPEEX-D-118-T4 |
| Energ Time | 20-35 ms |
| Flow Rate Upto Gpm | 30.0 |
| Flow Rate Upto Lpm | 115.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-05/NFPA D05 |
| Manual Override | Plain |
| Model Code 1 | DG4V4012CMX1ER410S585 |
| Performance | Standard performance |
| Power Consumption | 27.5 watts |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Product Height In | 5.350 |
| Product Length In | 9.380 |
| Product Length Mm | 238.252 |
| Product Width In | 2.840 |
| Product Width Mm | 72.136 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Solenoid Features | Flame resistant |
| Special Features | Heavy centring springs |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring centred |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 70.0 |
| Tank Port Rating Psi | 1000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 50 |
| Working Temp Max F | 122 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
