Danfoss (Drives) 02-355132

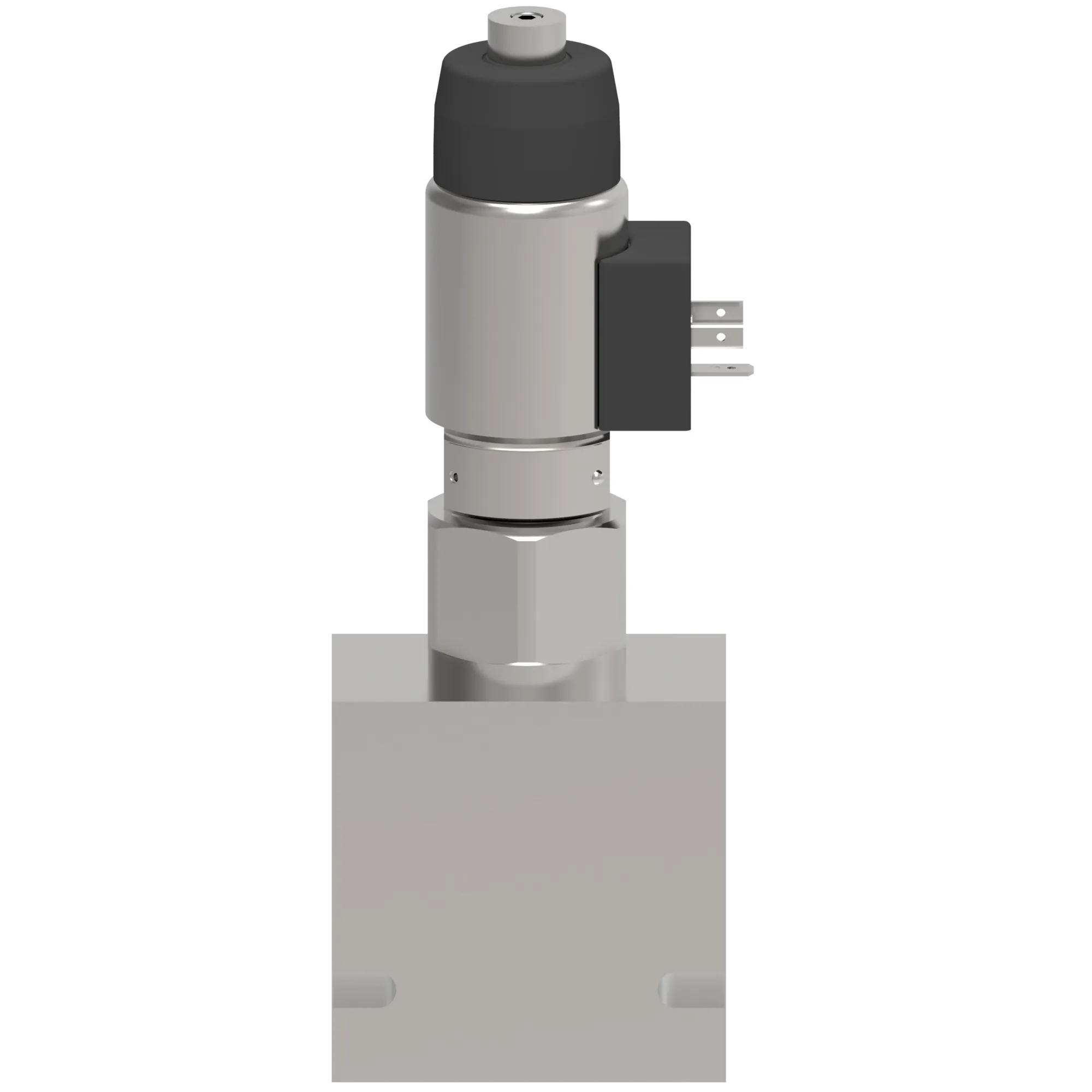

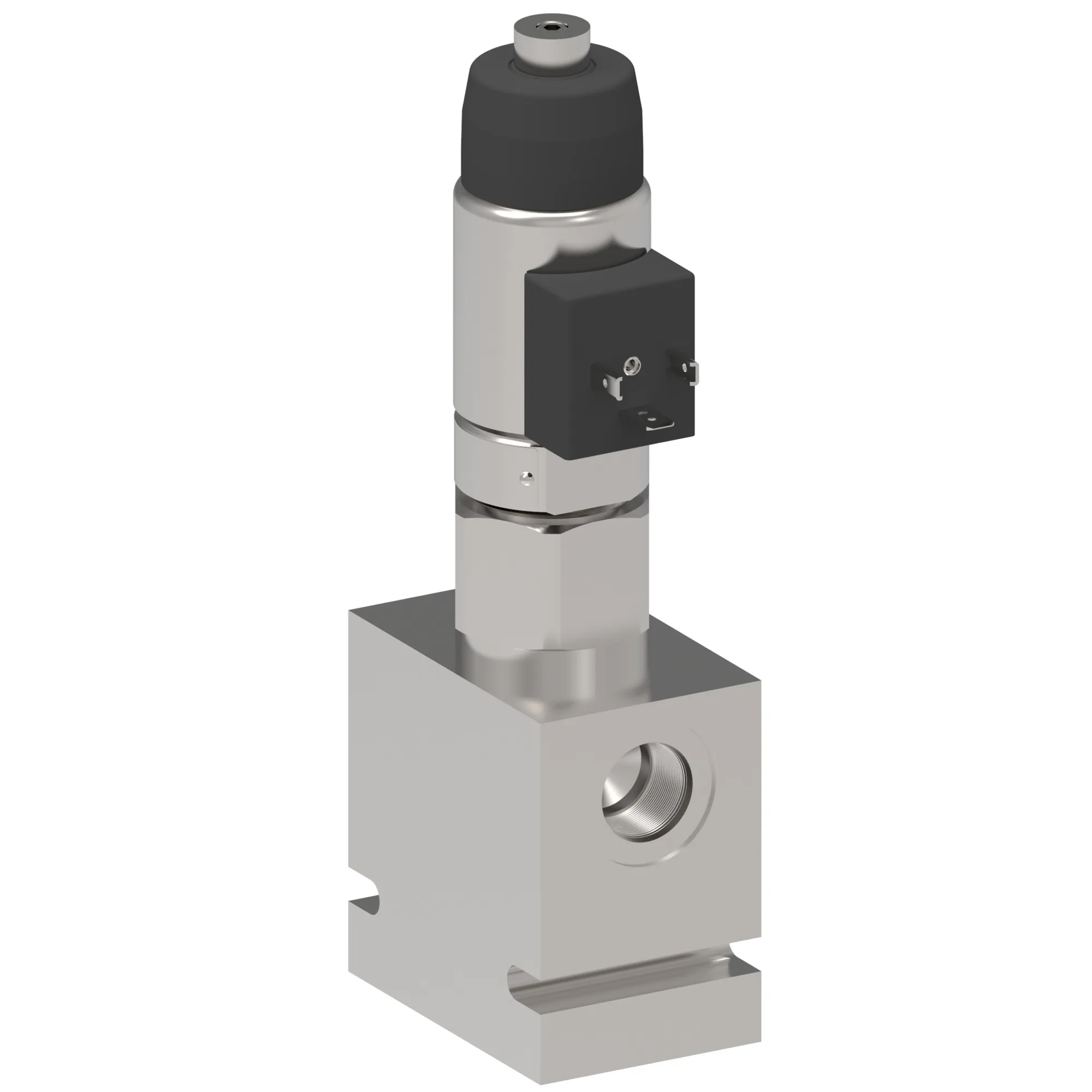

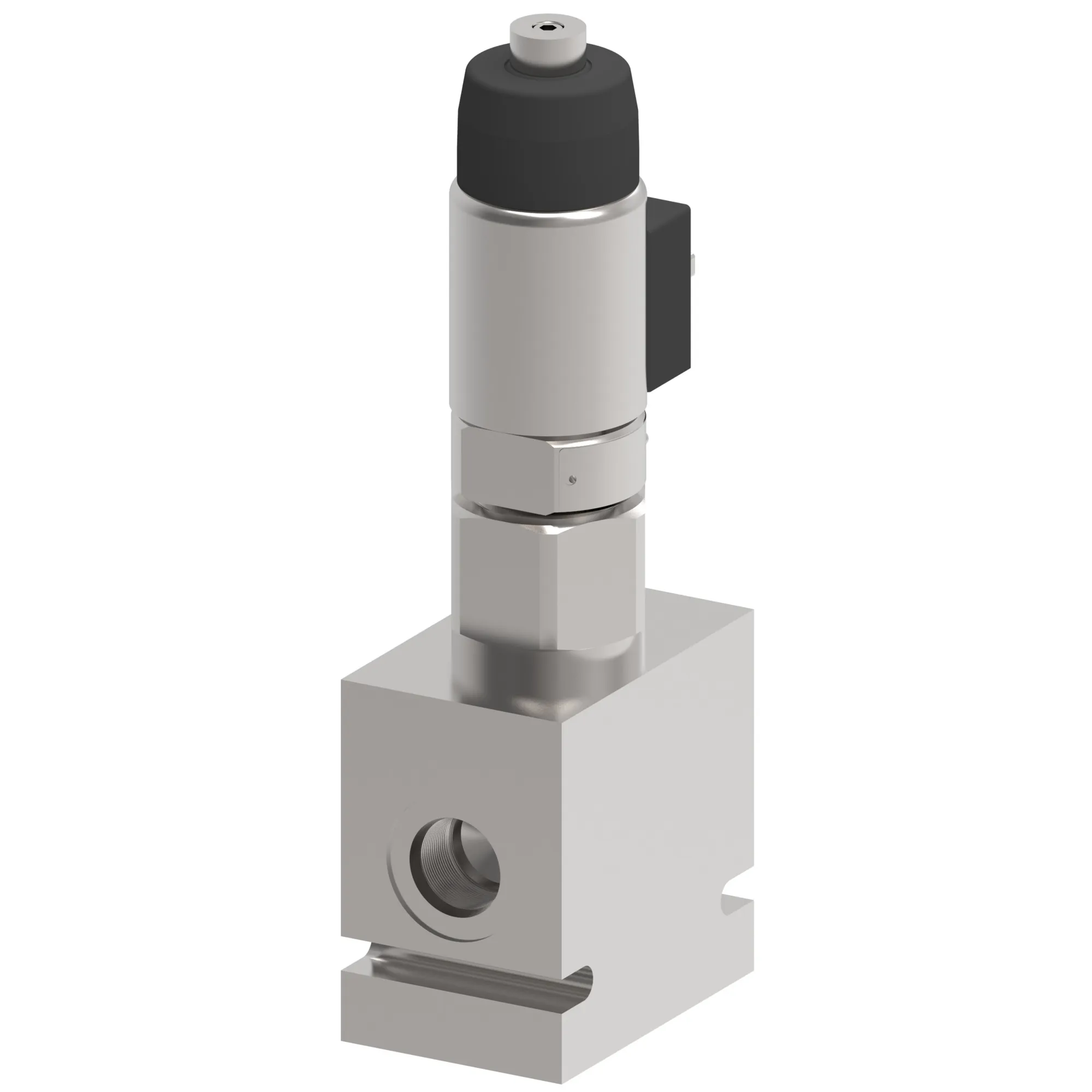

EPV16-A-16-A-12H-N-12D-M-U-13, EPV16-A-16-A-12H-N-12D-M-U-13 – 02-355132
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EPV16-A-16-A-12H-N-12D-M-U-13, EPV16-A-16-A-12H-N-12D-M-U-13 – 02-355132
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-16-3S |
| Coil Series | EPV Series |
| Coil Termination | DIN43650-A |
| Diode | No |
| Flow Rate Gpm | 42.00 |
| Flow Rate Lpm | 160.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Prop Flow Control |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Screw-in Cartridge |
| Leakage | 50 cc/min |
| Minimum Working Pressure Bar | 100.00 |
| Minimum Working Pressure Psi | 1454.00 |
| Model Code 1 | EPV16-A-16-A-12H-N-12D-M-U-13 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -30 C to 90 C (-22 to 194 F) |
| Operation | Elecro Proportionally Ctrl |
| Override Type | Push pin type |
| Port Size | 3/4″ |
| Port Type | SAE |
| Pressure Rating Bar | 280.00 |
| Pressure Rating Psi | 4000.00 |
| Product Height In | 9.040 |
| Product Height Mm | 229.616 |
| Product Length In | 3.970 |
| Product Length Mm | 100.838 |
| Product Width In | 2.380 |
| Product Width Mm | 60.452 mm |
| Recommended Filtration Level | 15/13/11 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Poppet |
| Torque Into Aluminium Cavity | 108-122 Nm |
| Torque Into Steel Cavity | 136-149 Nm |
| Voltage | 12 V |
| Voltage Type | DC |
| Working Pressure Max Bar | 280.00 |
| Working Pressure Max Psi | 4000.00 |
