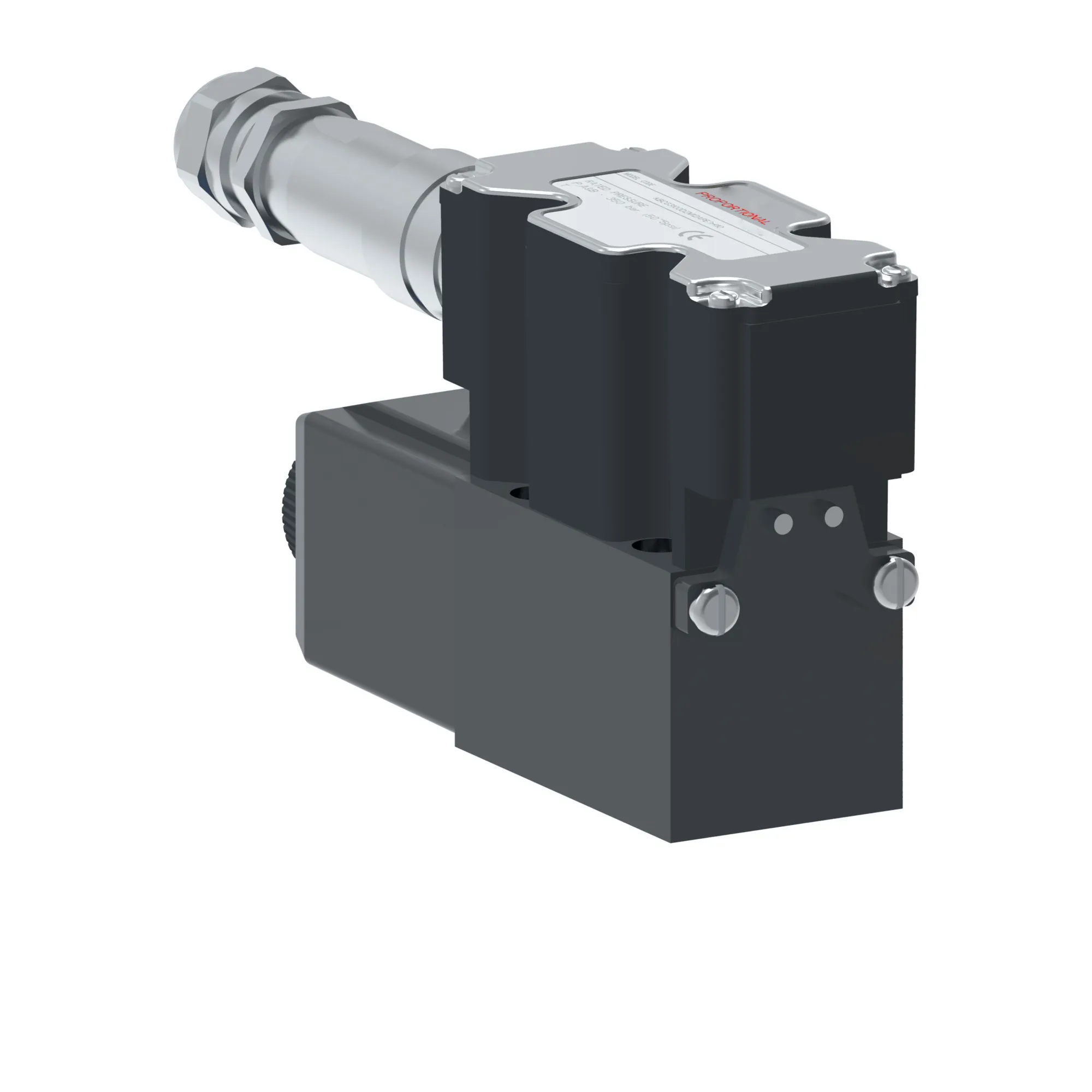

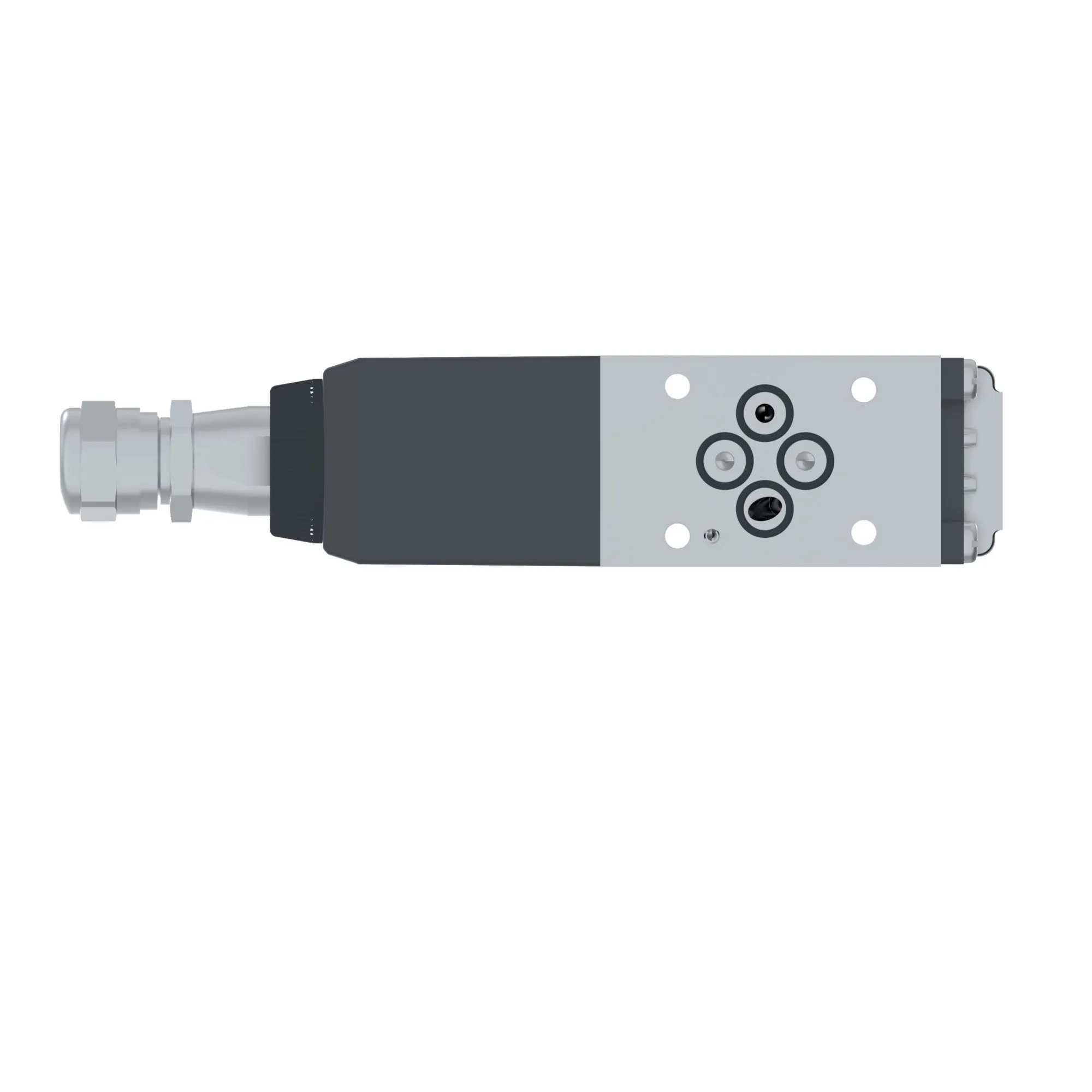

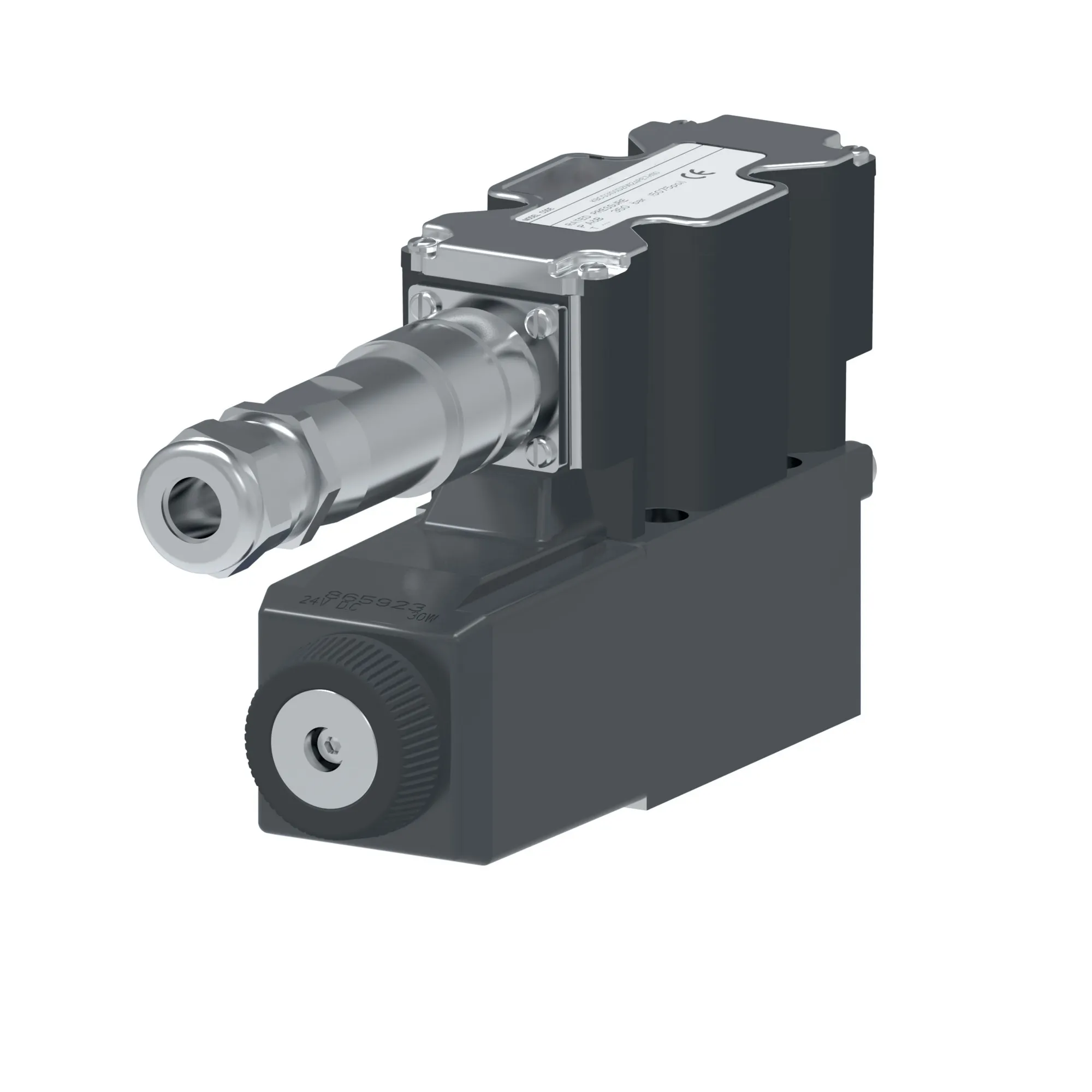

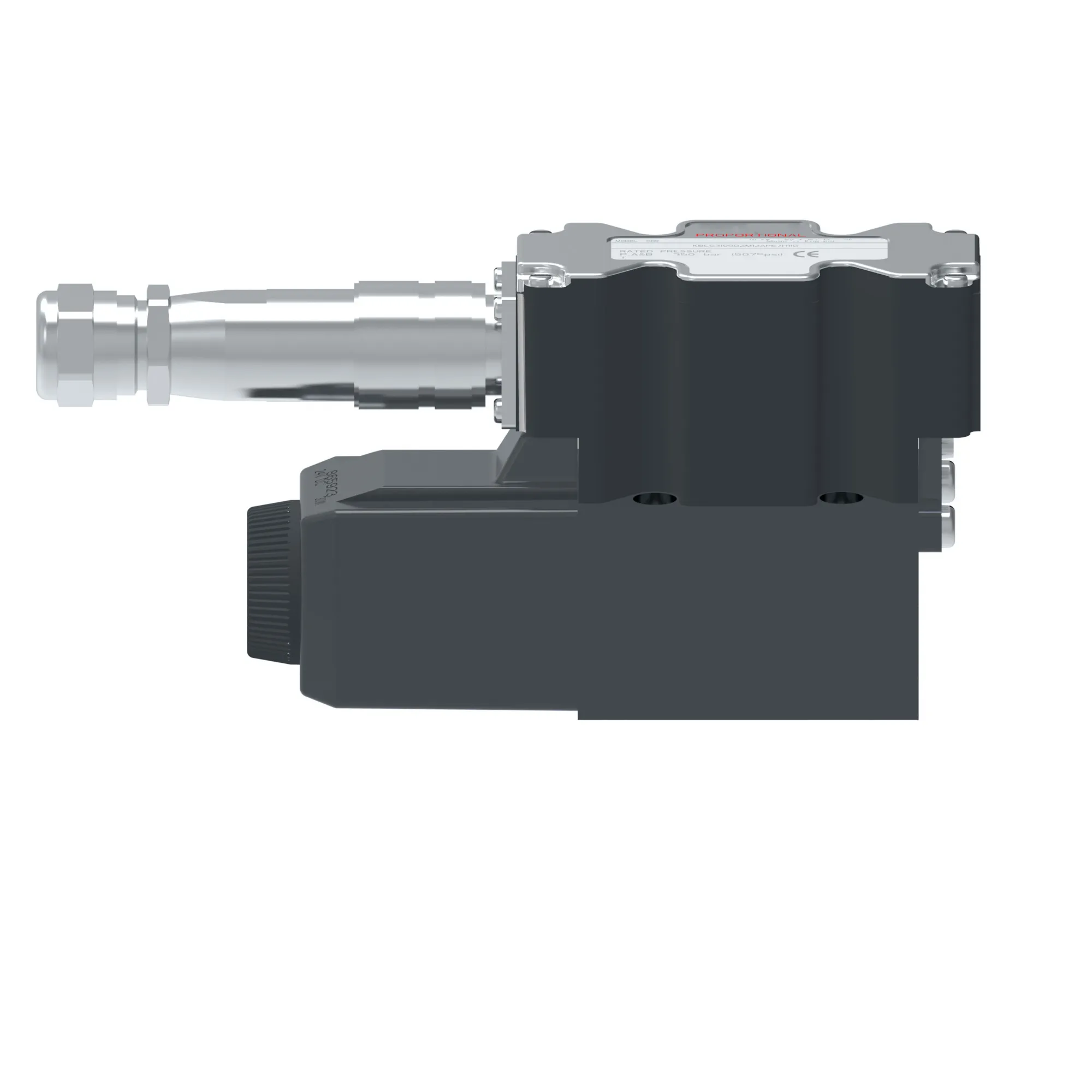

Danfoss (Drives) 02-353833
KBCG-3-L350D-Z-M2-3-A-PE 7-H1-10-P15-T10, KBCG3L350DZM23APE7H110P15T10 – 02-353833
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
KBCG-3-L350D-Z-M2-3-A-PE 7-H1-10-P15-T10, KBCG3L350DZM23APE7H110P15T10 – 02-353833
Specification
| Actuation Type | Solenoid controlled |
|---|---|
| Brand | Vickers by Danfoss |
| Build Orientation | Left hand |
| Coil Voltage | 24 Volt DC |
| Command Input | 4-20mA Command |
| Communication Protocol | None |
| Current | 1.6 amp |
| Design Series | 10 Series |
| Electrical Connection | Electrical (PE7) 7 pin electrical plug with mating half |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual Override | None |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | KBCG3L350DZM23APE7H110P15T10 |
| On Board Electronics | Yes |
| Performance | Standard |
| Pressure Range | 6-350 bar (87-5000 psi) |
| Product Height In | 3.940 |
| Product Height Mm | 100.076 |
| Product Length In | 7.280 |
| Product Length Mm | 184.912 |
| Product Width In | 1.810 |
| Product Width Mm | 45.974 |
| Profx Compatible | No |
| Ramp | Long ramp (typically 80 ms) |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | None |
| Stage | Single stage |
| Symmetric Flow | No |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional pressure relief |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
