Description

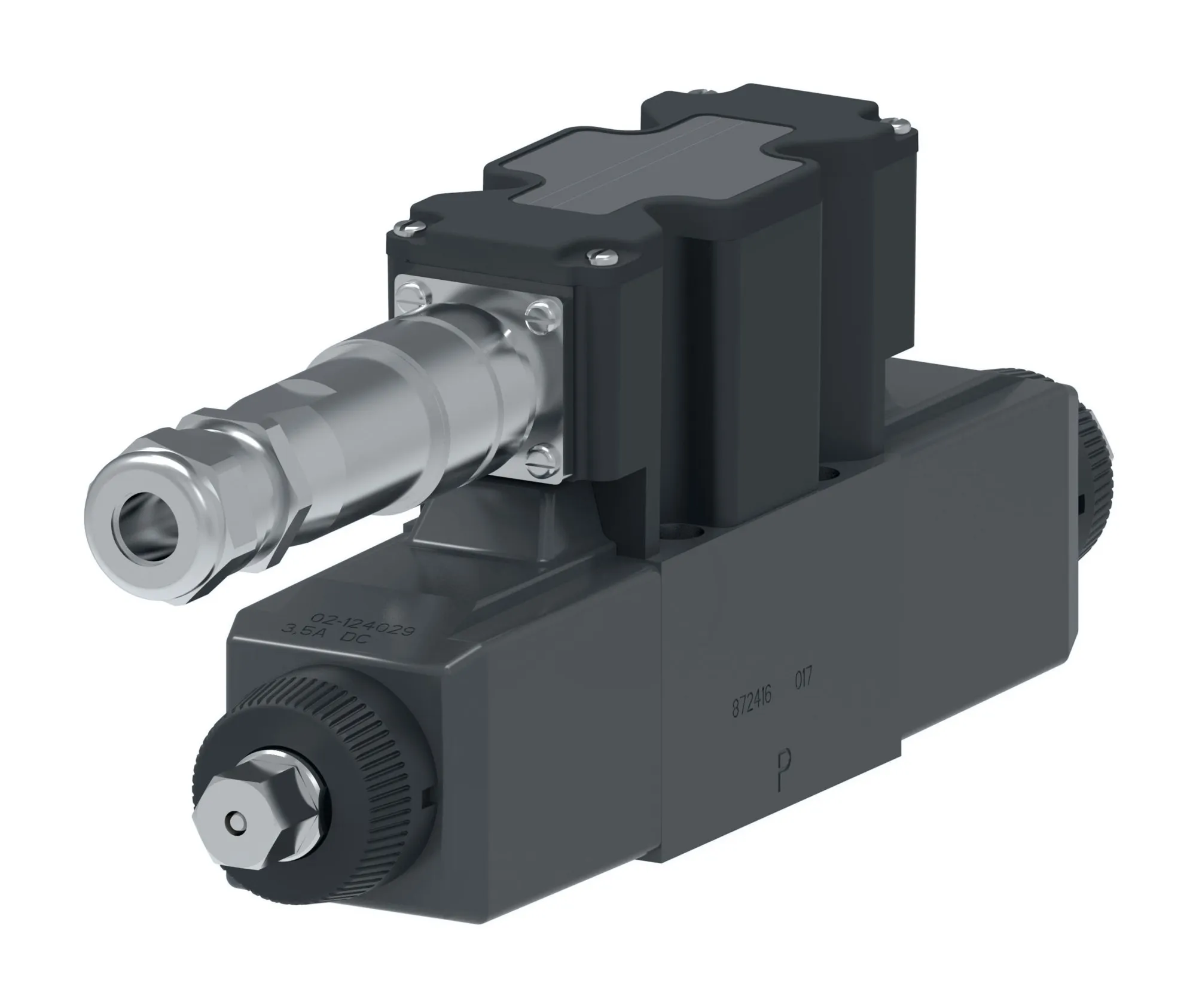

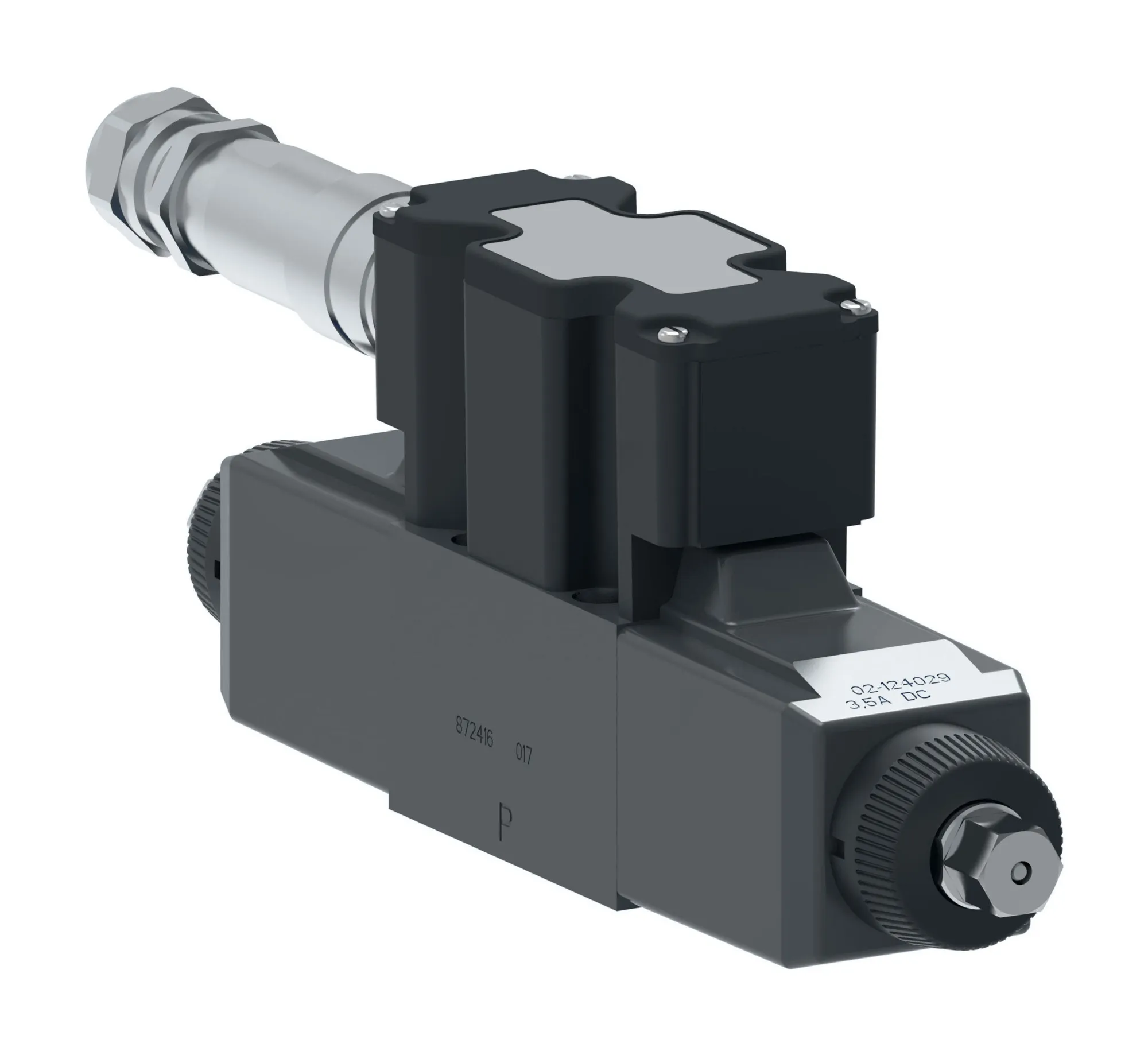

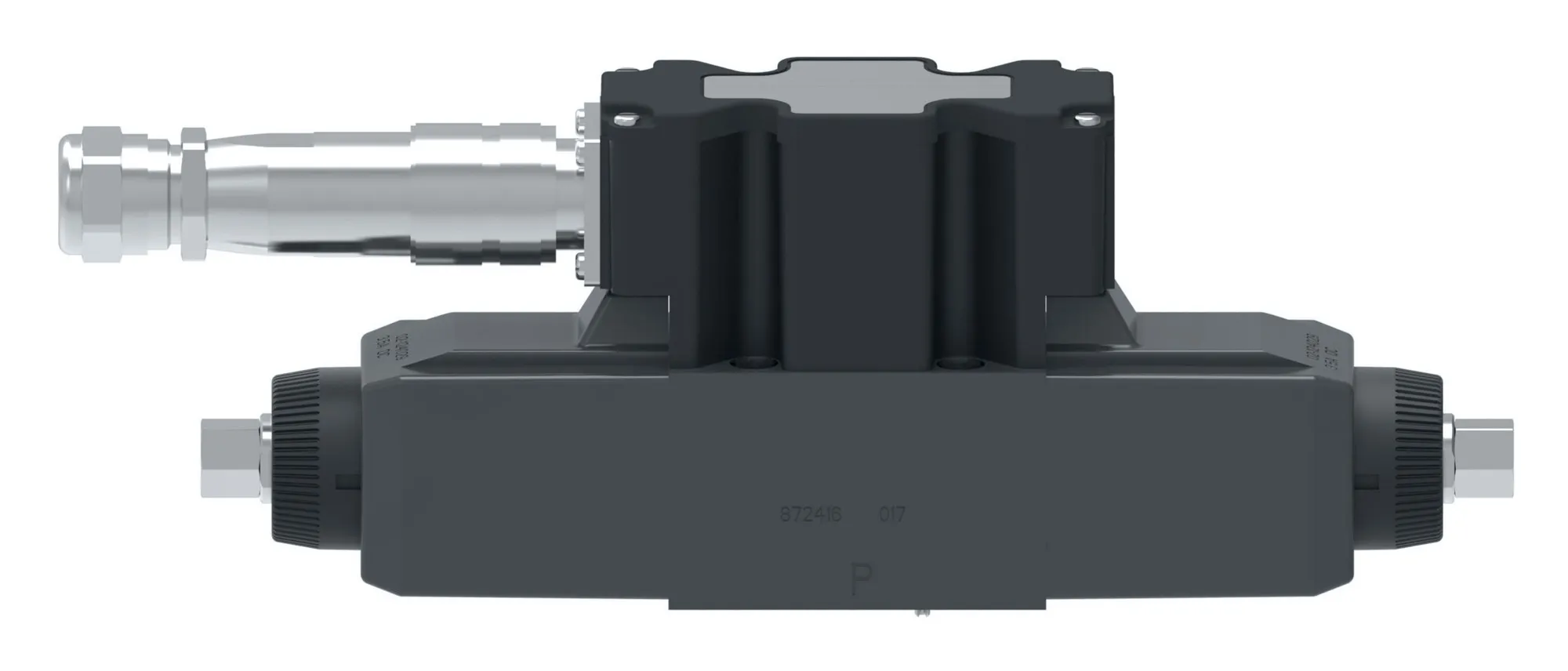

KBDG4V-3-33C30X-M2-PE7-H7-10, KBDG4V333C30XM2PE7H710 – 02-353531
Specification
| A Port Flow Lpm | 30.00 |
|---|---|
| A Port Flow Usgpm | 7.90 |
| Actuation Type | Solenoid controlled |
| B Port Flow Lpm | 30.00 |
| B Port Flow Usgpm | 7.90 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | 4-20mA Control signal |
| Communication Protocol | None |
| Design Series | 10 Series |
| Electrical Connection | Electrical (PE7) 7 pin electrical plug with mating half |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |

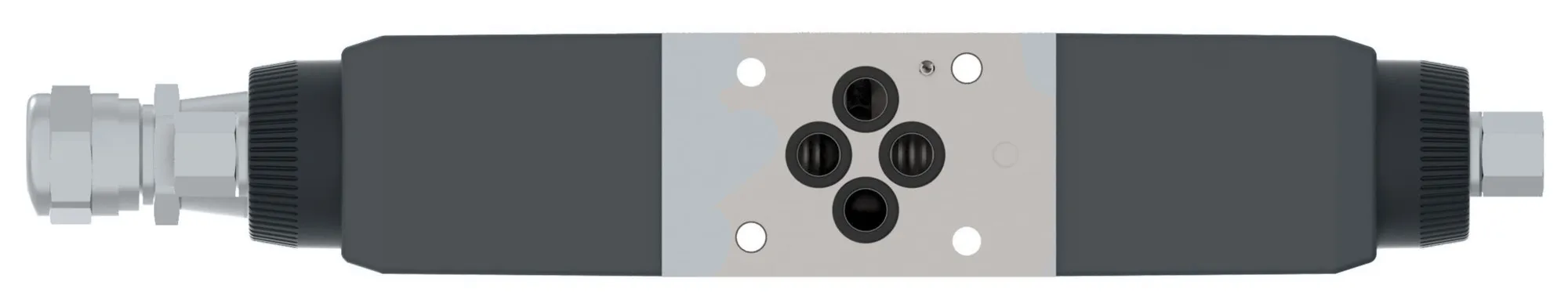

| Interface | ISO4401-03/NFPA D03/CETOP 3/NG06 |
| Manual Override | Plain |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | KBDG4V333C30XM2PE7H710 |
| On Board Electronics | Yes |
| Performance | Standard |
| Product Height In | 3.950 |
| Product Height Mm | 100.330 |
| Product Length In | 10.870 |
| Product Length Mm | 276.098 |
| Product Width In | 1.810 |
| Product Width Mm | 45.974 |
| Profx Compatible | No |
| Reducer Module | No |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | P blocked, A & B to tank |
| Stage | Single stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
