Danfoss (Drives) 02-353047
FG-3-32-K-15, FG332K15 – 02-353047
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

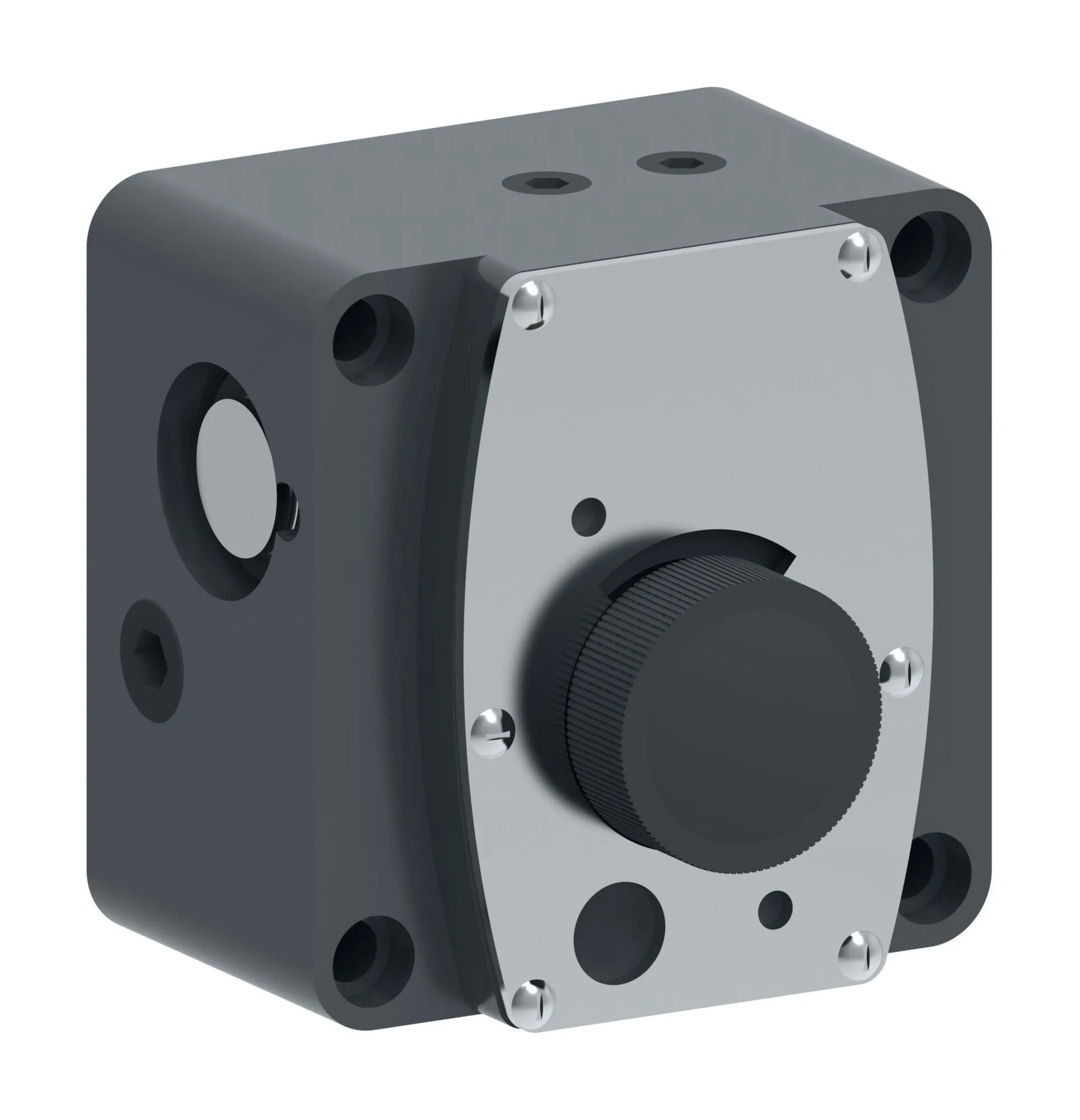

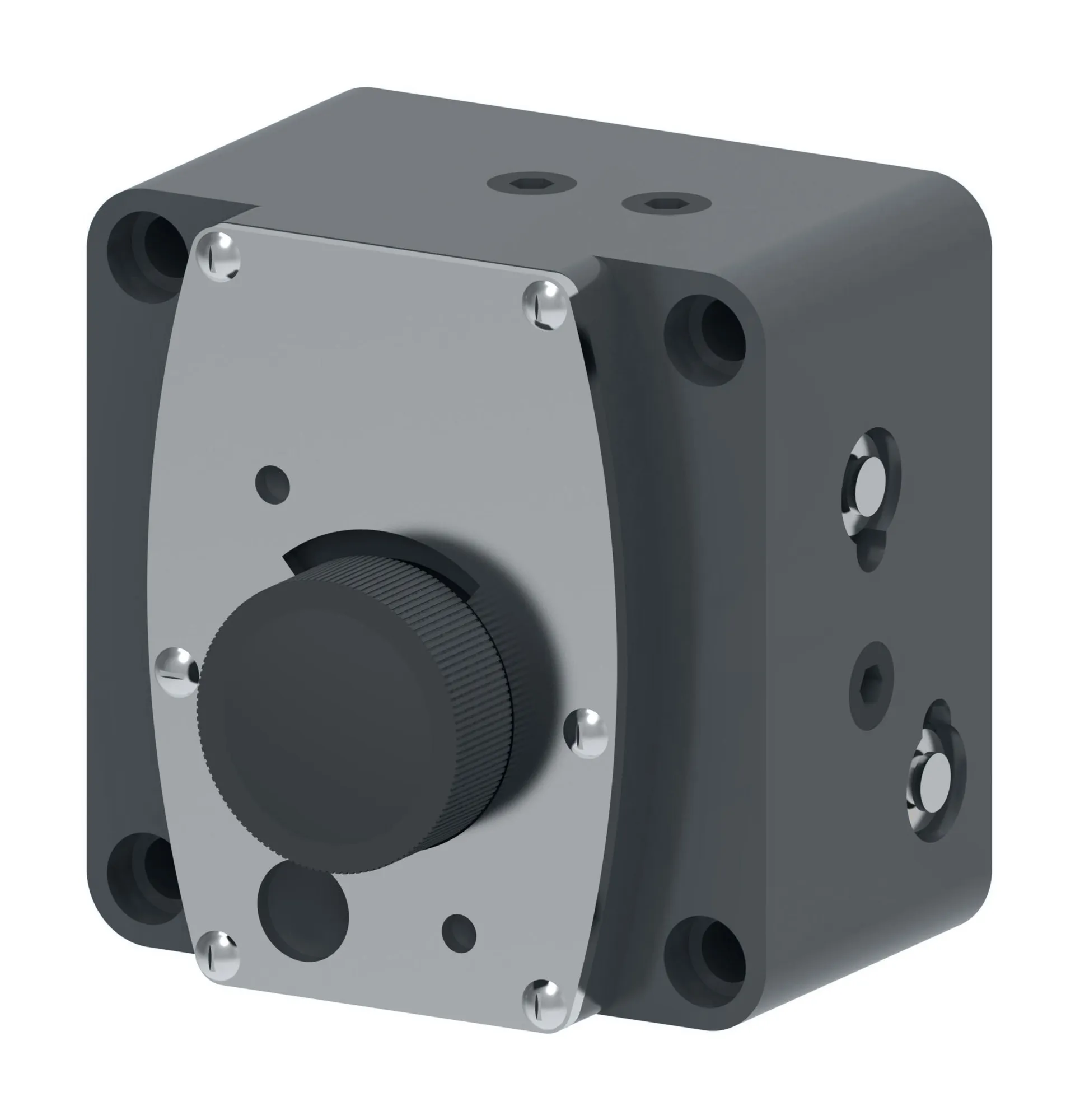

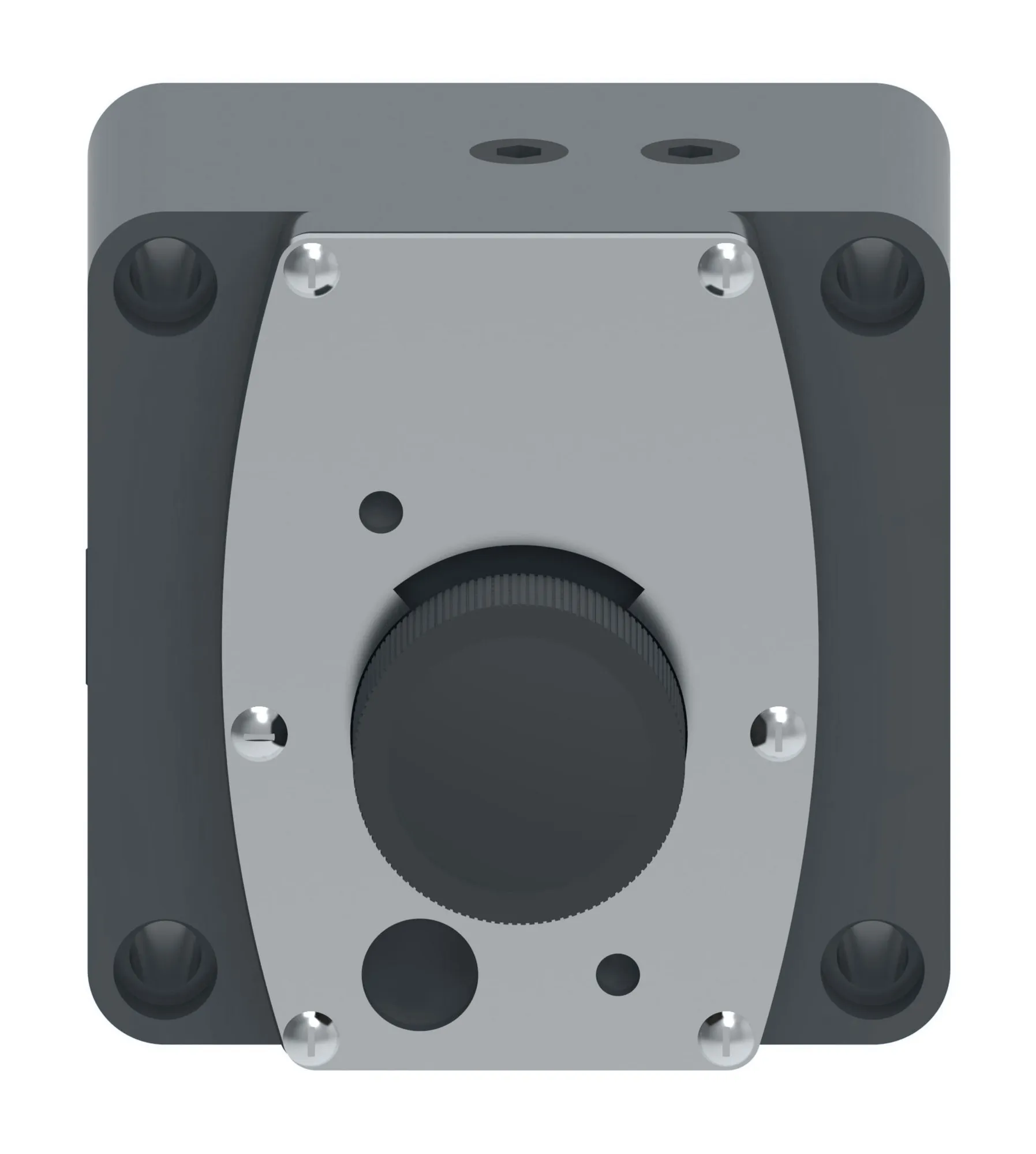

FG-3-32-K-15, FG332K15 – 02-353047
Specification
| Adjustment | Yes |
|---|---|
| Adjustment Type | Manual with Keylock |
| Brand | Vickers by Danfoss |
| Check Valve | No |
| Design Code | 15 Series |
| Flow Compensation | Pressure and Temperature |
| Flow Rate Lpm | 3.20 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Anti-wear hydraulic oil |
| Interface | 03/NFPA D01 |
| Leakage | Standard |
| Lock | Key lock |
| Model Code | FG332K15 |
| Pressure Rating Bar | 315.00 |
| Product Height In | 4.620 |
| Product Height Mm | 117.348 |
| Product Length In | 2.340 |
| Product Length Mm | 59.436 |
| Product Width In | 1.830 |
| Product Width Mm | 46.482 |
| Seal Material | Nitrile |
| Special Features | None |
| Valve Mount Type | Subplate |
| Valve Type | Flow control valve |
| Working Temp Max C | 80 |
| Working Temp Min C | -20 |
