Danfoss (Drives) 02-352635
DGMC 7 BT F H 20, DGMC7BTFH20 – 02-352635
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

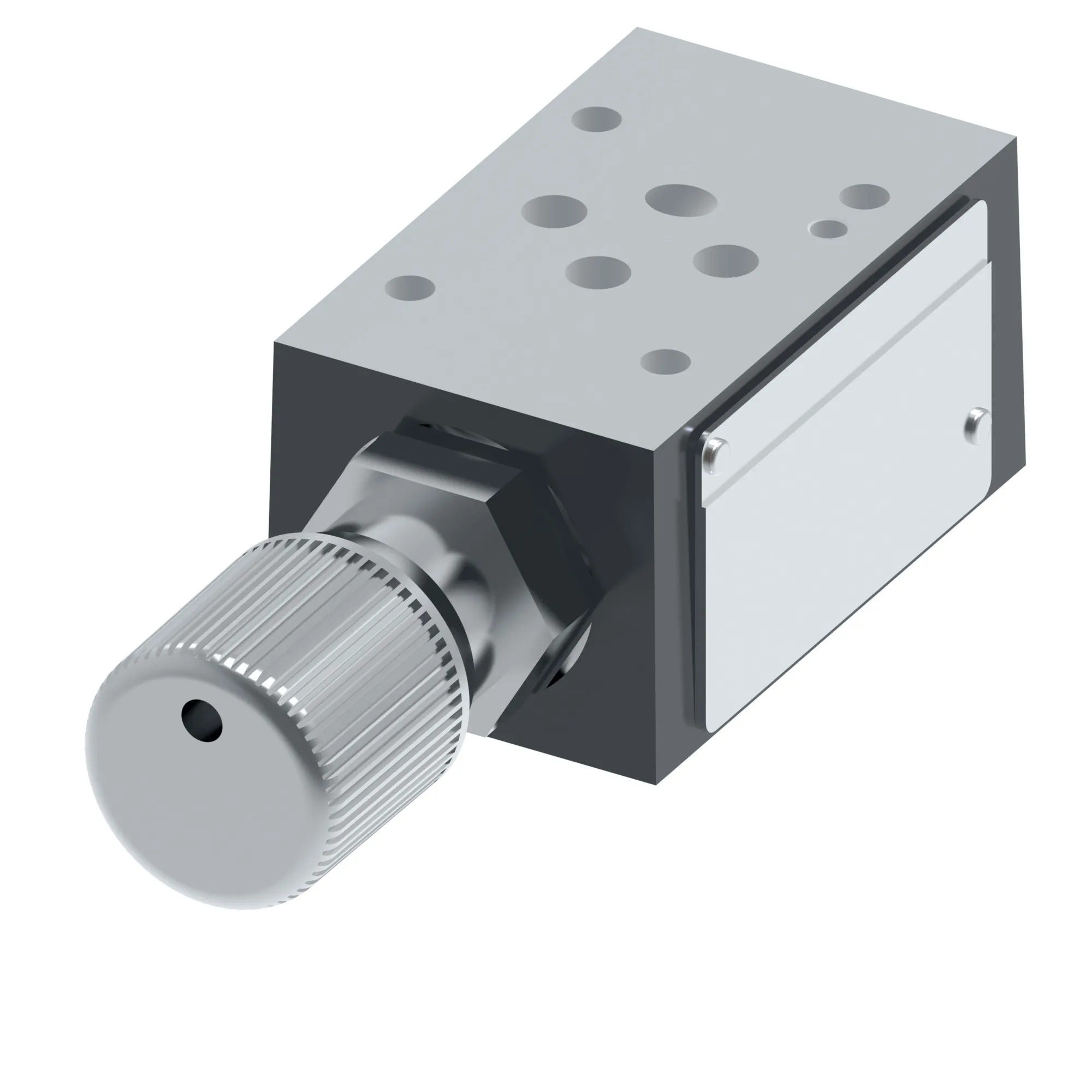

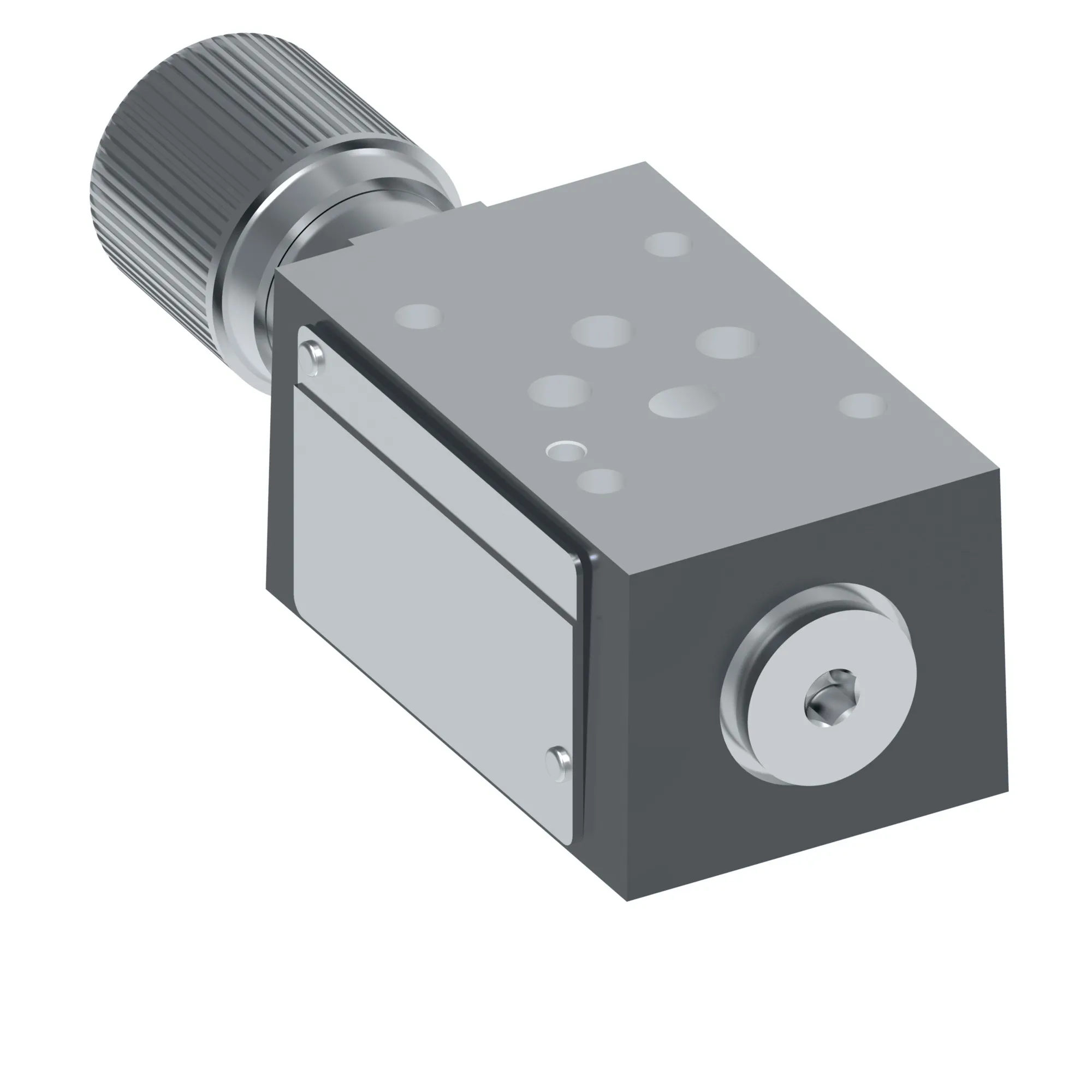

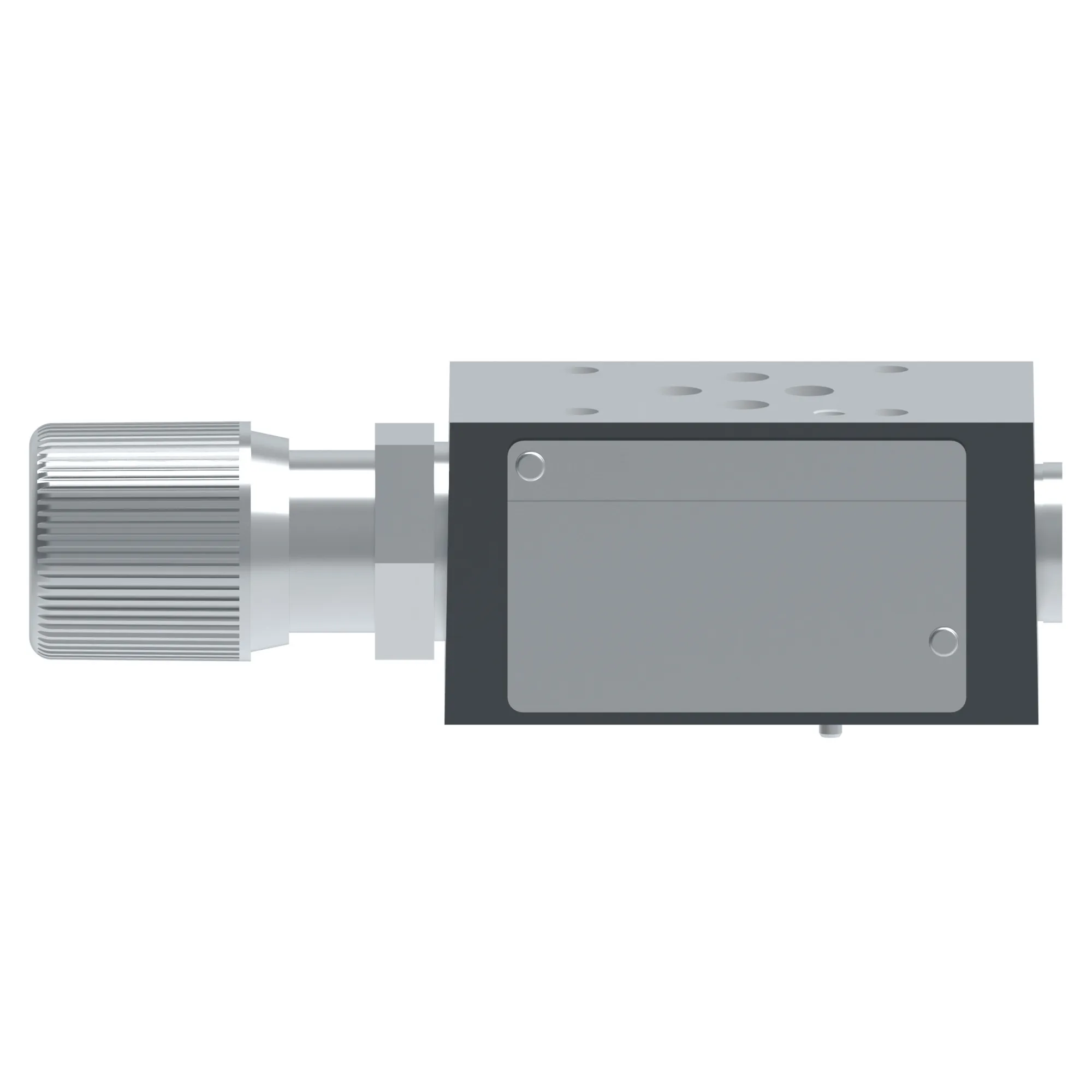

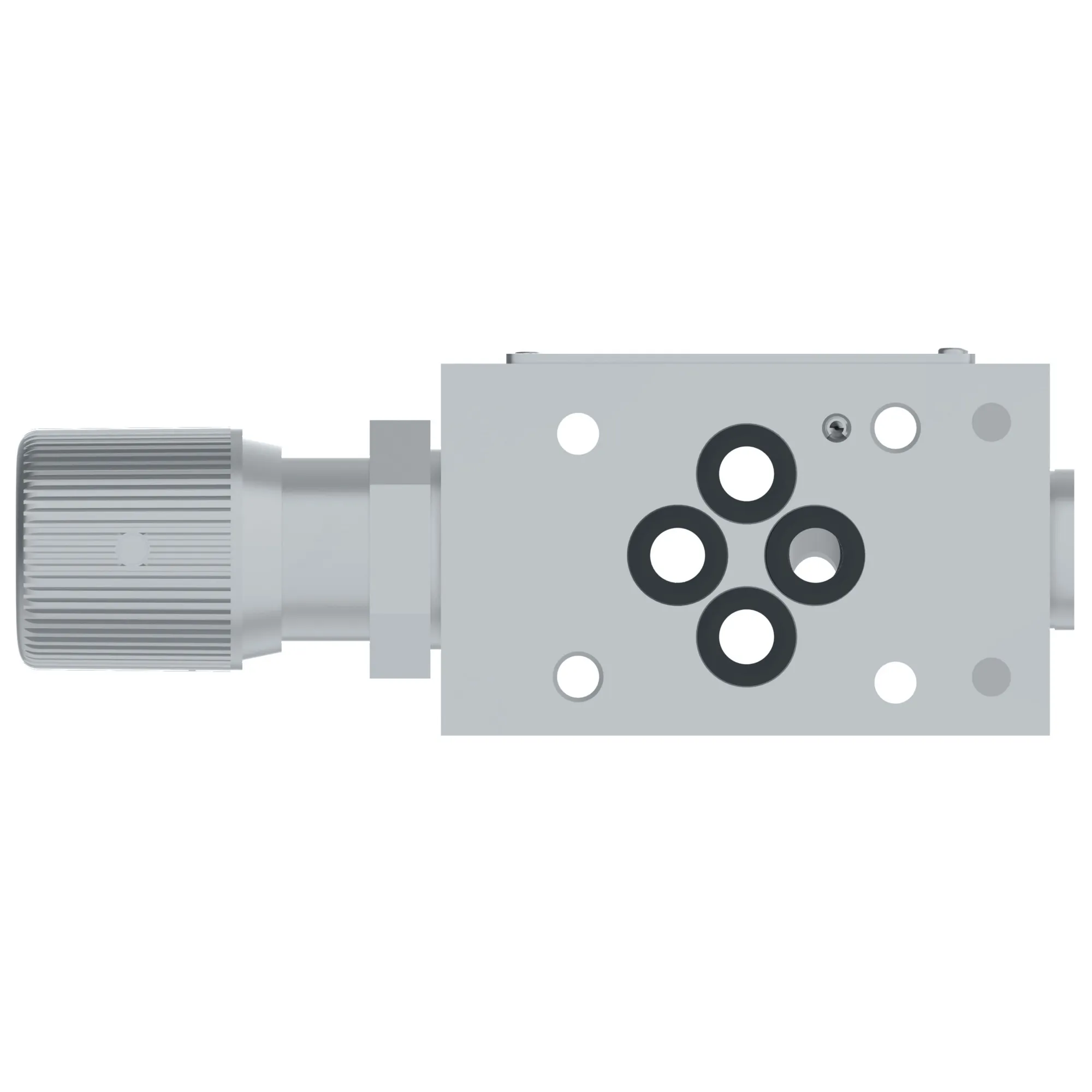

DGMC 7 BT F H 20, DGMC7BTFH20 – 02-352635
Specification
| Actuation Type | Pressure operated |
|---|---|
| Adjustment Type | Handwheel with locknut |
| Brand | Vickers by Danfoss |
| Design Series | 20 Series |
| Discharge 1 | Discharge into T |
| First Function | Pressure limited in B |
| Flow Rate Upto Lpm | 300 |
| Flow Rate Upto Usgpm | 80.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Anti-wear hydraulic oil |
| Interface | ISO4401-07 |
| Maximum Pressure Upto Bar | 350 |
| Maximum Pressure Upto Psi | 5000 |
| Model Code | DGMC7BTFH20 |
| Performance | Standard |
| Pressure Adjustment Range | 10-250 bar (145-3635 psi) |
| Product Height In | 3.150 |
| Product Height Mm | 80.010 |
| Product Length In | 9.730 |
| Product Length Mm | 247.142 |
| Product Width In | 3.660 |
| Product Width Mm | 92.964 |
| Seal Type | Buna-N |
| Special Features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Relief valve |
| Working Temp Max C | 80 |
| Working Temp Max F | 176 |
| Working Temp Min C | -25 |
| Working Temp Min F | -13 |
