Description

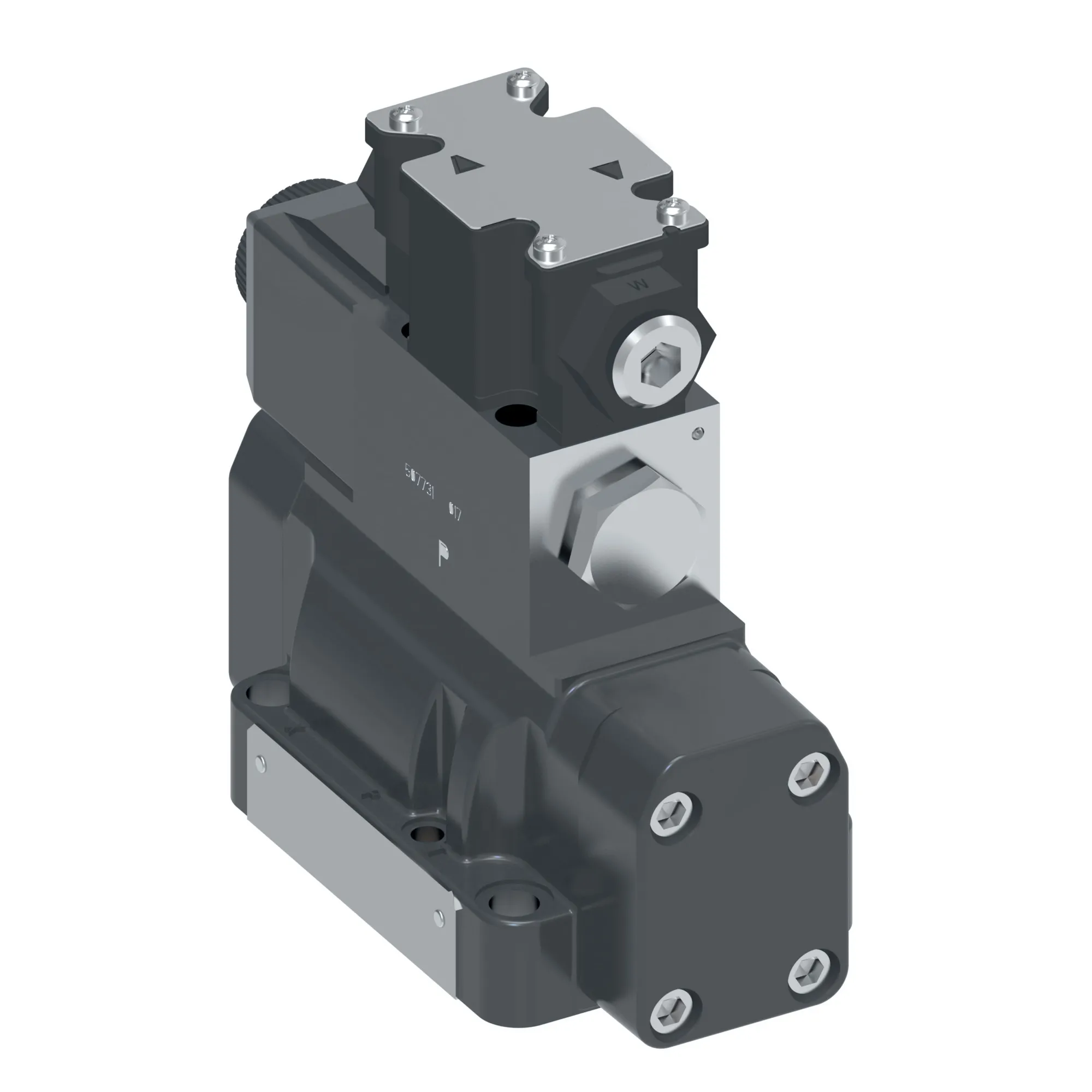

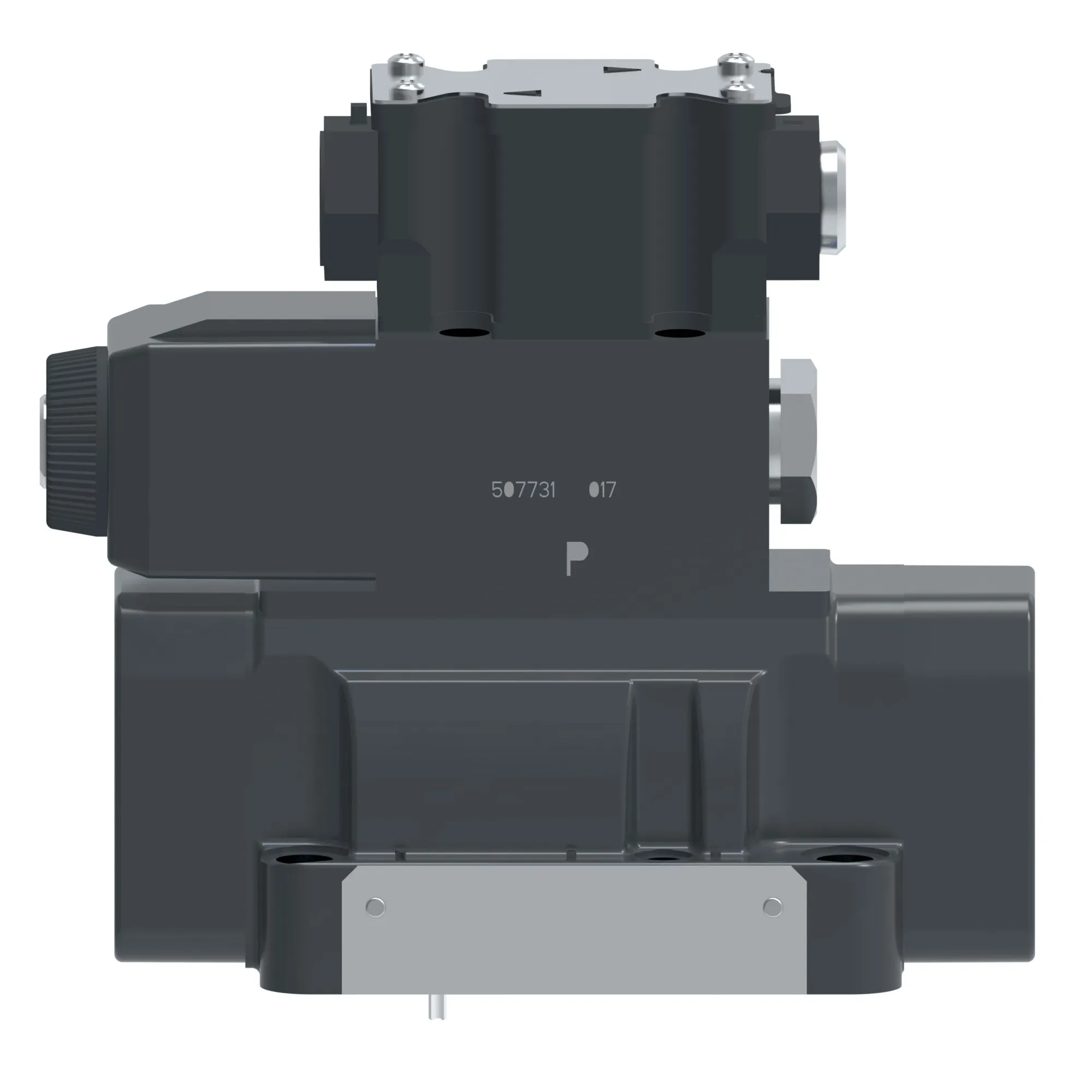

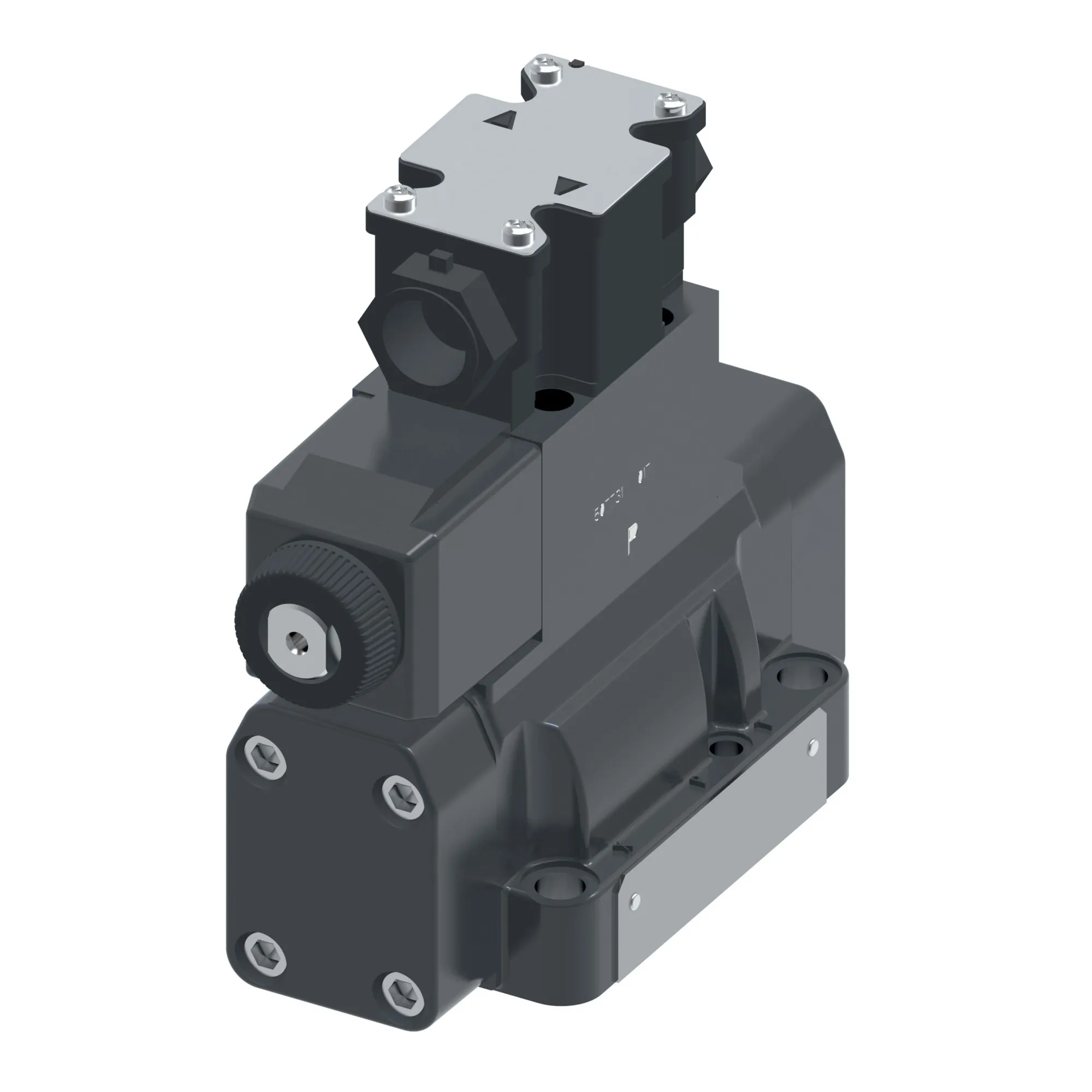

DG5S4-042-T-60-EN546, DG5S4042T60EN546 – 02-343299
Specification
| Actuation Type | Pilot operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 60 Series |
| Electrical Connection | None |
| Ext Pilot Pressure | Internal |
| Flow Rate Upto Gpm | 60.0 |
| Flow Rate Upto Lpm | 227.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Int Pilot Drain | Internal |

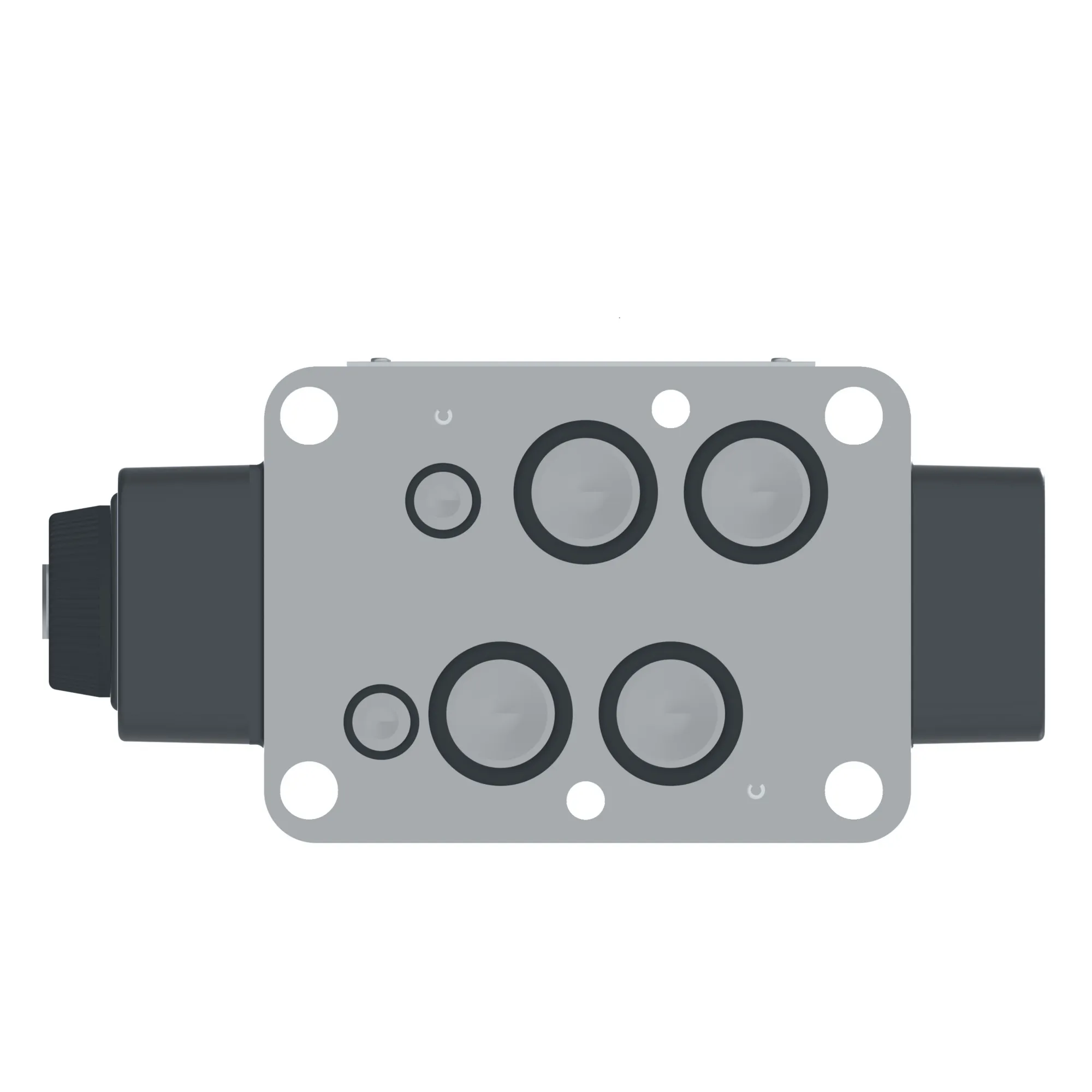

| Interface | ISO4401-07 |
| Manual Override | None |
| Model Code 1 | DG5S4042T60EN546 |
| Performance | Standard performance |
| Pressure Rating Bar | 210 |
| Pressure Rating Psi | 3000 |
| Product Height In | 6.360 |
| Product Height Mm | 161.544 |
| Product Length In | 8.480 |
| Product Length Mm | 215.392 |
| Product Width In | 3.500 |
| Product Width Mm | 88.9 |
| Seal Type | Buna-N |
| Solenoid Energising Id | None |
| Special Features | Gage ports, centring springs, centring washers and roll pins all removed from mainstage, 0.36 dia. restriction plug in P port andless pilot valve. |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | No spring |
| Stage | Two stage |
| Surge Suppr Damper | No |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
