Danfoss (Drives) 02-342587

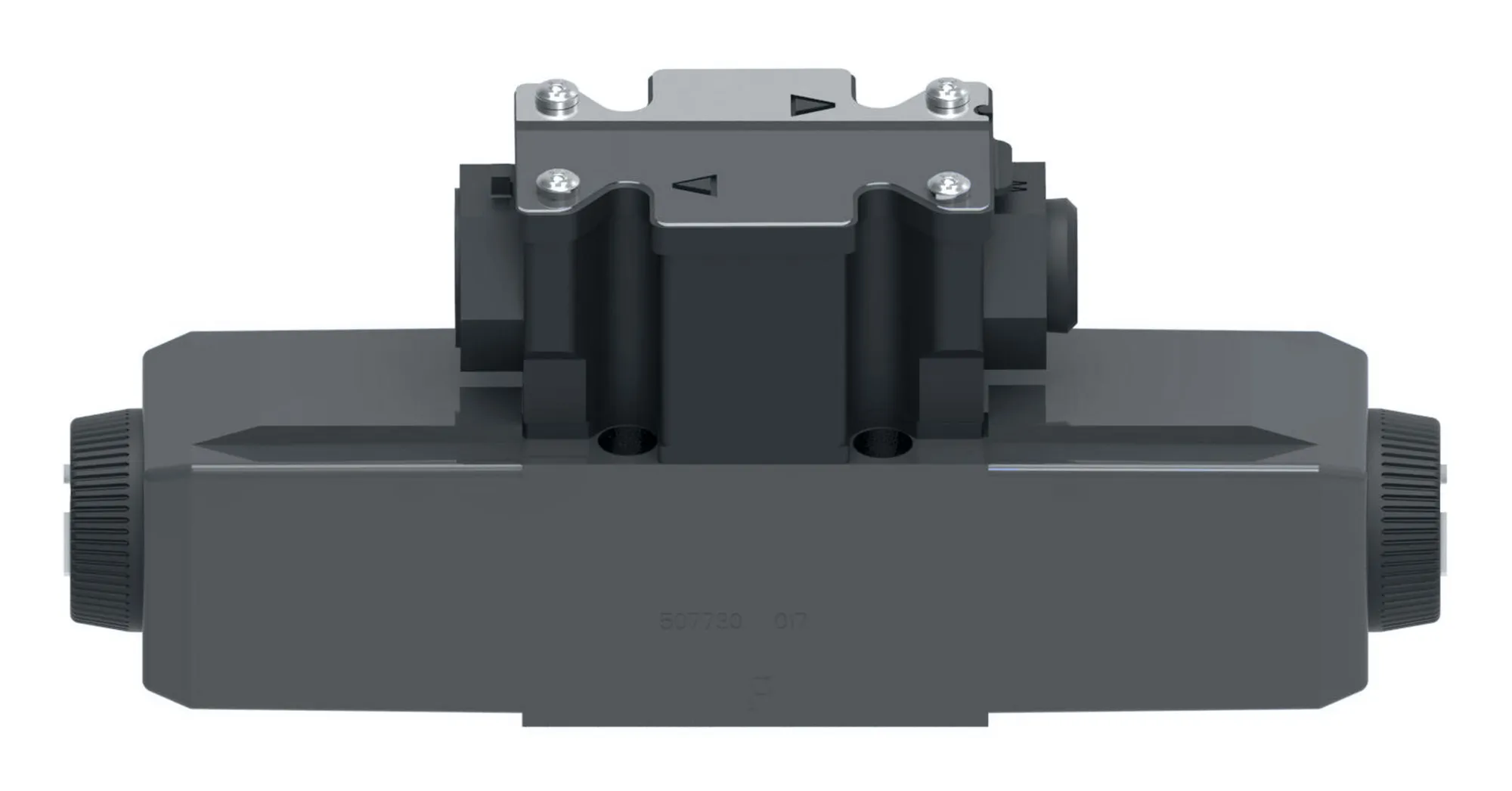

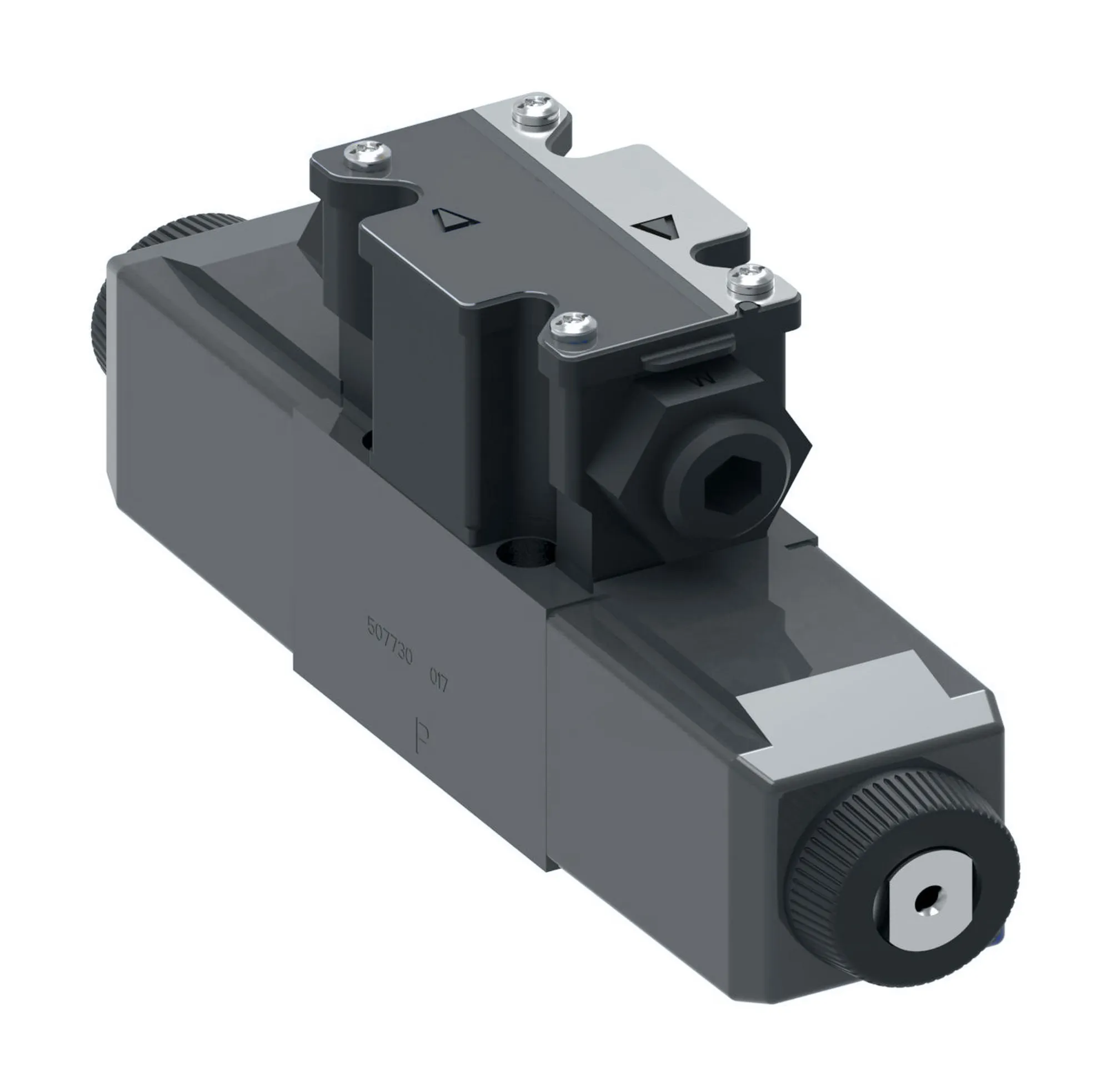

DG4V-3S-8C208-H-VM-FTW-G H5-60, DG4V3S8C208HVMFTWGH560 – 02-342587
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG4V-3S-8C208-H-VM-FTW-G H5-60, DG4V3S8C208HVMFTWGH560 – 02-342587
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 12 VDC |
| Design Series | 60 Series |
| Electrical Connection | Flying lead wired terminalblock & 1/2″ NPT thread wiring housing |
| Energ Time | 60-40 ms |
| Flow Rate Upto Gpm | 10.5 |
| Flow Rate Upto Lpm | 40.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-03 |
| Manual Override | Waterproof |
| Model Code 1 | DG4V3S8C208HVMFTWGH560 |
| Performance | Standard performance |
| Power Consumption | 30 watt |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 3.670 |
| Product Length In | 8.660 |
| Product Length Mm | 219.964 |
| Product Width In | 1.880 |
| Product Width Mm | 47.752 |
| Seal Type | WATER GLYCOL |
| Shift Type | Variable |
| Solenoid Energising Id | Sol A port A/Sol B port B |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 8 |
| Spring Arrangement | Spring centred |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 100 |
| Tank Port Rating Psi | 1450 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
