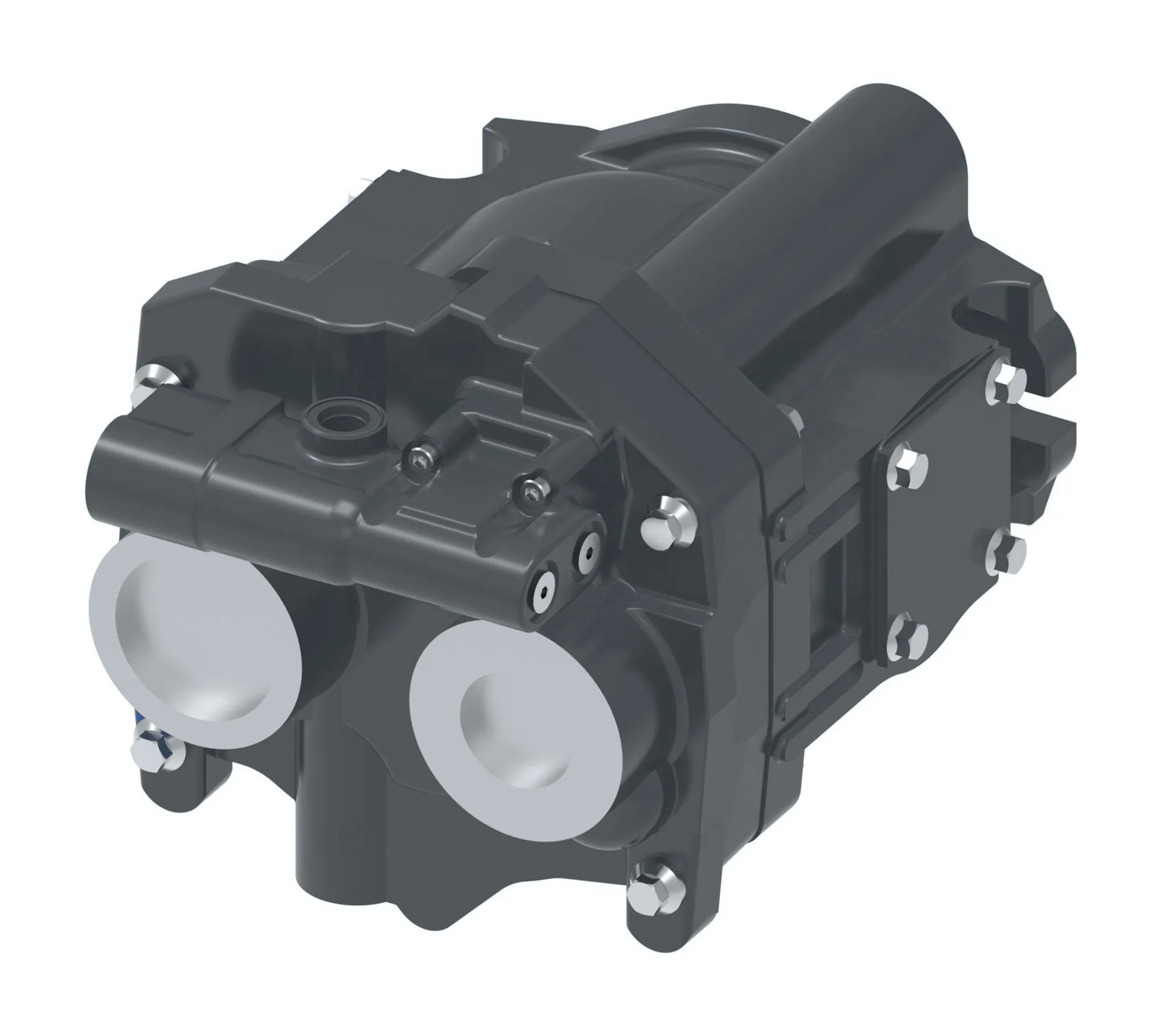

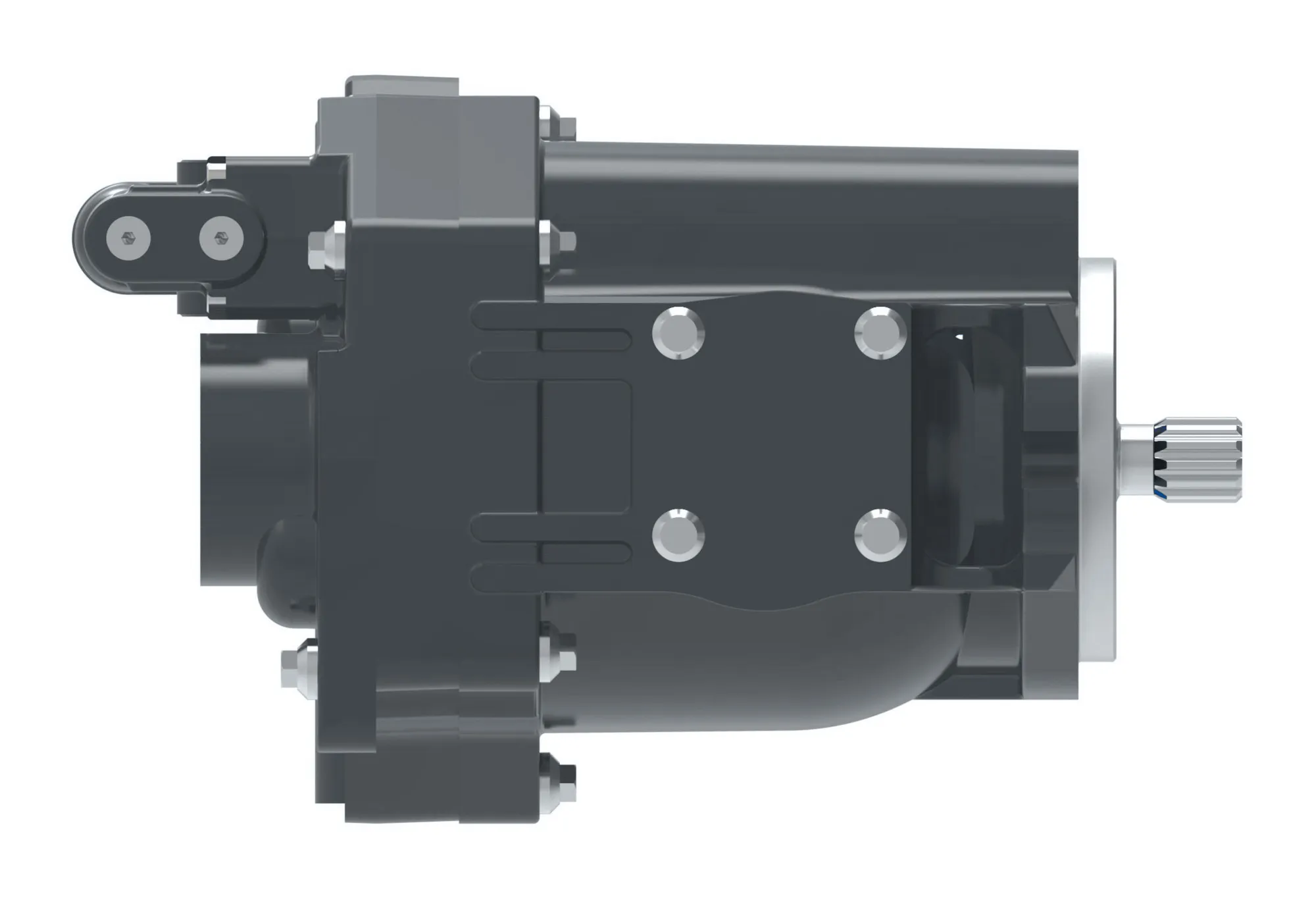

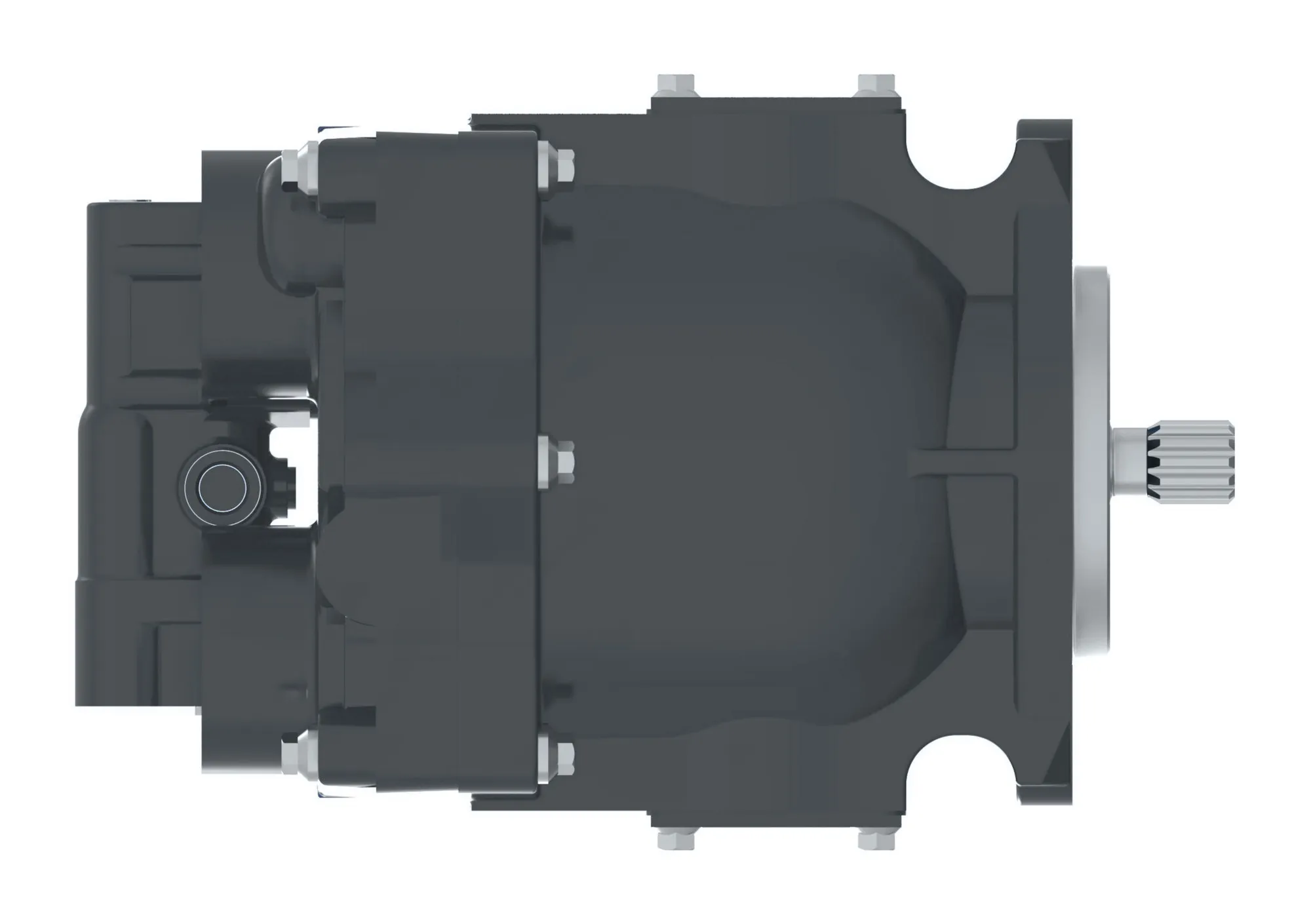

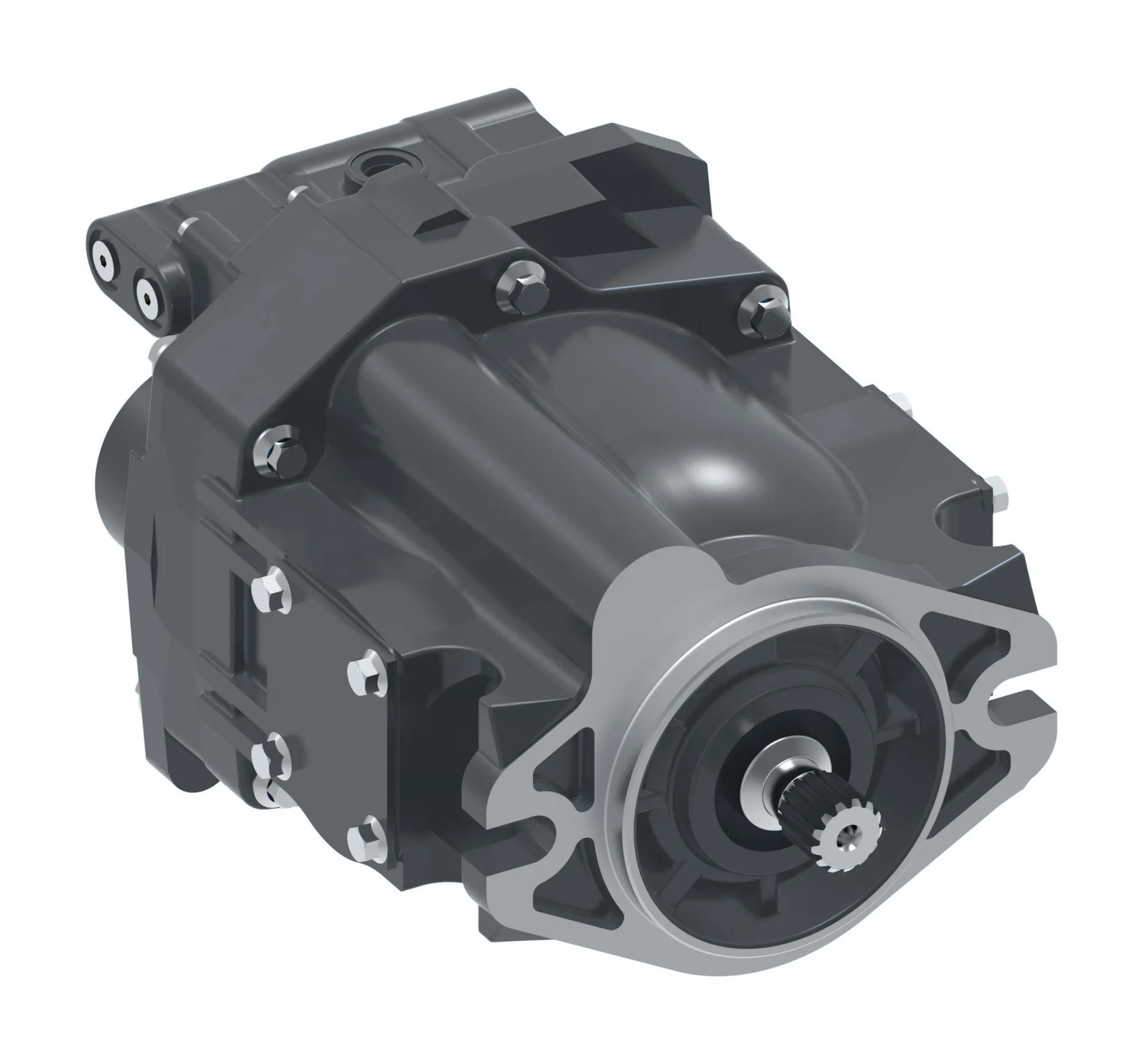

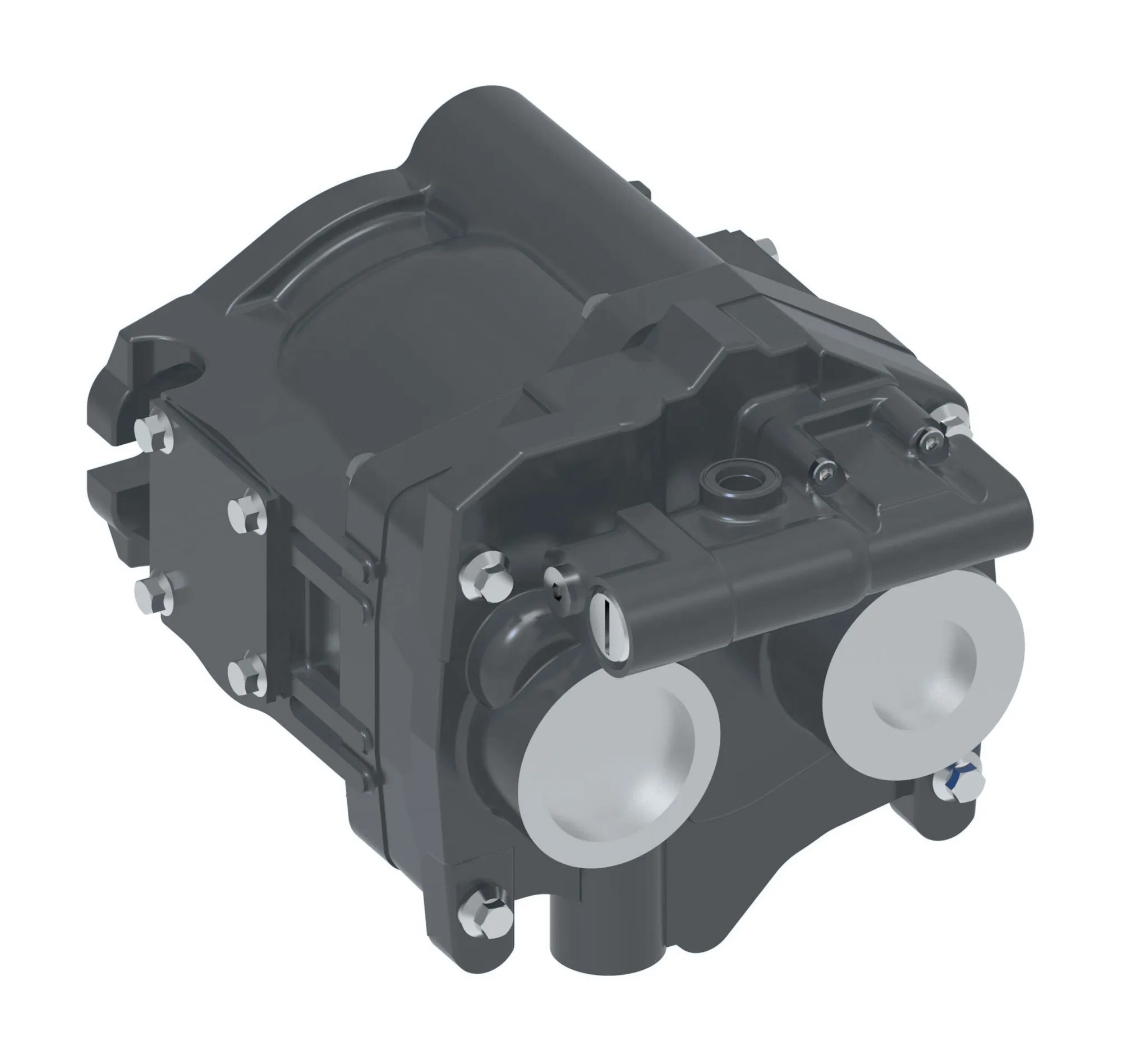

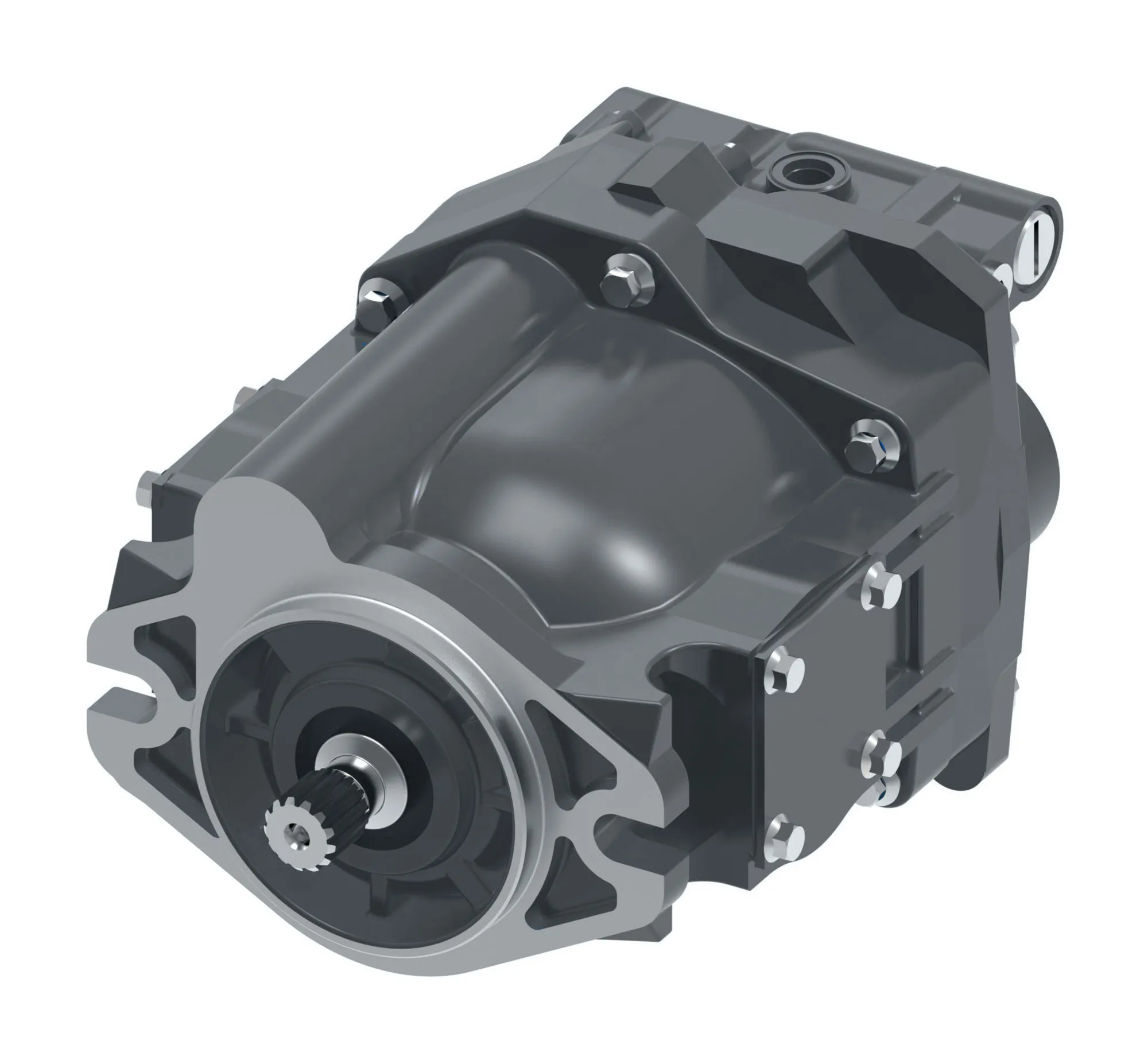

Danfoss (Drives) 02-341671
PVQ32 MBR SSNS 21 CM7 12, PVQ32 MBR SSNS 21 CM7 12 – 02-341671
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVQ32 MBR SSNS 21 CM7 12, PVQ32 MBR SSNS 21 CM7 12 – 02-341671
Specification
| Series | INLINE PISTON PUMP WITH VARIABLE VOLUME, QUIET SERIES |
|---|---|
| D I S P L A C E M E N T | 32,9 CC/REV (2.01 cir), 140 BAR (2000 PSI) |
| Mounting Flange | VDMA “B” 2 BOLT |
| Rotation (Viewed From S End) | RIGHT HAND (CW) |
| Thru Drive Without Coupling | NO THRU-DRIVE |
| Port Type And Location | SAE O-RING SIDE PORT, 1.625” INLET AND OUTLET (OPTIONAL) |
| Input Shaft | SHAFT END ISO 3019/2 E25N (AVAILABLE WITH “MB” MOUNT ONLY) |
| S E A L S | BUNA N, STANDARD |
| Pump Design Number | 21-DESIGN NUMBER |
| C O N T R O L T Y P E | LOW PRESSURE COMPENSATOR, INDICATING FACTORY SETTING OF 70 BAR (1000 PSI); RANGE IS 02-10 IN TENS OF BAR (350-2000 PSI). |
| Control Option | WITHOUT ADJUSTABLE MAXIMUM DISPLACEMENT STOP (STANDARD) |
| Control Design | C14, C21, CM7, C**D AND CM**D |
| Special Pump Option Suffixes | NO SPECIAL PUMP SUFFIXES |
| Brand | Vickers by Danfoss |
| Ipm Frame Size | PVQ 32cc Pump |
| Model Code 1 | PVQ32 MBR SSNS 21 CM7 12 |
