Danfoss (Drives) 02-337953

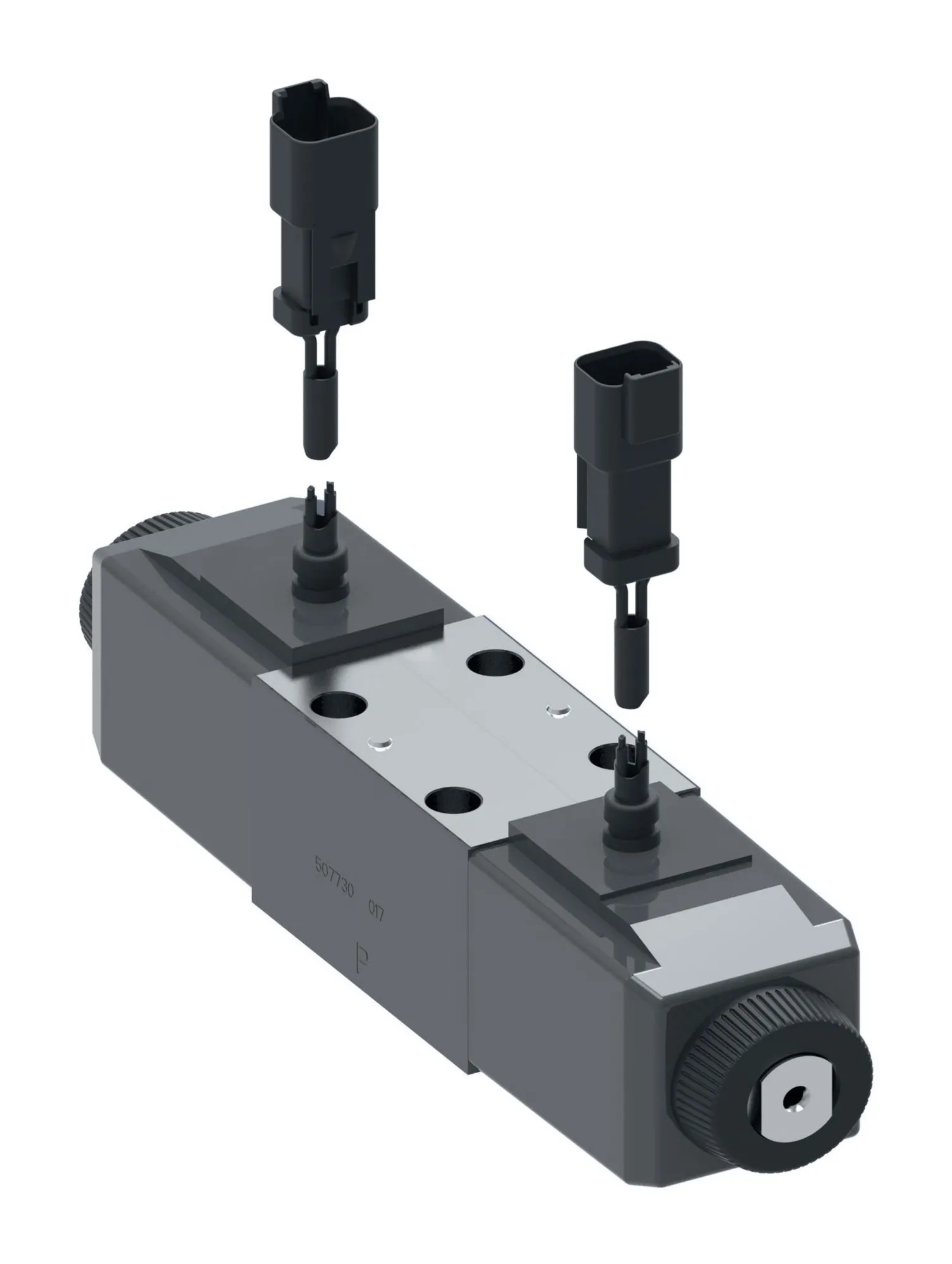

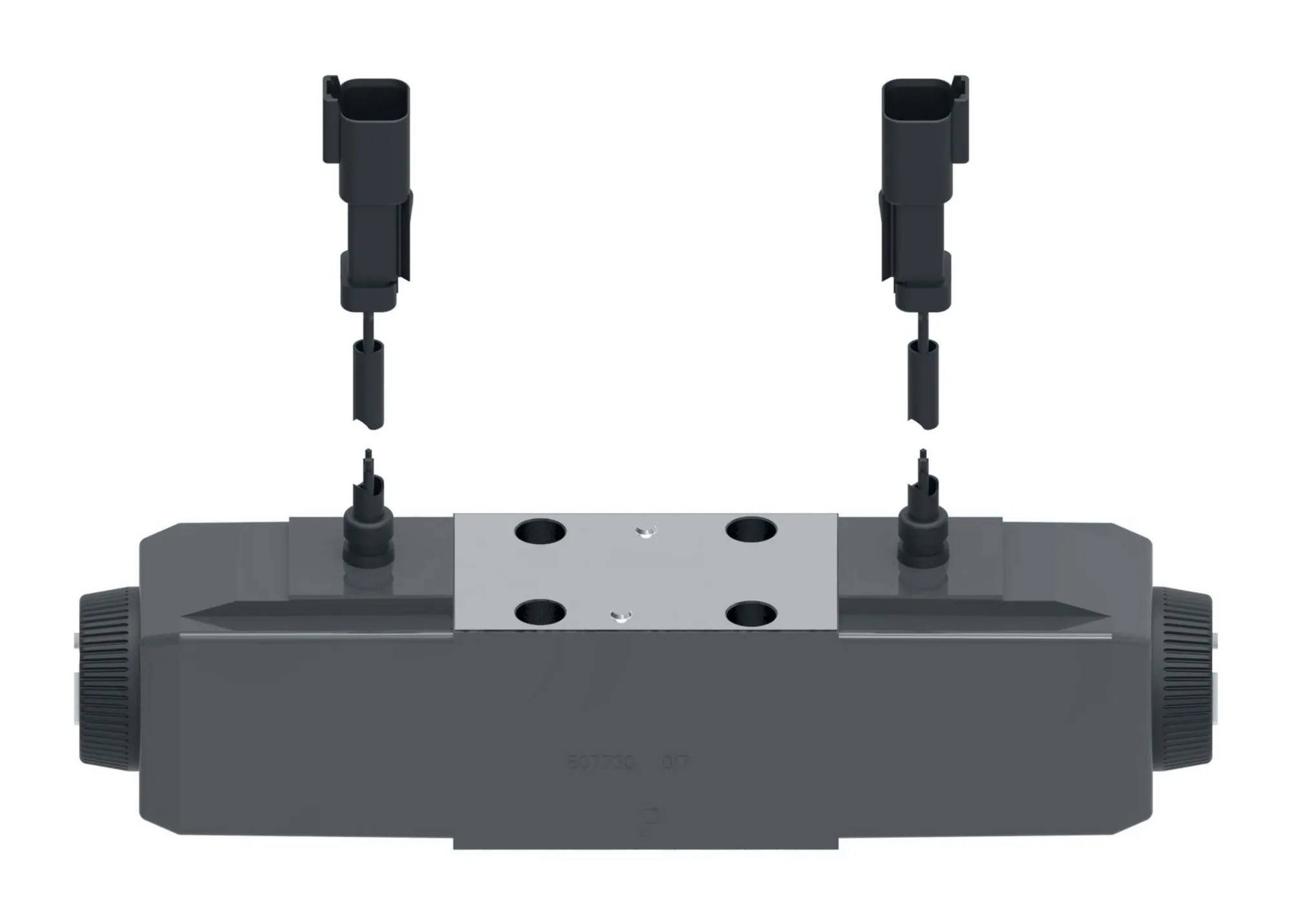

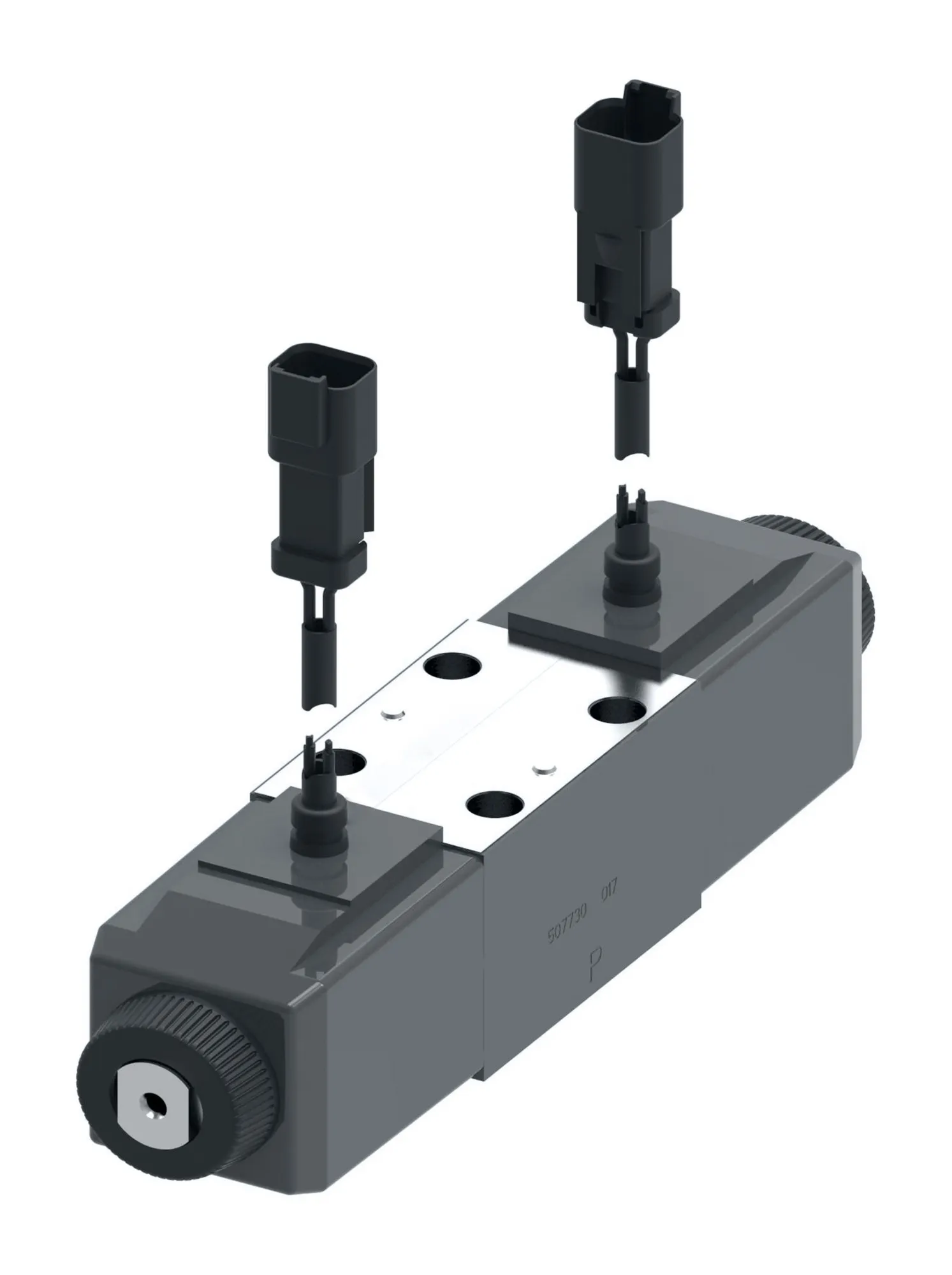

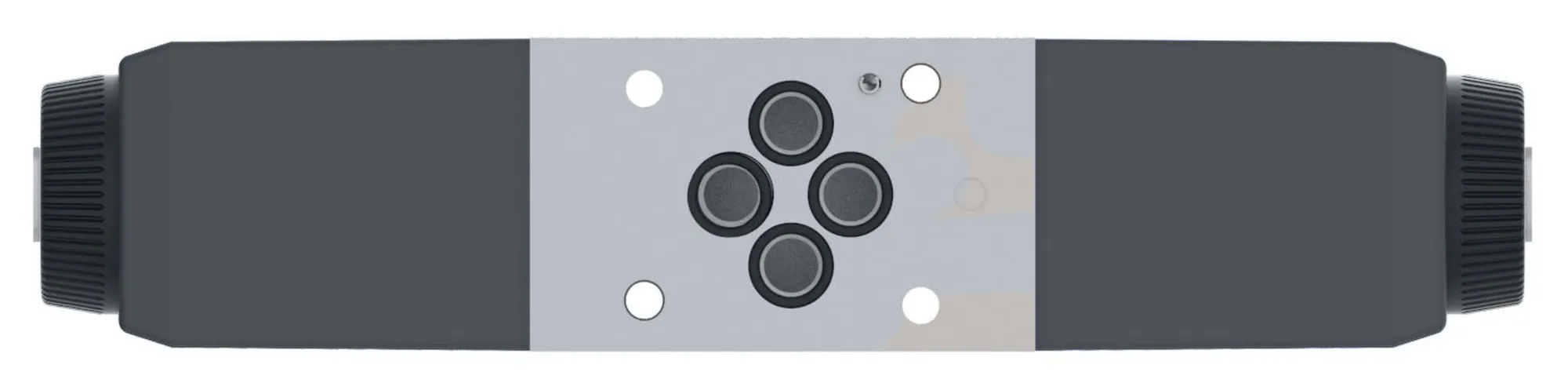

DG4V-3-8C-VM-KUP6-D7-G7- 61-EN544, DG4V38CVMKUP6D7G761EN544 – 02-337953
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG4V-3-8C-VM-KUP6-D7-G7- 61-EN544, DG4V38CVMKUP6D7G761EN544 – 02-337953
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 12 VDC |
| Design Series | 61 Series |
| Electrical Connection | Flying lead Deutsch connector |
| Energ Time | 45-28 ms |
| Flow Rate Upto Gpm | 21.0 |
| Flow Rate Upto Lpm | 80.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-03 |
| Manual Override | Plain |
| Model Code 1 | DG4V38CVMKUP6D7G761EN544 |
| Performance | High performance |
| Power Consumption | 30 watt |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 3.570 |
| Product Length In | 7.870 |
| Product Length Mm | 199.898 |
| Product Width In | 1.800 |
| Product Width Mm | 45.72 |
| Seal Type | WATER GLYCOL |
| Solenoid Energising Id | Sol A port A/Sol B port B |
| Special Features | 254 mm long top exit flying lead coils and Deutsch connector |
| Spool Position Monitor | No |
| Spool Type | Spool 8 |
| Spring Arrangement | Spring centred |
| Stage | Single stage |
| Surge Suppr Damper | Yes |
| Tank Port Rating Bar | 210 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
