Danfoss (Drives) 02-337534
DG4V4-012B-M-U-H-5-10, DG4V4012BMUH510 – 02-337534
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

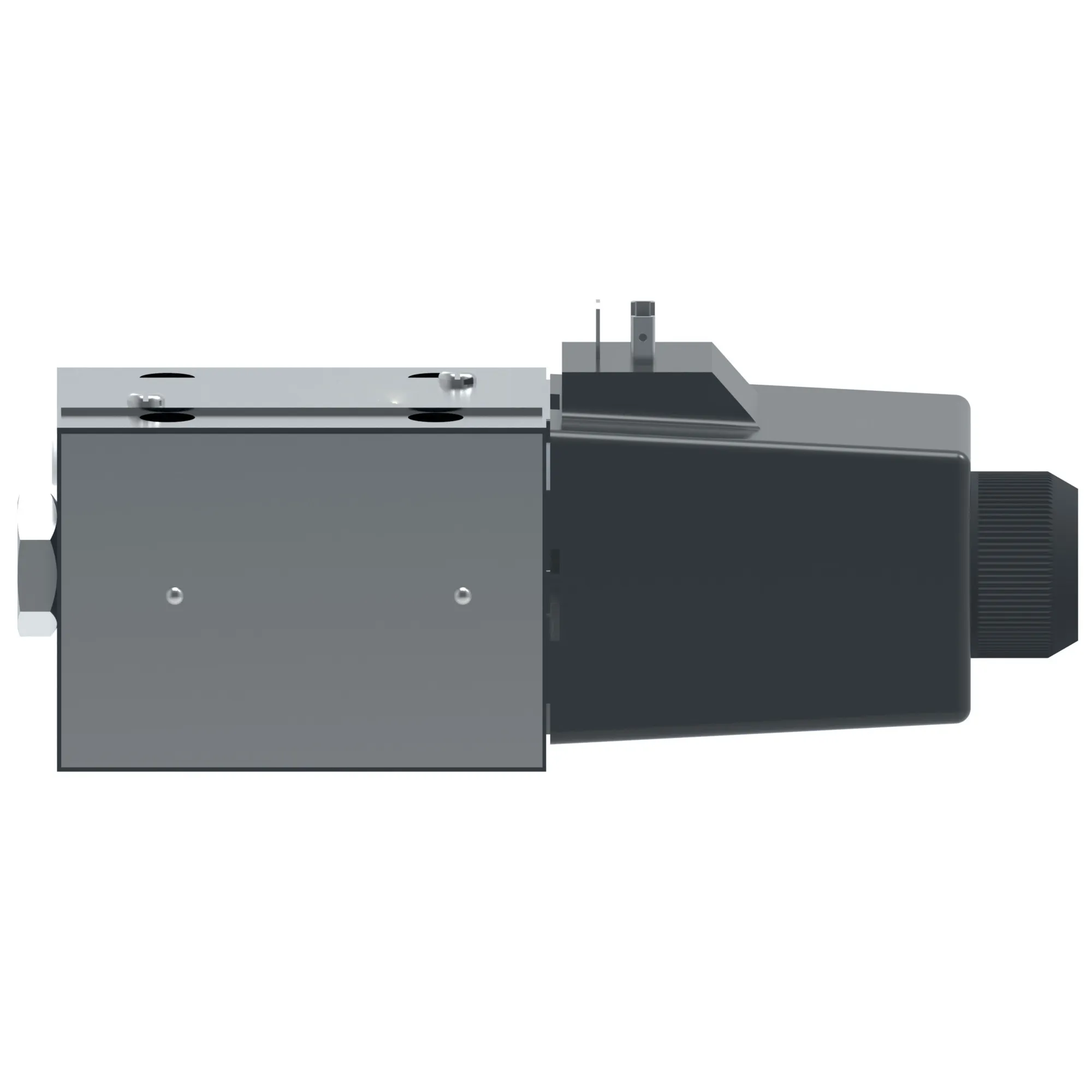

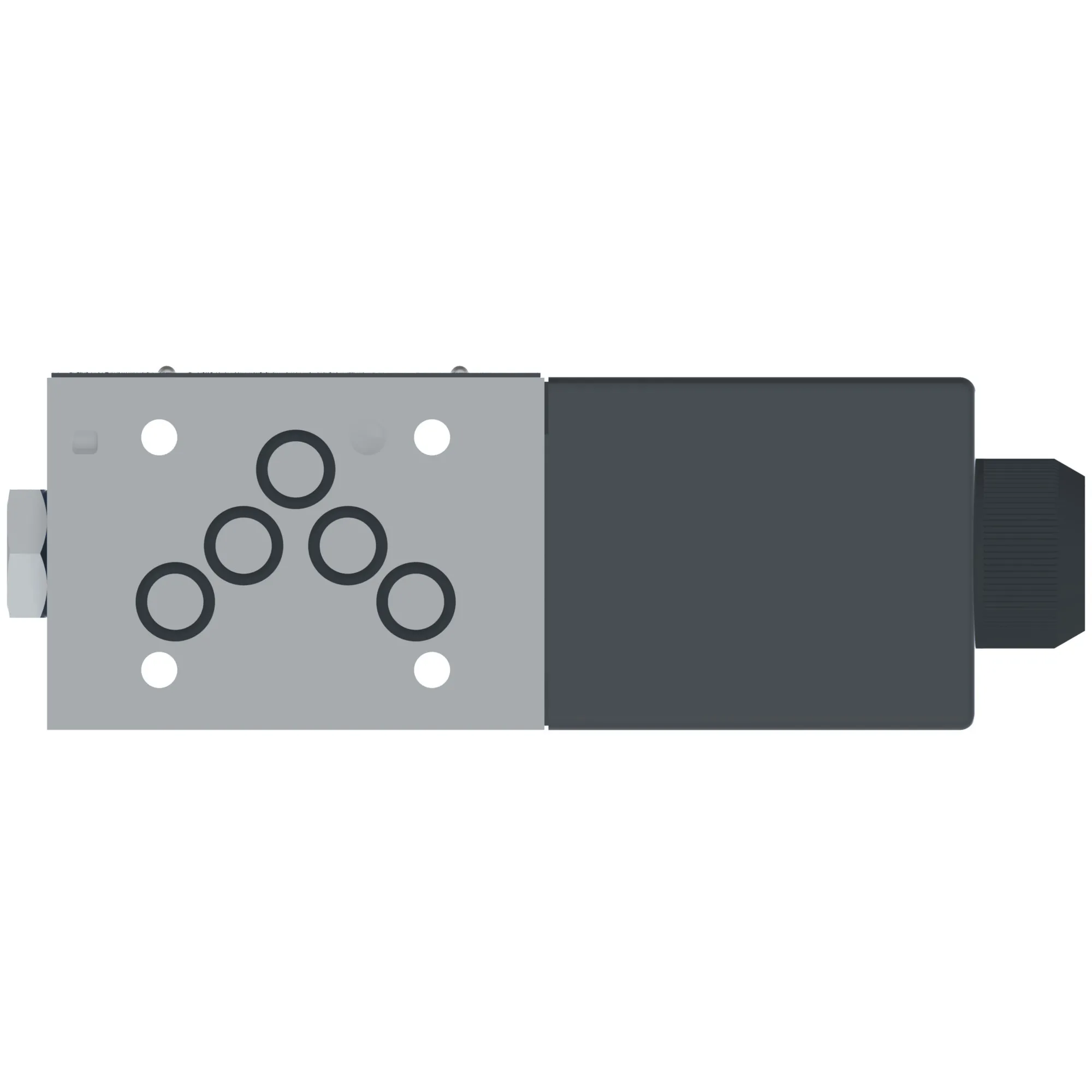

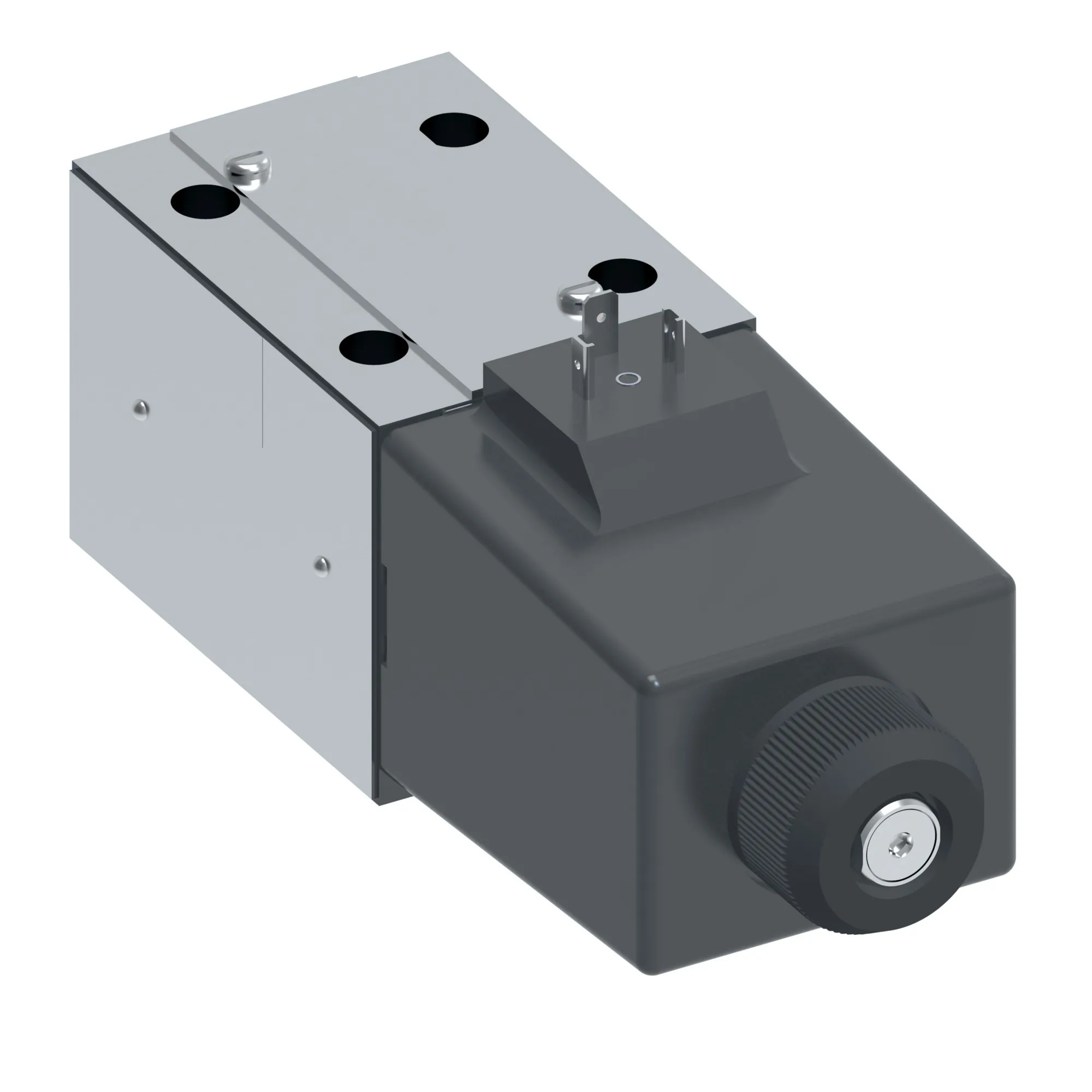

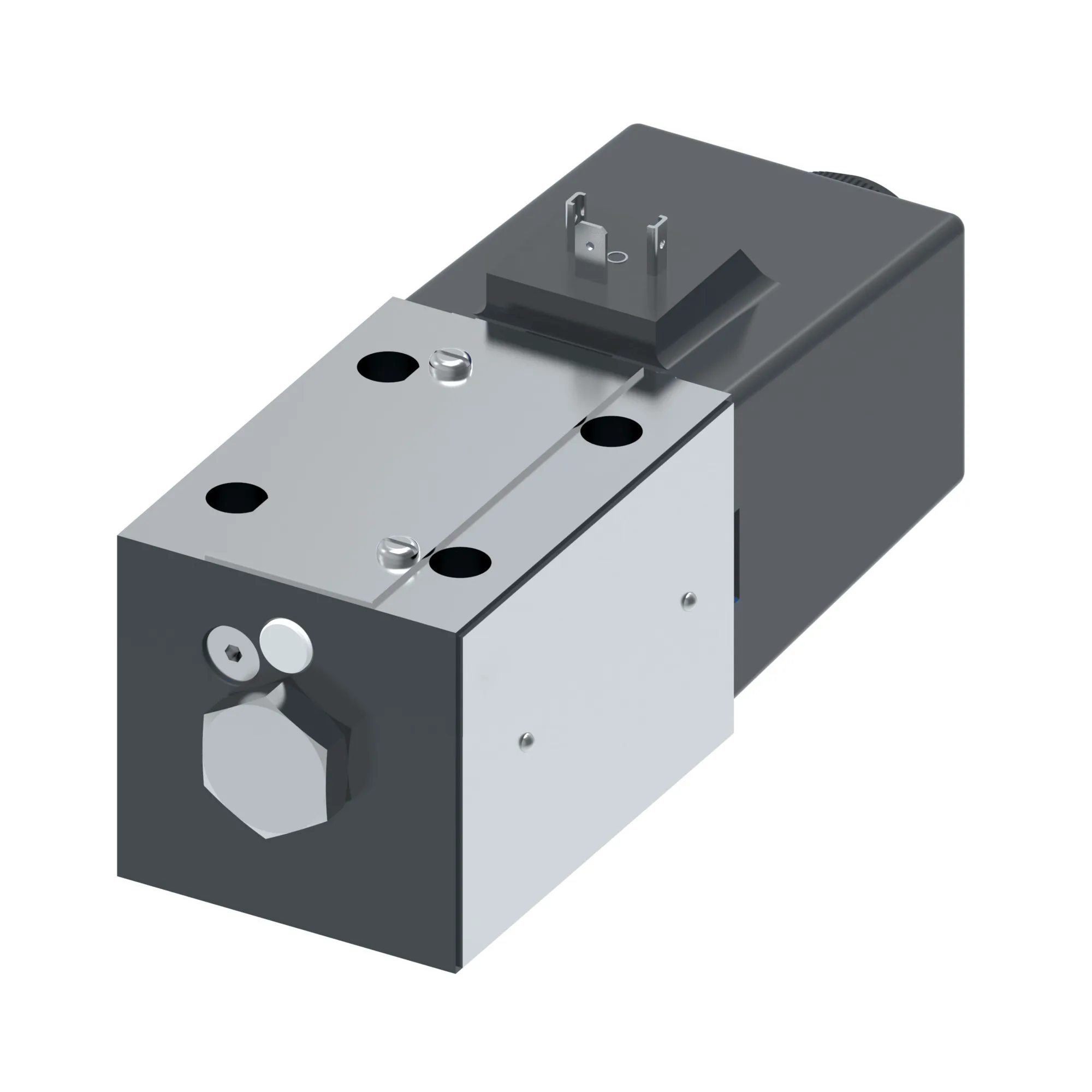

DG4V4-012B-M-U-H-5-10, DG4V4012BMUH510 – 02-337534
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | 24 VDC |
| Design Series | 10 Series |
| Electrical Connection | ISO 4400 (Din 43650) connector |
| Energ Time | 50-50 ms |
| Flow Rate Upto Gpm | 30.0 |
| Flow Rate Upto Lpm | 115.0 |
| Fluid Cleanliness | 20/18/15 micron |
| Fluid Compatibility | Petroleum oils |
| Indicator Light | No |
| Interface | ISO4401-05/NFPA D05 |
| Manual Override | Plain |
| Model Code 1 | DG4V4012BMUH510 |
| Performance | Standard performance |
| Power Consumption | 45 watt |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Seal Type | Buna-N |
| Solenoid Energising Id | Standard as per ANSI B93 9 |
| Special Features | None |
| Spool Position Monitor | No |
| Spool Type | Spool 2 |
| Spring Arrangement | Spring offset end to centre |
| Stage | Single stage |
| Surge Suppr Damper | No |
| Tank Port Rating Bar | 120.0 |
| Tank Port Rating Psi | 1750 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
| Working Temp Max C | 50 |
| Working Temp Max F | 122 |
| Working Temp Min C | 20 |
| Working Temp Min F | 70 |
