Danfoss (Drives) 02-332447

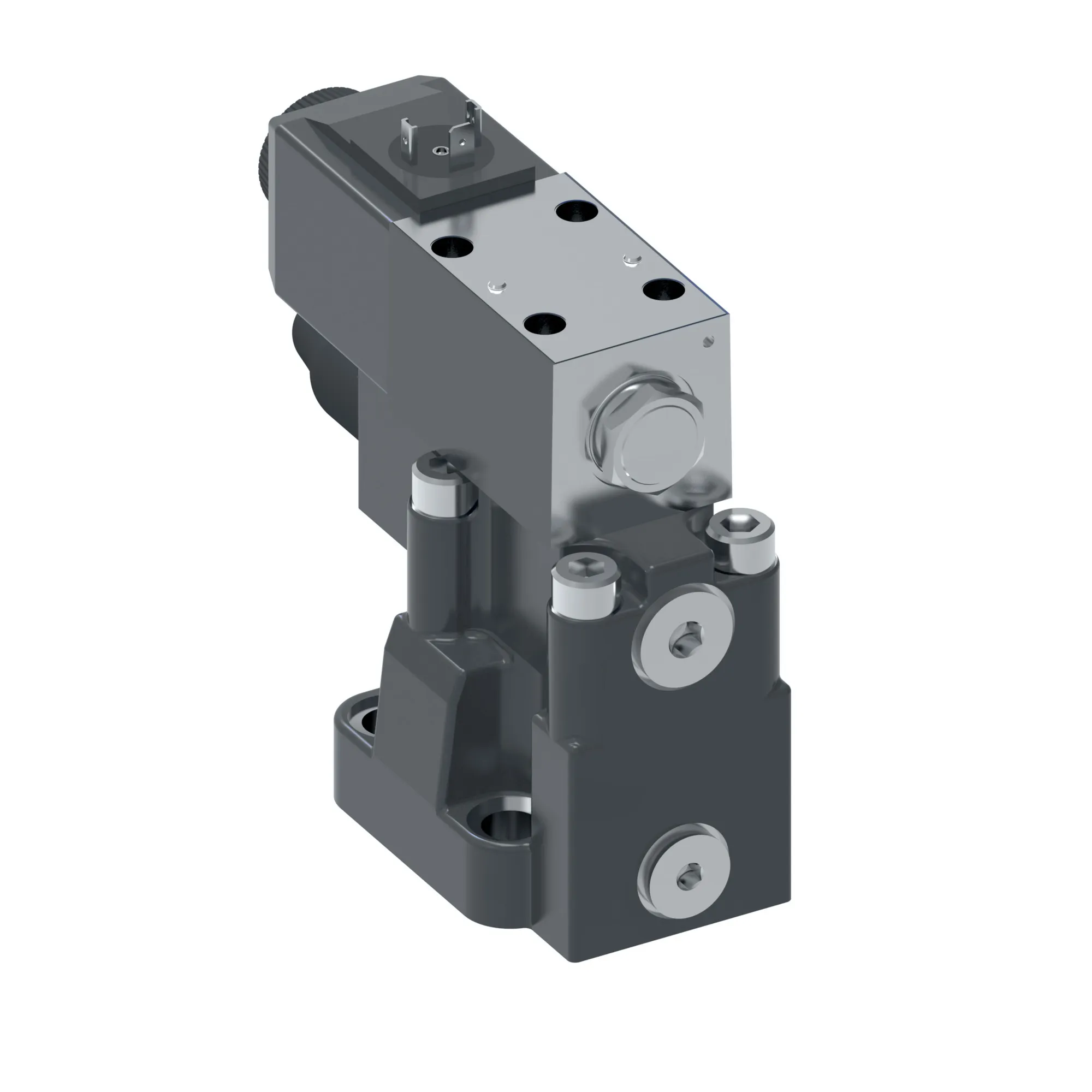

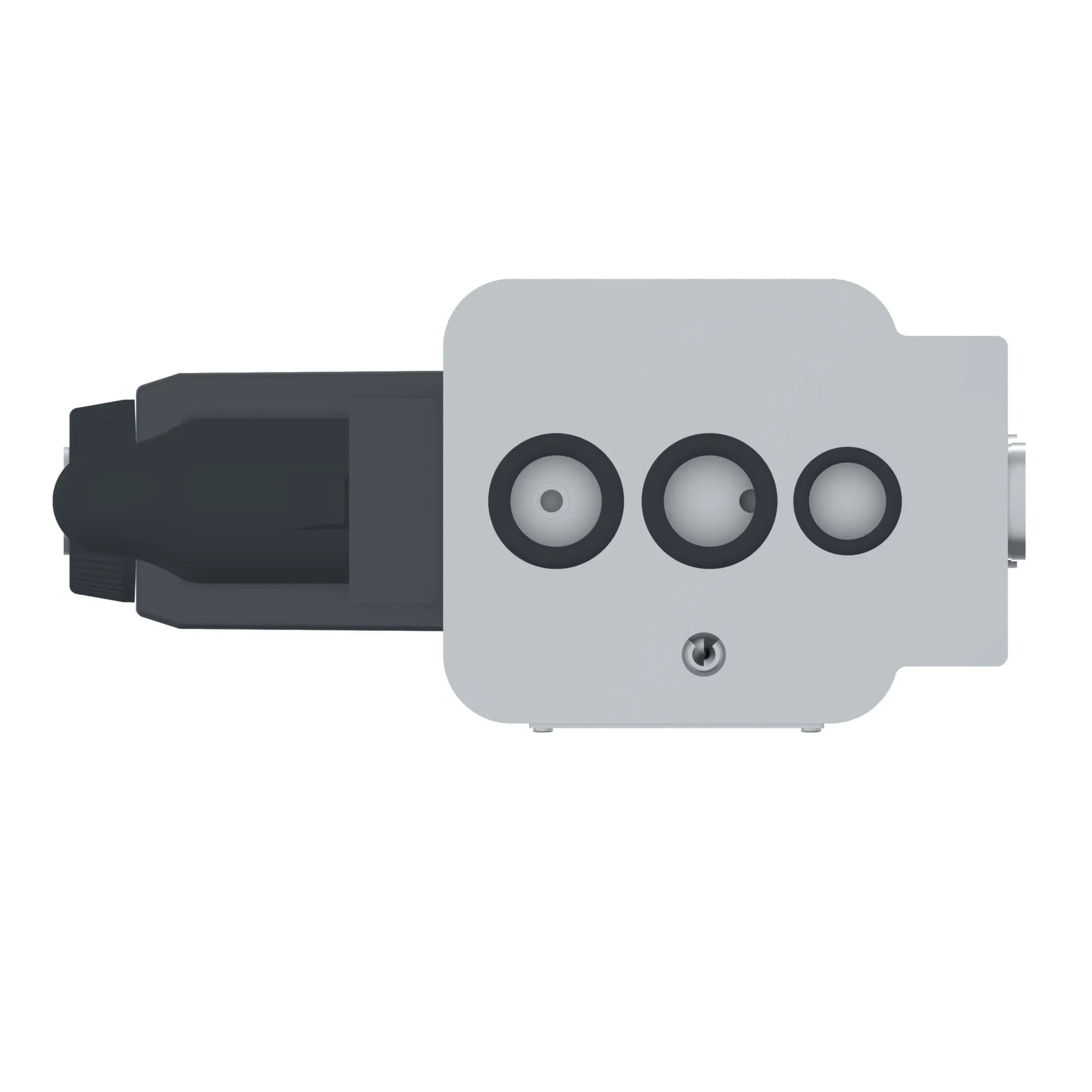

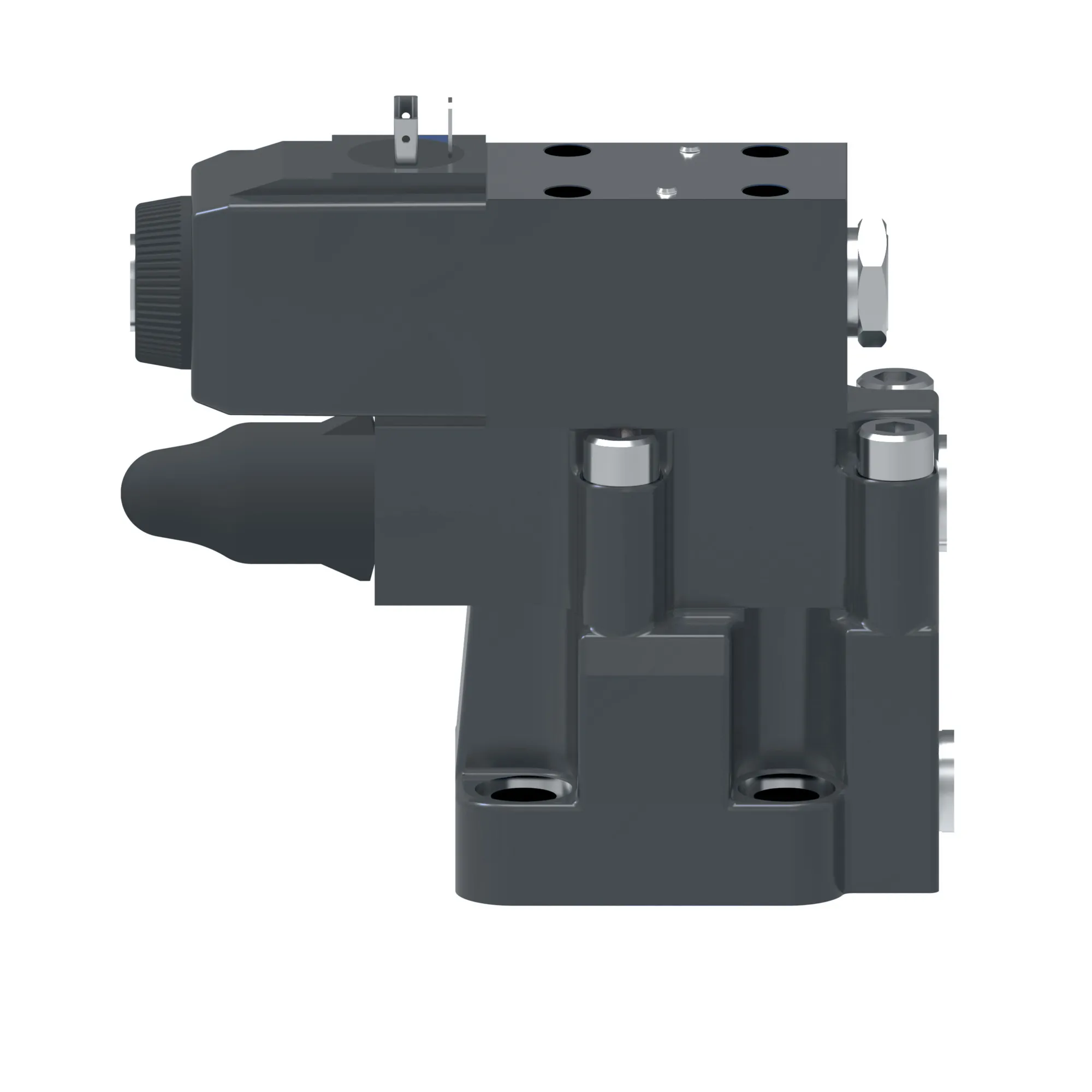

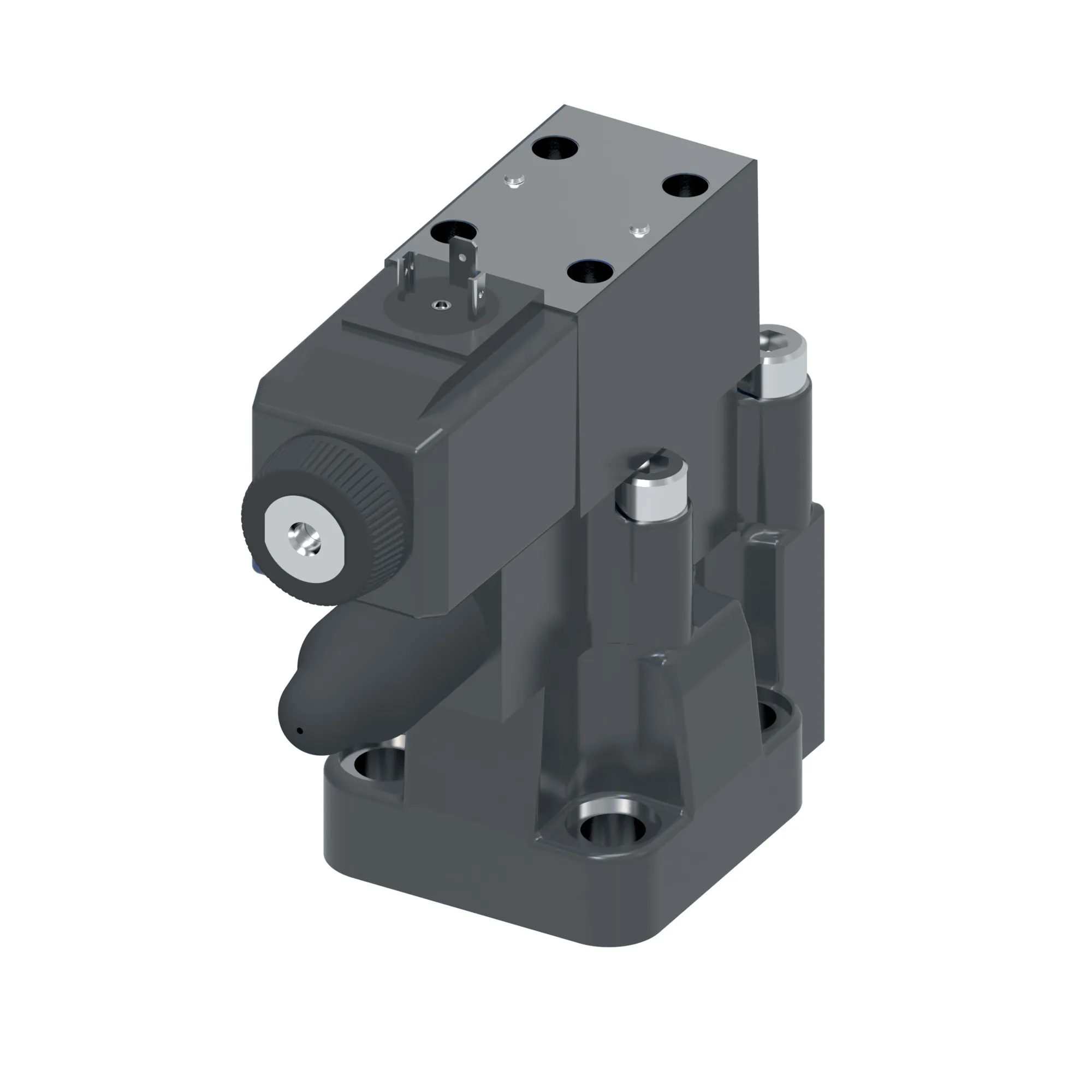

F3 CG5V 8CW D VM U B6 11, F3CG5V8CWDVMUB611 – 02-332447
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3 CG5V 8CW D VM U B6 11, F3CG5V8CWDVMUB611 – 02-332447
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Adjustment Range | 3-140 bar (44-2000 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil Voltage | 110VAC50Hz/120VAC60Hz |
| Design Series | 11 Series |
| Electrical Connection | ISO4400 (Din 43650) Connector |
| Flow Rate Lpm | 400.0 |
| Flow Rate Usgpm | 106.0 |
| Indicator Light | No |
| Interface | ISO6264 AR-08-2-A |
| Maximum Pressure Bar | 350 |
| Maximum Pressure Psi | 5000 |
| Model Code 1 | F3CG5V8CWDVMUB611 |
| Product Height In | 7.400 |
| Product Height Mm | 187.960 |
| Product Length In | 8.450 |
| Product Length Mm | 214.630 |
| Product Width In | 4.200 |
| Product Width Mm | 106.68 |
| Stage | Two stage |
| Valve Mount Type | Subplate mounted |
| Valve Type | Relief valve |
