Danfoss (Drives) 02-330456

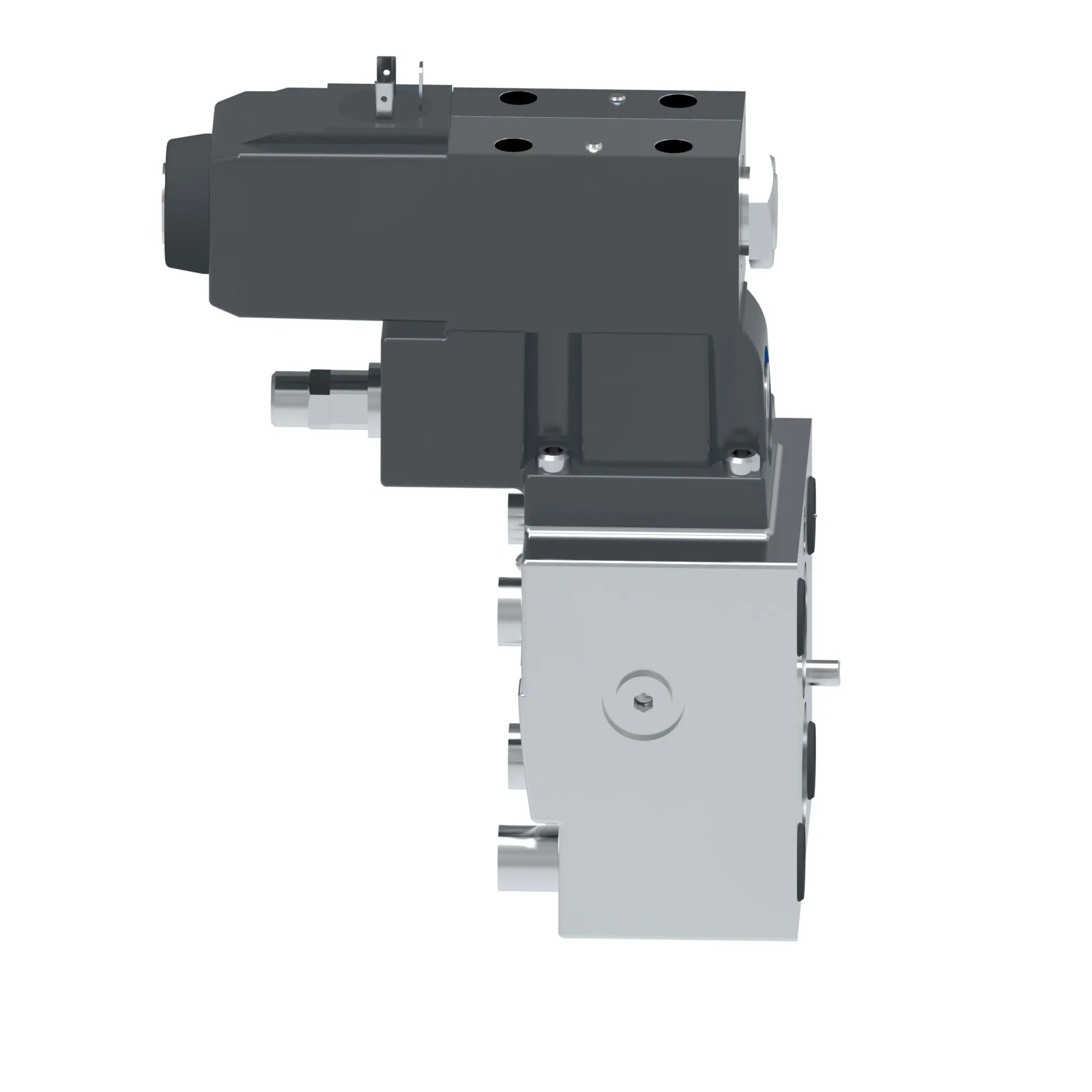

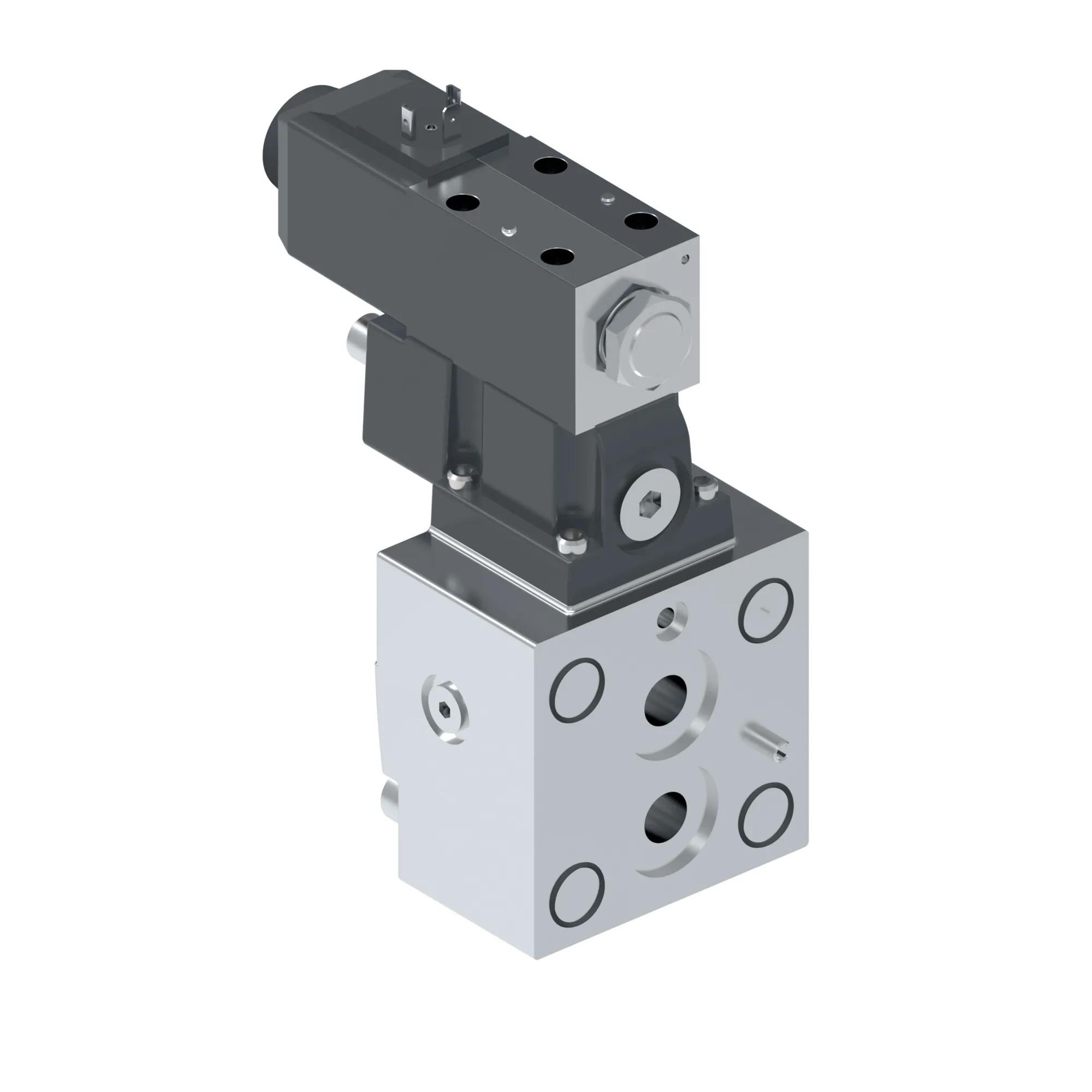

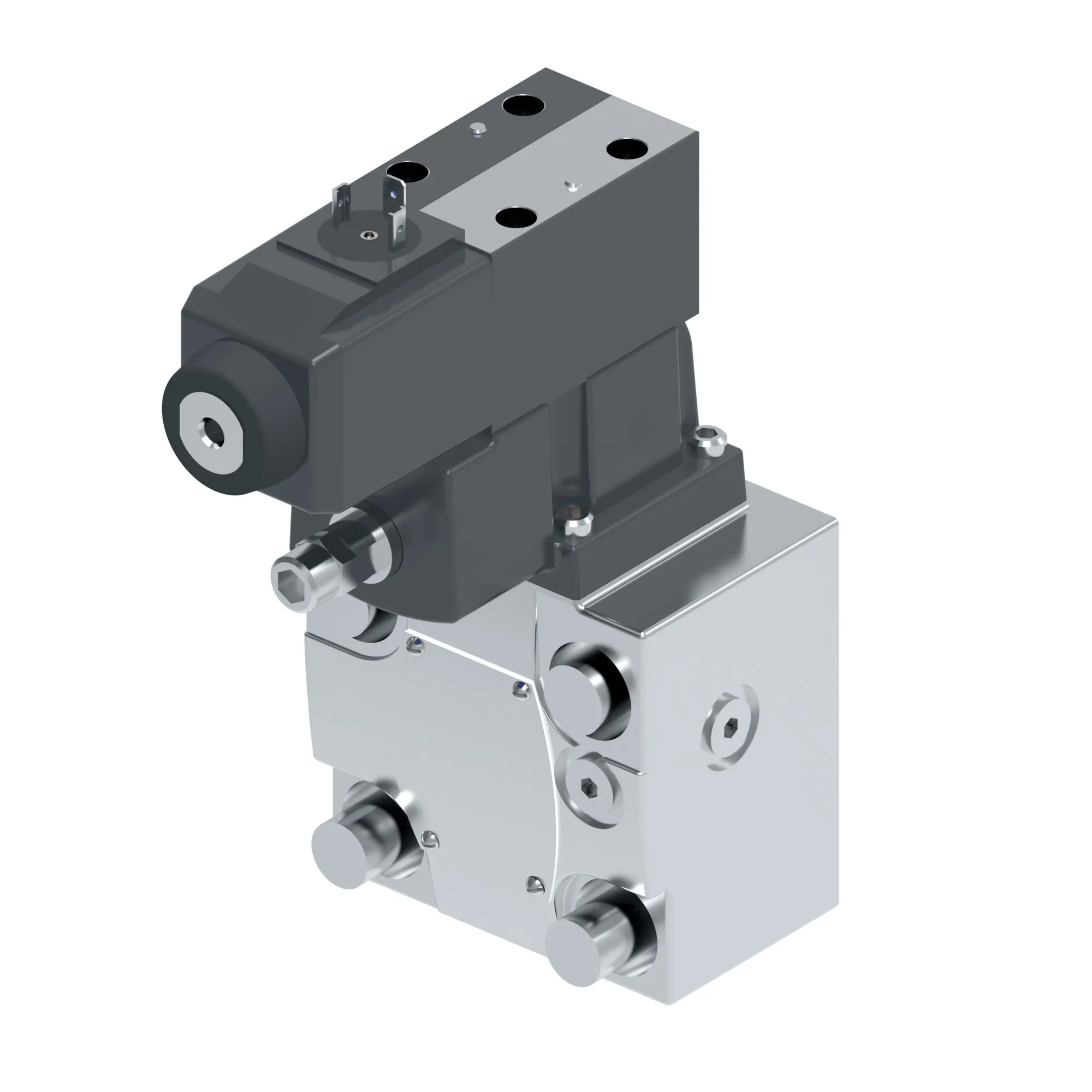

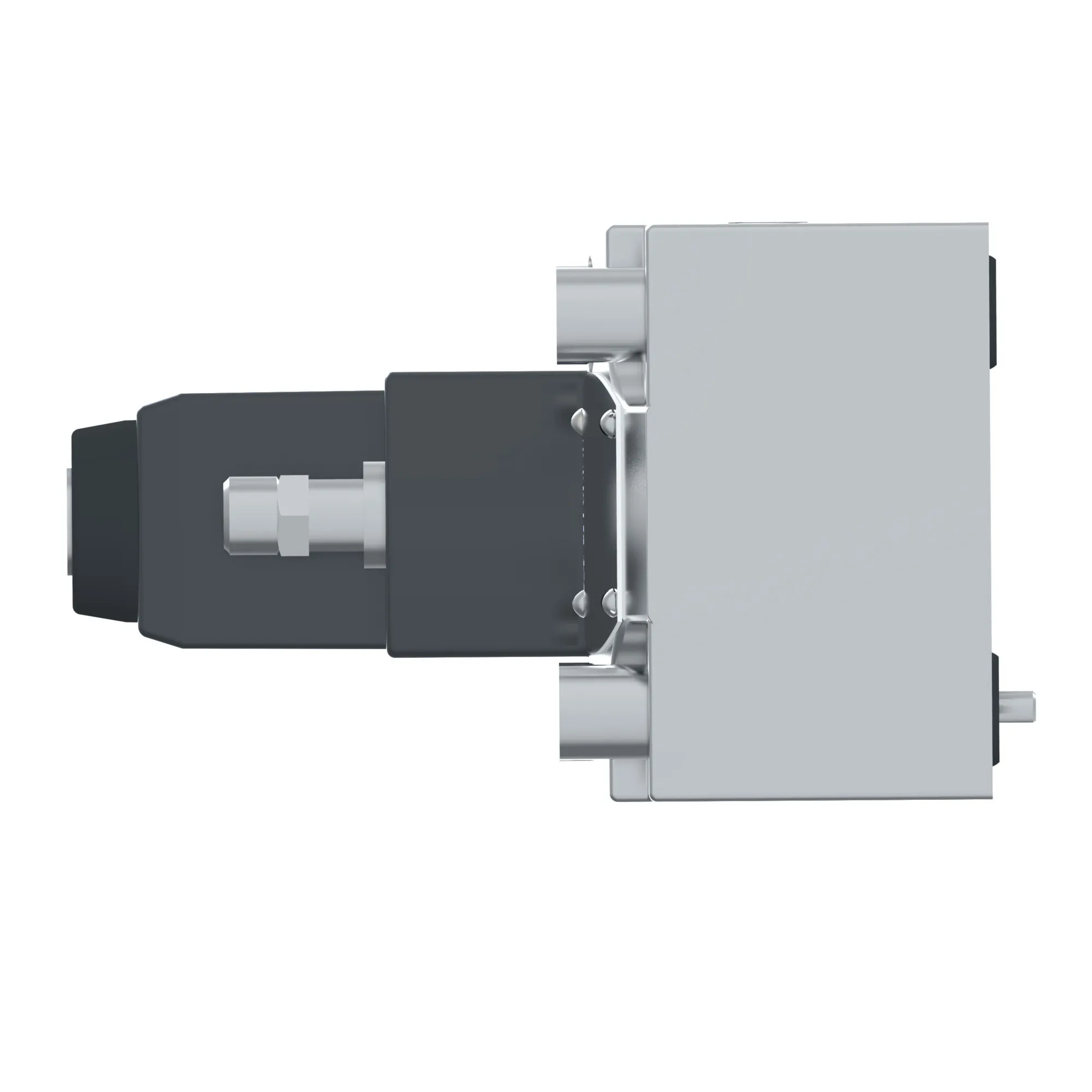

CT5 100A CV M U H5 1, CT5100ACVMUH5100 – 02-330456
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CT5 100A CV M U H5 1, CT5100ACVMUH5100 – 02-330456
Specification
| Actuation Type | Solenoid operated |
|---|---|
| Adjustment Range | 35-140 bar (500-2000 psi) |
| Adjustment Type | Wrench |
| Brand | Vickers by Danfoss |
| Coil Voltage | 24 VDC |
| Design Series | 100 Series |
| Drain | Internal |
| Electrical Connection | ISO4400 (Din 43650) Connector |
| Flow Rate Lpm | 454.0 |
| Flow Rate Usgpm | 120.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread | 0.4375-20 UNF-2B |
| Hi Vent Spring | Yes |
| Interface | 1.6250-12 UF-2B |
| Leakage | Standard |
| Manual Override | Plain |
| Maximum Pressure Bar | 210 |
| Maximum Pressure Psi | 3000 |
| Model Code | CT5100ACVMUH5100 |
| Performance | Standard |
| Product Height In | 9.970 |
| Product Height Mm | 253.238 |
| Product Length In | 7.870 |
| Product Length Mm | 199.898 |
| Product Width In | 3.280 |
| Product Width Mm | 83.312 |
| Remote Control | Yes |
| Seal Material | Nitrile |
| Size | Size 10 |
| Special Feature | None |
| Spring Arrangement | Spring offset |
| Stage | Two stage |
| Tank Pressure Bar | 100 |
| Tank Pressure Psi | 1450 |
| Valve Mount Type | NPTF threads |
| Valve Type | Pilot operated relief valve |
| Working Temperature Max C | 70 |
| Working Temperature Max F | 158 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
