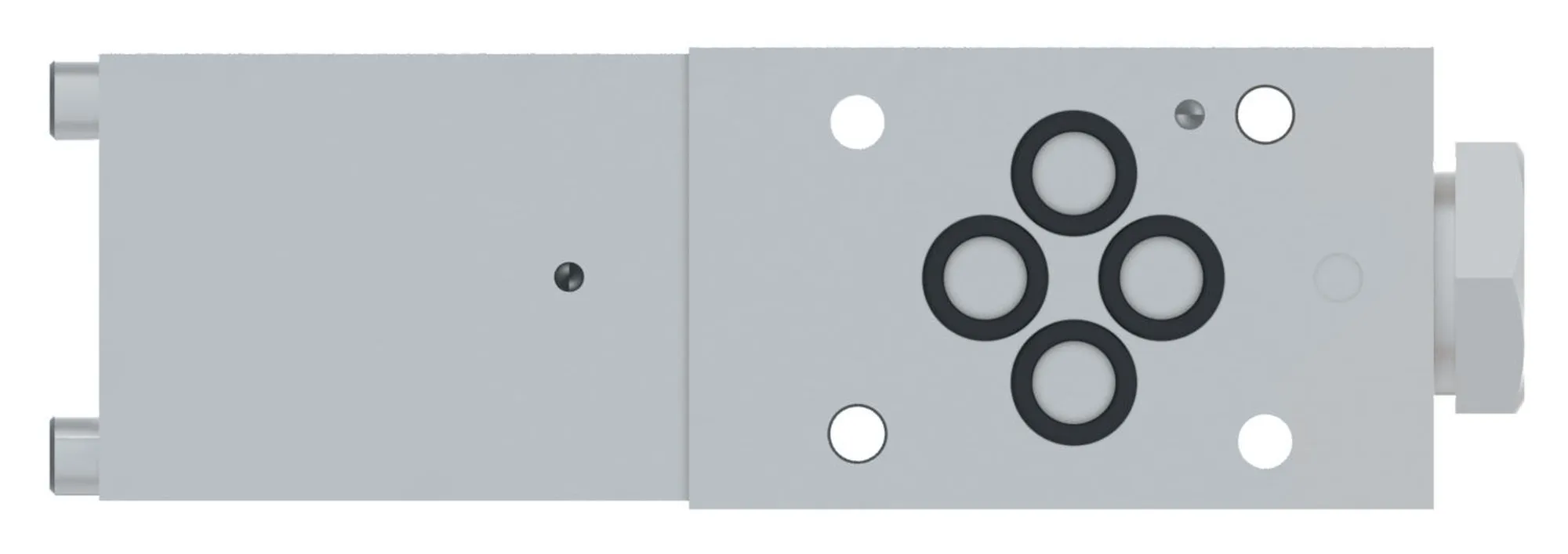

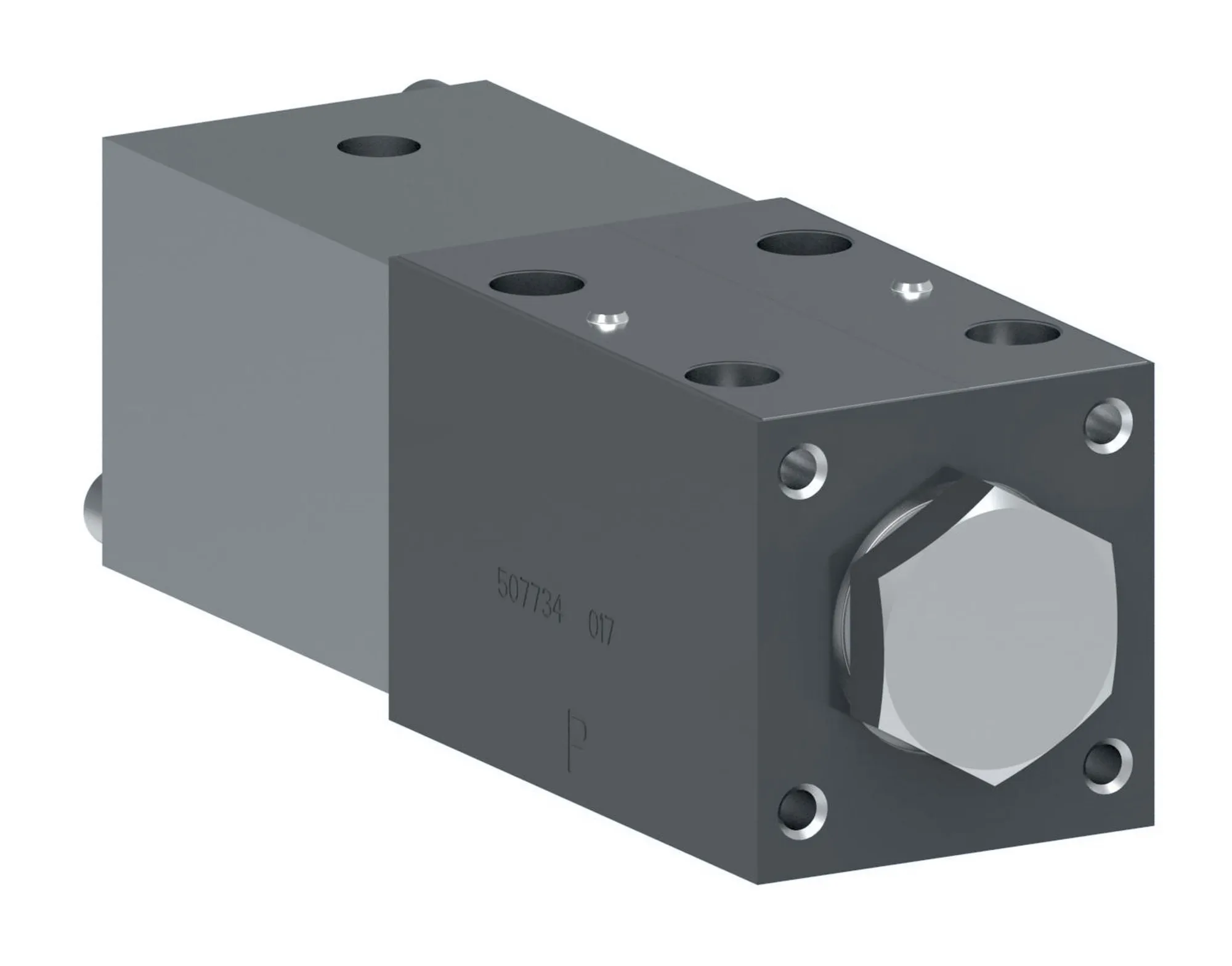

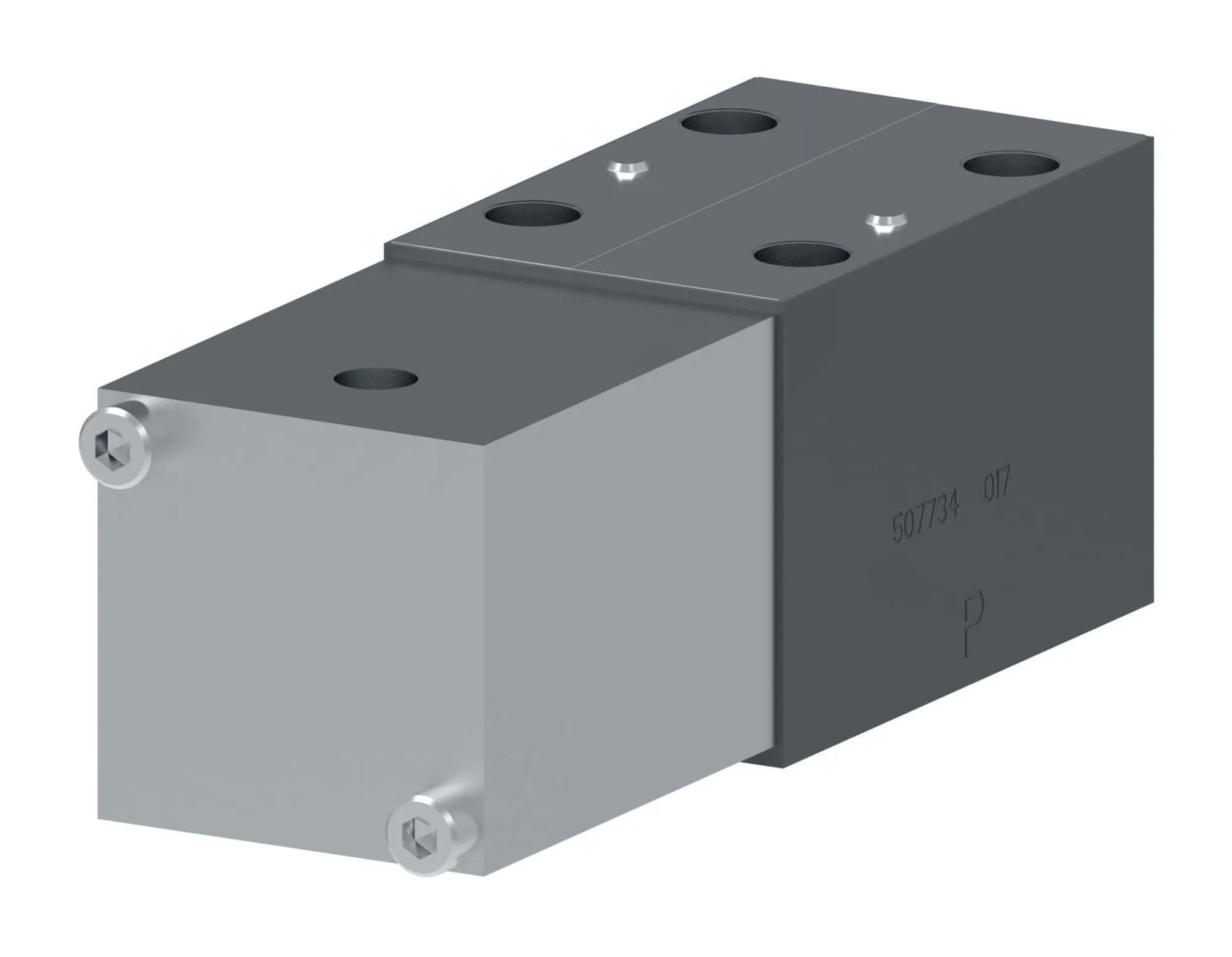

Danfoss (Drives) 02-324401
DG18V 3 6BL P 60, DG18V36BLP60 – 02-324401
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DG18V 3 6BL P 60, DG18V36BLP60 – 02-324401
Specification
| Actuation Type | Air operated |
|---|---|
| Brand | Vickers by Danfoss |
| Coil Rating | None |
| Design Series | 60 Series |
| Electrical Connection | None |
| Flow Rate Upto Gpm | 20.0 |
| Flow Rate Upto Lpm | 75.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| Interface | ISO4401-03 |
| Manual Override | Operator end only |
| Model Code 1 | DG18V36BLP60 |
| Pilot Source Thread | 1/8″ NPT threads |
| Pressure Rating Bar | 350 |
| Pressure Rating Psi | 5000 |
| Product Height In | 1.960 |
| Product Length In | 12.060 |
| Product Length Mm | 306.324 |
| Product Width In | 1.810 |
| Product Width Mm | 45.974 |
| Spool Type | Spool 6 |
| Stage | Single stage |
| Tank Port Rating Bar | 100.0 |
| Tank Port Rating Psi | 1450 |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Directional control valve |
