Description

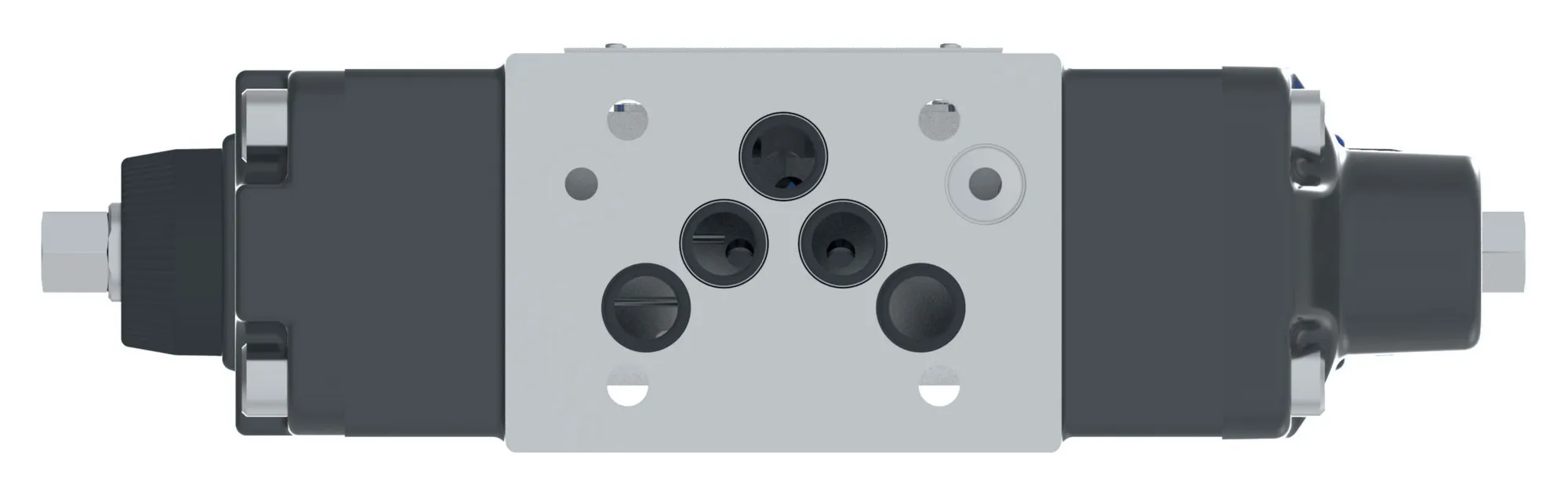

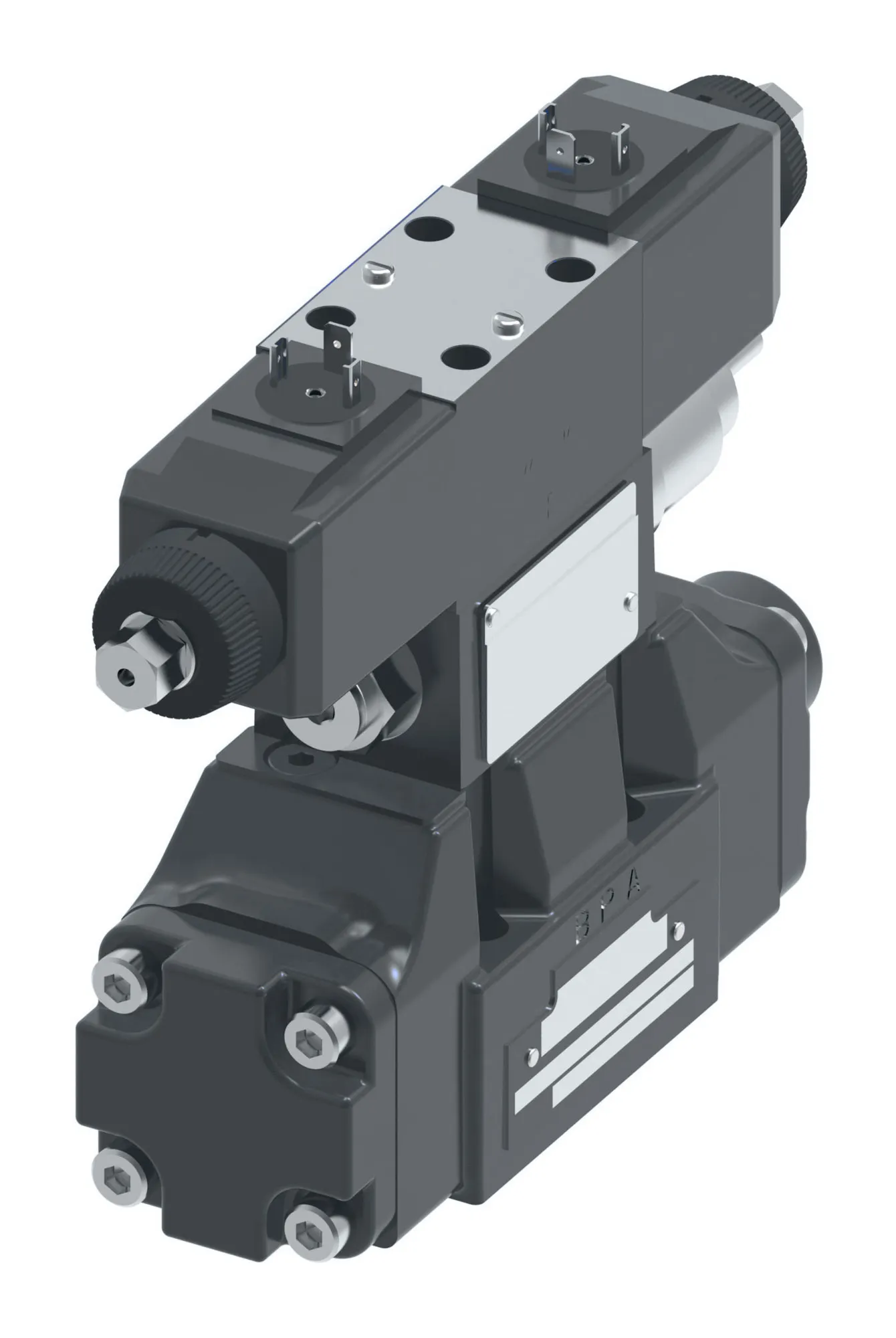

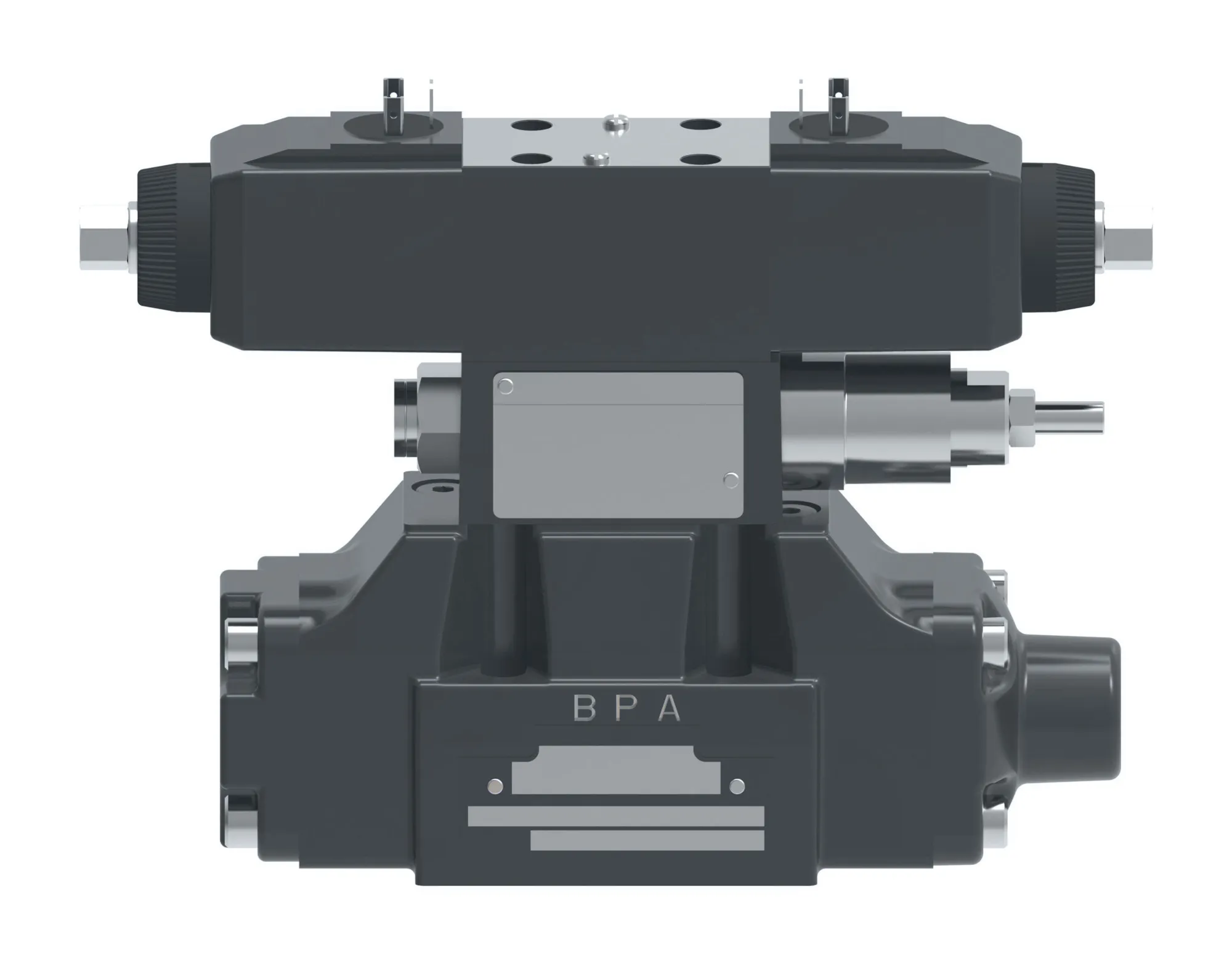

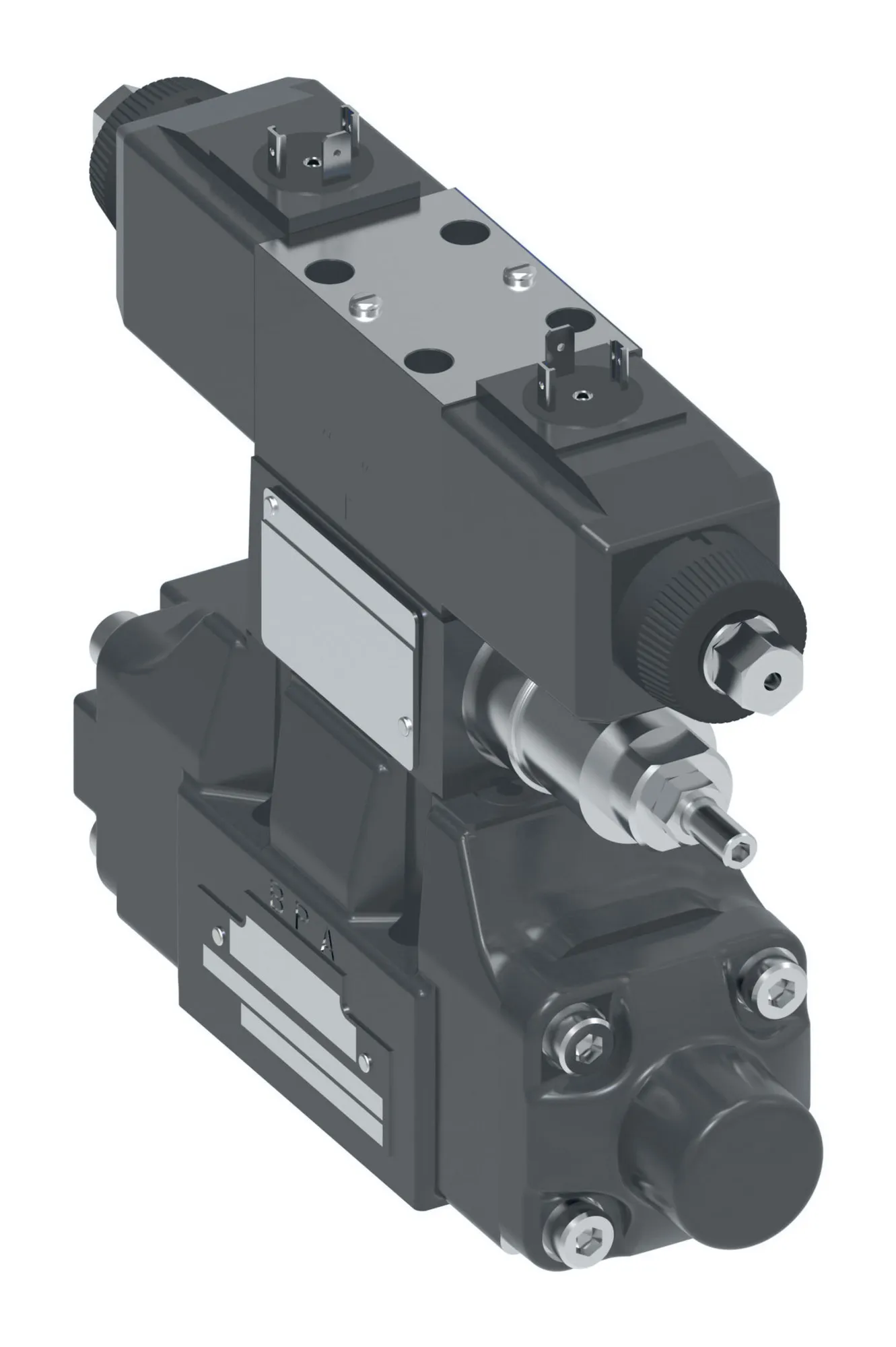

KDG5V 5 33C80N X M U H110, KDG5V533C80NXMUH110 – 02-318242
Specification
| A Port Flow Lpm | 80.00 |
|---|---|
| A Port Flow Usgpm | 21.00 |
| Actuation Type | Solenoid controlled pilot operated |
| B Port Flow Lpm | 80.00 |
| B Port Flow Usgpm | 21.00 |
| Brand | Vickers by Danfoss |
| Build Orientation | Standard as per ANSI B93 9 |
| Build Type | Spring centered |
| Coil Voltage | 24 Volt DC |
| Command Input | None |
| Communication Protocol | None |
| Design Series | 10 Series |
| Electrical Connection | ISO 4400 (DIN 43650) connector |
| Feedback Sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid Compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-05/NFPA D05/CETOP 5/NG10 |
| Manual Override | Plain |
| Maximum Pressure Bar | 315 |
| Maximum Pressure Psi | 4500 |
| Metering | Meter in / meter out |
| Model Code 1 | KDG5V533C80NXMUH110 |
| On Board Electronics | No |
| Performance | Standard |
| Pilot Drain | External |
| Pilot Supply | Internal |
| Product Height In | 8.470 |
| Product Height Mm | 215.138 |
| Product Length In | 9.600 |
| Product Length Mm | 243.840 |
| Product Width In | 2.770 |
| Product Width Mm | 70.358 |
| Profx Compatible | No |
| Reducer Module | Yes |
| Reverse Flow Check | No |
| Seal Type | Viton |
| Special Features | None |
| Spool Type | Bleed A and B to T |
| Stage | Two stage |
| Symmetric Flow | Yes |
| Tank Port Rating Bar | 210.0 |
| Tank Port Rating Psi | 3000 |
| Valve Mount Type | Subplate |
| Valve Type | Proportional directional |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
