Danfoss (Drives) 02-317521

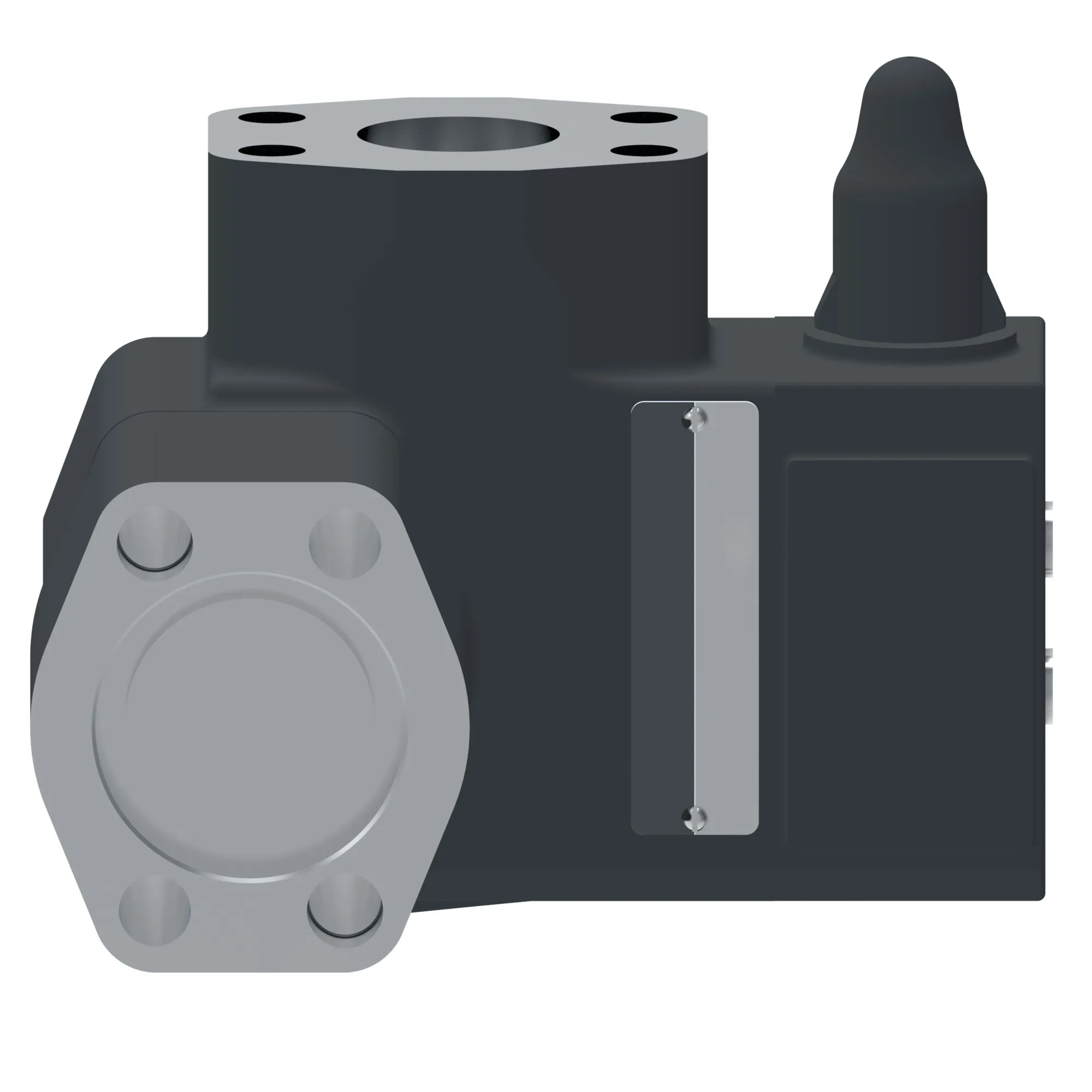

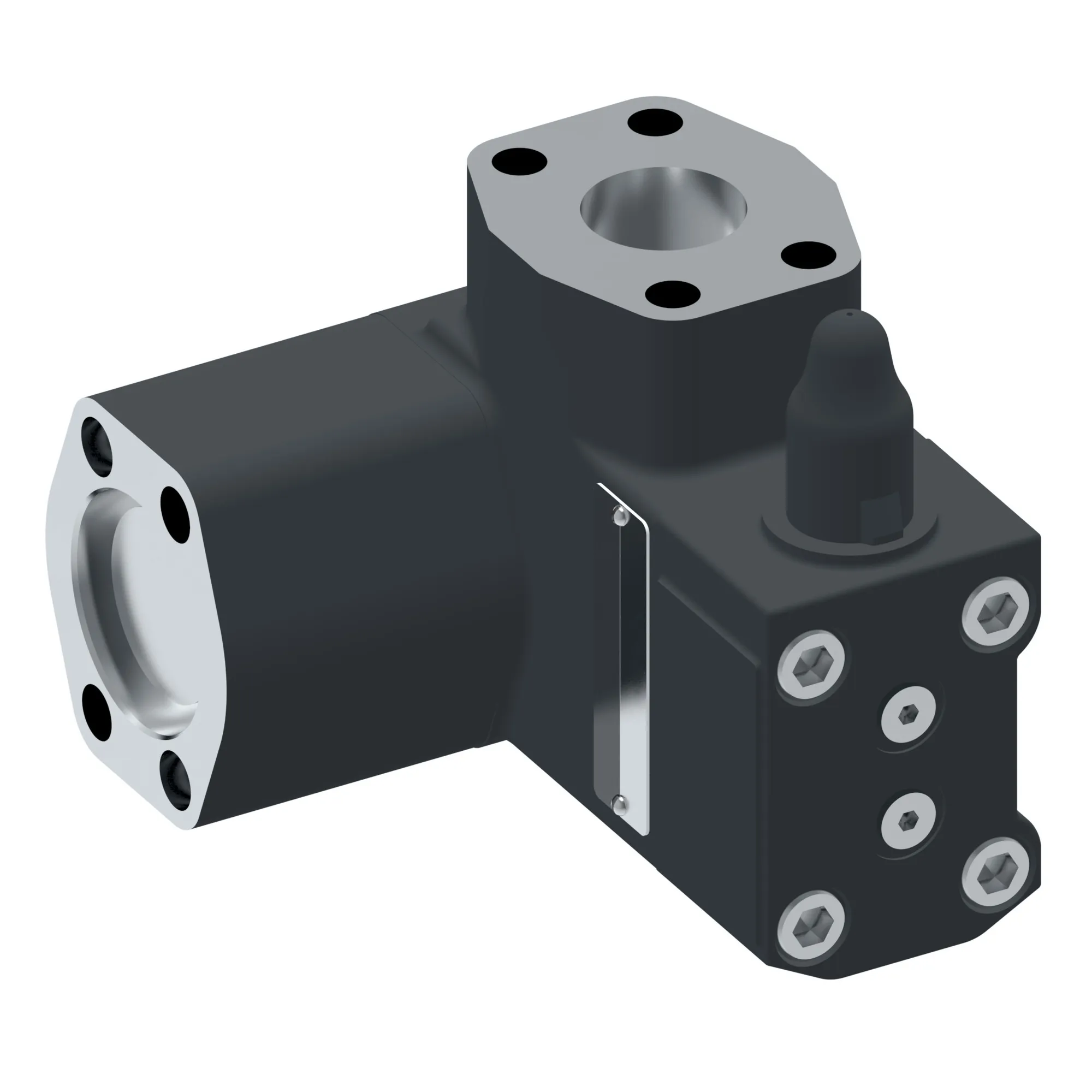

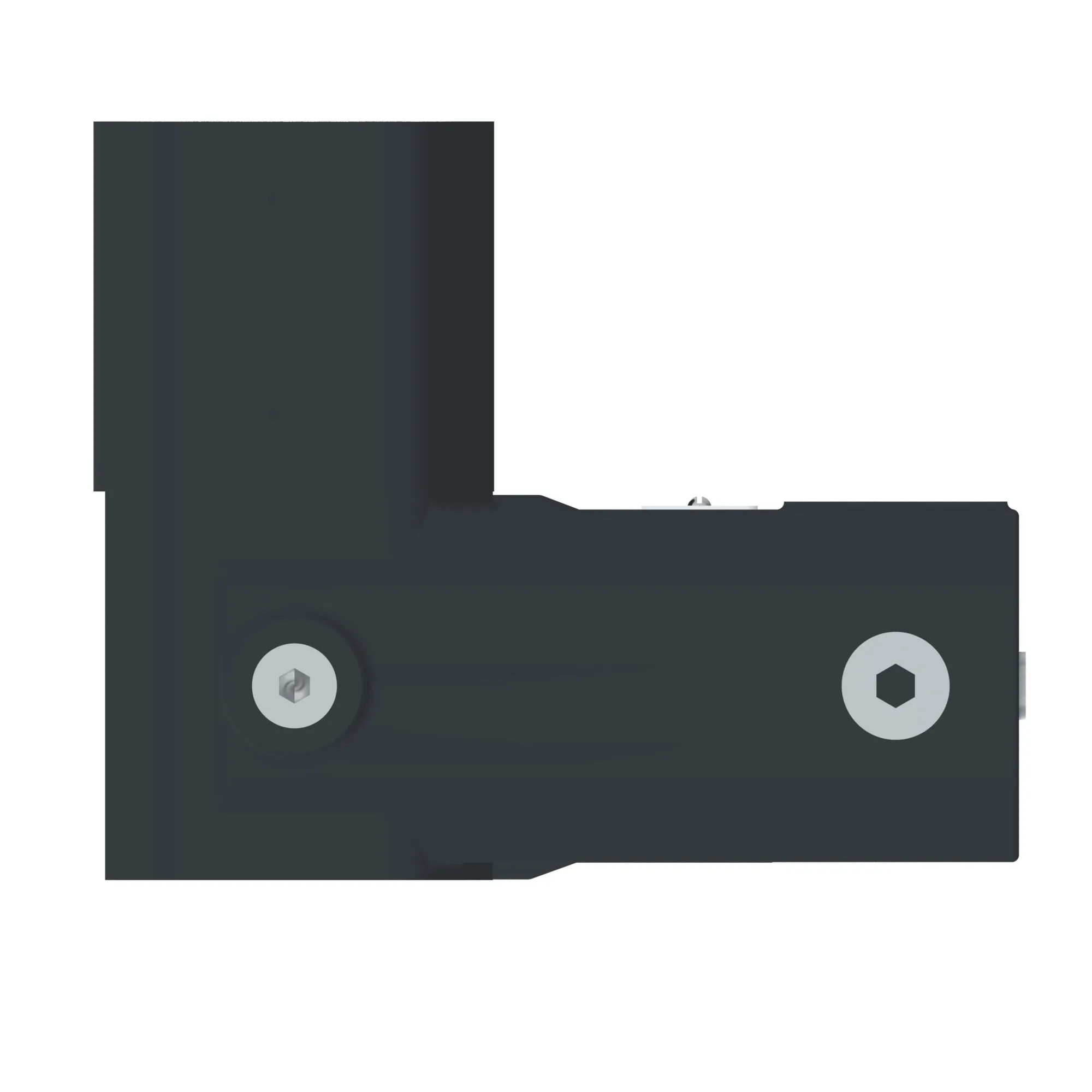

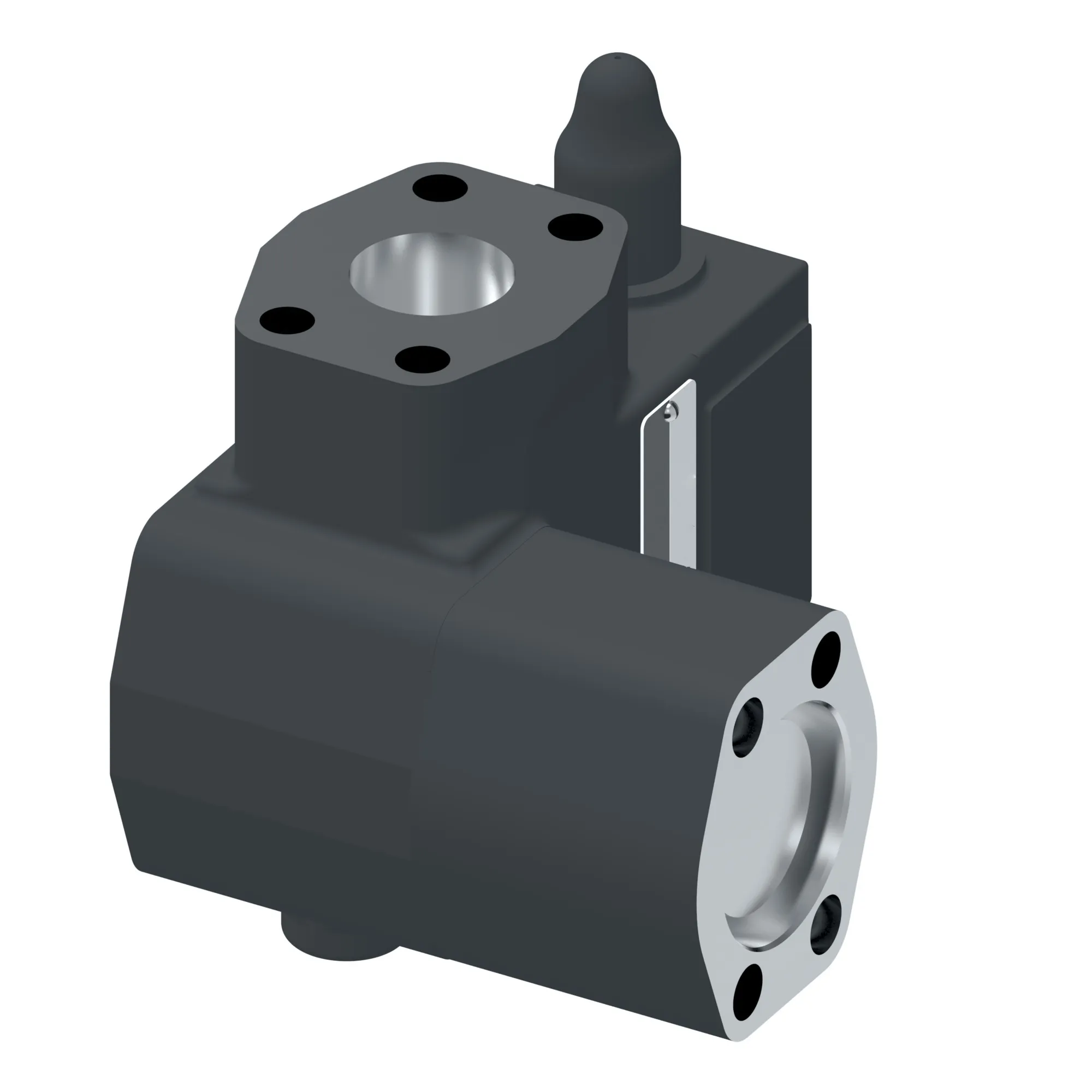

UPF1S-C-06-A-W-20, UPF1SC06AW20 – 02-317521
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
UPF1S-C-06-A-W-20, UPF1SC06AW20 – 02-317521
Specification
| Actuation Type | Pilot operated |
|---|---|
| Adjustment Range | 9-70 bar (130-1000 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Check Valve | Yes |
| Cracking Pressure Bar | 0.3 |
| Cracking Pressure Psi | 5 |
| Design Series | 20 Series |
| Electrical Connection | None |
| Flow Rate Lpm | 100.0 |
| Flow Rate Usgpm | 26.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Hi Vent Spring | No |
| Indicator Light | No |
| Maximum Pressure Bar | 275 |
| Maximum Pressure Psi | 4000 |
| Model Code 1 | UPF1SC06AW20 |
| Performance | Standard |
| Product Height In | 5.900 |
| Product Height Mm | 149.860 |
| Product Length In | 5.530 |
| Product Length Mm | 140.462 |
| Product Width In | 6.550 |
| Product Width Mm | 166.37 |
| Seal Material | Nitrile |
| Size | SAE 3/4″ |
| Special Feature | None |
| Stage | Two stage |
| Tank Pressure Bar | 210 |
| Tank Pressure Psi | 3000 |
| Valve Mount Type | Pump flange mounting |
| Valve Type | Unloading relief valve |
| Working Temperature Max C | 70 |
| Working Temperature Max F | 158 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
