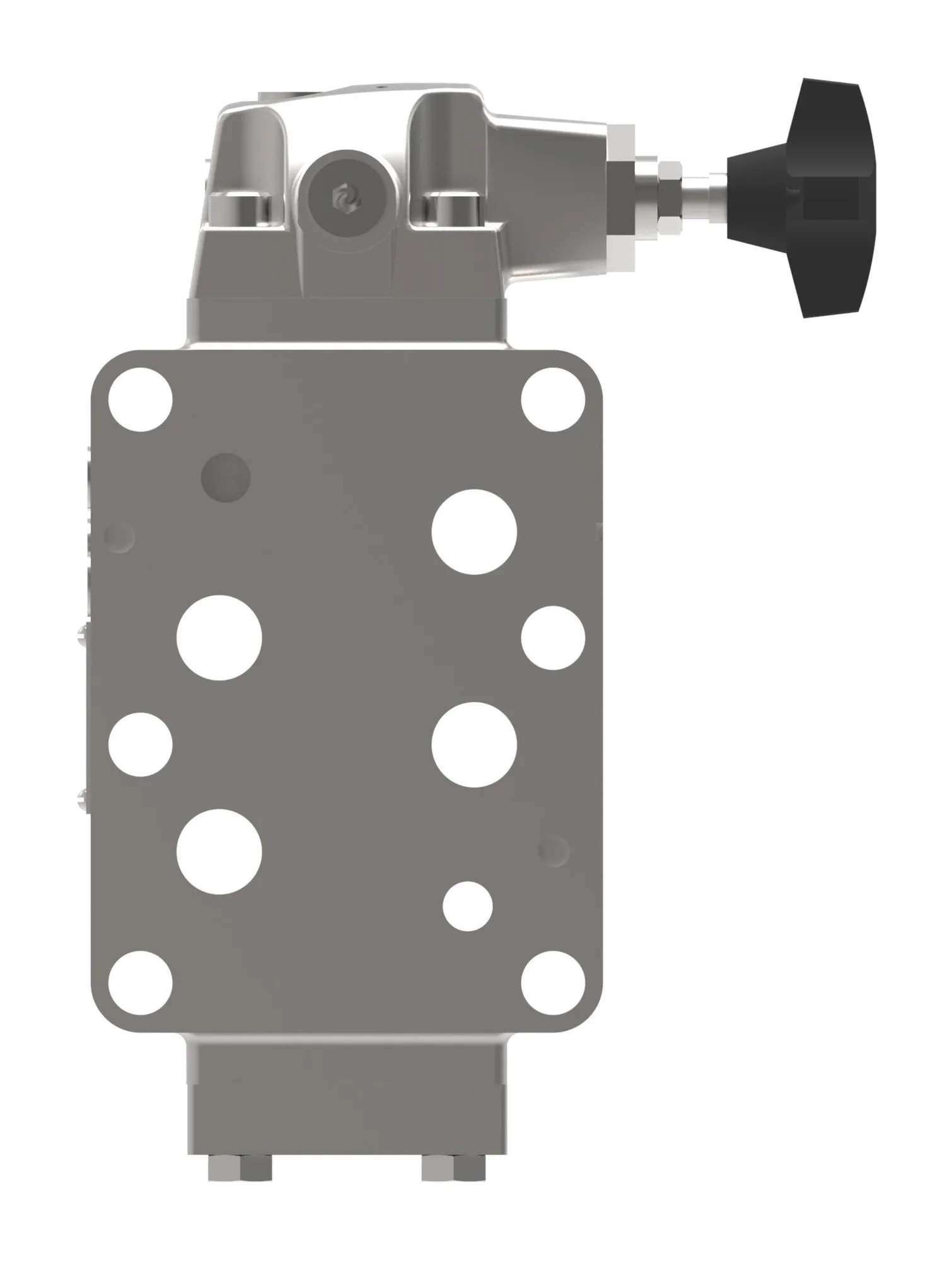

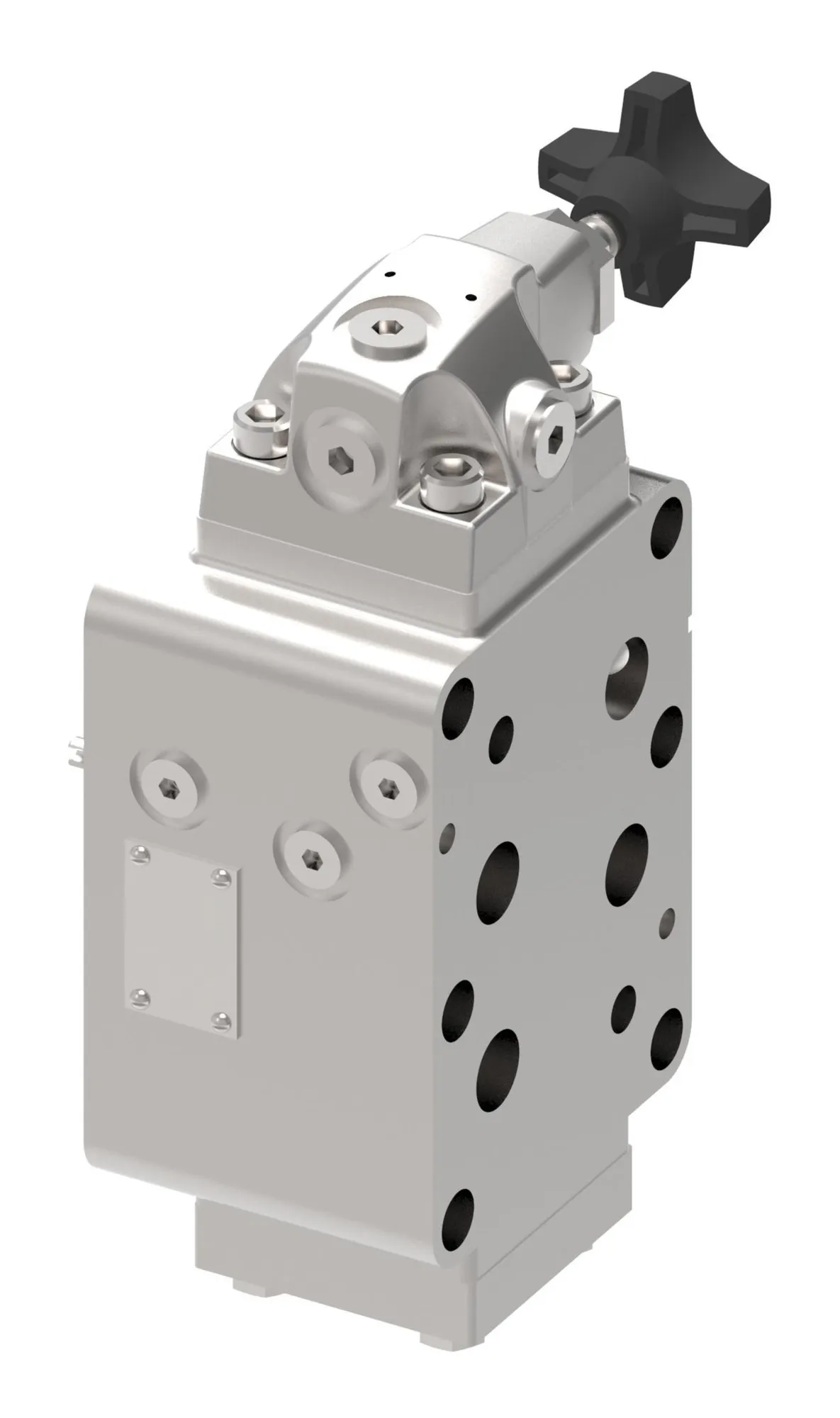

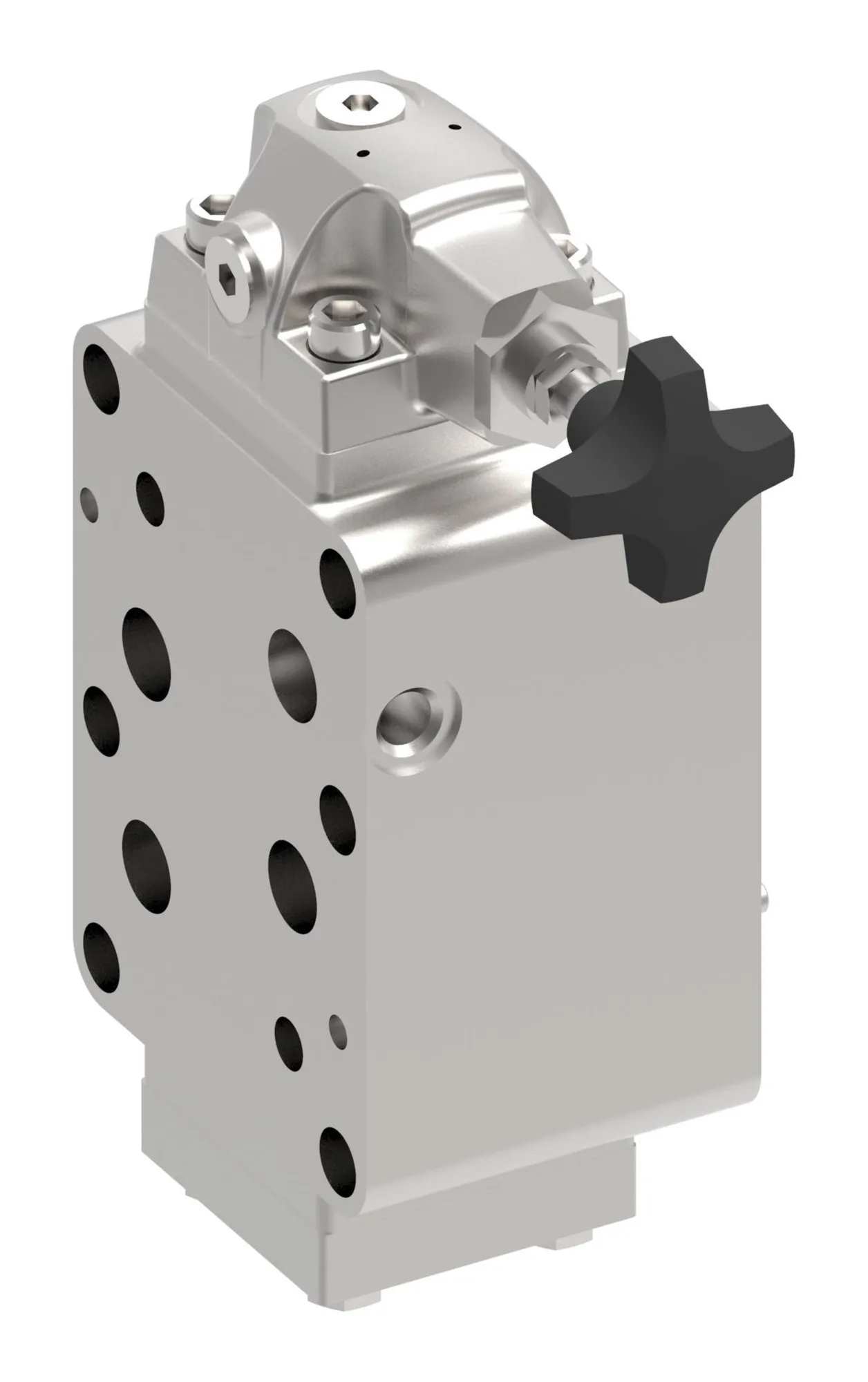

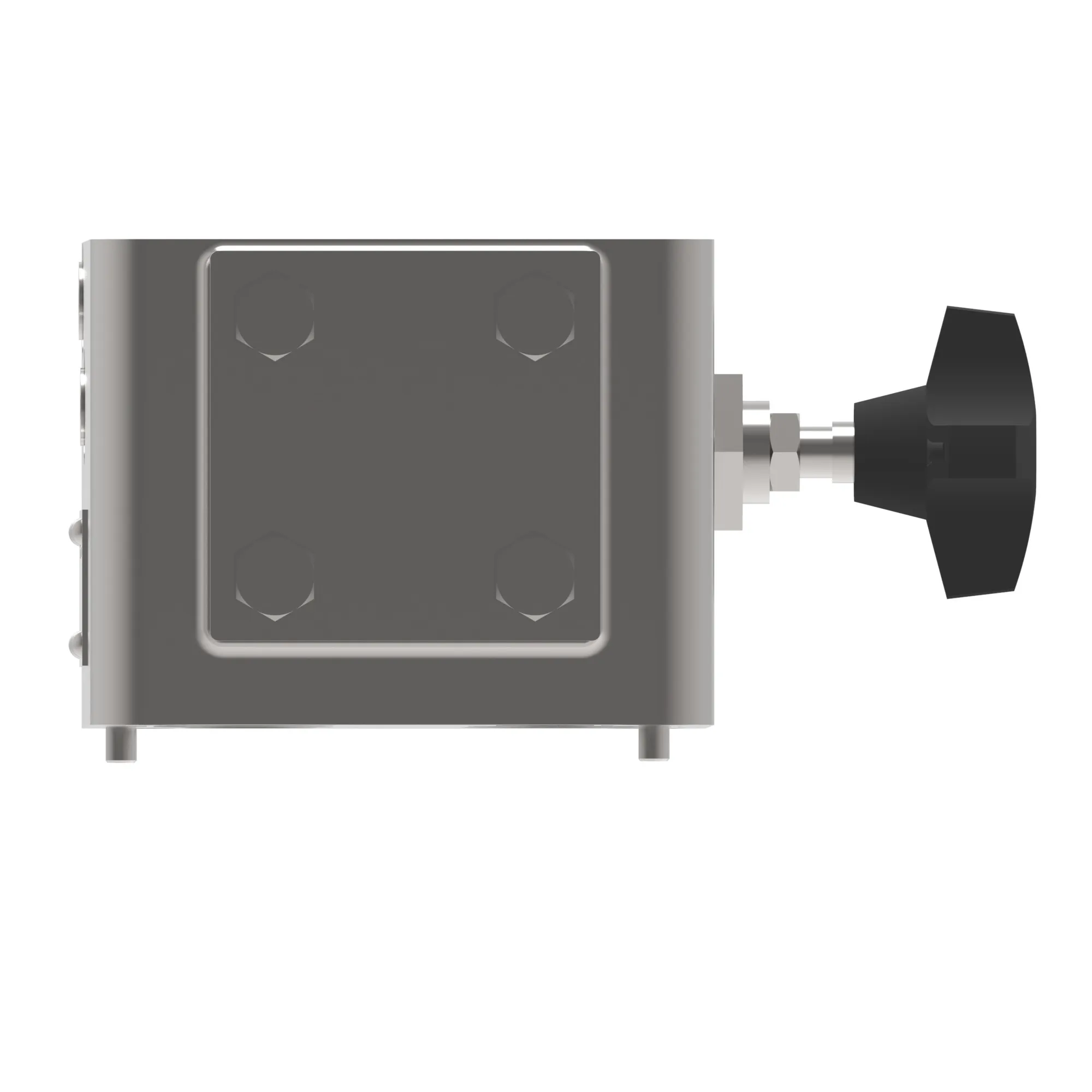

Danfoss (Drives) 02-316471
DGX-H06-1-60-S19, DGXH06160S19 – 02-316471
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DGX-H06-1-60-S19, DGXH06160S19 – 02-316471
Specification
| Actuation Type | Pressure operated |
|---|---|
| Brand | Vickers by Danfoss |
| Design Series | 60 Series |
| Drain Option | Y port drain |
| Flow Rate Upto Lpm | 265 |
| Flow Rate Upto Usgpm | 70.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid Compatibility | Petroleum oils |
| High Flow | Yes |
| Interface | 06 – 3/4″ |
| Max Adjustable Pressure Bar | 70 |
| Max Adjustable Pressure Psi | 1000 |
| Maximum Pressure Upto Bar | 210 |
| Maximum Pressure Upto Psi | 3000 |
| Model Code 1 | DGXH06160S19 |
| Performance | Standard |
| Product Height In | 3.750 |
| Product Height Mm | 95.250 |
| Product Length In | 9.640 |
| Product Length Mm | 244.856 |
| Product Width In | 4.500 |
| Product Width Mm | 114.3 |
| Seal Type | Buna-N |
| Special Features | Internally drained to tank |
| Valve Mount Type | Subplate/manifold mounted |
| Valve Type | Pressure reducing module |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
