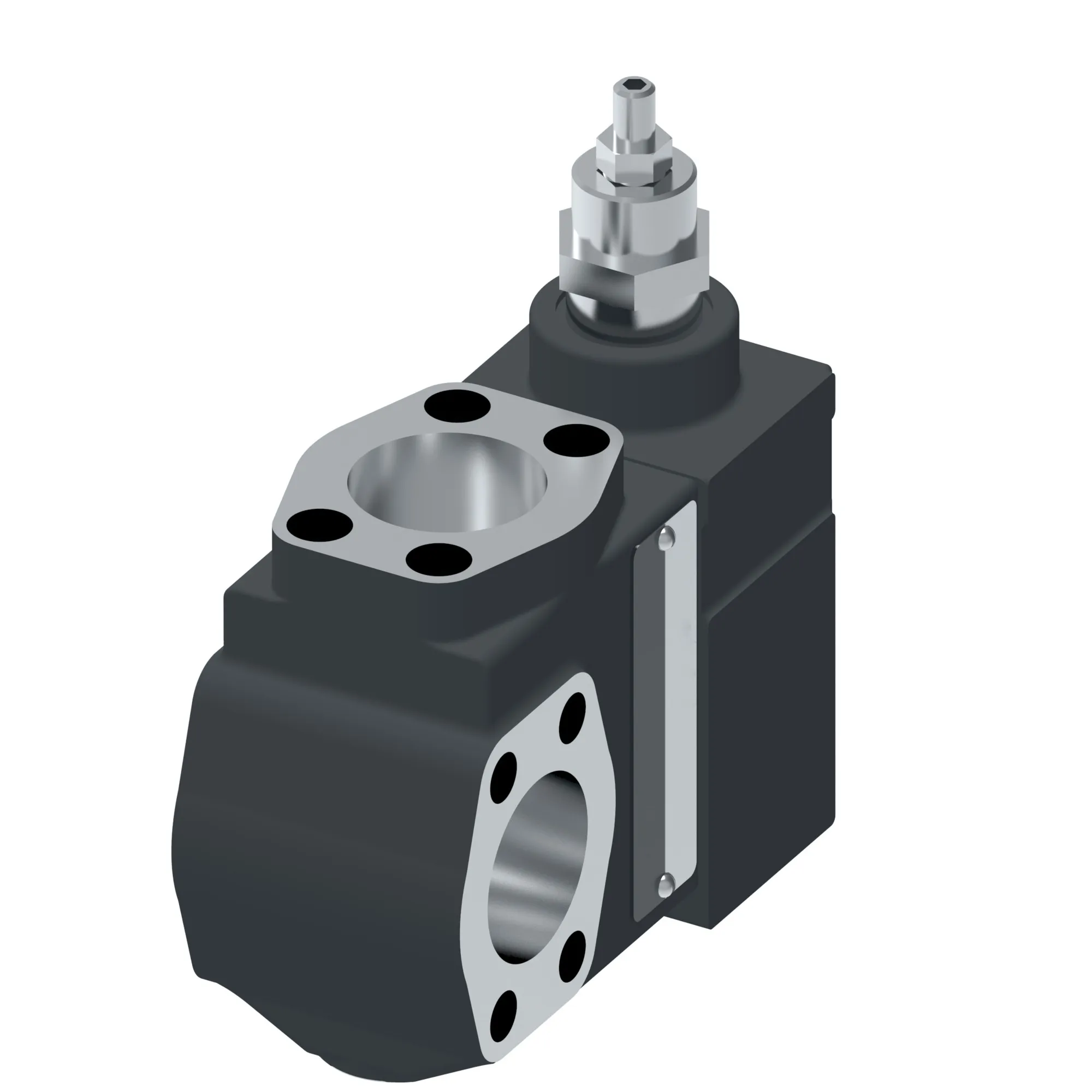

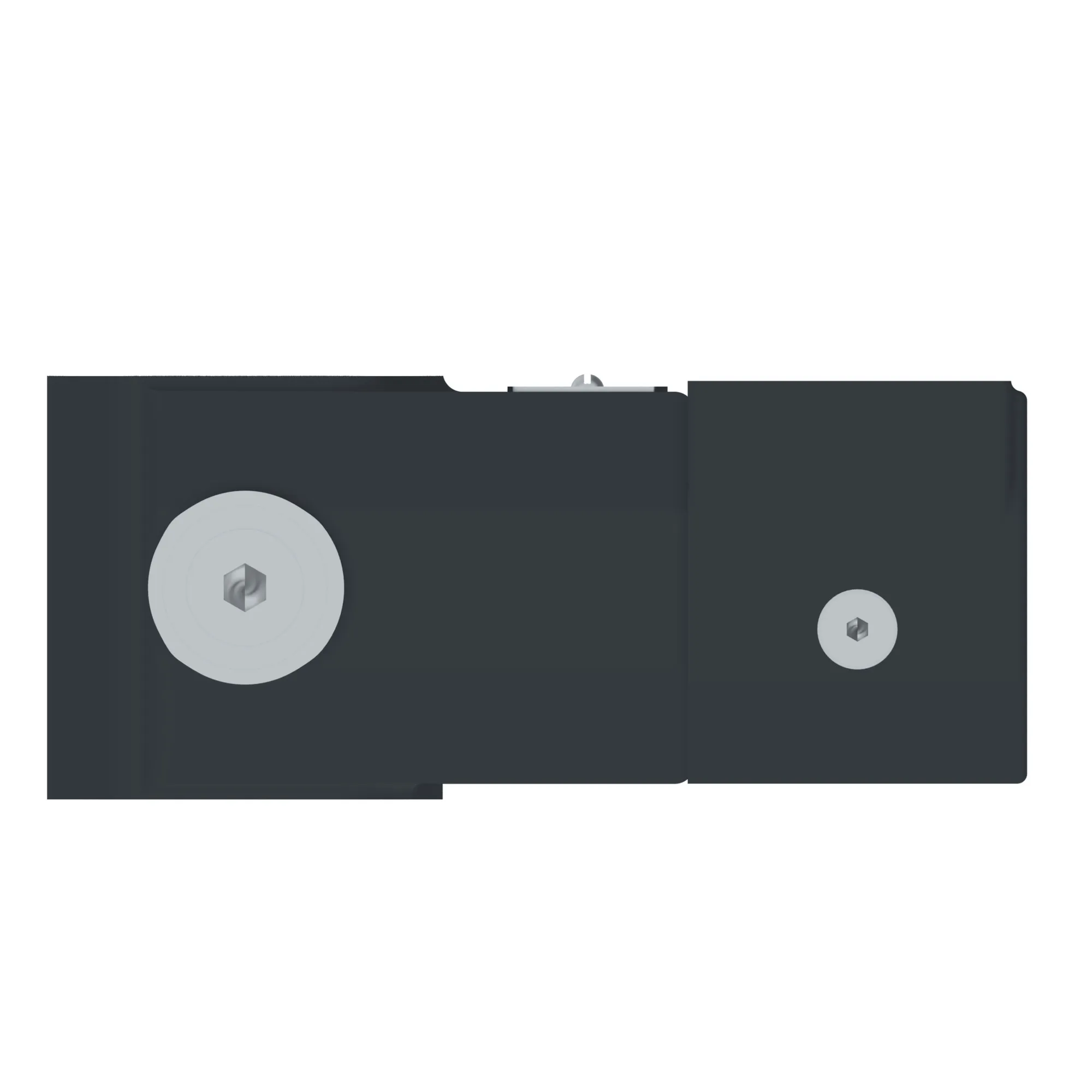

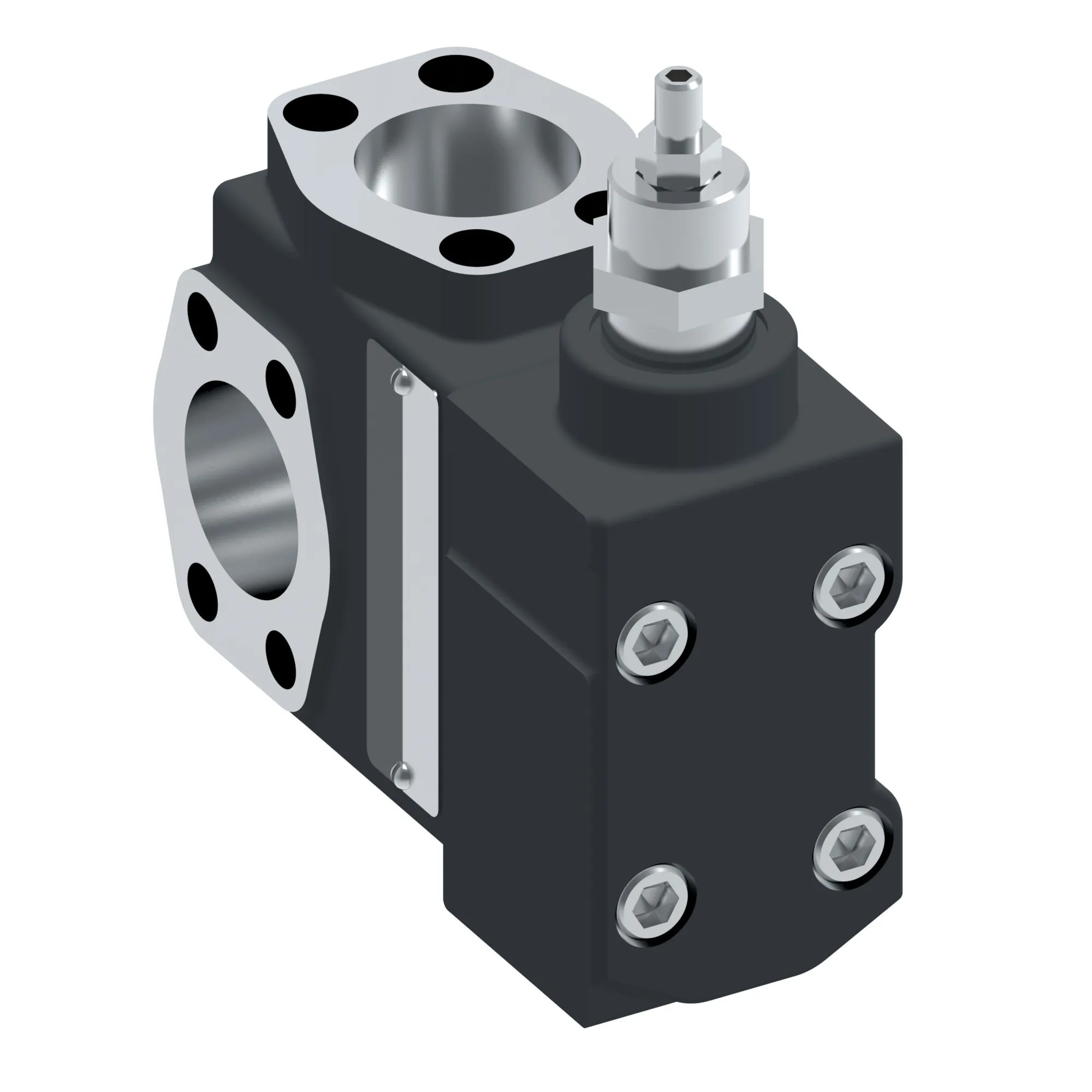

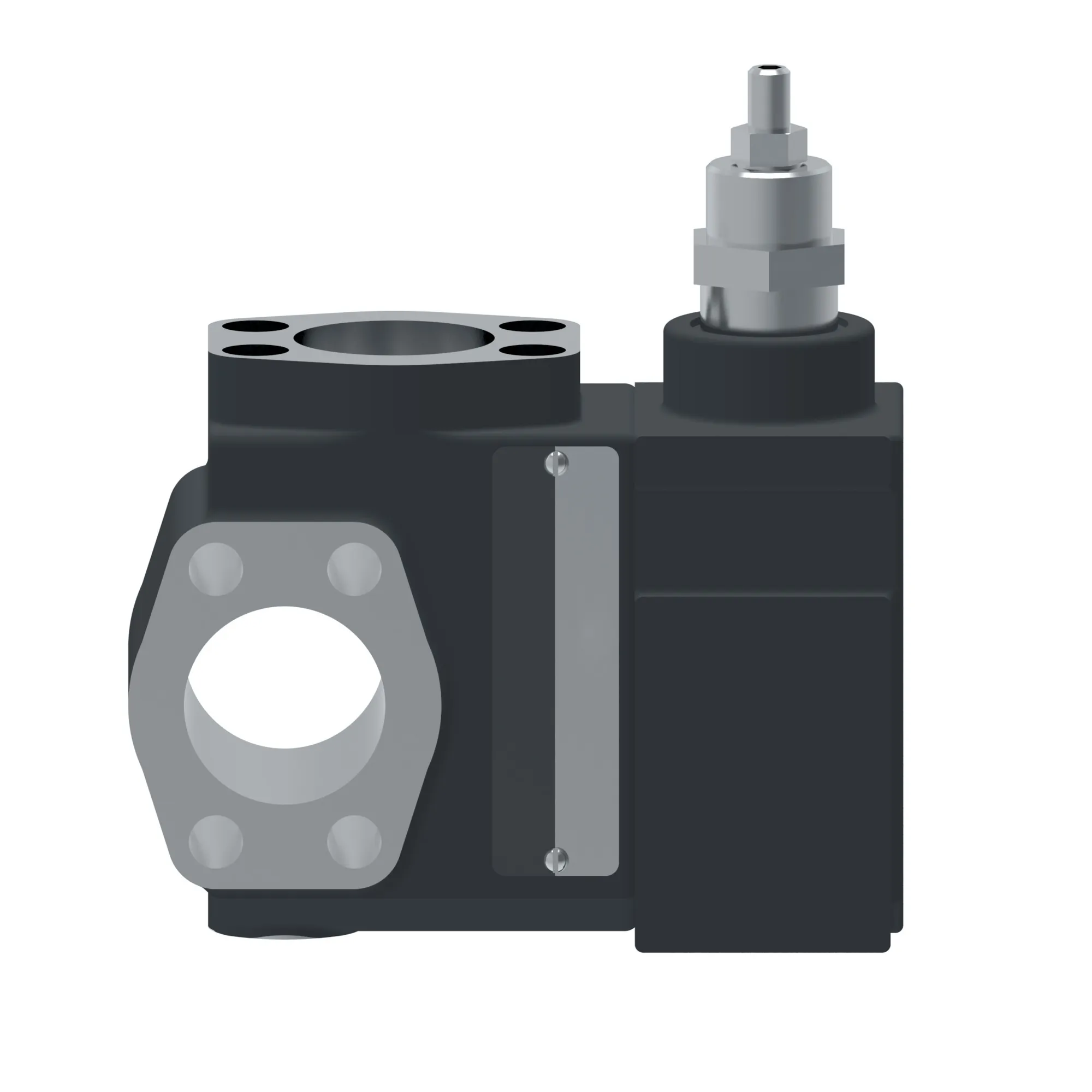

Danfoss (Drives) 02-316377
CPF1S-08-B-W-20, CPF1S08BW20 – 02-316377
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CPF1S-08-B-W-20, CPF1S08BW20 – 02-316377
Specification
| Actuation Type | Pilot actuated |
|---|---|
| Adjustment Range | 10-100 bar (145-725 psi) |
| Adjustment Type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Design Series | 20 Series |
| Drain | Internal |
| Electrical Connection | None |
| Flow Rate Lpm | 300.0 |
| Flow Rate Usgpm | 80.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid Compatibility | Petroleum oils |
| Gauge Port Thread | G 1/4 BSP thd |
| Hi Vent Spring | No |
| Indicator Light | No |
| Maximum Pressure Bar | 275 |
| Maximum Pressure Psi | 4000 |
| Model Code 1 | CPF1S08BW20 |
| Performance | Standard |
| Product Height In | 6.650 |
| Product Height Mm | 168.910 |
| Product Length In | 5.680 |
| Product Length Mm | 144.272 |
| Product Width In | 2.500 |
| Product Width Mm | 63.5 |
| Seal Material | Nitrile |
| Size | SAE 1″ |
| Special Feature | None |
| Stage | Two stage |
| Tank Pressure Bar | 210 |
| Tank Pressure Psi | 3000 |
| Valve Mount Type | Flange mounted |
| Valve Type | Relief, single pressure |
| Working Temperature Max C | 80 |
| Working Temperature Max F | 176 |
| Working Temperature Min C | -20 |
| Working Temperature Min F | -4 |
