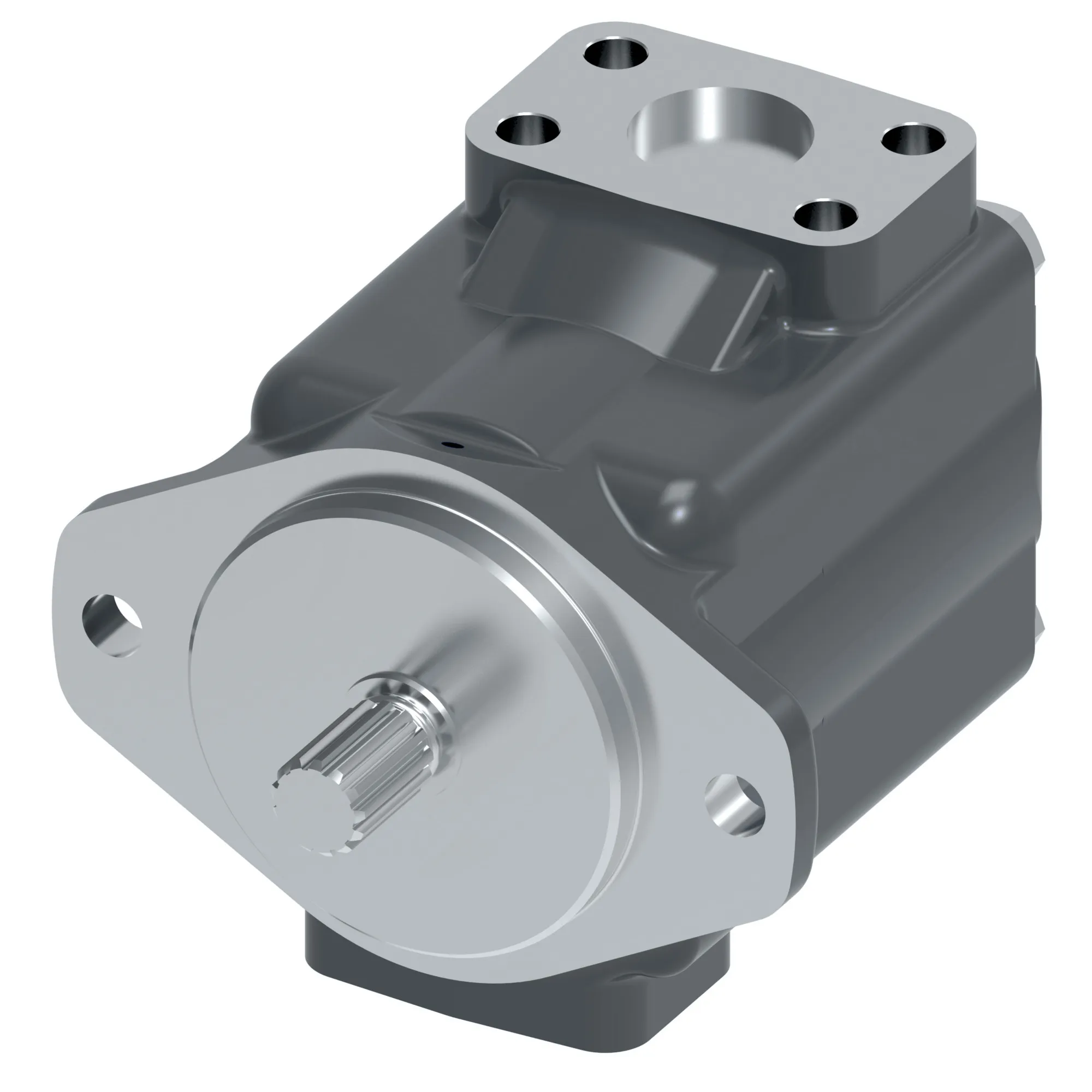

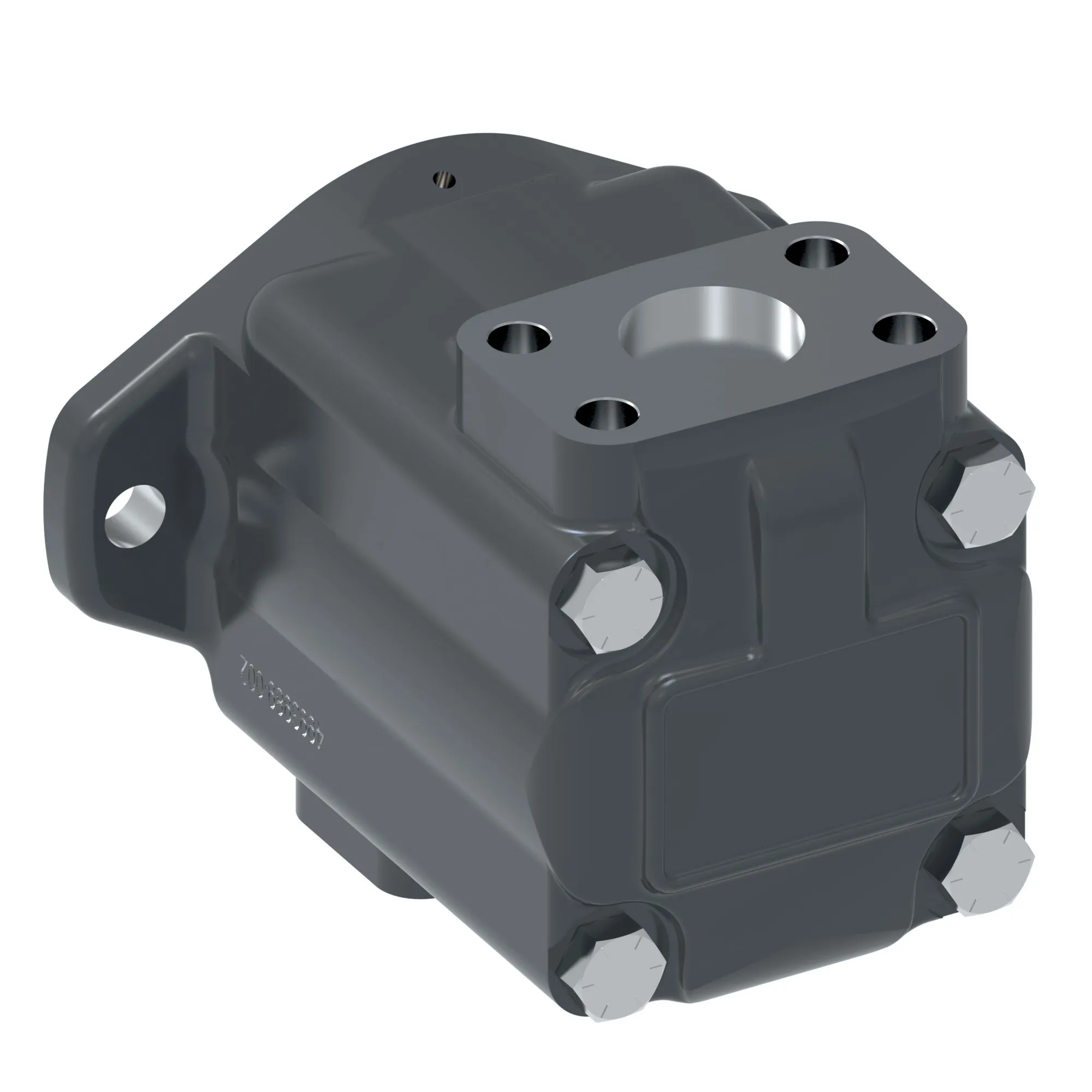

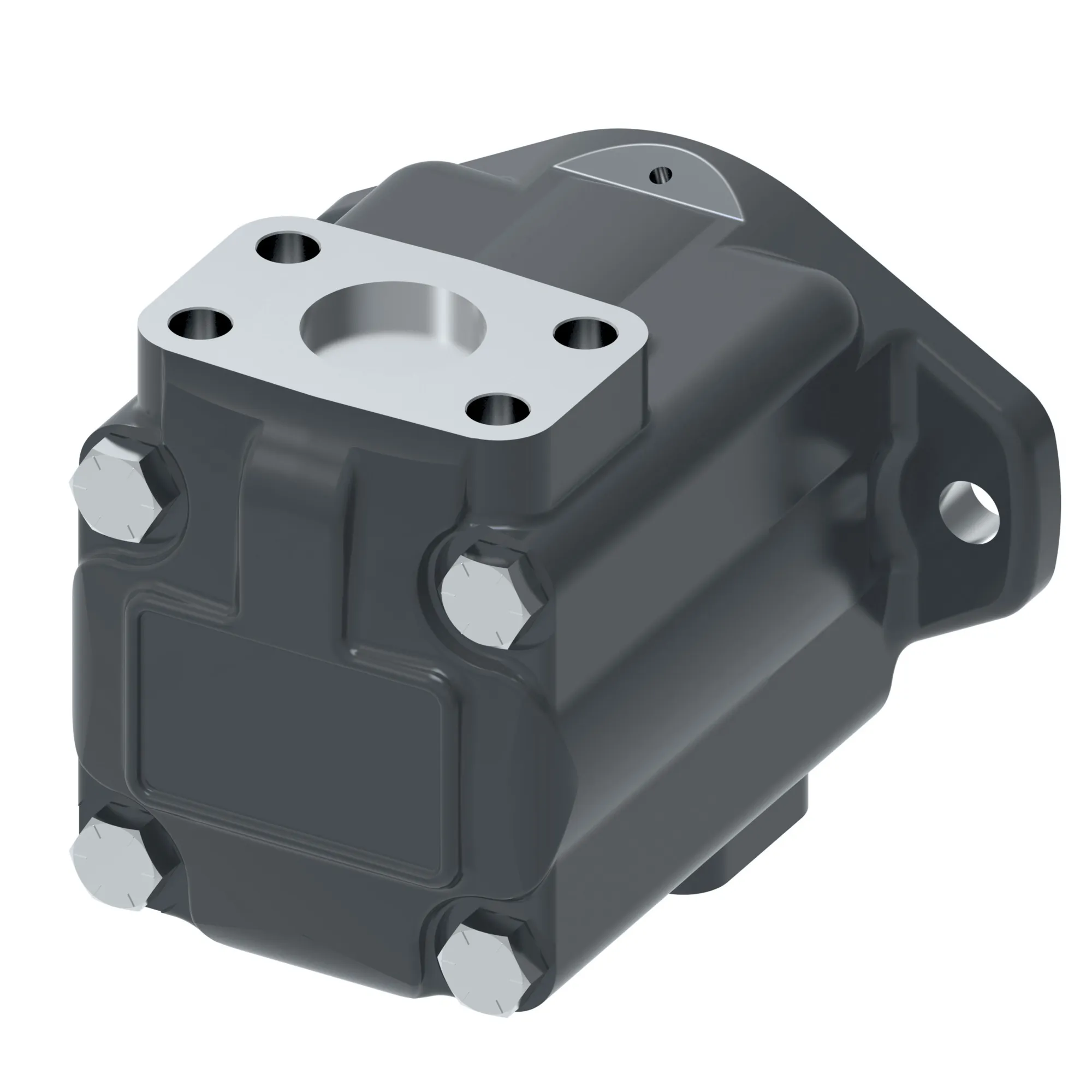

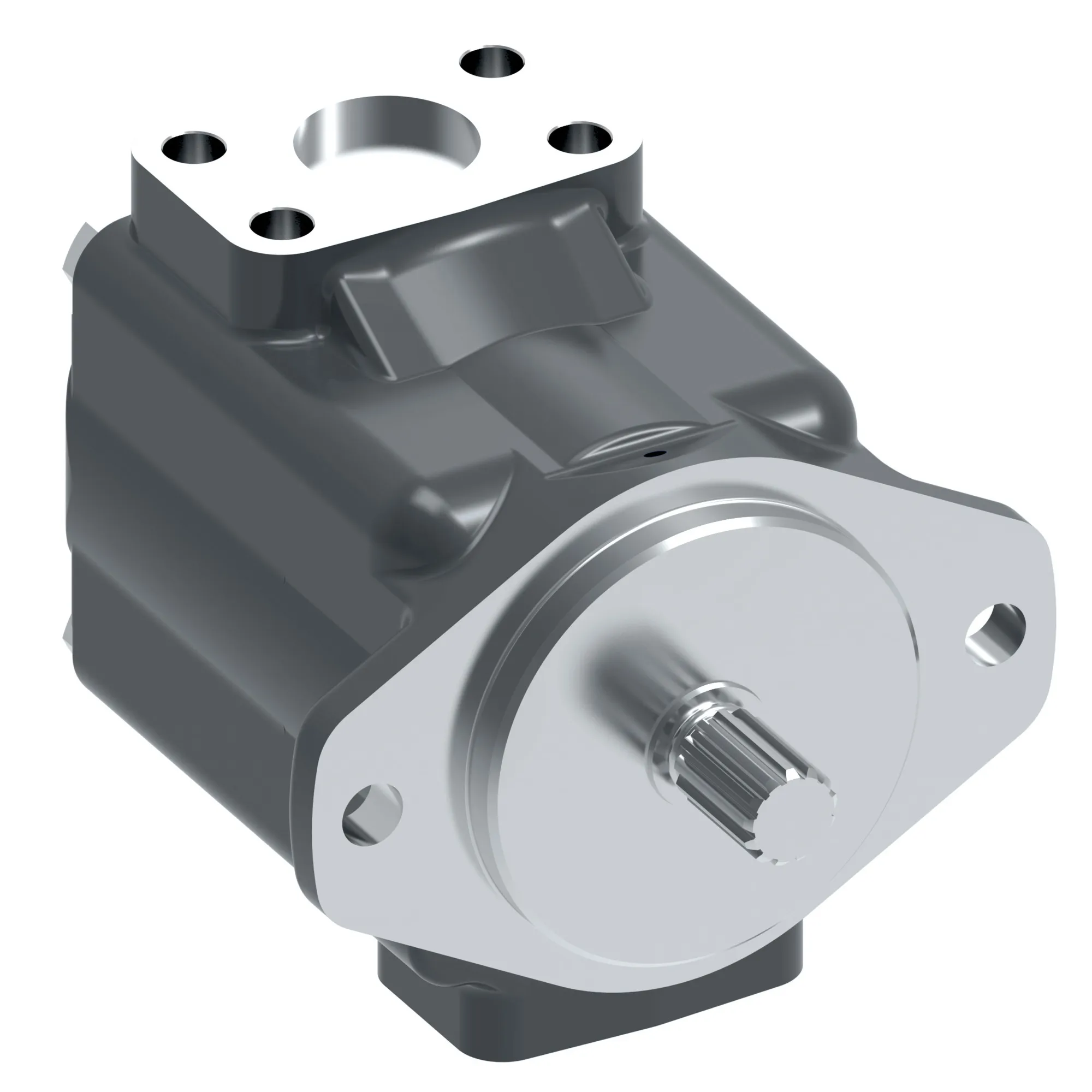

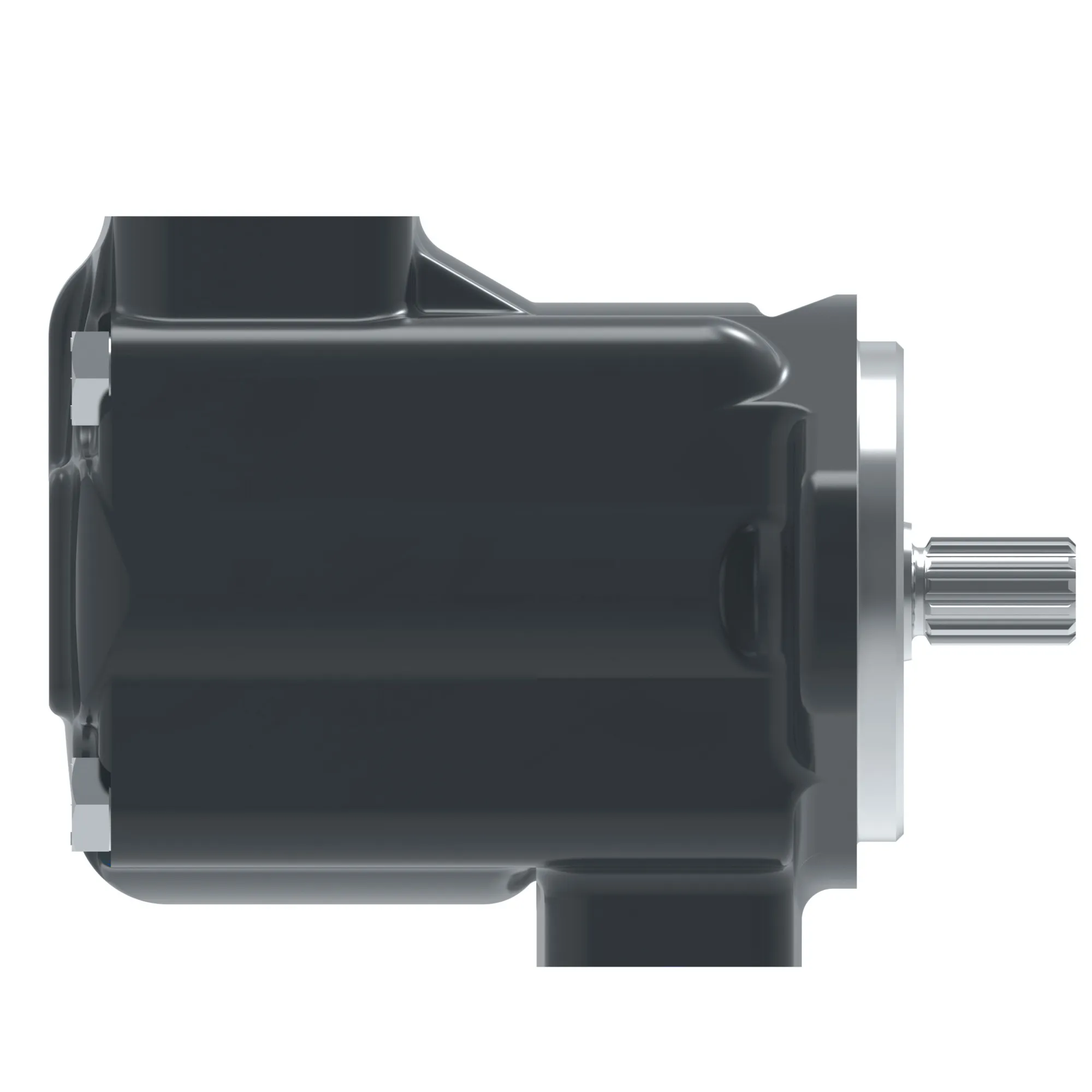

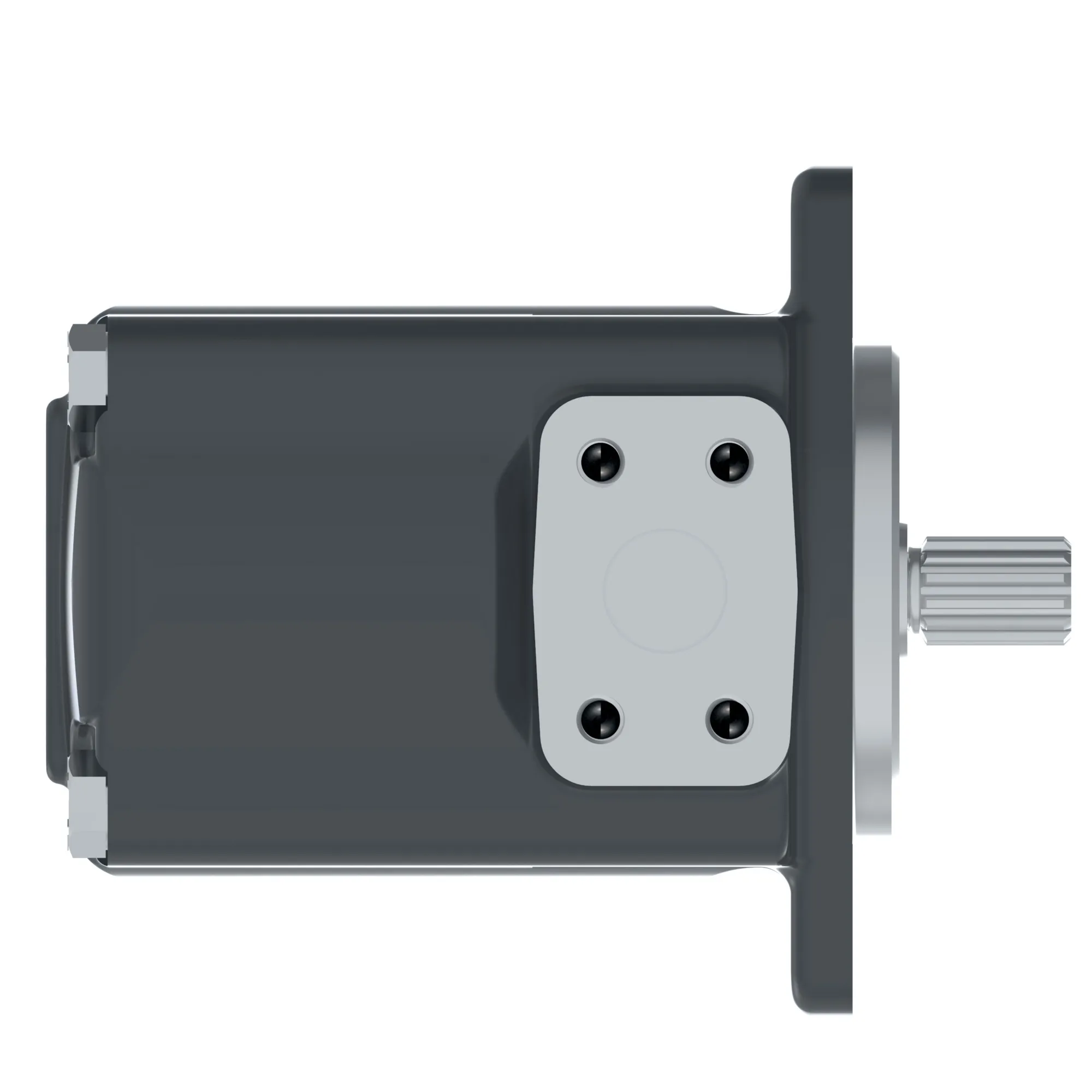

Danfoss (Drives) 02-314947-1
F3-25V17A-11A22R, F3-25V17A-11A22R – 02-314947-1
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
F3-25V17A-11A22R, F3-25V17A-11A22R – 02-314947-1
Specification
| Design No | DESIGN NO |
|---|---|
| Ipm Frame Size | 25V Single Pump |
| Outlet Post Frm Cvr End | OUTLET OPPOSITE INLET |
| Port Connection | INLET: 4 BOLT FLANGE OUTLET: 4 BOLT FLANGE |
| Pump Type | VANE PUMP |
| Ring Capacity | 17 GPM |
| Seals Type | ALL SEALS VITON |
| Series | SERIES DESIGNATION |
| S H A F T | 11- 13T 16/32 MDF SPLINE |
| Port Thread Type | INCH THREAD PORT CONNECTION |
| M O U N T I N G | FLANGE MOUNT |
| Rotation From Shaftend | CLOCKWISE |
| Brand | Vickers by Danfoss |
| Model Code 1 | F3-25V17A-11A22R |
