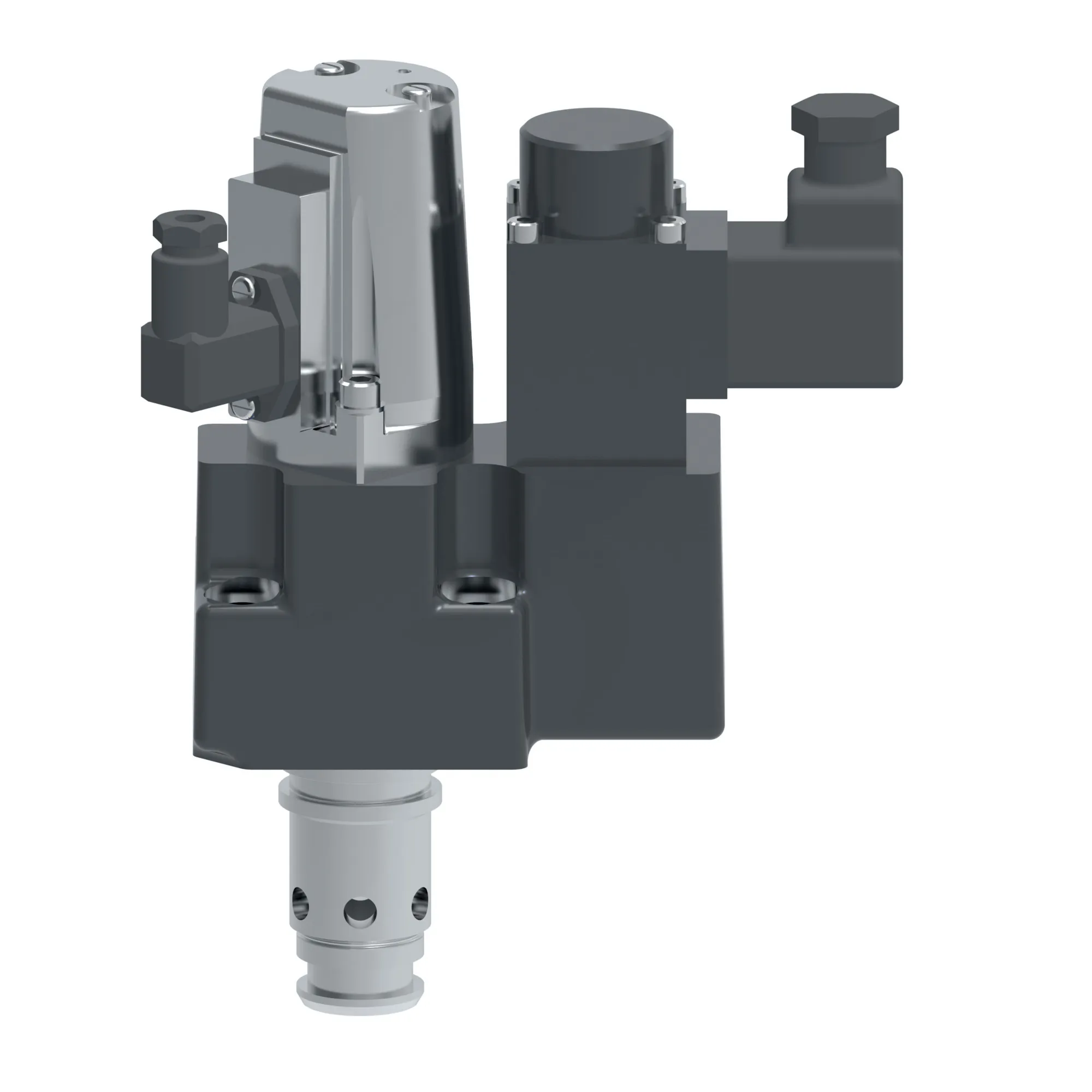

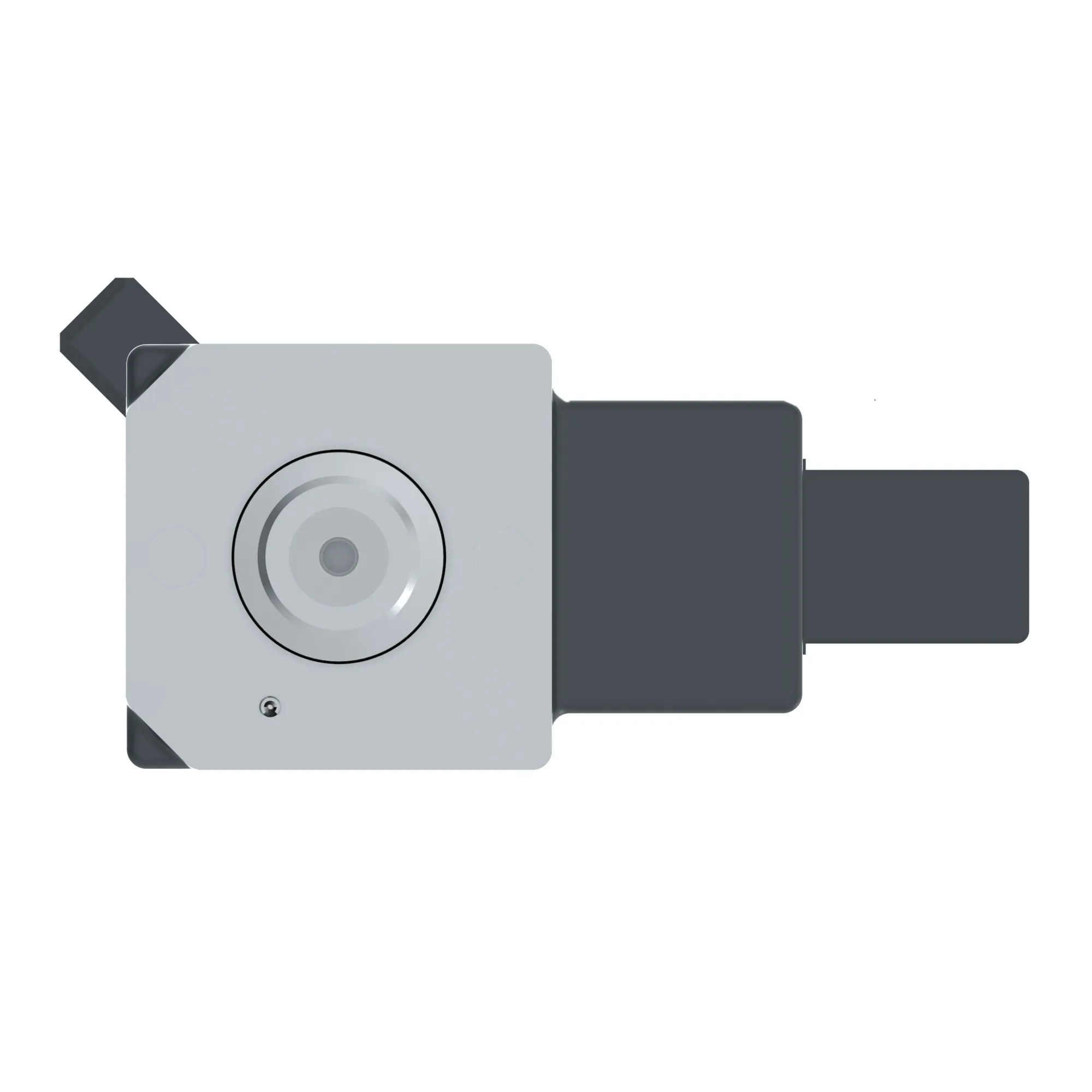

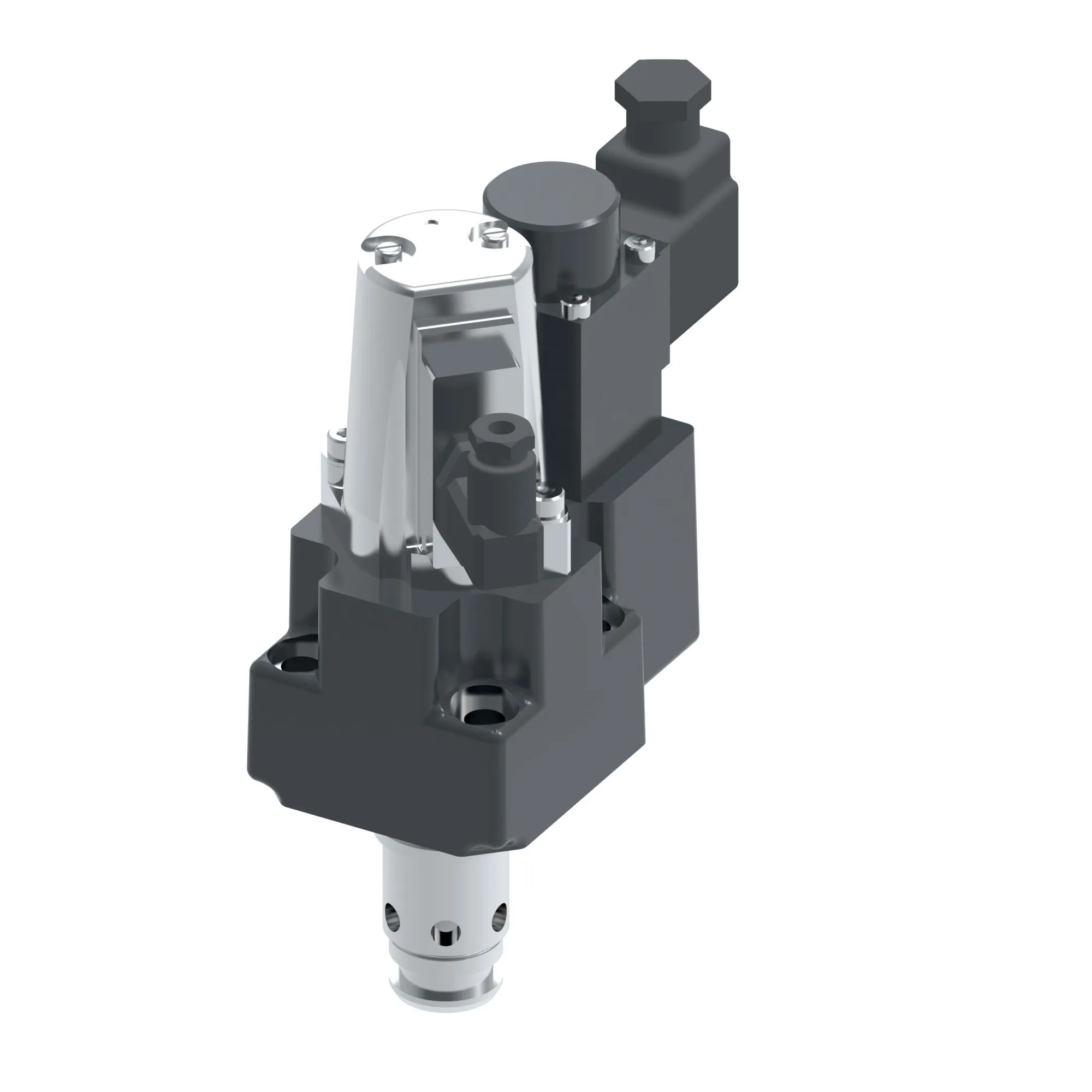

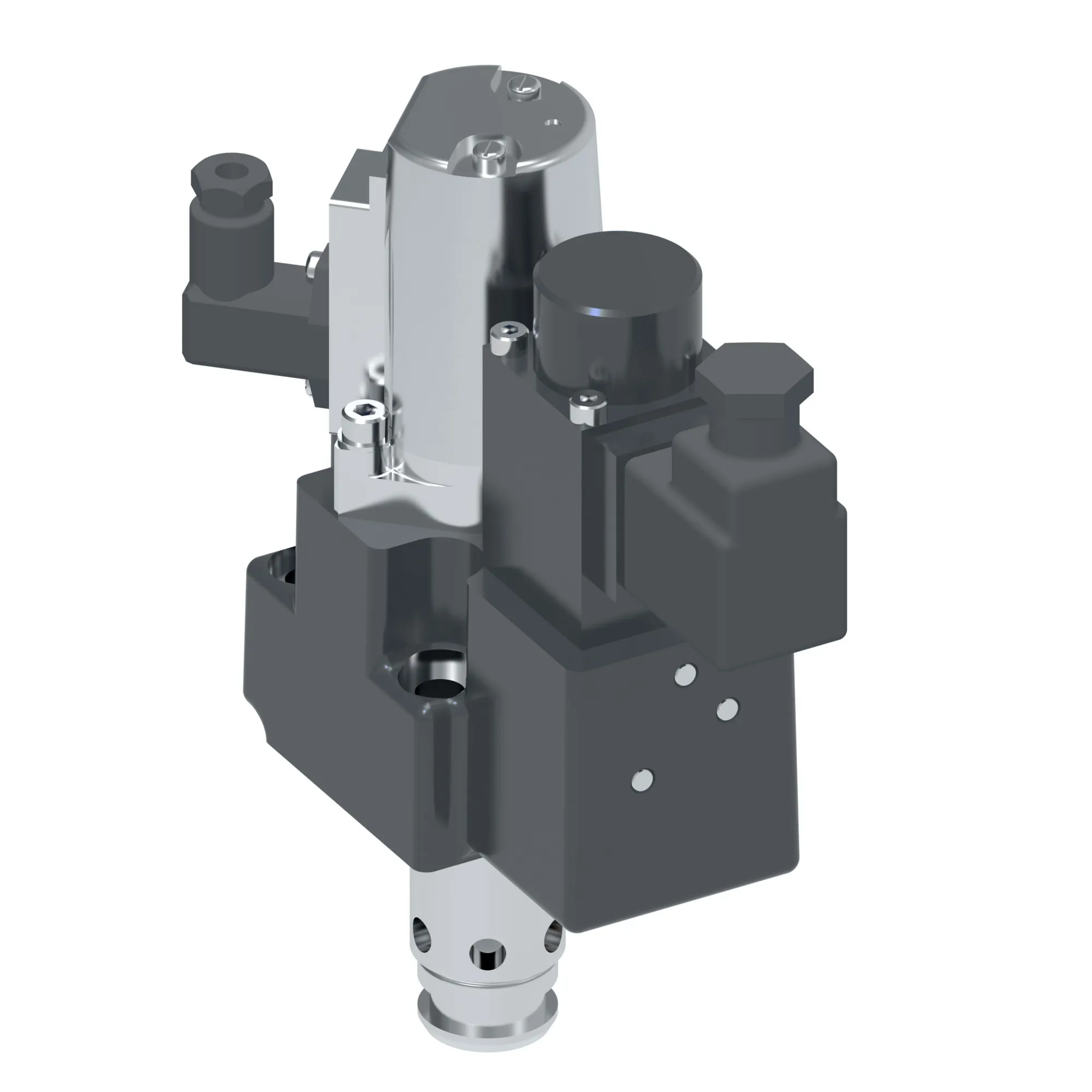

Danfoss (Drives) 02-311864
CVU-16-EFP1-B29-19-31-EN19, CVU16EFP1B291931EN19 – 02-311864
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CVU-16-EFP1-B29-19-31-EN19, CVU16EFP1B291931EN19 – 02-311864
Specification
| Adjustment | No |
|---|---|
| Brand | Vickers by Danfoss |
| Cover Type | Electrohyd proportional throttle valve |
| Cracking Pressure Bar | 2.50 |
| Cracking Pressure Psi | 36.0 |
| Design Series | 31 Design |
| Flow Rate Lpm | 190 |
| Flow Rate Usgpm | 50.0 |
| Fluid Cleanliness | 18/16/13 micron |
| Fluid Compatibility | Water Glycol, Water-in-Oil Emulsions and Petroleum Oil |
| Gauge Port Thread | BSPF |
| Insert Ratio | 1:1.4 |
| Interface | No |
| Leakage | Standard |
| Model Code 1 | CVU16EFP1B291931EN19 |
| Pilot Port Orientation | ISO |
| Pressure Rating Bar | 315 |
| Pressure Rating Psi | 4500 |
| Product Height In | 7.290 |
| Product Height Mm | 185.166 |
| Product Length In | 6.010 |
| Product Length Mm | 152.654 |
| Product Width In | 2.620 |
| Product Width Mm | 66.548 |
| Seal Material | Buna-N |
| Size | NG 16 |
| Special Feature | Voltage feedback for CM1 |
| Spool Position Sensor | No |
| Valve Type | Cartridge valve unit |
| Valvistor | No |
| Working Temp Max C | 70 |
| Working Temp Max F | 158 |
| Working Temp Min C | -20 |
| Working Temp Min F | -4 |
