Danfoss (Drives) 02-176333

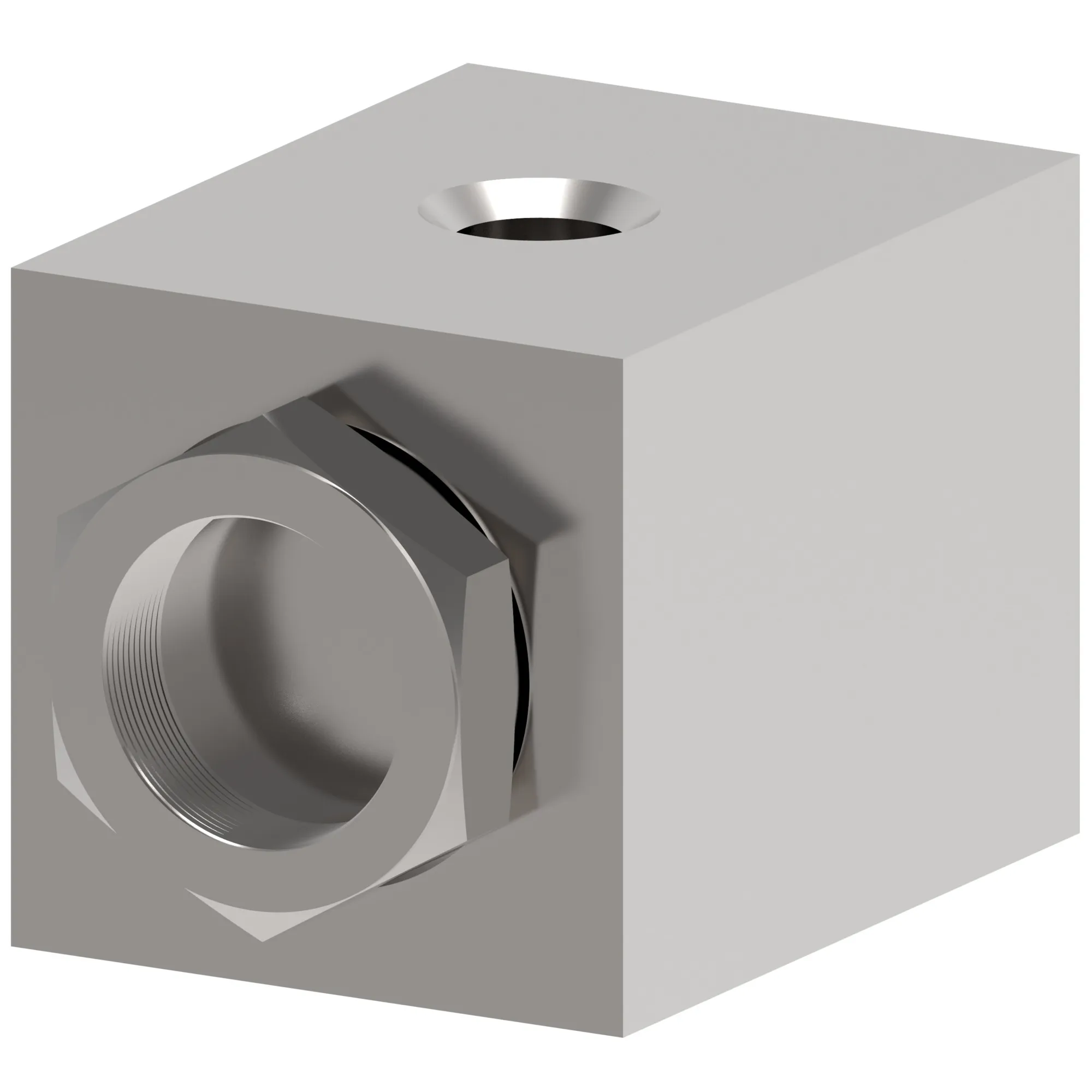

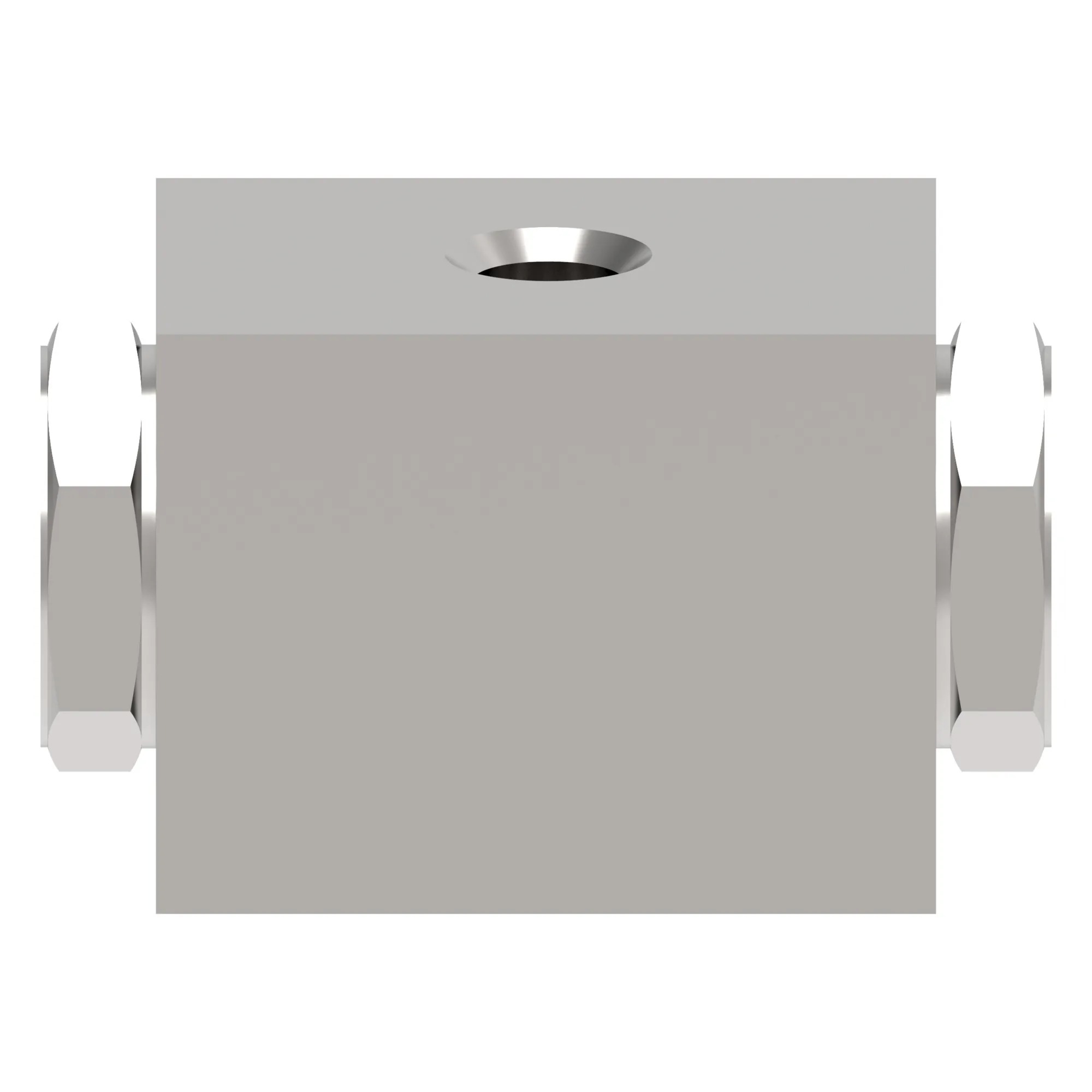

DSV3-12V-B-A8T SHUTTLE VALVE, DSV3-12-V-B-A-8T – 02-176333
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DSV3-12V-B-A8T SHUTTLE VALVE, DSV3-12-V-B-A-8T – 02-176333
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | Inline |
| Flow Rate Gpm | 31.60 |
| Flow Rate Lpm | 120.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Shuttle Valve |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Model Code 1 | DSV3-12-V-B-A-8T |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Pilot Piston Seal | No |
| Port Size | 1/2″ |
| Port Type | SAE |
| Pressure Rating Bar | 350.00 |
| Pressure Rating Psi | 5000.00 |
| Product Height In | 2.000 |
| Product Height Mm | 50.800 |
| Product Length In | 2.500 |
| Product Length Mm | 63.500 |
| Product Width In | 1.500 |
| Product Width Mm | 38.100 mm |
| Recommended Filtration Level | 18/13 |
| Seal Type | Viton |
| Special Features | None |
| Style | Ball |
