Danfoss (Drives) 02-175475
PFR5-8-F-0-1.0, PFR5-8-F-0-1.0 – 02-175475
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

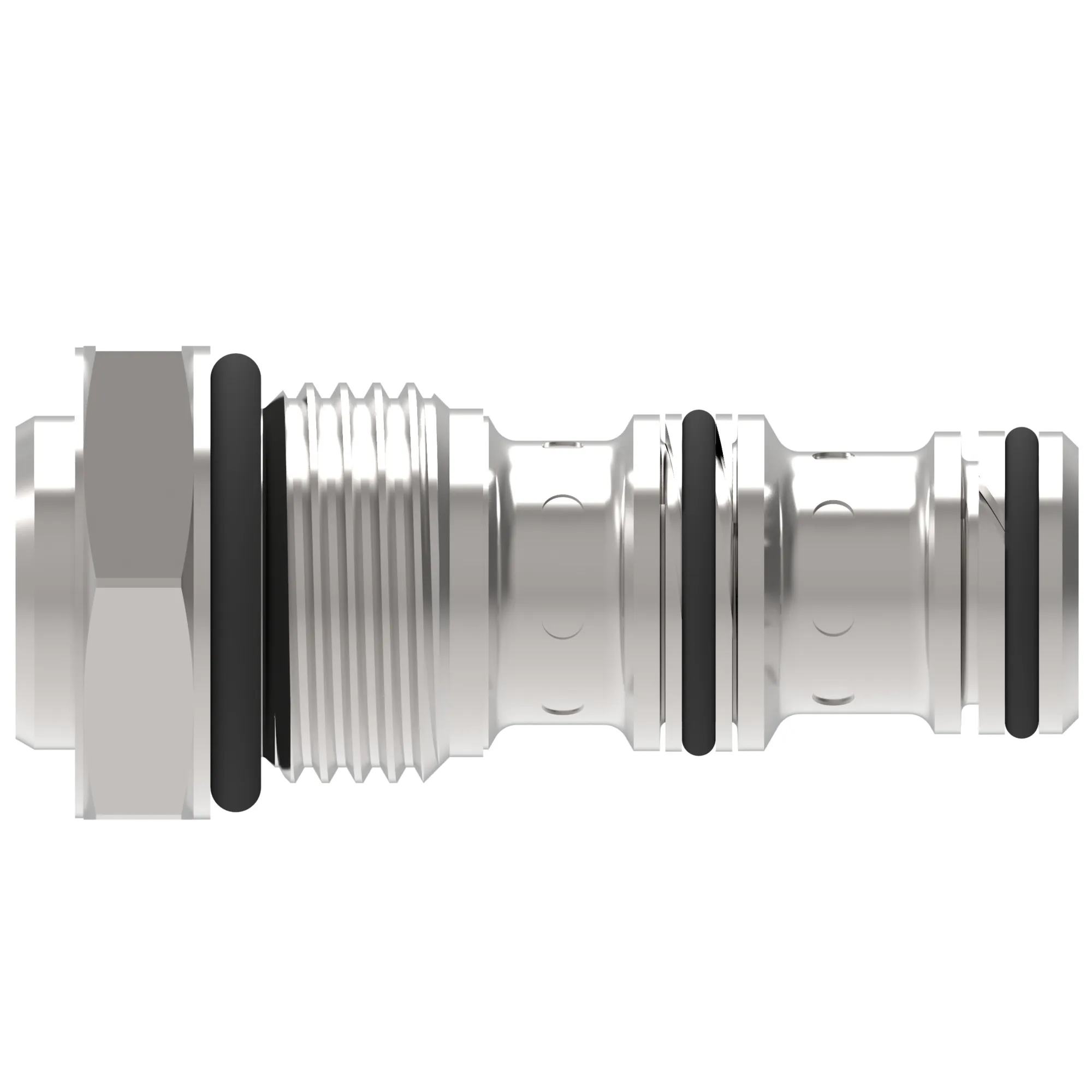

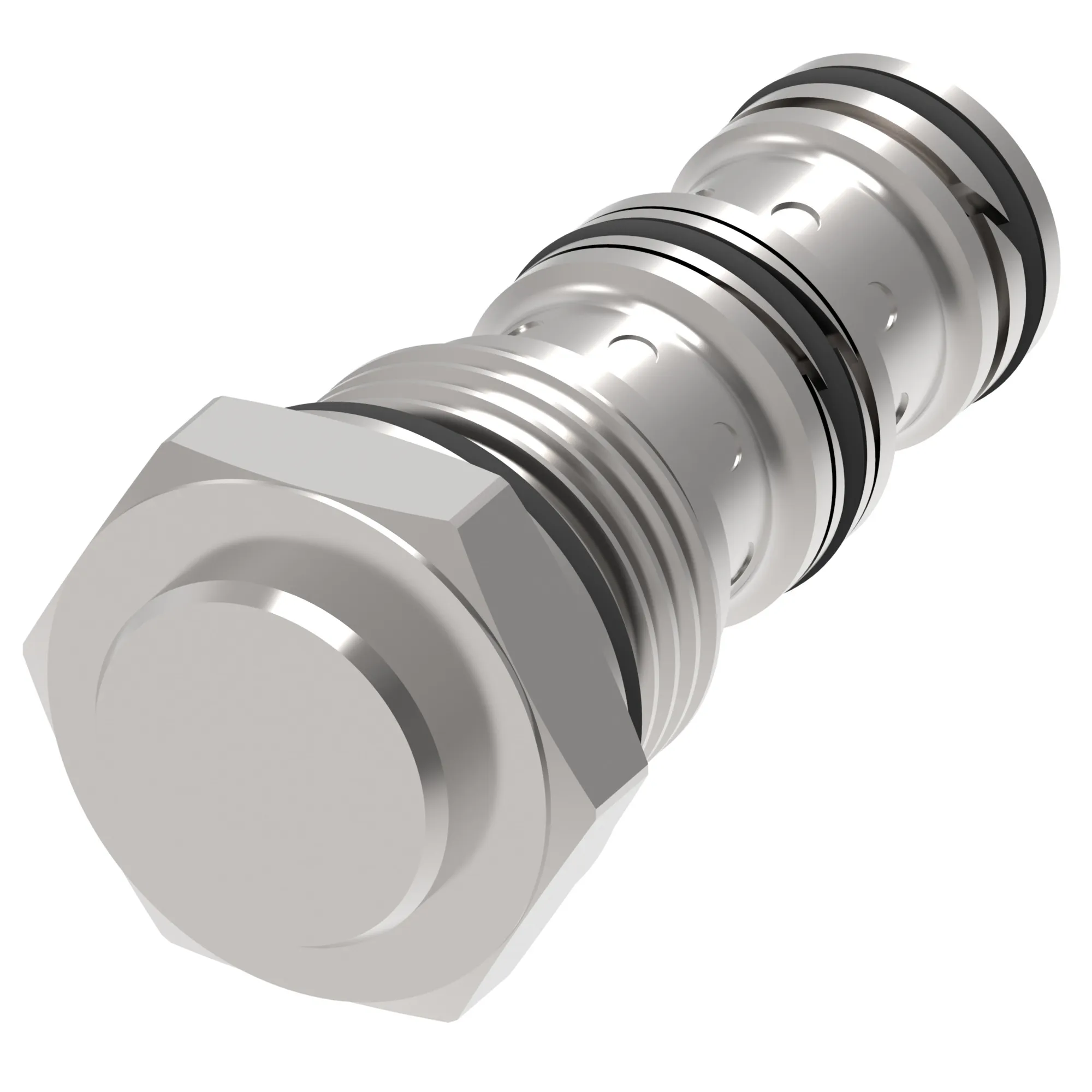

PFR5-8-F-0-1.0, PFR5-8-F-0-1.0 – 02-175475
Specification
| Adjustment Type | Fixed Orifice |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-8-3 |
| Factory Set Flow Rate Gpm | 1.000 |
| Factory Set Flow Rate Lpm | 4.00 |
| Flow Rate Gpm | 3.000 |
| Flow Rate Lpm | 10.00 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Restrictive flow reg fixed |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 82 cc/min |
| Maximum Flow Rate Lpm | 2.00 |
| Minimum Flow Rate Gpm | 1.000 |
| Minimum Flow Rate Lpm | 2.00 |
| Model Code 1 | PFR5-8-F-0-1.0 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 280.00 |
| Pressure Rating Psi | 4000.00 |
| Product Height In | 1.930 |
| Product Height Mm | 49.022 |
| Product Length In | 0.870 |
| Product Length Mm | 22.098 |
| Product Width In | 0.870 |
| Product Width Mm | 22.098 mm |
| Rec Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Spool Seal | No |
| Style | Spool |
| Torque Alu Cavity | 34-41 Nm |
| Torque Steel Cavity | 34-41 Nm |
