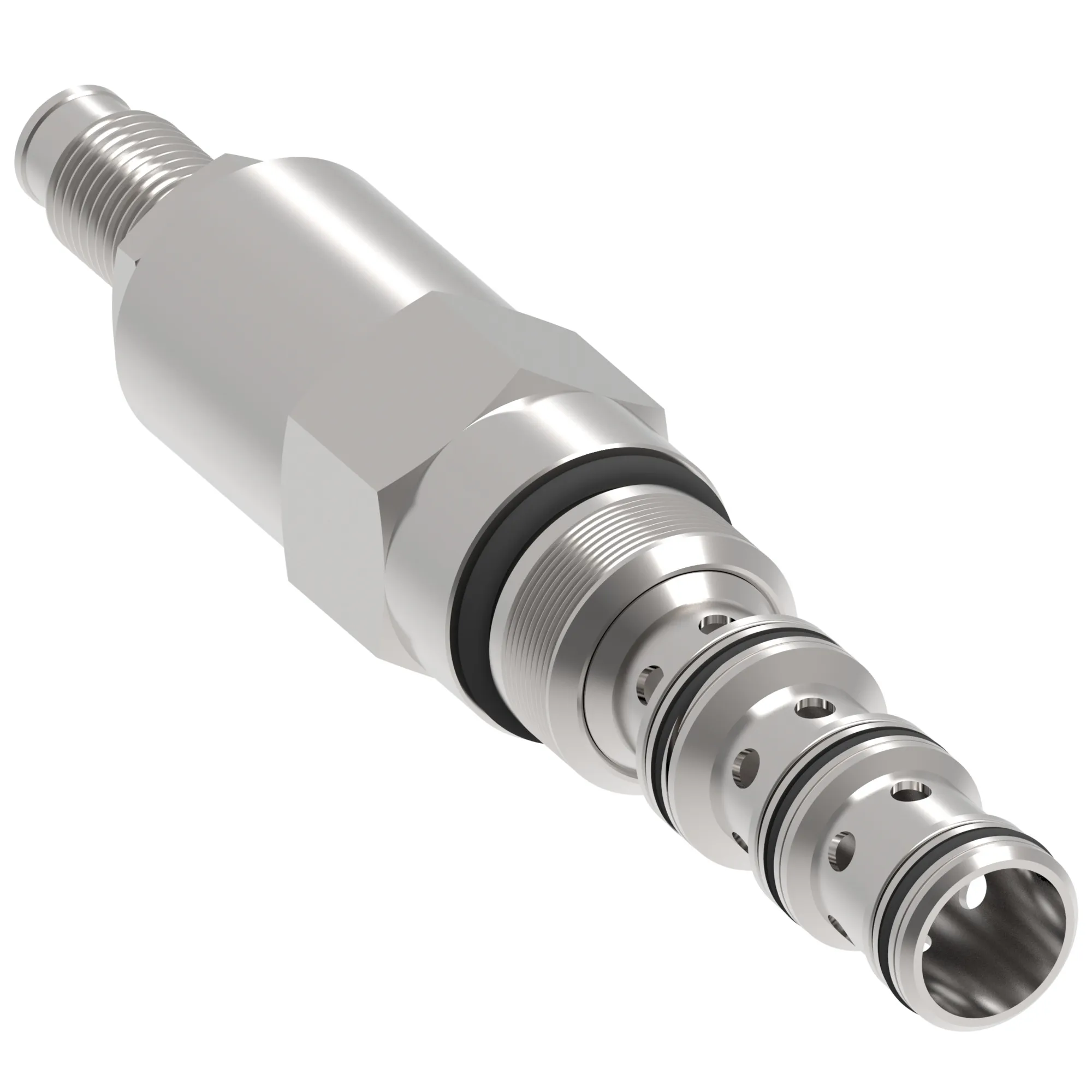

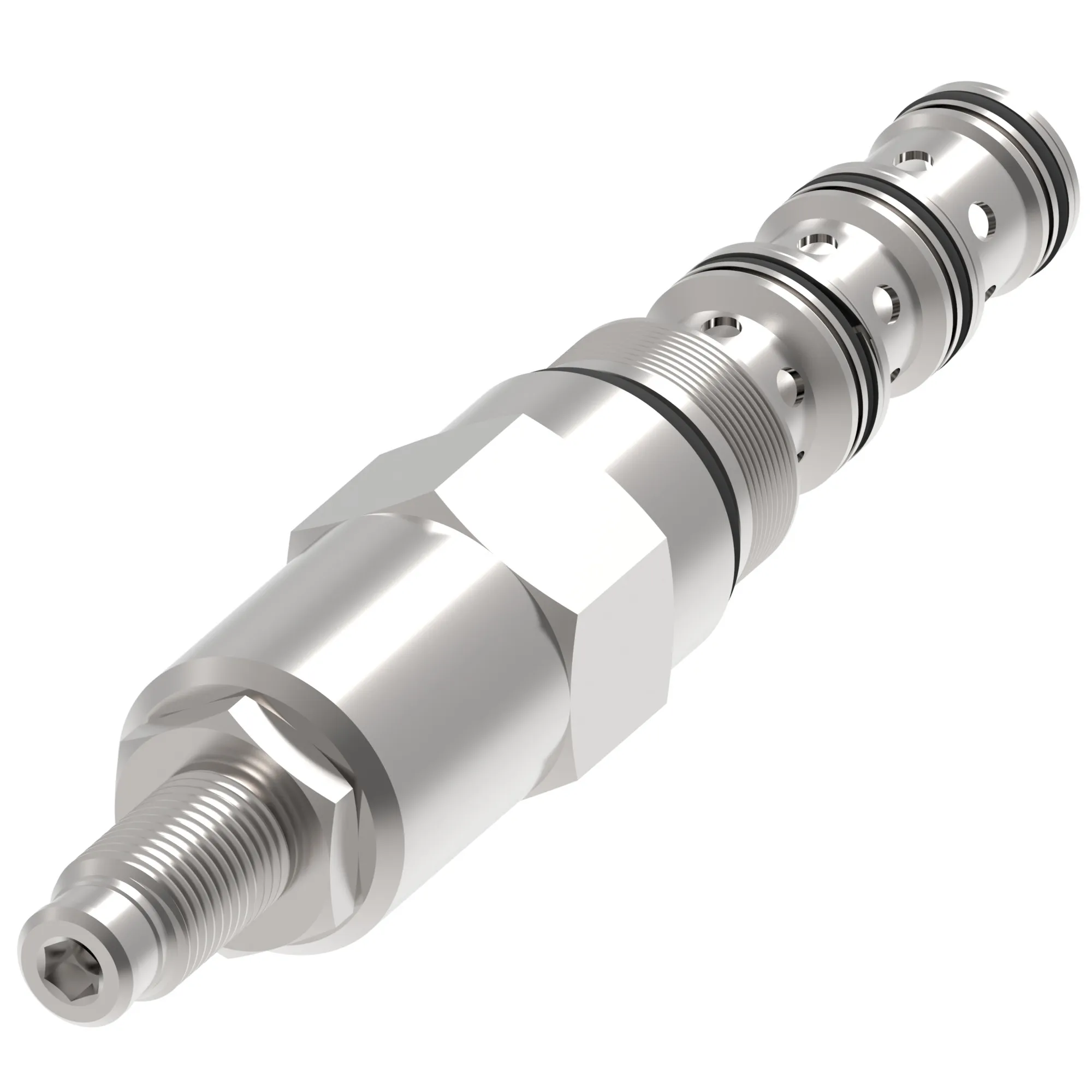

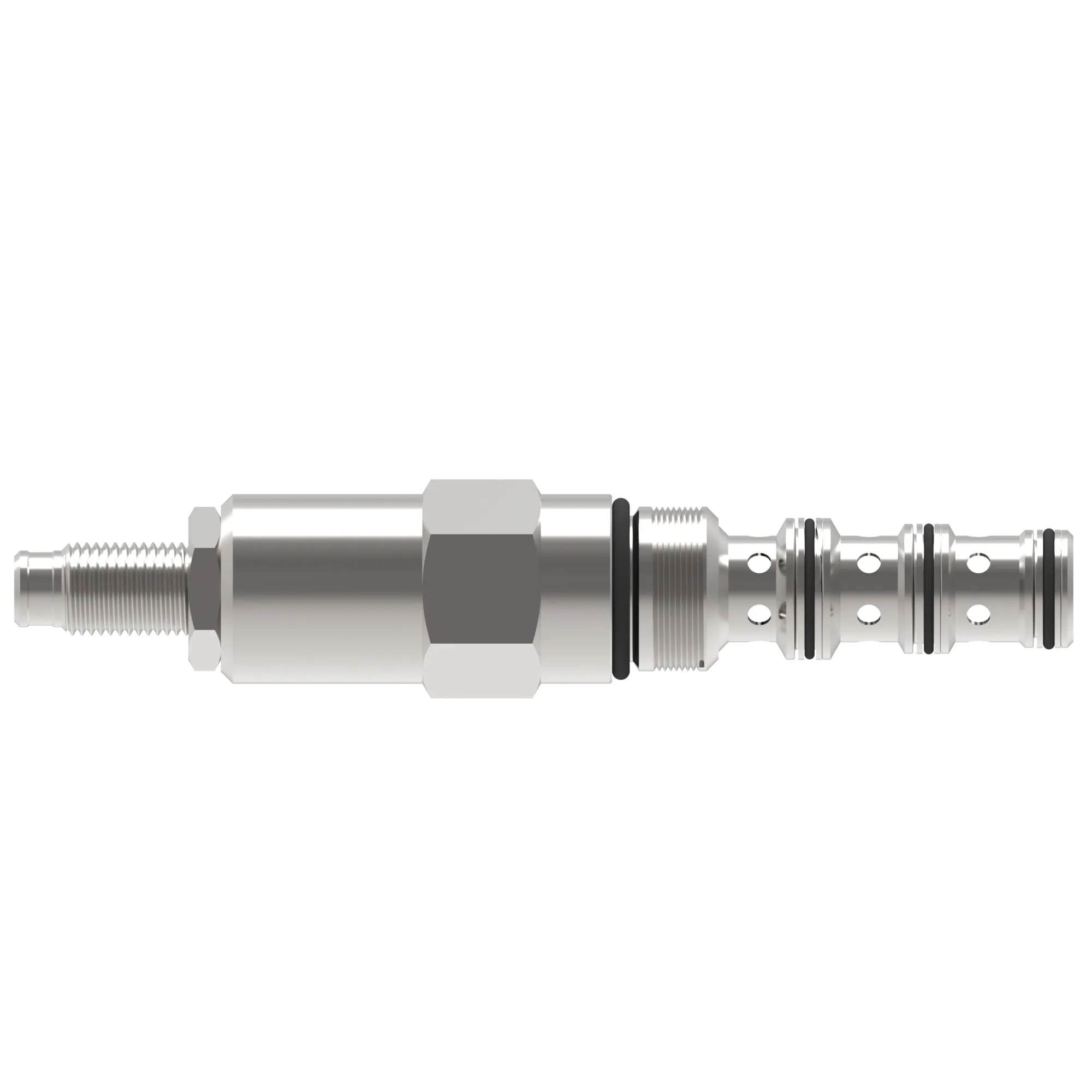

Danfoss (Drives) 02-172043
PSV10-10-S-0-24/15, PSV10-10-S-0-24-15 – 02-172043
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PSV10-10-S-0-24/15, PSV10-10-S-0-24-15 – 02-172043
Specification
| Adjustment Type | Screw |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-4 |
| Factory Set Pressrue Bar | 103.000 |
| Factory Set Pressrue Psi | 1504.000 |
| Flow Rate Gpm | 6.00 |
| Flow Rate Lpm | 23.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Sequence Valve |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 164 cc/min |
| Max Working Pressure Bar | 165.000 |
| Max Working Pressure Psi | 2399.000 |
| Min Working Pressure Bar | 28.000 |
| Min Working Pressure Psi | 407.000 |
| Model Code 1 | PSV10-10-S-0-24-15 |
| Number Of Housing Ports | 4 |
| Number Of Valve Ports | 4 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | None |
| Port Type | Cartridge Only |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 5.780 |
| Product Length Mm | 146.812 |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Spool |
