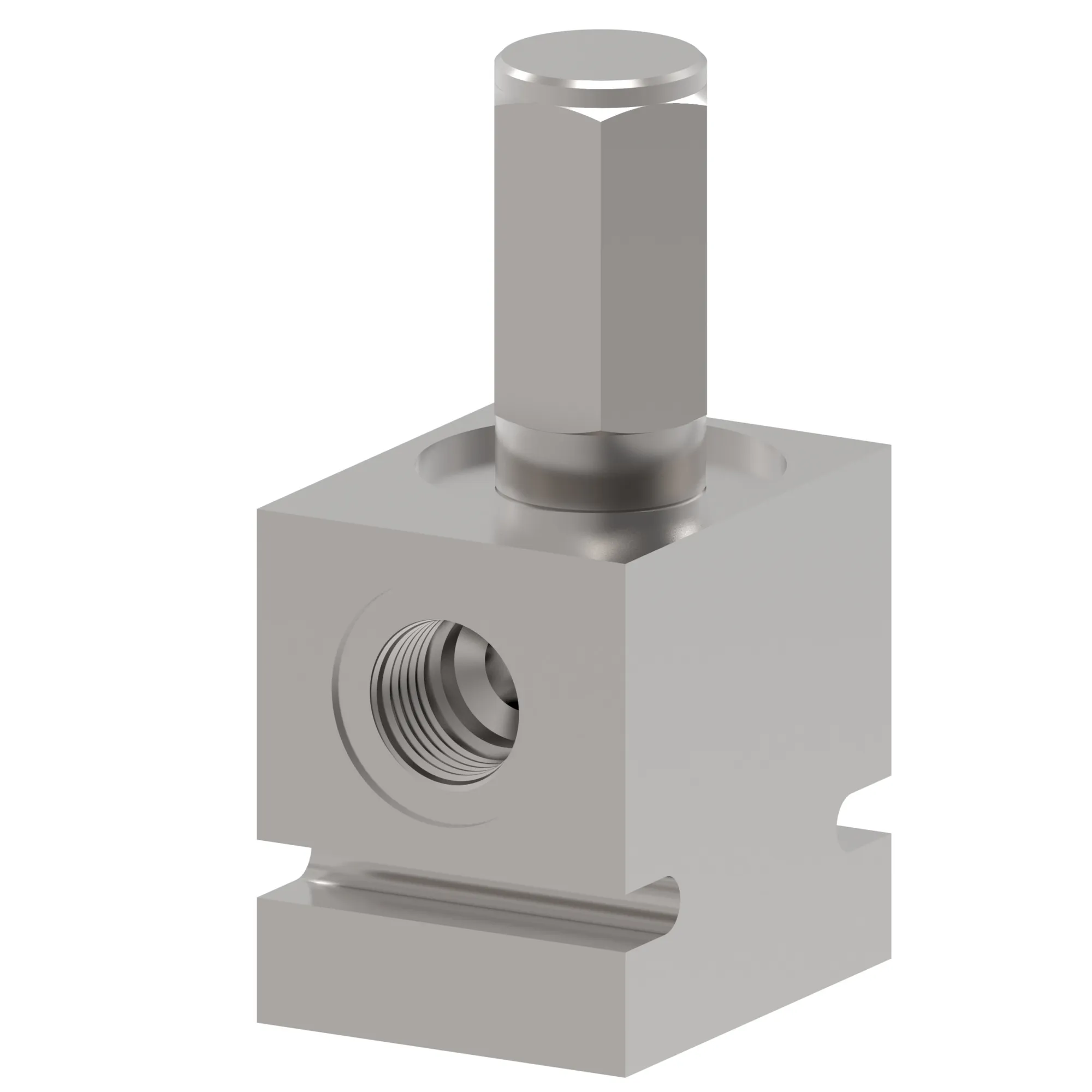

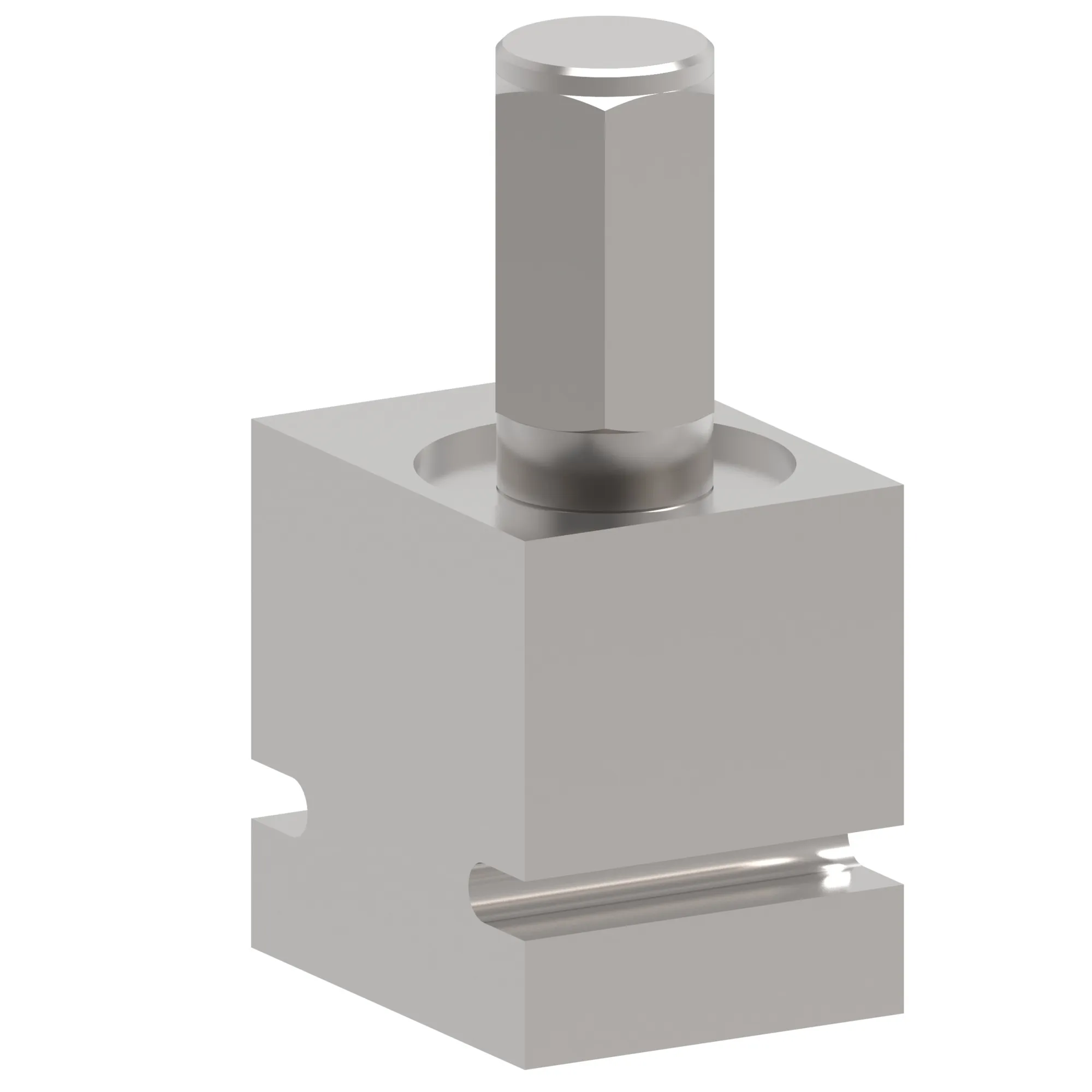

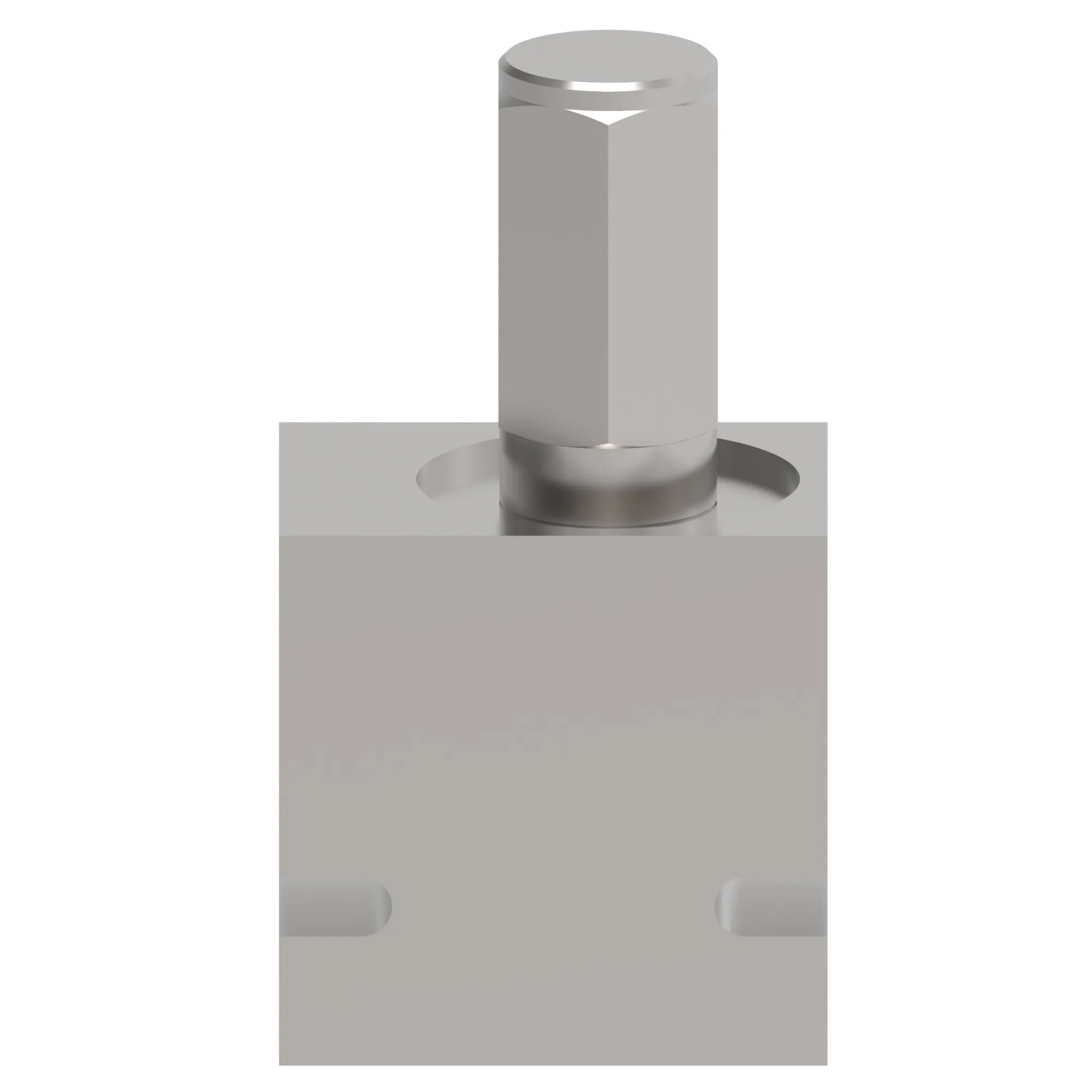

Danfoss (Drives) 02-171619
PRV2-10-F-6T-3/2.5, PRV2-10-F-A-6T-3-2.5 – 02-171619
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PRV2-10-F-6T-3/2.5, PRV2-10-F-A-6T-3-2.5 – 02-171619
Specification
| Adjustment Type | Factory Set |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-3 |
| Factory Set Pressrue Bar | 17.000 |
| Factory Set Pressrue Psi | 250.000 |
| Flow Rate Gpm | 10.00 |
| Flow Rate Lpm | 38.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Reducing/Relieving Valves |
| Housing | Yes |
| Housing Material | Steel |
| Installation Type | Screw-in Cartridge |
| Leakage | 820 cc/min |
| Max Working Pressure Bar | 20.000 |
| Max Working Pressure Psi | 291.000 |
| Min Working Pressure Bar | 4.000 |
| Min Working Pressure Psi | 51.000 |
| Model Code 1 | PRV2-10-F-A-6T-3-2.5 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port Size | 3/8″ |
| Port Type | SAE |
| Product Height In | 6.300 |
| Product Height Mm | 160.020 |
| Product Length In | 3.000 |
| Product Length Mm | 76.200 |
| Product Width In | 1.760 |
| Product Width Mm | 44.704 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Spool |
