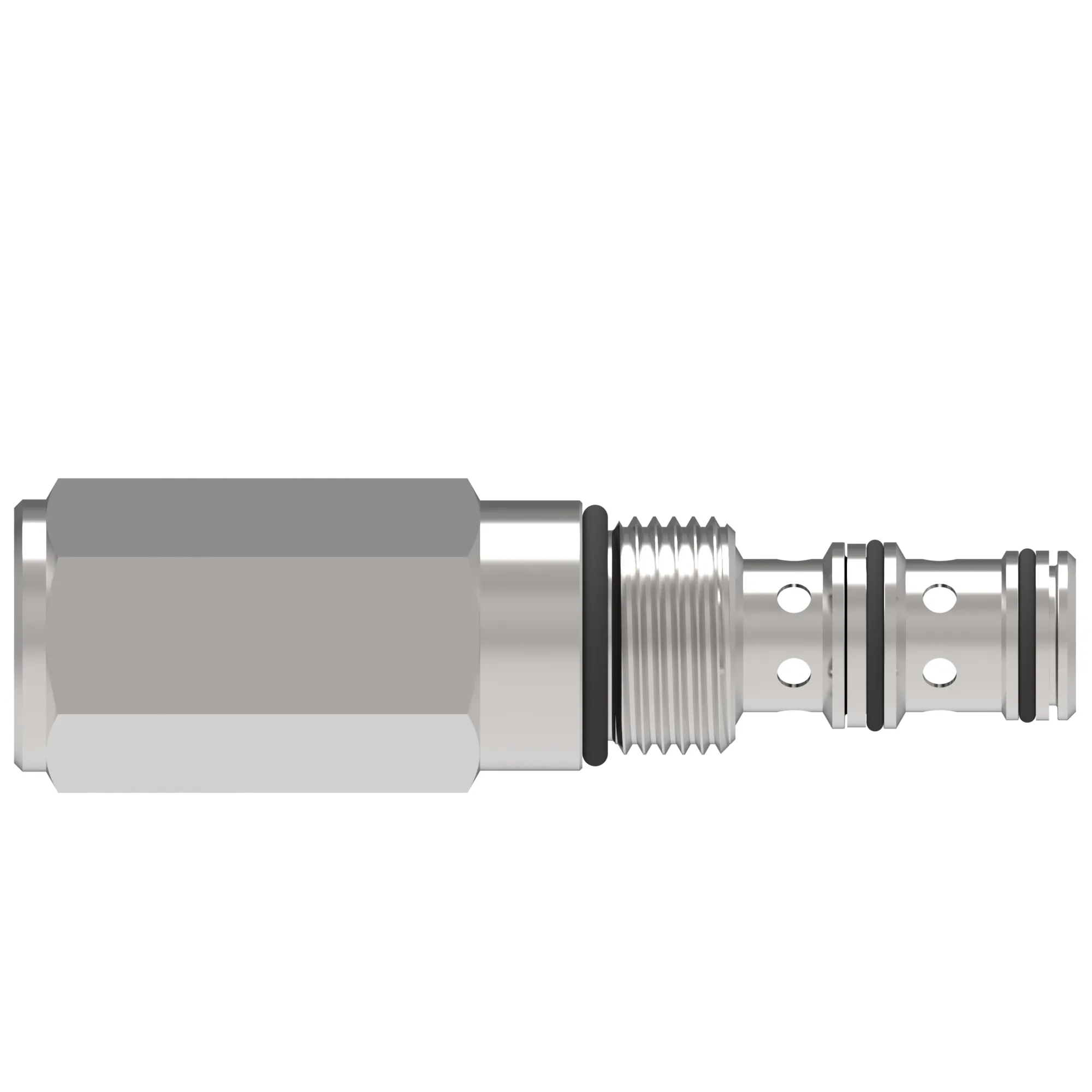

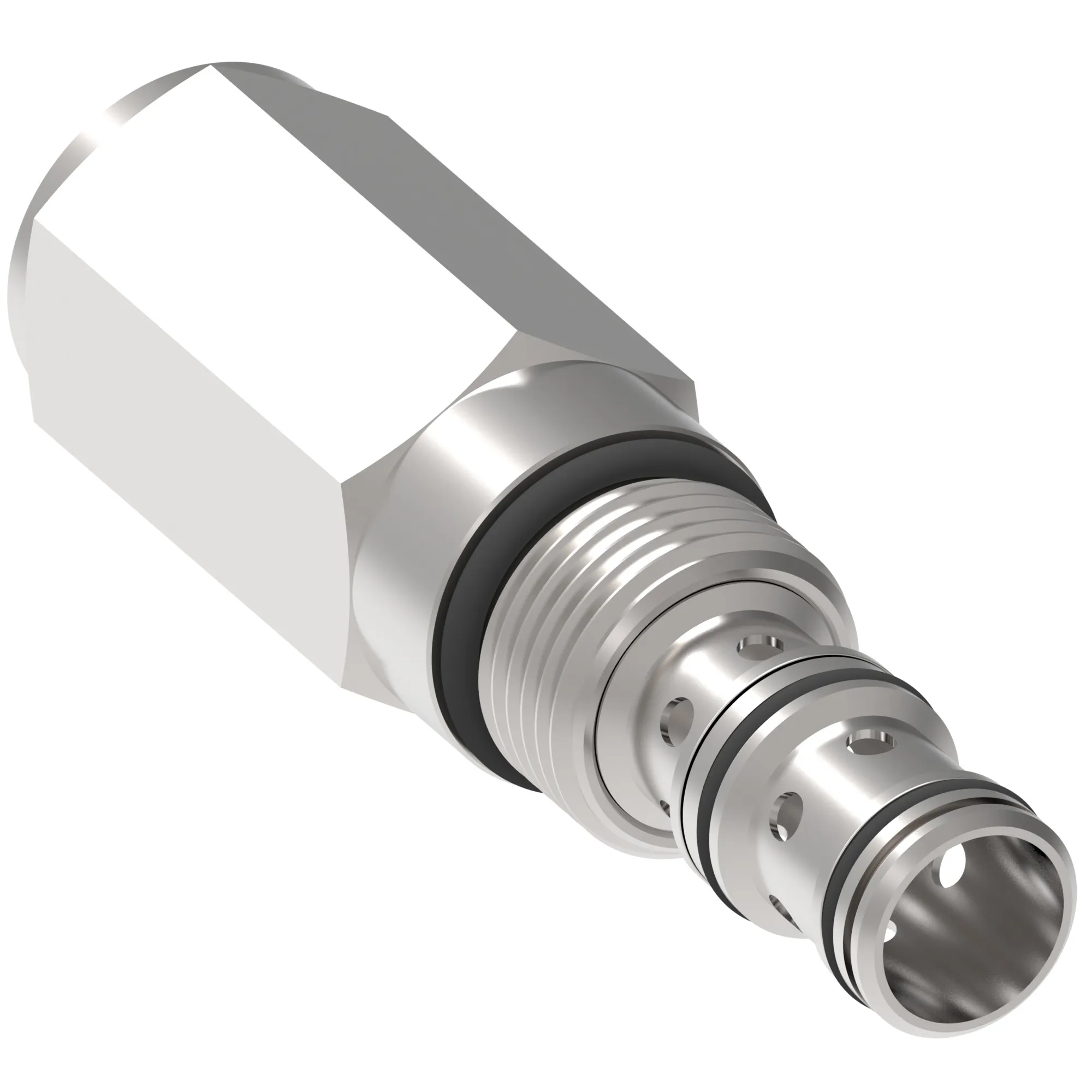

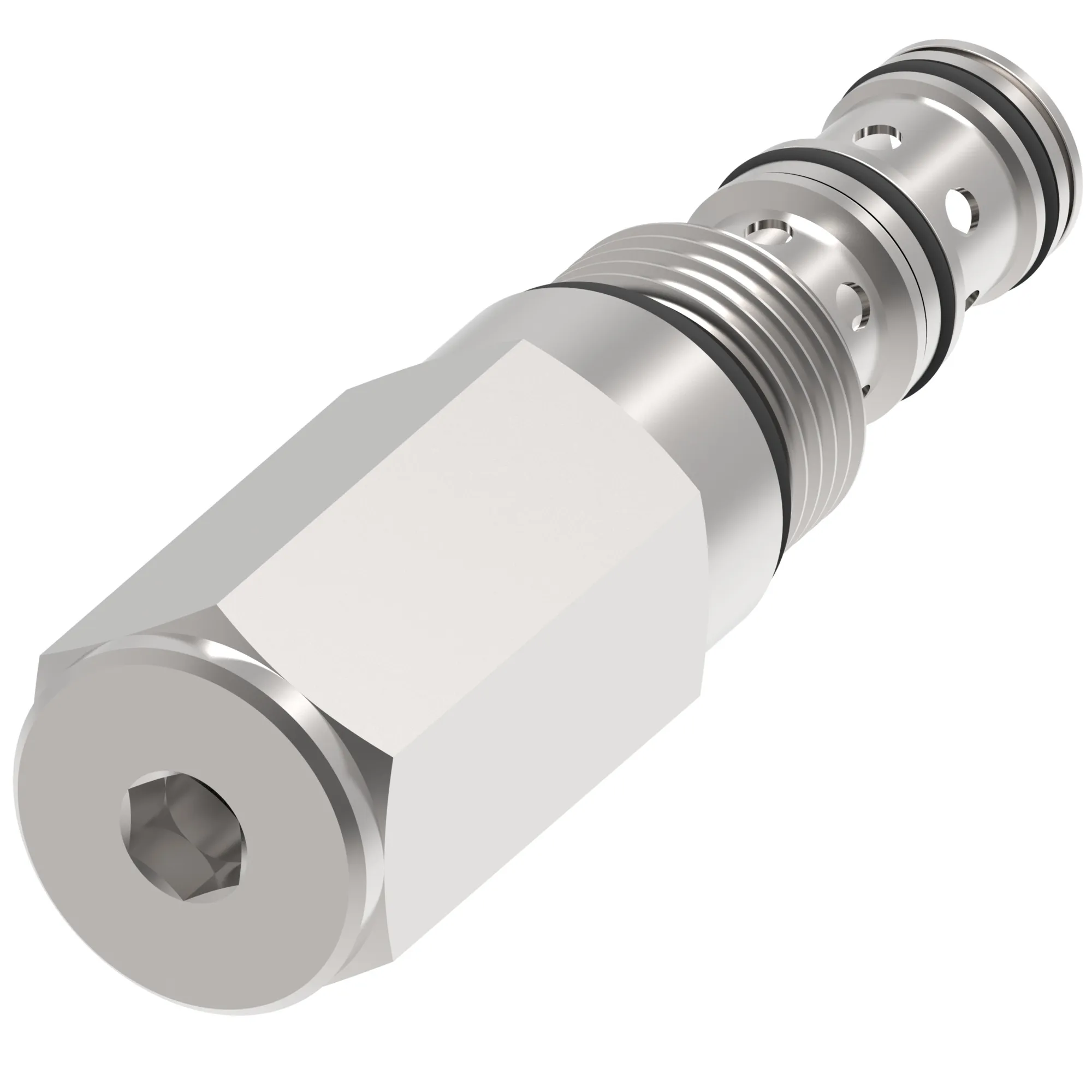

Danfoss (Drives) 02-170789
PRV1-10V-I-0-6/, PRV1-10-V-I-0-6-XXX – 02-170789
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PRV1-10V-I-0-6/, PRV1-10-V-I-0-6-XXX – 02-170789
Specification
| Adjustment Type | Internal |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-10-3 |
| Factory Set Pressrue Bar | 24.000 |
| Factory Set Pressrue Psi | 344.000 |
| Flow Rate Gpm | 4.00 |
| Flow Rate Lpm | 15.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Reducing/Relieving |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 164 cc/min |
| Max Working Pressure Bar | 40.000 |
| Max Working Pressure Psi | 582.000 |
| Min Working Pressure Bar | 7.000 |
| Min Working Pressure Psi | 102.000 |
| Model Code 1 | PRV1-10-V-I-0-6-XXX |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Port Size | None |
| Port Type | Cartridge Only |
| Product Height In | 1.000 |
| Product Height Mm | 25.400 |
| Product Length In | 3.890 |
| Product Length Mm | 98.806 |
| Product Width In | 1.000 |
| Product Width Mm | 25.400 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Viton |
| Special Features | None |
| Style | Spool |
