Description

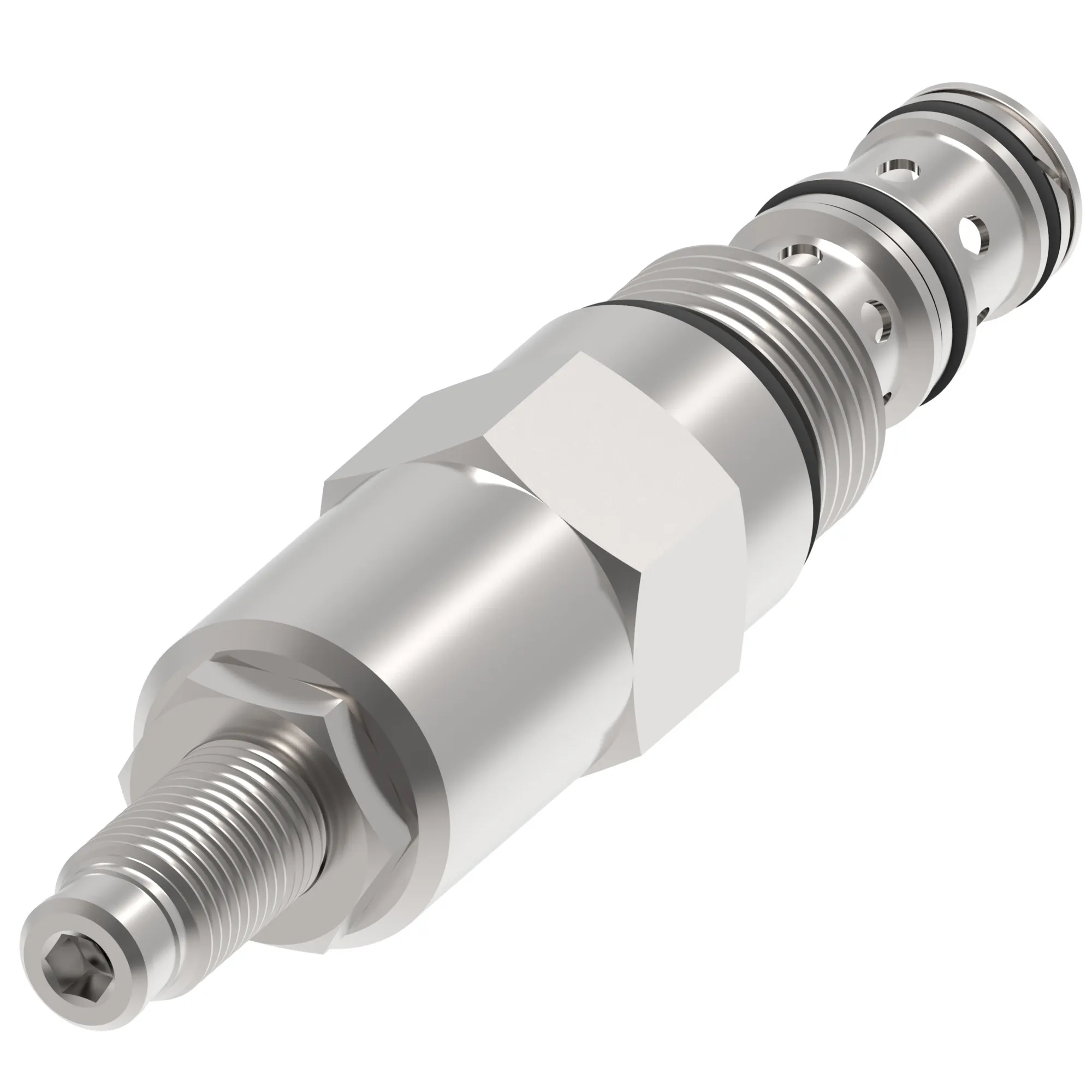

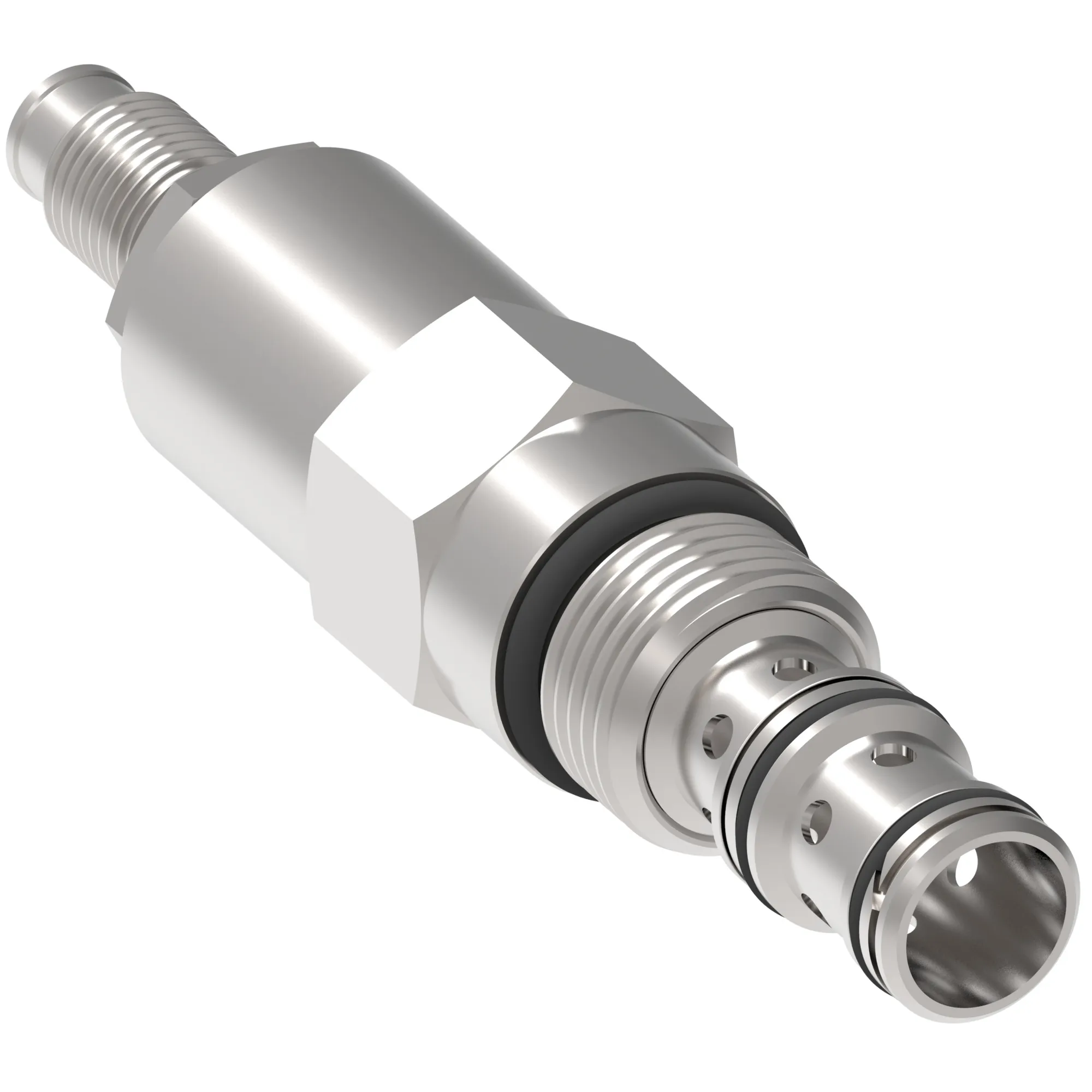

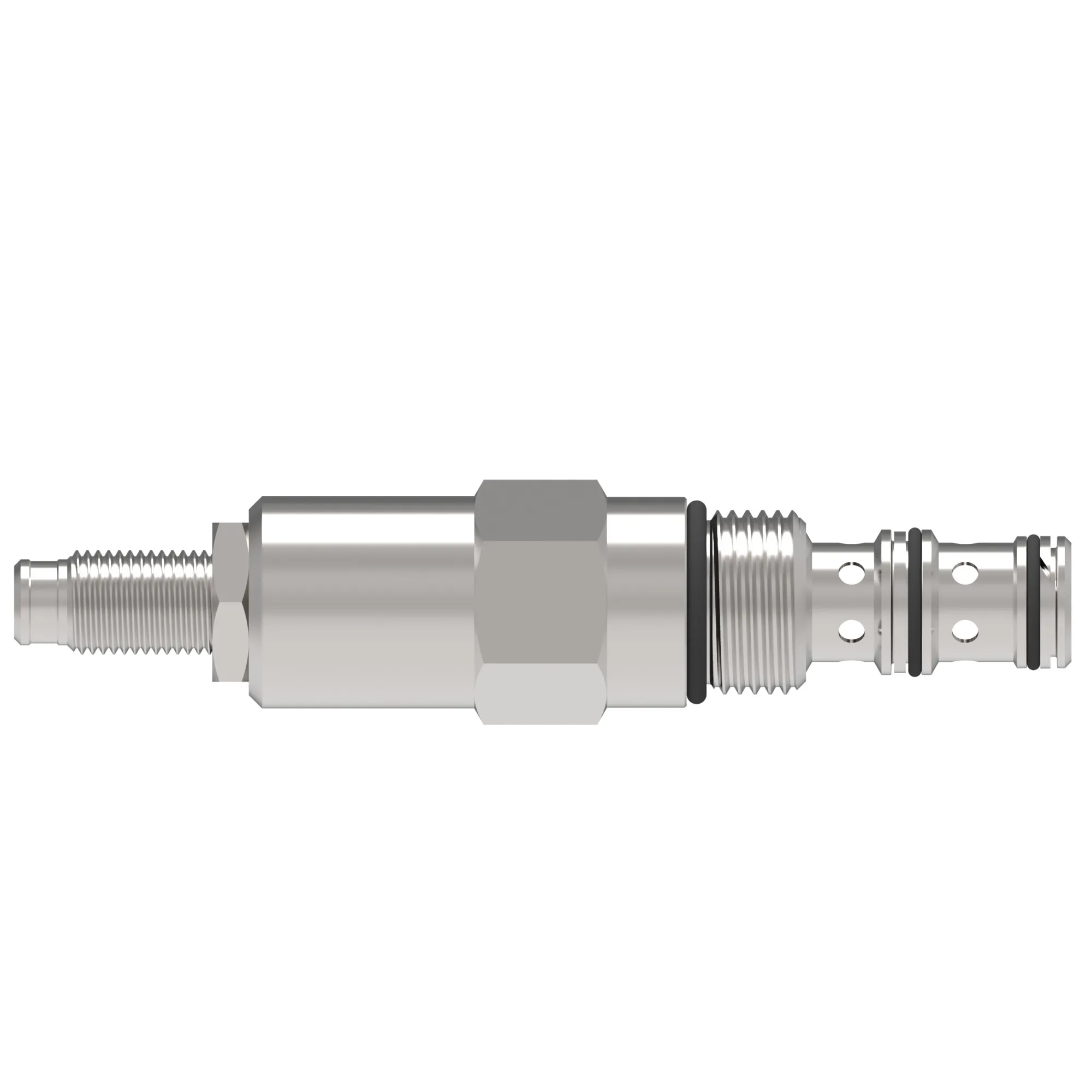

PRV12-12-S-0-30-XXX, PRV12-12-S-0-30-XXX – 02-170773
Specification
| Adjustment Type | Screw |
|---|---|
| Brand | Danfoss |
| Cavity | C-12-3 |
| Factory Set Pressrue Bar | 183.500 |
| Flow Rate Lpm | 114.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Reducing/Relieving |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 1000 cc/min |
| Max Working Pressure Bar | 210.000 |
| Min Working Pressure Bar | 17.000 |
| Model Code 1 | PRV12-12-S-0-30-XXX |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port Size | None |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 350.000 |
| Product Height In | 1.250 |
| Product Height Mm | 31.750 |
| Product Length In | 5.530 |
| Product Length Mm | 140.462 |
| Product Width In | 1.250 |
| Product Width Mm | 31.750 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Spool |
