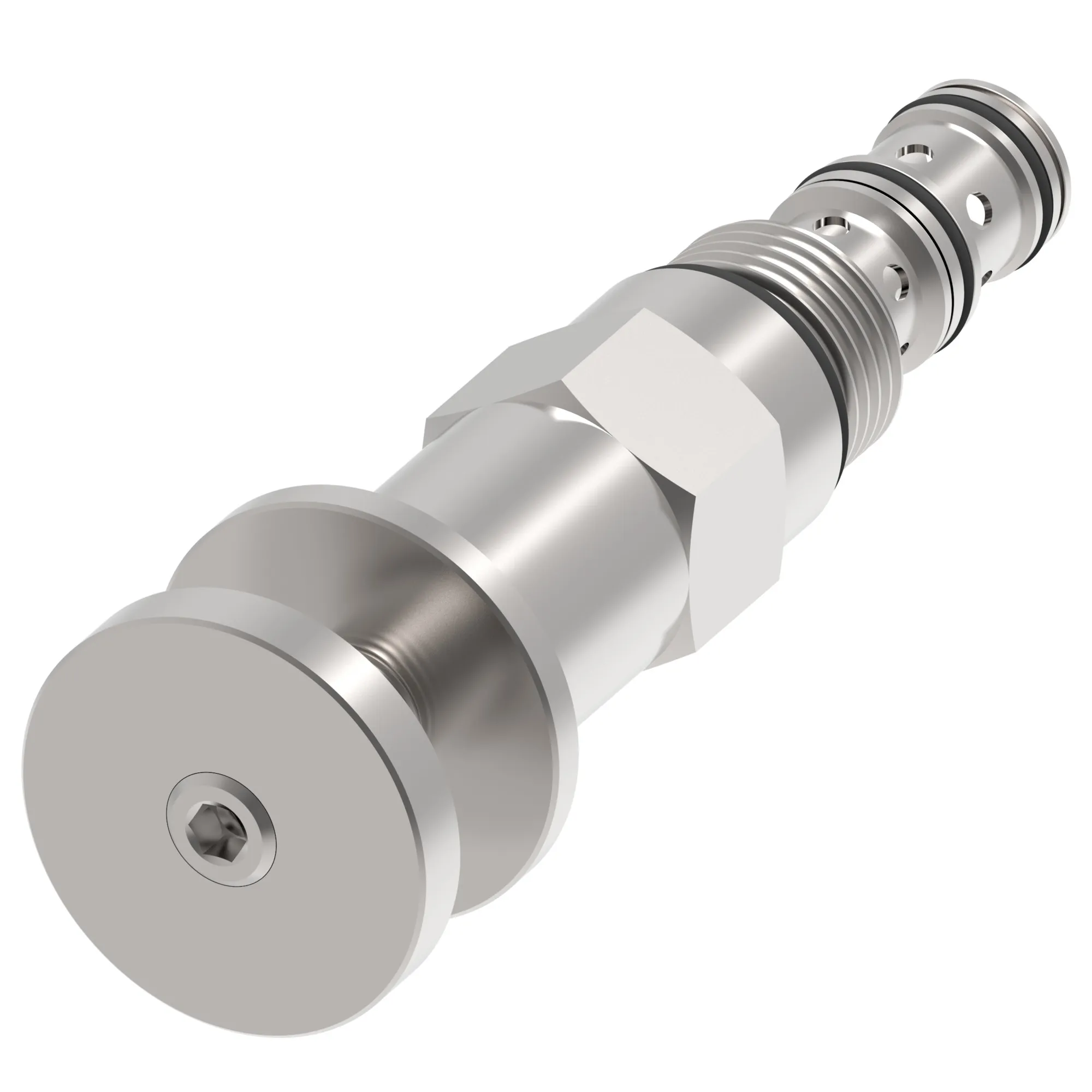

Danfoss (Drives) 02-170465
PRV2-16-K-0-30/10, PRV2-16-K-0-30-10 – 02-170465
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PRV2-16-K-0-30/10, PRV2-16-K-0-30-10 – 02-170465
Specification
| Adjustment Type | Knob |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-16-3 |
| Factory Set Pressrue Bar | 69.000 |
| Factory Set Pressrue Psi | 1002.000 |
| Flow Rate Gpm | 40.00 |
| Flow Rate Lpm | 151.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Reducing/Relieving |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 820 cc/min |
| Max Working Pressure Bar | 210.000 |
| Max Working Pressure Psi | 3053.000 |
| Min Working Pressure Bar | 34.000 |
| Min Working Pressure Psi | 494.000 |
| Model Code 1 | PRV2-16-K-0-30-10 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port Size | None |
| Port Type | Cartridge Only |
| Product Height In | 1.500 |
| Product Height Mm | 38.100 |
| Product Length In | 5.060 |
| Product Length Mm | 128.524 |
| Product Width In | 1.500 |
| Product Width Mm | 38.100 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | Spool |
