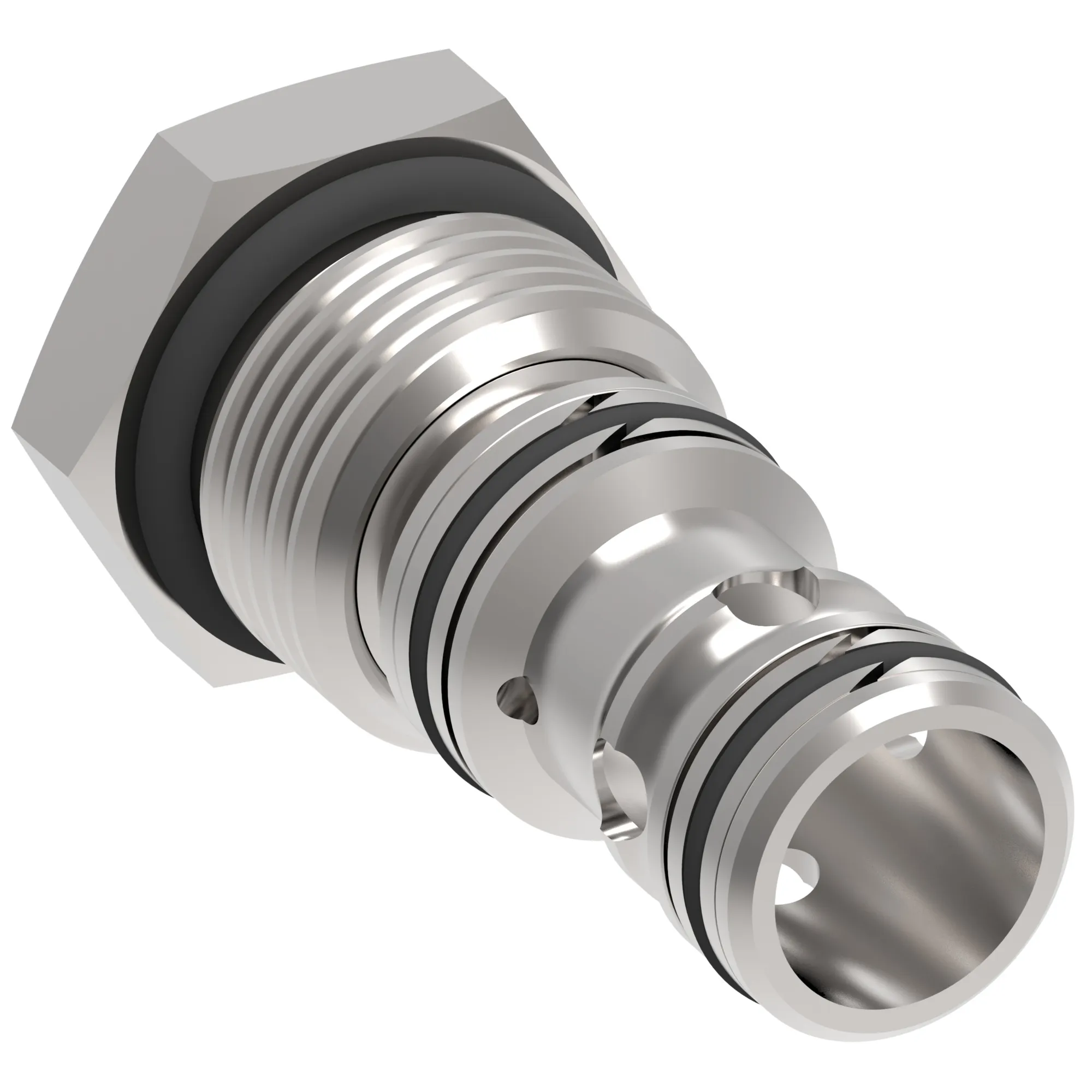

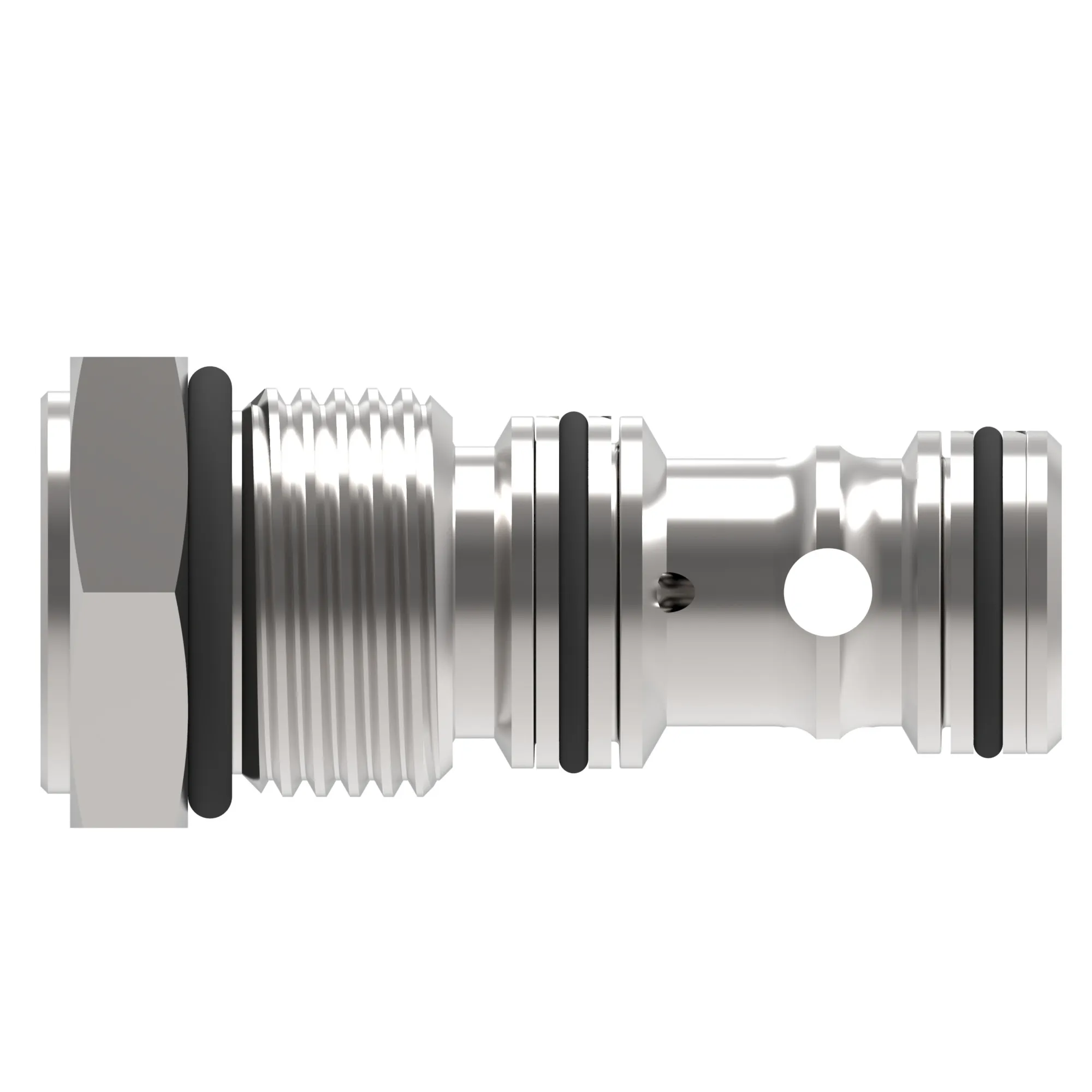

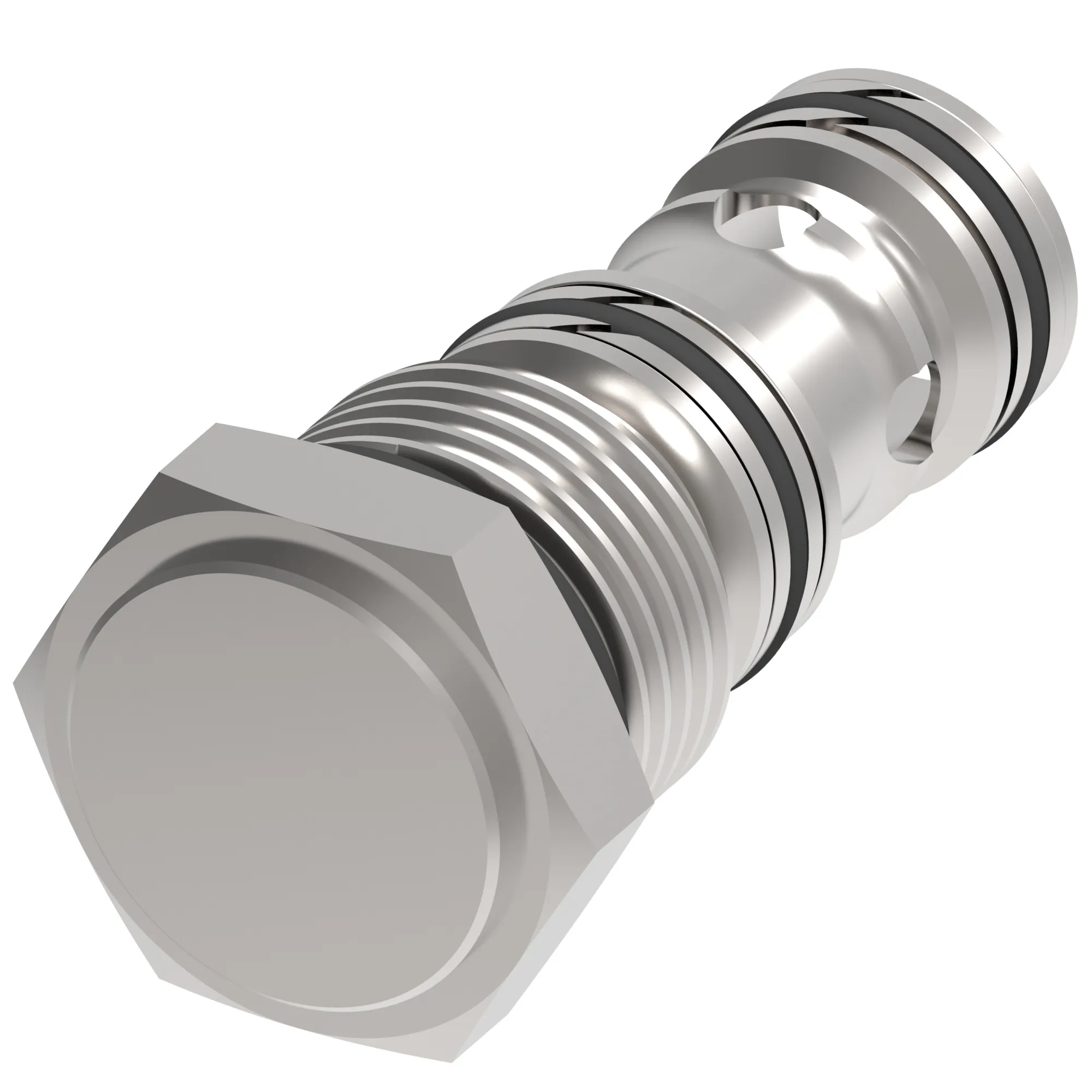

Danfoss (Drives) 02-170285
ADV1-16V-0-100 ACCUM DISCHARGE CART, ADV1-16V-0-100 – 02-170285
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
ADV1-16V-0-100 ACCUM DISCHARGE CART, ADV1-16V-0-100 – 02-170285
Specification
| Adjustment Type | Screw |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-16-3S |
| Factory Set Pressrue Bar | 7.000 |
| Factory Set Pressrue Psi | 100.000 |
| Flow Rate Gpm | 8.00 |
| Flow Rate Lpm | 30.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Accumulator Discharge Valve |
| Housing | No |
| Housing Material | None |
| Installation Type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Max Working Pressure Bar | 4.000 |
| Max Working Pressure Psi | 58.000 |
| Min Working Pressure Bar | 3.000 |
| Min Working Pressure Psi | 44.000 |
| Model Code 1 | ADV1-16V-0-100 |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temperature | -30 C to 90 C (-22 to 194 F) |
| Operation | Pilot operated |
| Pilot Ratio | 100:1 |
| Port Size | None |
| Port Type | Cartridge Only |
| Product Height In | 2.640 |
| Product Height Mm | 67.056 |
| Product Length In | 1.500 |
| Product Length Mm | 38.100 |
| Product Width In | 1.500 |
| Product Width Mm | 38.100 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Viton |
| Special Features | None |
| Style | Poppet |
