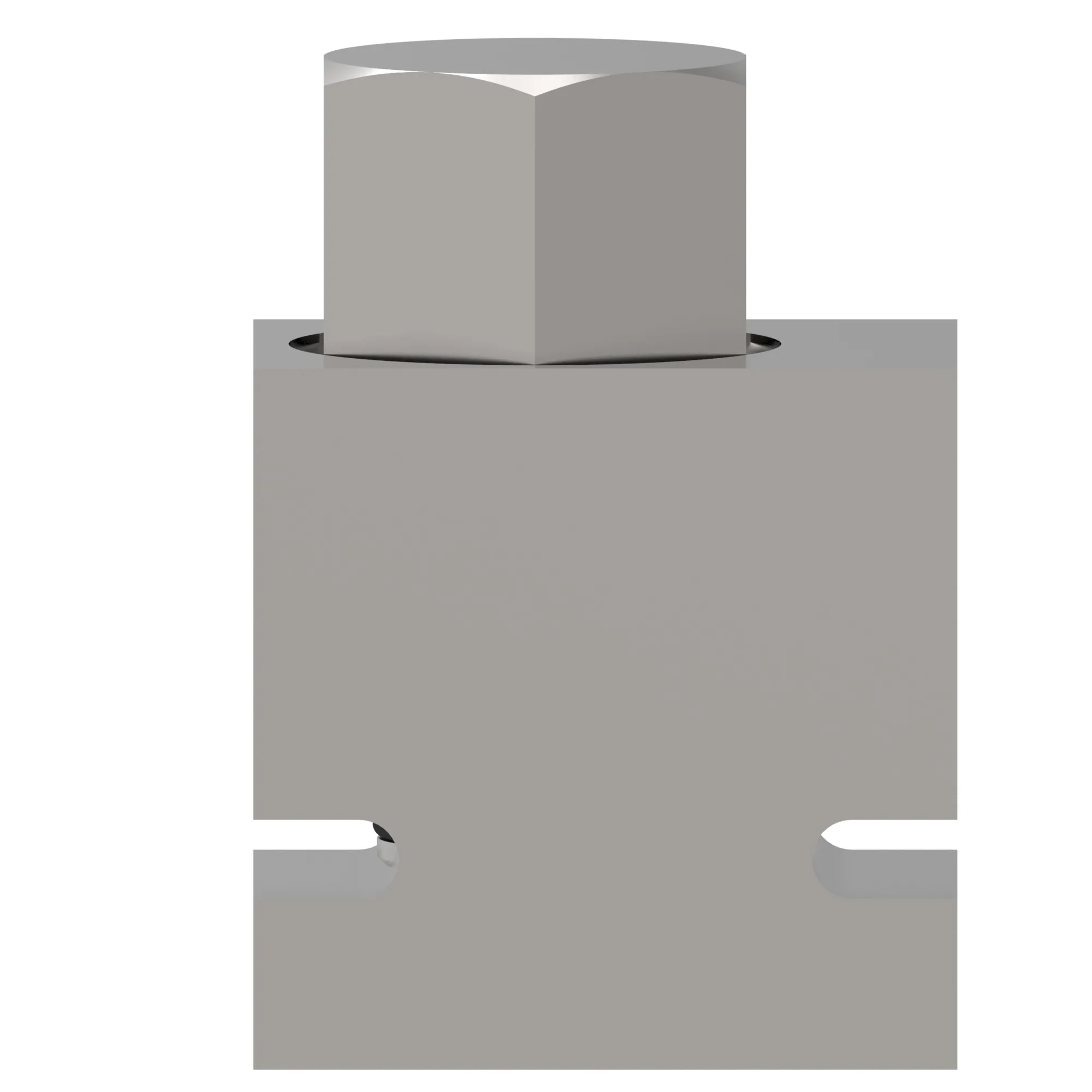

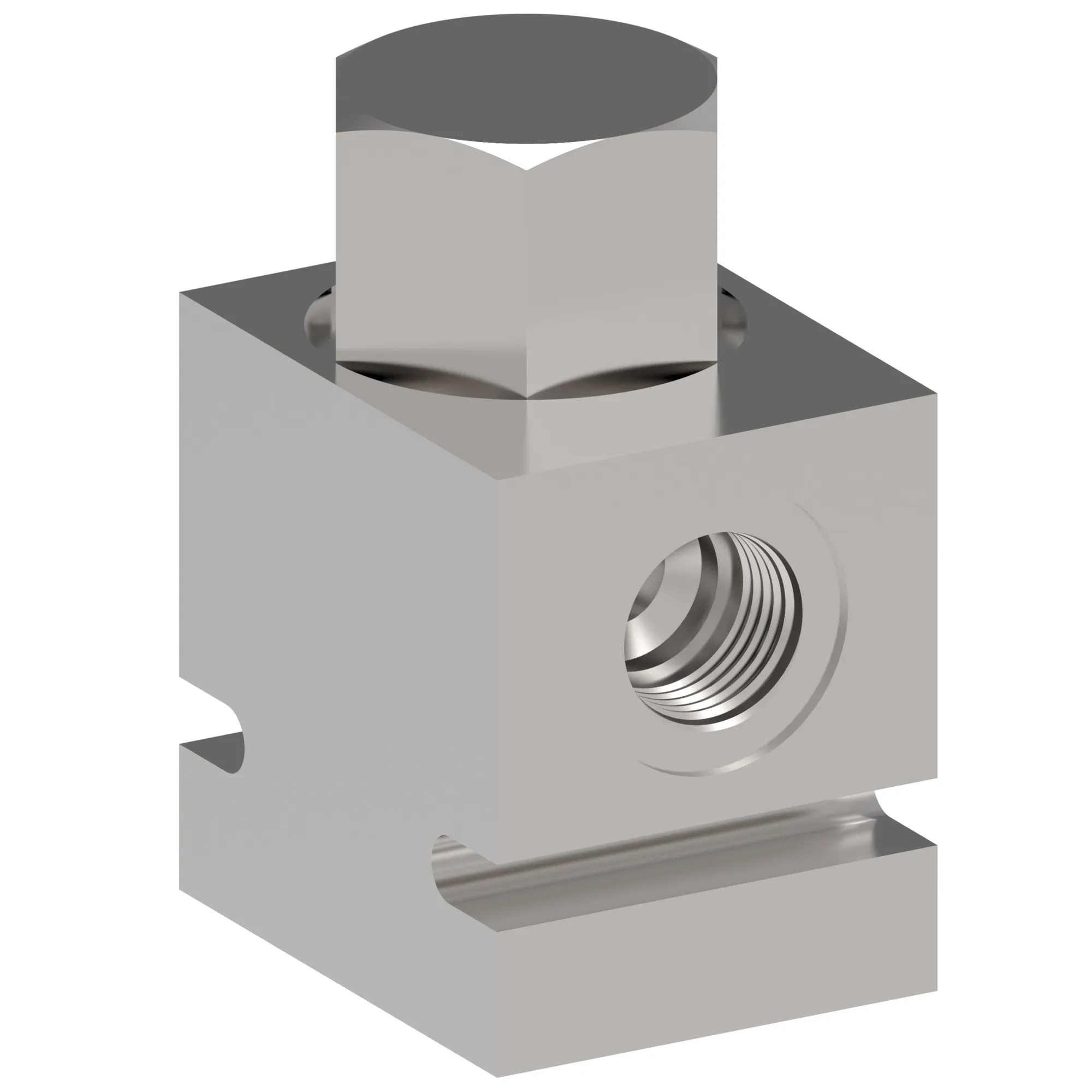

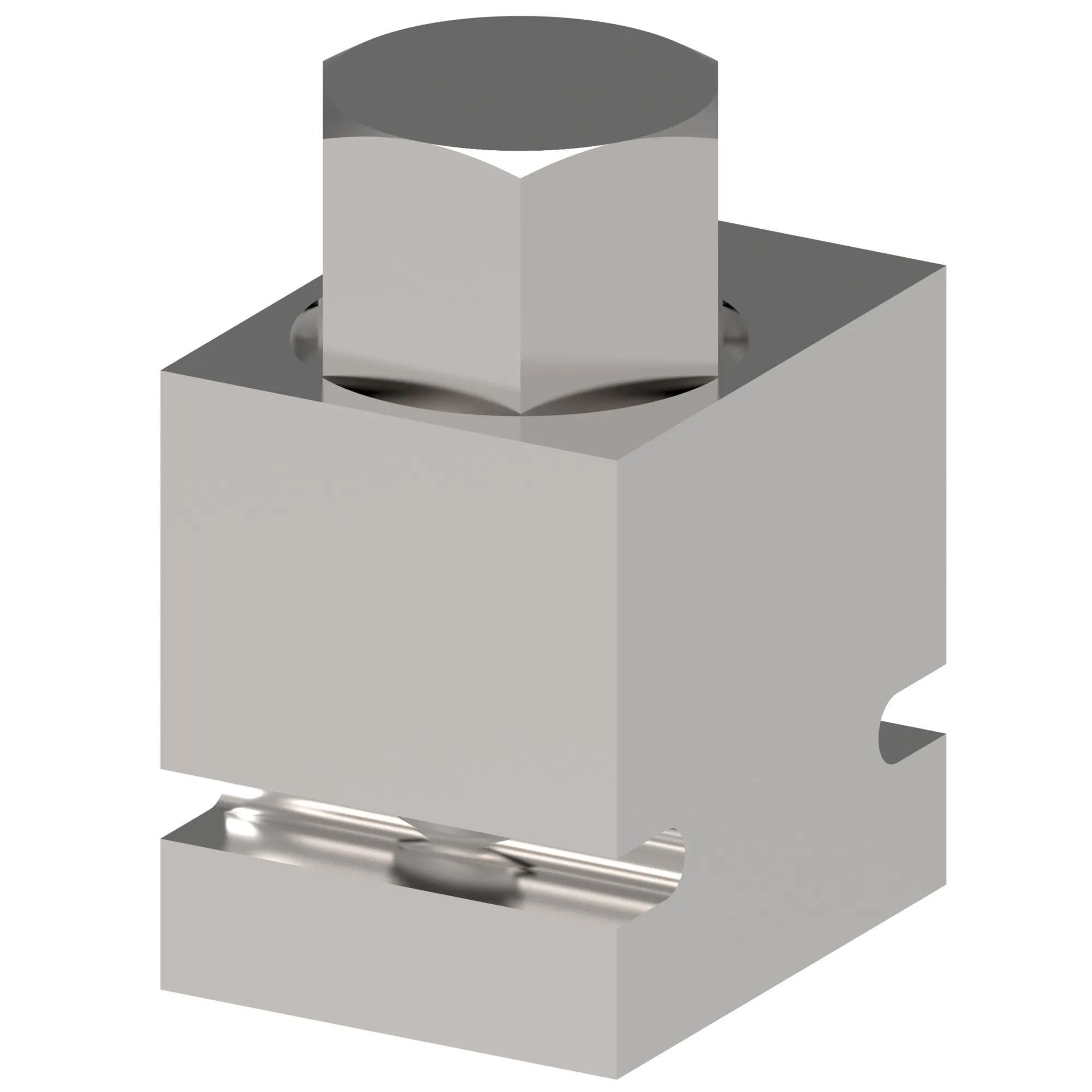

Danfoss (Drives) 02-169572
FR1-20V-F-16H-/60.00, FR1-20-V-F-16H-60.0 – 02-169572
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
FR1-20V-F-16H-/60.00, FR1-20-V-F-16H-60.0 – 02-169572
Specification
| Adjustment Type | Fixed Orifice |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | C-20-2 |
| Factory Set Flow Rate Gpm | 60.000 |
| Factory Set Flow Rate Lpm | 227.00 |
| Flow Rate Gpm | 60.000 |
| Flow Rate Lpm | 227.00 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Restrictive flow reg fixed |
| Housing | Yes |
| Housing Material | Aluminum |
| Installation Type | Line Mounted |
| Maximum Flow Rate Lpm | 227.00 |
| Minimum Flow Rate Gpm | 5.000 |
| Minimum Flow Rate Lpm | 19.00 |
| Model Code 1 | FR1-20-V-F-16H-60.0 |
| Number Of Housing Ports | 2 |
| Number Of Valve Ports | 2 |
| Operating Temperature | -40 C to 120 C (-40 to 248 F) |
| Port Size | 3/8″ |
| Port Type | SAE |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 5.620 |
| Product Height Mm | 142.748 |
| Product Length In | 4.000 |
| Product Length Mm | 101.600 |
| Product Width In | 3.250 |
| Product Width Mm | 82.550 mm |
| Rec Filtration Level | 18/16/13 |
| Seal Type | Viton |
| Special Features | None |
| Spool Seal | No |
| Style | Spool |
| Torque Alu Cavity | 128-155 Nm |
| Torque Steel Cavity | 163-183 Nm |
