Danfoss (Drives) 02-167175
SV4-10-0-0-20DT, SV4-10-O-0-20D-T – 02-167175
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

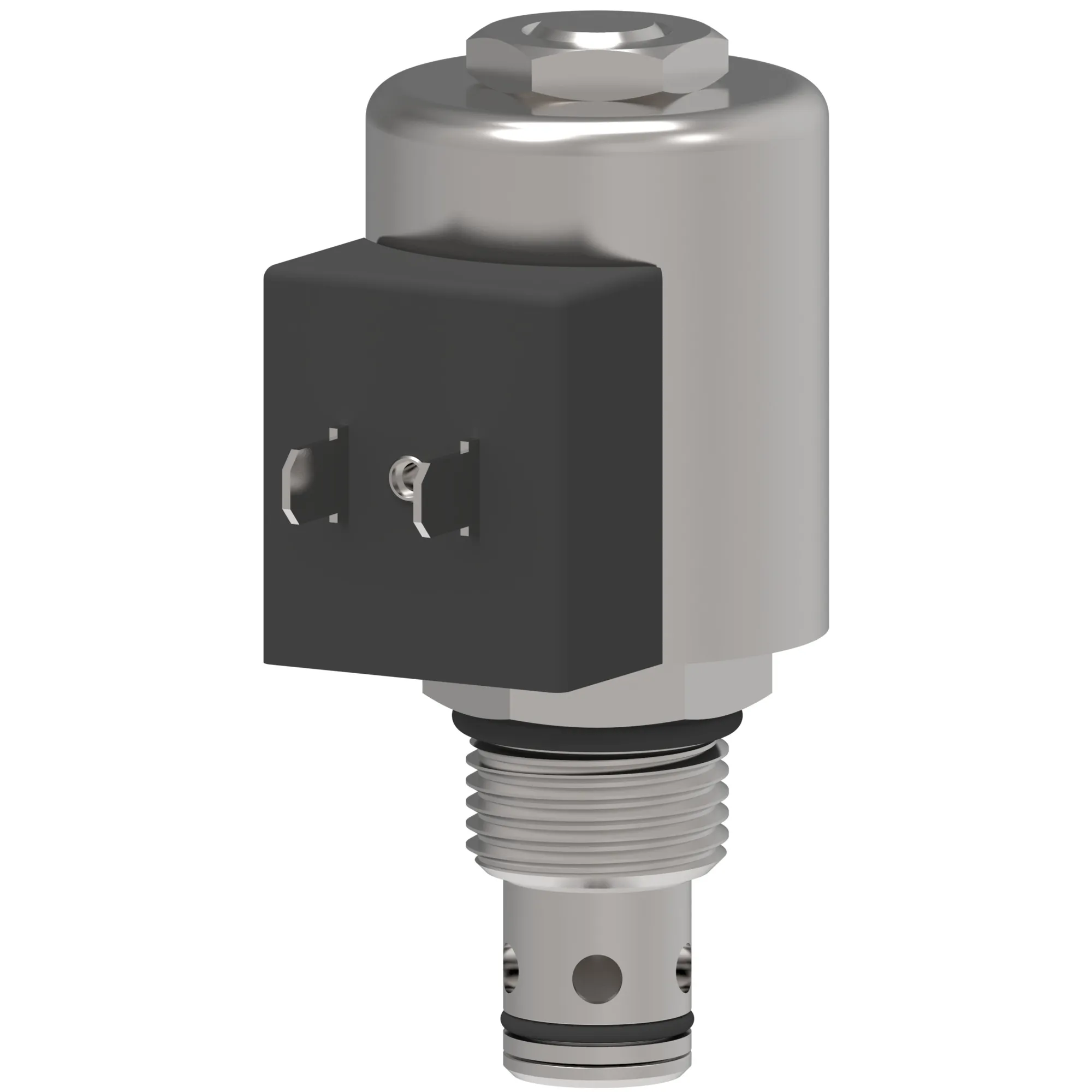

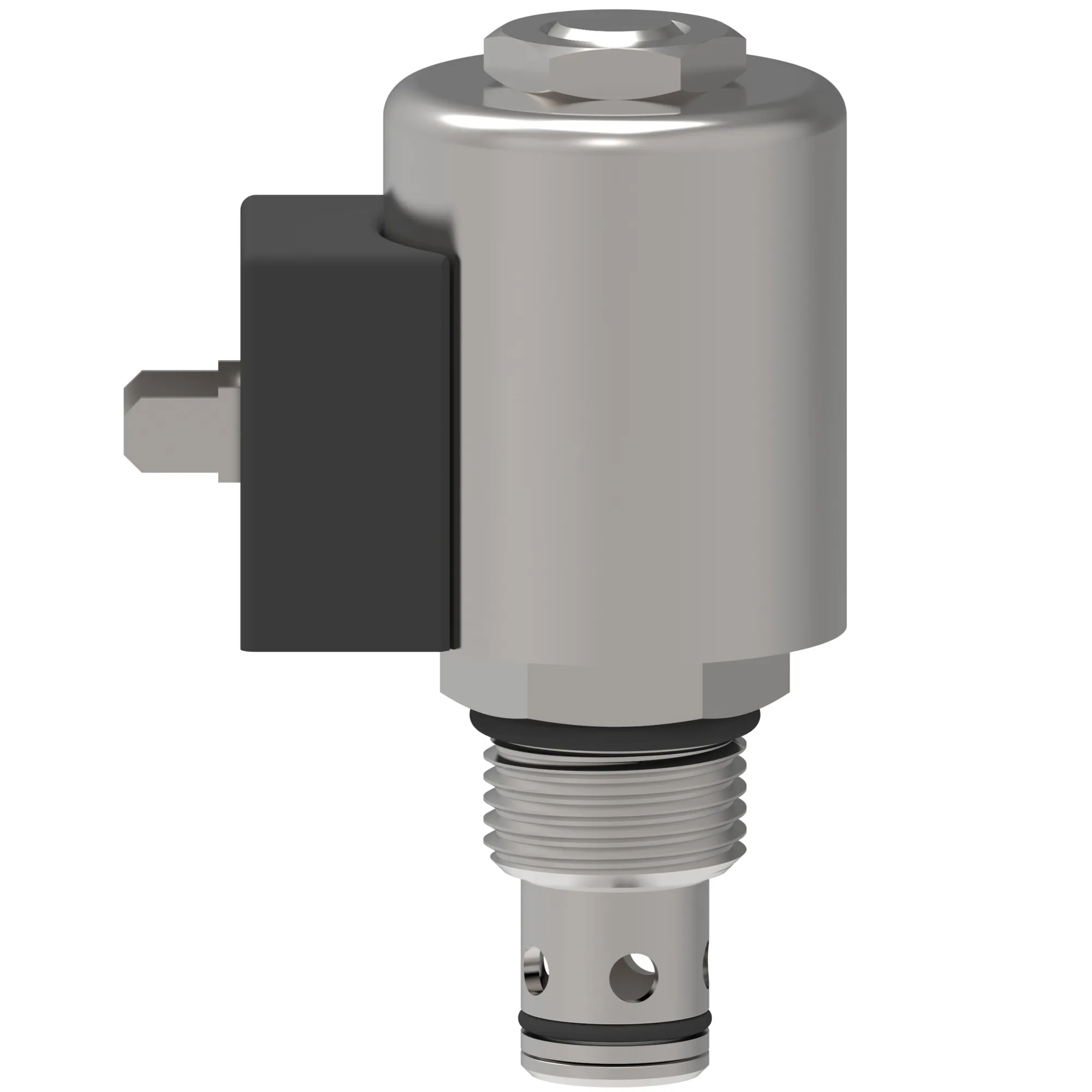

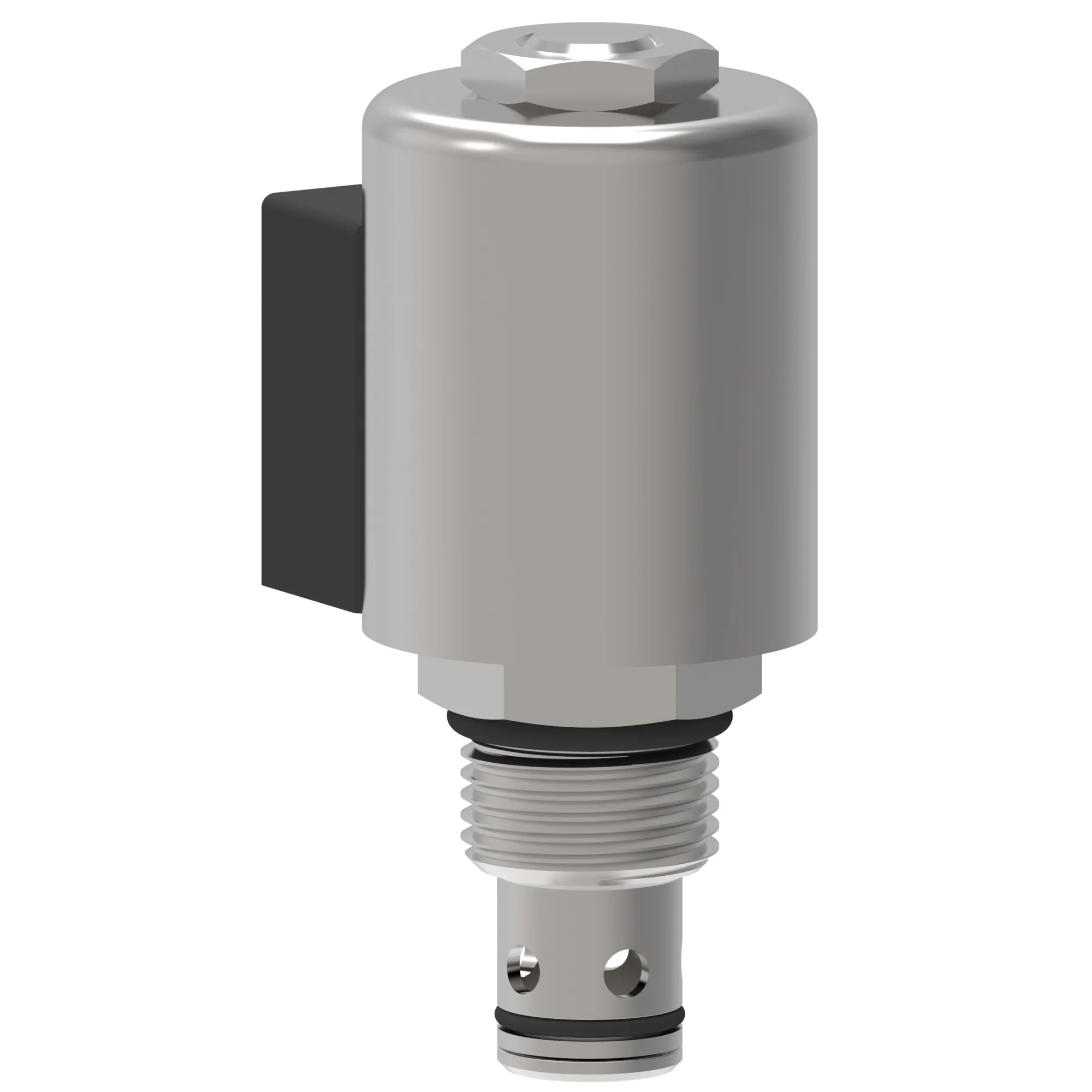

SV4-10-0-0-20DT, SV4-10-O-0-20D-T – 02-167175
Specification
| Brand | Vickers by Danfoss |
|---|---|
| Cavity | C-10-2 |
| Coil Series | J Series |
| Coil Termination | Spade |
| Diode | No |
| Flow Rate Gpm | 6.00 |
| Flow Rate Lpm | 23.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Solenoid Valve |
| Housing | No |
| Installation Type | Screw-in Cartridge |
| Leakage | 8.5 in3/min |
| Model Code 1 | SV4-10-O-0-20D-T |
| Operating Temperature | -40 C to 100 C (-40 to 212 F) |
| Operation | Electrically operated |
| Override Type | None |
| Port Size | None |
| Port Type | Cartridge Only |
| Pressure Rating Bar | 210.00 |
| Pressure Rating Psi | 3000.00 |
| Product Height In | 1.930 |
| Product Height Mm | 49.022 |
| Product Length In | 3.500 |
| Product Length Mm | 88.900 |
| Product Width In | 1.530 |
| Product Width Mm | 38.862 mm |
| Recommended Filtration Level | 18/16/13 |
| Seal Type | Buna-N |
| Special Features | None |
| Style | 4-Way 2-Position, Spool |
| Voltage | 20 V |
| Voltage Type | DC |
